LWN1211FE2Industrial Radio Remote Controller

1 Lee’s Hi‐tech Enterprise. Co., Ltd 1. WARRANTY 1‐1 Warranty Lee’s Hi‐Tech Enterprises Co., Ltd. guarantees that this product meets its published specifications at the time of shipment from the factory. Under proper installation it should work as expected. 1‐2 Warranty period This equipment is warranted against defects in material and manufacturing for a period of one year from the date of shipment. During the warranty period, TELECRANE is responsible for necessary repairs as long as the product can be proved to be defective. For warranty service or repair this product must be returned to a service facility designated by TELECRANE. Buyer will pay shipping charges to TELECRANE while TELECRANE will pay return shipping charges. 1‐3 Excluded Items This warranty does not include consumptive parts such as batteries, fuses, buttons, and relays. Also this warranty does not cover defects caused by improper installation, improper or insufficient maintenance, unauthorized modification, and improper operation, ignorance of environmental specifications, or improper software or interfacing. 1‐4 Remarks ●No other warranty is expressed or implied, except for the above mentioned. ●The remedies provided herein are the buyer’s sole and exclusive remedies. TELECRANE shall not be liable for any direct, indirect, special, incidental or consequential damages. 2. ATTENTION 2‐1 Attention ●Please carefully read the manual before installing and operating this device. ●Due to the complex nature of this equipment it is necessary to read the entire manual before installation. ●Never dismantle the equipment by any unauthorized personnel, or equipment may be damaged. ●This manual is for reference only. Pleases consult your distributor for further assistance. User manual F21‐E2 Remote controller 2 ●The equipment has been strictly tested for quality before delivery from our plant. However, this equipment must not be used in dangerous situations or where damage may result. ●After the operation finished, please close the crane main power source, the receiver power supply. ●Transmitter when not in use, should be placed in a safe place to avoid the accidental touching the buttons by mistake. ●The crane should be equipped with main power relay, limit switch and other safety devices. ●Don’t use equipment during lightening or high electrical interference conditions. ●Make sure that the batteries are in good condition and power for receiver is correct. ●Maintenance should only be done while the crane’s main power is off to prevent electrical shock. ●The contents of this manual may be amended by the manufacturer without notice. ●The manufacturer may introduce new functions to the equipment as necessary; therefore, the descriptions may change. 2‐2 Precautions ●Operating in an industrial facility is relatively dangerous; therefore, operator must have taken the adequate trainings in using F21‐E2 system. ●Those who operate the machine should be healthy and have good judgment in regard to safety. ●Although the F21‐E2 transmitter is so durable and resistant for the fluctuating temperature, it still needs to take care to prevent it from the severe impact or pressure. ●During operation, if the power supply of the transmitter’s batteries is insufficient, the transmitter will send out EMS signal first to de‐energize all of motion relays inside the receiver to stop crane’s moving, and then the LED indicator on transmitter will flash in red constantly. At this moment, the batteries need to be replaced and all of two batteries should be replaced at the same time. ●If the severe interference occurred the equipment should be stopped at once. ●Please take the batteries out when the equipment will not be used for a long time. ●Make sure "Procedures of Emergency" is fully known as following. 3 3. PROCEDURES OF EMERGENCY In case of an Emergency, please follow the steps below and ask the distributor for service immediately. 1. Press "EMS" button. 2. Turn the key to "OFF" position and remove it. 3. Switch off the main power of crane. 4. Advise the distributor to find out the reason. 4. HOW TO START 4‐1 F21‐E2 feature 4‐2 Operation 4‐2‐1 Procedure 1. Put two AA batteries on the release ribbon. And lock the battery cover. Note: Before placing the batteries, make sure the Rotary KEY is on the "OFF" position. 2. Turn the Rotary KEY into START position. (Or depend on the setting mode of power on.) 3. In accordance with the function setting of pushbutton to operate correctly. 4. After the operation, please do the following steps to turn off. a) Press EMS button. b) Turn the rotary key to "OFF" position. c) Remove the batteries when the remote is not going to be used for a long period of time. EMS button LED Indicator Motion button Rotary KEY switch Receiver Wiring diagram 4 4‐2‐2 Transmitter LED indicator There is a 3‐stage power indicating function with LED display. 1."Green color": Sufficient power to operate transmitter. 2."Yellow color": Power is depleting. Operation must be stopped immediately (for example: down the loads to ground) to replace batteries. 3."Red color": Insufficient power. Transmitter will send out an emergency stop signal to the receiver due to insufficient power. Operator should avoid this situation in order to maintain the safety of operation . 5. RECEIVER POWER SELECTION 5‐1 Receiver power transformer voltage selection F21‐E2 receiver provides with 5 kinds of Transformer (24V/48 VAC、48/110 VAC、48/220 VAC、110V/220 VAC、220V/380 VAC) that allows user to choose based on the power input on site and the designated voltage will be set when the receiver is made in factory. 5‐2 Change power supply voltage 1. Disconnect the power of receiver. 2. Remove the connector plug of the transformer from its original position. 3. Insert the connector plug into the new position. 4. Complete the procedure. Transformer Jumper 24/48 VAC 48/110 VAC 48/220 VAC 110/220 VAC 220/380 VAC LO position 24VAC 48VAC 48VAC 110VAC 220VAC HI position 48VAC 110VAC 220V…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.T121025N03 Page A1 / 5 External Photo ( F21-E2 )

g Company : Lee’s Hi-Tech Enterprise Co., Ltd. Model: F21-E2 Product : Industrial Radio Remote Controller Industrial Radio Remote Controller Model No: F21-E2 FCC ID：LWN1211FE2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here Model No: F21-E2 FCC ID: LWN1211FE2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

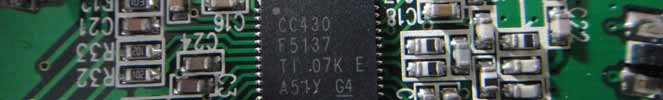

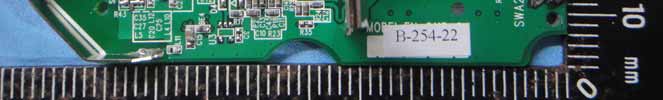

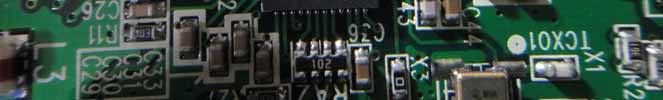

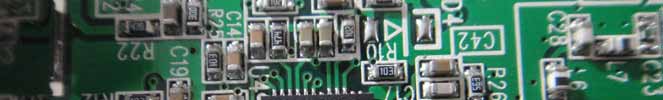

Compliance Certification Services Inc. Report No.T121025N03 Page A2 / 5 Internal Photo ( F21-E2 ) Compliance Certification Services Inc. Report No.T121025N03 Page A3 / 5 Antenna Compliance Certification Services Inc. Report No.T121025N03 Page A4 / 5 Compliance Certification Services Inc. Report No.T121025N03 Page A5 / 5

® LEE’S HI-TECH ENTERPRISE CO., LTD. 8F-1, No.288-2, Hsin-Ya Rd, Chien-Chen Zone (806), Kaohsiung, Taiwan, R.O.C. Tel: +886 7 812 5652 Fax: +886 7 812 5704 E-mail: [email protected] WWW pages:www.telecrane.com.tw Model No.: F21-E2 TYPE: Planar inverted-F antenna (PIFA) FREQUENCY: 904MHz ~ 926.1MHz GAIN(dBi) ≦0 V.S.W.R. ≦1.2 POLARIZATION Elliptical Polarization Power Capability ≦0.3W INPUT CONNECTOR Welding Pcb Radiation Element Material Tinplate Dimension(mm) See Figure1 Impedance 50Ω Weight 3g Figure1 (mm)

Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 32 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2003 TEST REPORT For Industrial Radio Remote Controller MODEL: F21-E2 DATA APPLIES TO: F21-E2-4 BRAND: TELECRANE Issued to LEE’S HI-TECH ENTERPRISE CO., LTD 8F-1, NO.288-2, Hsin-Ya Rd,Chien-Chen Zone(806), Kaohsiung, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: December 14, 2012 Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 2 / 39 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 13, 2012 Initial Issue ALL Sunny.Chang 01 November 30, 2012 Update report Page 5-6; 13; 25-39 Sunny.Chang 02 December 14, 2012 Update test dataPage 5; 27-30 Sunny.Chang Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 3 / 39 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................7 3.1 EUT CONFIGURATION ...................................................................................7 3.2 EUT EXERCISE ...............................................................................................7 3.3 GENERAL TEST PROCEDURES ....................................................................7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................8 3.5 DESCRIPTION OF TEST MODES...................................................................8 4. INSTRUMENT CALIBRATION .............................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................9 4.2 MEASUREMENT EQUIPMENT USED ............................................................9 4.3 MEASUREMENT UNCERTAINTY .................................................................10 5. FACILITIES AND ACCREDITATIONS ...............................................................11 5.1 FACILITIES ....................................................................................................11 5.2 EQUIPMENT ..................................................................................................11 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................12 6. SETUP OF EQUIPMENT UNDER TEST ............................................................13 6.1 SETUP CONFIGURATION OF EUT ..............................................................13 6.2 SUPPORT EQUIPMENT................................................................................13 7. FCC PART 15.249 REQUIREMENTS ................................................................14 7.1 20 DB BANDWIDTH.......................................................................................14 7.2 BAND EDGES MEASUREMENT ...................................................................17 7.3 DUTY CYCLE.................................................................................................18 7.4 SPURIOUS EMISSION..................................................................................20 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................36 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................37 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 4 / 39 1. TEST RESULT CERTIFICATION Product: Industrial Radio Remote Controller Model: F21-E2 Data Applies To: F21-E2-4 Brand Name: TELECRANE Applicant: LEE’S HI-TECH ENTERPRISE CO., LTD 8F-1, NO.288-2, Hsin-Ya Rd,Chien-Chen Zone(806), Kaohsiung, Taiwan, R.O.C. Manufacturer: LEE’S HI-TECH ENTERPRISE CO., LTD 8F-1, NO.288-2, Hsin-Ya Rd,Chien-Chen Zone(806), Kaohsiung, Taiwan, R.O.C. Tested: October 30, 2012 ~ December 14, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2003 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 5 / 39 2. EUT DESCRIPTION Product Industrial Radio Remote Controller Model Number F21-E2 Data Applies To F21-E2-4 Brand Name TELECRANE Received Date October 25, 2012 Operating Frequency 904.0MHz to 926.1MHz Transmit Peak Power 92.86 dBμV/m Data Rate 4.8kbps Number of Channels 160 Channel Type of Modulation FSK Power Supply 3Vdc Antenna Type PIFA antenna Gain: 0 dBi Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: F21-E2 ). Therefore, the testing Lab. just g…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 37 / 39 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 38 / 39 Compliance Certification Services Inc. FCC ID: LWN1211FE2 Report No.: T121025N03-RP1 Page 39 / 39 RADIATED EMISSION SETUP
