LWNF-23IND. RADIO REMOTE CONTROLLER

F-23 Series Industrial Remote Controller Operating Manual TELECRANE Lee’s Hi-Tech Ent. Co., Ltd. 1 Warranty Lee’s Hi-Tech Enterprises Co., Ltd. guarantees that this product meets its published specifications at the time of shipment from the factory. Under proper installation it should work as expected. Warranty Period This equipment is warranted against defects in material and manufacturing for a period of one year from the date of shipment. During the warranty period, TELECRANE is responsible for necessary repairs as long as the product can be proved to be defective. For warranty service or repair this product must be returned to a service facility designated by TELECRANE. Buyer will pay shipping charges to TELECRANE while TELECRANE will pay return shipping charges. Excluded Items This warranty does not include consumptive parts such as batteries, fuses, buttons, relays. Also this warranty does not cover defects caused by improper installation, improper or insufficient maintenance, unauthorized modification, improper operation, ignorance of environmental specifications, or improper software or interfacing. Remarks No other warranty is expressed or implied, except for the above mentioned. The remedies provided herein are the buyer’s sole and exclusive remedies. TELECRANE shall not be liable for any direct, indirect, special, incidental or consequential damages. Attention Never dismantle the equipment by any unauthorized personnel, or equipment may be damaged. After finishing operation of TELECRANE radio controller shut off main power to the crane, power to receiver, and remove transmitter key. If transmitter’s power is controlled by “rotary key switch”, then need turn the key to “OFF” position and remove it. The crane should be equipped with main power relay, limit switch and other safety devices. Precautions ( I ) To avoid any interference, the receiver must be placed as far as possible from frequency inverter and power cable as possible. Precaution ( II ) The receiver should be installed on the top of the electrical control box. Do not mount the receiver inside the electrical control box. Emergency In case of Emergency, please follow the procedure below and contact the distributor for service immediately. 1. Press EMS button of transmitter. 2. Remove the key from transmitter. 3. Switch off the main power of crane. 4. Contact distributor nearest you immediately. F-23 Operation Instruction 2 F-23 Standard Accessories When you get a standard and full set of F-23 system, it includes the following item.: Remarks (1). Hamming Distance------------- 4 (2). I.D. Code--------------------------More than 42 billion ID Code(32bit) (3). Channel Spacing----------------267.5KHz (1)Transmitter, one unit. (2)Receiver, one unit. F-23 Operation 3 F- 23Transmitter’sparts Remarks (1). Power----------------------Two 1.5Volt Alkaline Batteries AA Size (2). Dimensions----------------218 60 60mm (3). Weight---------------------about 365g W/batteries Emergency stop LED indicator Pushbuttons 4 F-23 Receiver’s parts Remarks (1). Input Voltage------------------------------110VAC 50/60Hz 10% (2). Output Relays-----------------------------10A/250VAC. (3). Dimensions---------------------------------290 230 70mm L W H (4). Weight--------------------------------------about 1900g W/O wire cable How to use 1. Insert 2 AA-size alkaline batteries into battery compartment. 2. Insert magnetic key or rotary key and switch to ON position. 3. Follow the Power-On procedure to energize the main relay inside receiver. 4. Operate normally according to the function settings have been done. Output cable 5 5. After operation, please proceed as following: (1) Press EMS pushbutton /mushroom, (2) remove the key and keep it in safe place, (3) Switch off the equipment’s main power (e.g. Crane) How to change quartz from transmitter/ receiver & identify frequency quartz It’s simple to change frequency of the new F23 series. The system’s frequency can be changed simply by replacing correspondent frequency quartz in both the TX and RX. Note: For replacing the new crystal, there are 2 types of frequency are available (VHF & UHF). Do not replace the VHF crystal unit into UHF PC Board. The indication of frequency type (VHF or UHF) is shown on the PC Board with a check mark “v” Instructions: (1). Pry up the crystal unit with a flat screwdriver (2). Remove the crystal unit from the system. (3). Use a needle nose pliers to straighten both pins of the new crystal unit. (4). Insert the new crystal unit vertically into the PC board. (5). Press the new crystal down into the socket. Note: the frequency will be different when plugging the same crystal into the TX or RX, for example, ID Code Remote Setting ID Code Remote setting allows you to overwrite the receiver ID code if Receiver or Transmitter is damaged. Before remote setting, one must make sure both TX and RX are in same frequency channel. By using remote setting, receiver ID code will be overwriting by the transmitter. Prior to remote setting, please follow the instruction below, (a) Make sure both TX and RX are same model and in the same frequency channel. (b) To avoid interference during remote setting, place the transmitter to RX as close as possible. (c) Turn off RX power completely (MAIN SWITCH) for 20 seconds and turn it on again. (d) Complete the remote setting within 4 minutes after turning on the RX. The RX will NOT accept the remote setting signal after 4 minutes. Instructions: (1) Depress the TX Emergency Stop (For those systems without a Mushroom style stop button that stays depressed, please hold down the “STOP” pushbutton) (2) Press UP pushbutton and hold it. (3) Press DOWN pushbutton 4 times and release “STOP & UP” pushbuttons when red LED flash. (4) Start the system as usual. Note: (1) By follow the procedures above, all the radios of same model within its radio operating distance, might be affecting by ID code remote setting. (2) ID code remote setting only transmits data of ID cod…

Text truncated - open the document above for the full version.

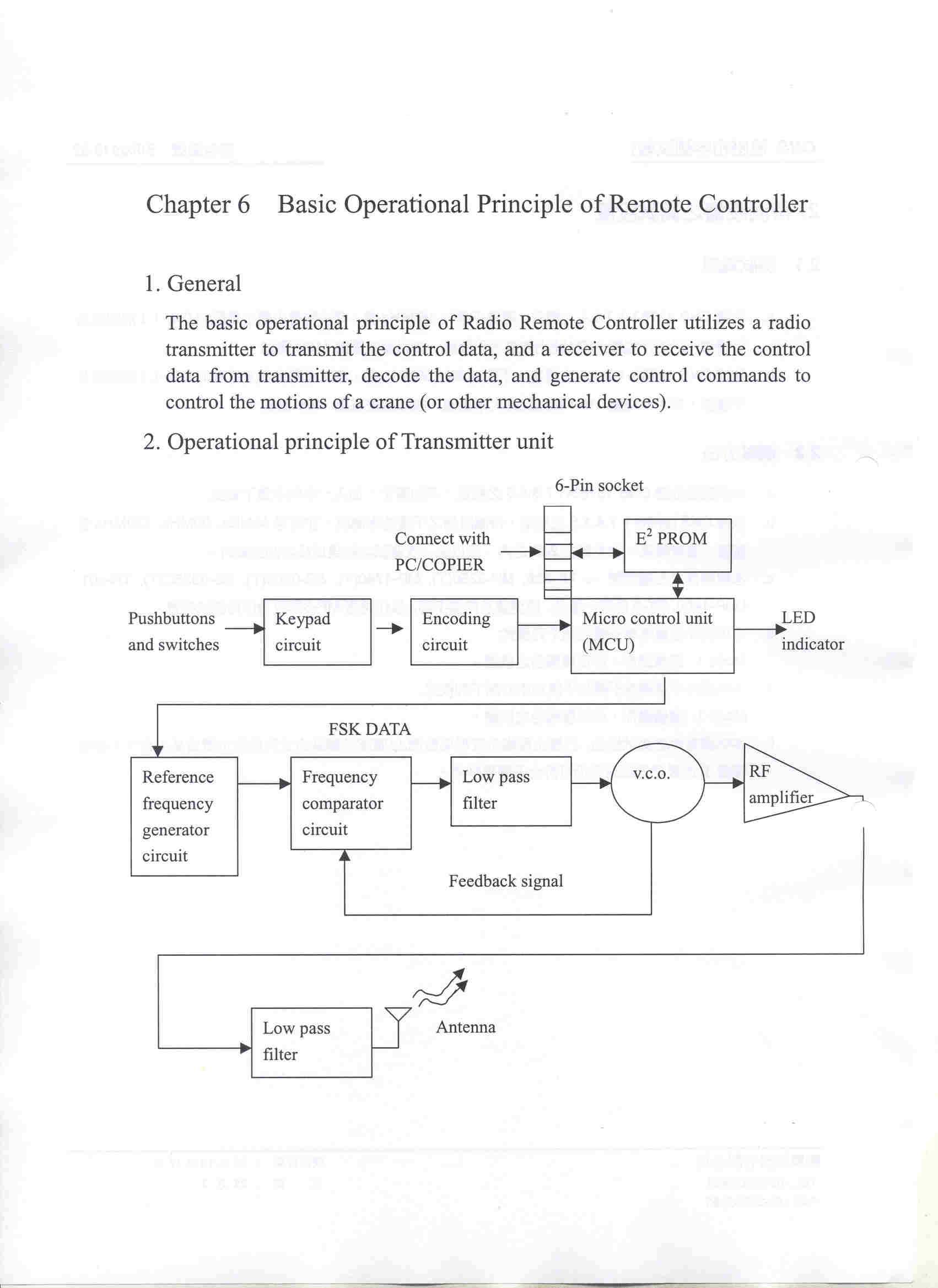

1 2 34 ABCD 4 3 2 1 D CBA 11 1.0 TX_BLOCK.Sch MADE: AP PROVE CHECK L EE' S HI - TECH ENT C O . , LTD. File:PROJRCT: C ircuit _Revis ion: SIZE: PCB_NO: A4 Transmitter_Block_Diagram F-23 RUSSELL RUSSELL DAT E :PAGE: OF DIAGRAM: DE SIGN: AUG-7-2003 1/2 PD ANTENNA 9 - 14MHz 4.0MHz Encode EEPROM XTAL 1/64 VCO AMP LF PWR CTRL Lo w Po we r FSK_DATA MCU TX IC Pus hButtons LED Writter EN-2727-2 LPF about 1mW Transmitter Block Diagrams EMS KEY

FCC ID: LWNF-23 Number 1 FRONT SIDE OF EUT FCC ID: LWNF-23 Number 2 REAR SIDE OF EUT

FCC ID: LWNF-23 Label Location

Lee's High-Tech Ent Co Ltd. MODEL: F-23 FCC ID: LWNF-23 Canada Complies With Rss210 ICXXXXXX-YYYYYYYY

FCC ID: LWNF-23 Number 1 MECHANICAL CONSTRUCTION FCC ID: LWNF-23 Number 2 MECHANICAL CONSTRUCTION FCC ID: LWNF-23 Number 3 MECHANICAL CONSTRUCTION FCC ID: LWNF-23 Number 4 MECHANICAL CONSTRUCTION FCC ID: LWNF-23 Number 5 FRONT SIDE MAIN BOARD FCC ID: LWNF-23 Number 6 REAR SIDE MAIN BOARD

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA 1 1 EN-2727-2 2.0 Copy of EN-2 727-2.Sch_(UHF) MADE: APPRO VE CHECK LEE'S HI-TECH ENT CO., LTD. Fil e: PROJRCT: Circuit_Revision: SI ZE : PCB_NO: A3 ENCODE&Transmitter F-23 RUSSELL RUSSEL L DATE: P AGE: OF DI AGRAM: DESIGN: JUNE- 17-2003 STB 1 DAT A 2 CLK 3 Q1 4 Q2 5 Q3 6 Q4 7 QS 9 Q' S 10 Q8 11 Q7 12 Q6 13 Q5 14 OE 15 U2MC40 94 / BDR2 C810P C910P C1010P STR94DAT 9 4CLK94 VCC D1 RLS4148 D2 RLS4148 D3 RLS4148 D4 RLS4148 D5 RLS4148 D6 RLS4148 D7 RLS4148 D8 RLS4148 D9 RLS4148 D1 0 RLS4148 D1 4 RLS4148 D1 5 RLS4148 UR3DR4EW TK12B3W-4050 D1 8RLS4148D1 9 RLS4148 S D1 1 RLS4148 R0 D2 0 RLS4148 D2 1 RLS4148 N D2 2 RLS4148 D2 3 RLS4148 R1 D2 4 RLS4148 D2 5 RLS4148 R2 LINE1LINE2LINE3LINE4LINE1LINE2LINE3LINE4LINE1LINE2LINE1LINE2 LINE1LINE2LINE3LINE1LINE2LINE1LINE2LINE1LINE2 D1D2D3D4D5D6D7D8 TEST 1 VCC 2 P2. 5/ROSC 3 VSS 4 XOUT 5 XIN 6 /RST/NMI 7 P2. 0/ACLK 8 P2. 1/INCLK 9 P2.2/CAOUT/TA0 10 P2.3/CA0/TA1 11 P2.4/CA0/TA2 12 P1. 0/TACLK 13 P1. 1/TA0 14 P1. 2/TA1 15 P1. 3/TA2 16 P1.4/SMCLK/TCK 17 P1.5/TA0/TMS 18 P1.6/TA1/TD1 19 P1.7/TA2/TD0/TD1 20 U1MSP430 STR94DAT 9 4CLK94LINE1LINE2LINE3LINE4GL E DEMSKE Y TK7 B3W-4050 S14 GR-501AT-1013 R8470K R7470K KE YEMS VCC TEST PWR_CTL VCC C4104 R11M Y14M C35P C25P RST/NMIFSKDAT A LOW_POWER RLED LINE1LINE2LINE3LINE4 R668K R568K R468K R368K R1218K PDWN 1 LPD 2 VS 3 LF 4 GND 5 ASKDAT 6 FSKDAT 7 CL KOUT 8 CLKDIV 9 COSC 10 FSKOUT 11 FSKGND 12 PAGND 13 PAOUT 14 FSEL 15 CSEL 16 U3TDA5100 PWR_CTLLOW_POWER VCC C11330P C5104 C2047P R114.7K FSKDAT A Y2CRYSTAL C156P C1933P C123.5P L1 180nH L239nH C1727P C182PF C136P L3 27nH C146P C16102 12 JP2SIP2-2. 0-90 R210K VCC C6103 BT1 SIP2-2. 0-90(3V) + C110u/25V BAT VCC 123456 JP1SIP6-2. 0-180 TESTRST/NMIRLEDGL E D VCC C7103 VCC R1330K 1 1 2 2 3 3 S9 3003. 0451 1 1 2 2 3 3 S8 3003. 0451 1 1 2 2 3 3 S63003.0451 1 1 2 2 3 3 S5 3003.0451 1 1 2 2 3 3 S4 3003.0451 1 1 2 2 3 3 S33003.0451 1 1 2 2 3 3 S113003.0451 1 1 2 2 3 3 S23003.0451 1 1 2 2 3 3 S103003.0451 1 1 2 2 3 3 S13003.0451 R1410k C21103 C22103 C25100P C26100P C27100P C28100P C23103 C24103 R150R/0603 S12SKHW AC(6. 0 ) R16470K VCC OUT 1 VDD 2 VSS 3 N. C. 4 N. C. 5 U4 S-80 81 5CNMC-B8 A-T 2 + C29? R17100R VCC R91.2KR102.2K RLEDGL E D LED1L T O3 62 -25 -D61 ANT11.5T UHF BAND

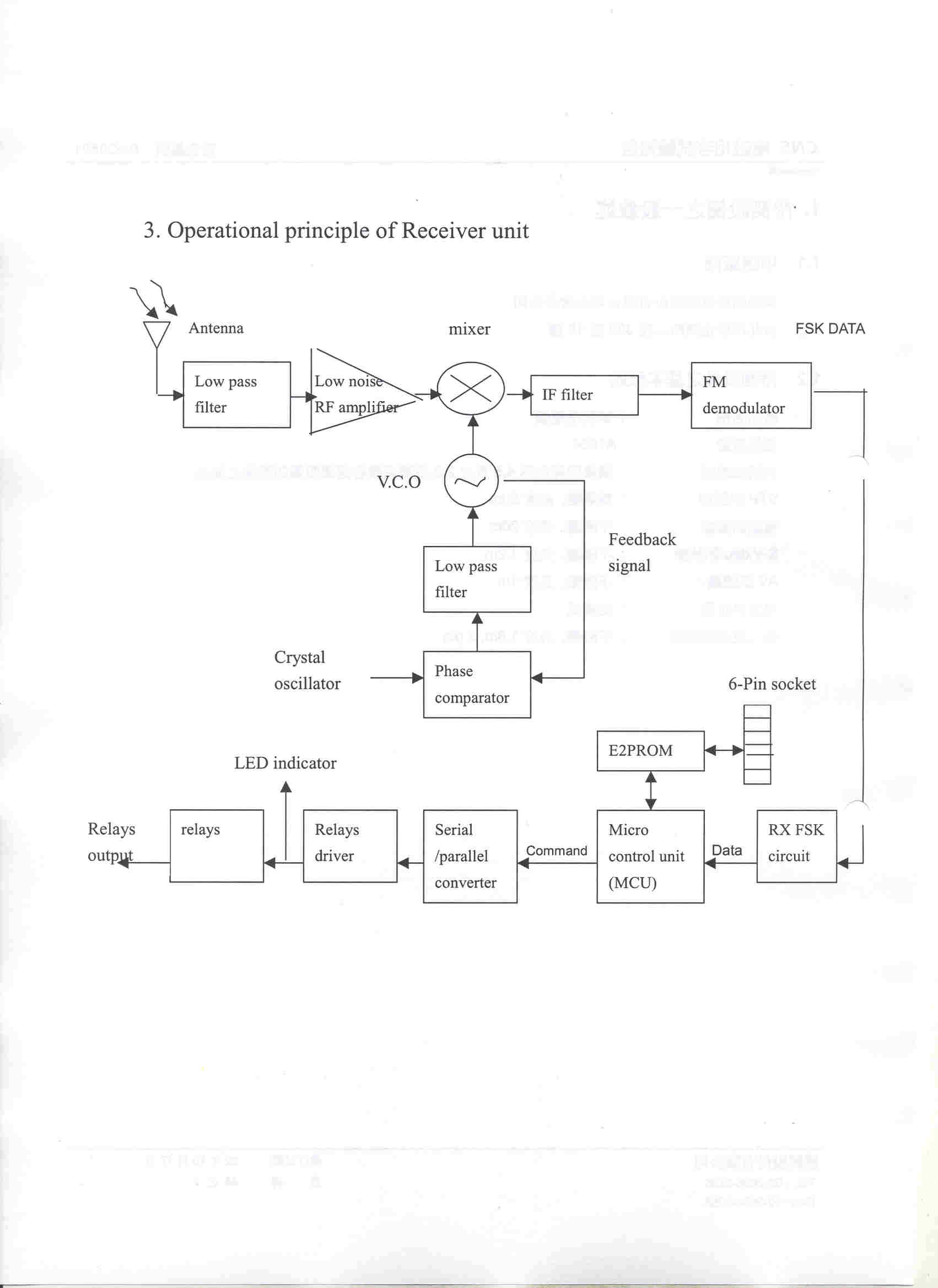

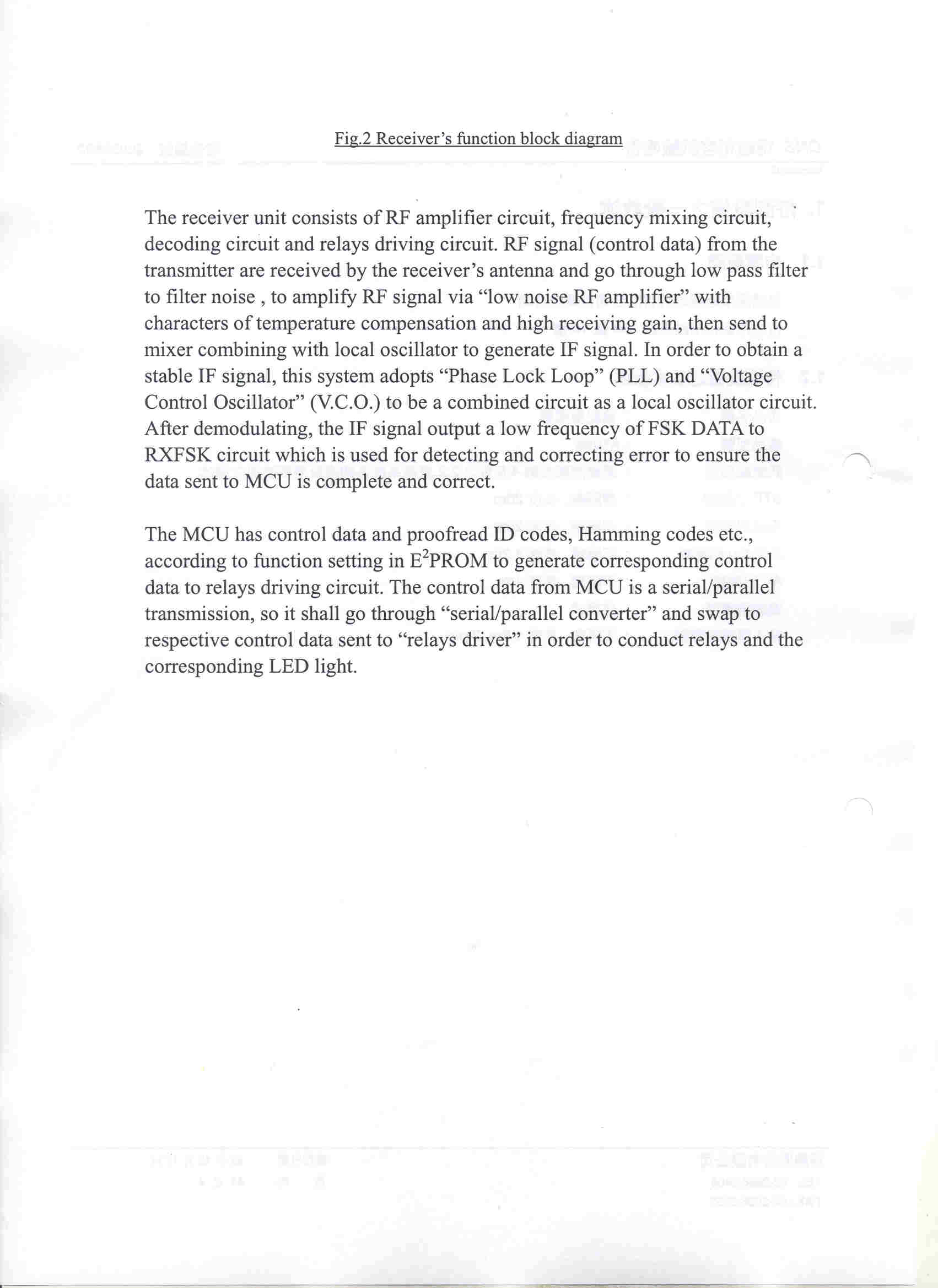

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA 1 2 RY-2828-3~1/2 3.0 D:\ \RY-2828\RY-2828-3.DDB - Documents\MCU.Sch MADE: APPRO VE CHECK LE E'S HI-T EC H E NT CO. , LT D. Fil e :PROJRCT: VE R: SIZE: NO: A3 MCU&DRIVER F-23 JANE RUSSELL DATE: P AGE: OF DI AGRAM: DESIGN: JUNE- 16-2003 123456789 10111213141516 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33343536373839404142434445464748 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 U1 0 MSP430F135 3.3V C45104 R67100K Y14M C485P C495P FSKCLKTXDWD CLK94DAT 9 4STR94 RLEDGL E D RXDFSKDAT A LE38DA3 8CK38LD38 PFO SQPROGID 3.3V 3.3V TEST RESET R0 STOP DAT ACLKSQ 12V R7510K Q9 2SC2412 R7410K C46100P 3.3V R7710K Q1 0 2SC2412 R7610K C47100P 3.3V R811.2KR822.2K RLEDGL E D 123456 JP2 SIP6-2. 0-180 TESTRESETRXDTXD 3.3V R8330K R1310R/0603 R1410R/0603 R1510R/0603 R1610R/0603 R1710R/0603 R1810R/0603 R3610R/0603 C151 04 / 06 03 C14104/0603 C13104/0603 C121 04 / 06 03 C111 04 / 06 03 C101 04 / 06 03 C9 1 04 / 06 03 VDD 9 A0 10 A1 11 A2 12 A3 13 A4 14 A5 15 A6 16 D6 1 D5 2 D4 3 D3 4 D2 5 D1 6 D0 7 VSS 8 U32003 C35104/0603 12V STR 1 D 2 CLK 3 OE 15 Q1 4 Q2 5 Q3 6 Q4 7 Q5 14 Q6 13 Q7 12 Q8 11 QS 9 QS 10 VCC 16 GND 8 U74094 R3710R/0603 R2410R/0603 R2310R/0603 R2210R/0603 R2110R/0603 R2010R/0603 R1910R/0603 C221 04 / 06 03 C21104/0603 C20104/0603 C191 04 / 06 03 C181 04 / 06 03 C171 04 / 06 03 C16104/0603 VDD 9 A0 10 A1 11 A2 12 A3 13 A4 14 A5 15 A6 16 D6 1 D5 2 D4 3 D3 4 D2 5 D1 6 D0 7 VSS 8 U42003 C36104/0603 12V STR 1 D 2 CLK 3 OE 15 Q1 4 Q2 5 Q3 6 Q4 7 Q5 14 Q6 13 Q7 12 Q8 11 QS 9 QS 10 VCC 16 GND 8 U84094 R3010R/0603 R2910R/0603 R2810R/0603 R2710R/0603 R2610R/0603 R2510R/0603 C281 04 / 06 03 C27104/0603 C261 04 / 06 03 C251 04 / 06 03 C241 04 / 06 03 C23 1 04 / 06 03 VDD 9 A0 10 A1 11 A2 12 A3 13 A4 14 A5 15 A6 16 D6 1 D5 2 D4 3 D3 4 D2 5 D1 6 D0 7 VSS 8 U52003 C37104/0603 12V STR 1 D 2 CLK 3 OE 15 Q1 4 Q2 5 Q3 6 Q4 7 Q5 14 Q6 13 Q7 12 Q8 11 QS 9 QS 10 VCC 16 GND 8 U94094 R3510R/0603 R3410R/0603 C341 04 / 06 03 C33 104/0603 VDD 9 A0 10 A1 11 A2 12 A3 13 A4 14 A5 15 A6 16 D6 1 D5 2 D4 3 D3 4 D2 5 D1 6 D0 7 VSS 8 U62003 C38104/0603 12V 5V C40 104/0603 5V C411 04 / 06 03 STRDAT A9 4CLK4094 U1U2D1D2E1E2W1W2R22R31R32R41R42 START S1S2N1N2R11R12R21 R40 6.8K R41 6.8K R42 6.8K R43 6.8K R44 6.8K R45 6.8K R46 6.8K +12 V R47 6.8K R48 6.8K R49 6.8K R50 6.8K R51 6.8K R52 6.8K R53 6.8K +12 V R54 6.8K R55 6.8K R56 6.8K R57 6.8K R58 6.8K R59 6.8K +12 V R64 6.8K R65 6.8K C4210P C4310P C4410P STOPR0 5V Q5 2SA1036 R6910K Q7 2SC2412 R724.7K R7927K 5V DAT A9 4 DAT 9 4 R70 10K Q8 2SC2412 R734.7K R8027K 5V CLK4094 CLK94 R6810K Q6 2SC2412 R714.7K R7827K 5V STR STR94 R66100K EMS +12V R4 15K/0603 Q22SC2412 R12 10R/0603 C8 1 04 / 06 03 12V R810K/0603 R11 22K/0603 12V Q3 IRFU90 24 R39 680K/0603 +12 V R9 27K/0603 CTL12V /MR 1 VCC 2 GND 3 PFI 4 PFO 5 WD 6 RESET 7 WDO 8 U1MIC706RM RESET WDPFO 3.3V 12V R1 330K/0603 R2100K/0603 FSKDAT A FSKCLK L1LTO311G-41 L2LTO311G-41 L3LTO311G-41 L4LTO311G-41 L5LTO311G-41 L6LTO311G-41 L7LTO311G-41 L8LTO311G-41 L9LTO311G-41 L10LTO311G-41 L11LTO311G-41 L12LTO311G-41 L13LTO311G-41 L14LTO311G-41 L15 L T O3 11 G-41 L16 L T O3 11 G-41 L17 L T O3 11 G-41 L18 L T O3 11 G-41 L19 L T O3 11 G-41 L20 L T O3 11 G-41 L25 L T O3 11 G-41 L26 L T O3 11 G-41 C39 1 04 / 06 03 Q42SA1036 Q12SC2412 1 2 U1 1A 74VHC04(SOT23-5) C29104 R604.7K R38 10K/0603 C51 2 . 2U/ 0 80 5 C50104 3.3V S1S2N1N2R11R12R21 U1U2D1D2E1E2R22 W1W2R31R32R41R42 STARTEMS D1 6 RLS4148 R6210K LED1319GW-C R63 510K/0603 R84 470K/0603 Q1 12SA1036 Q1 22SC2412 3.3V C31104 R85 10K/0603 R86 47K/0603 R874 . 7K/ 0 60 3 R8827K/0603 R90 10K/0603 3.3V R89 100K/0603 R9210K R9110K C32103 1 2 4 3 5 E2 U1 2TC7S08F 3.3V R6 4 . 7K/ 0 60 3 R10 100K/0603 R547K/0603 12V R70R Pitch2.0mm 12VGND12V 1234567 JP1SIP7-2. 0-180 GND R93 10K 3.3V C52 2.2U/0805 C54104 C53104 C301UF

FCC TEST REPORT Report No. : F391804 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Industrial Radio Remote Controller Model No. : F-23 FCC ID : LWNF-23 Filing Type : Certification Applicant : LEE’S HI-TECH ENTERPRISE CO., LTD. #2, Lane 80, Jen Ai Rd, Chung Chuang, Taliao, Kaohsiung, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F391804 SPORTON International Inc. FCC ID : LWNF-23 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Oct. 21, 2003 Table of Contents History of this test report........................................................................................................................................ii CERTIFICATE OF COMPLIANCE ............................................................................................................................1 1. General Description of Equipment under Test .............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1. Test Manner ....................................................................................................................................................................................3 2.2. Description of Test System .............................................................................................................................................................3 2.3. Connection Diagram of Test System ..............................................................................................................................................4 2.4. A plot shows the EUT meet the requirement of 15.231(c) ..............................................................................................................5 3. Test Software ...................................................................................................................................................7 4. General Information of Test............................................................................................................................8 4.1. Test Facility .....................................................................................................................................................................................8 4.2. Test Voltage ....................................................................................................................................................................................8 4.3. Standard for Methods of Measurement...........................................................................................................................................8 4.4. Test in Compliance with ..................................................................................................................................................................8 4.5. Frequency Range Investigated .......................................................................................................................................................8 4.6. Test Distance ..................................................................................................................................................................................8 5. Test of Conducted Powerline .........................................................................................................................9 6. Test of Radiated Emission............................................................................................................................10 6.1. Major Measuring Instruments........................................................................................................................................................10 6.2. Test Procedures ............................................................................................................................................................................11 6.3. Typical Test Setup Layout of Radiated Emission..........................................................................................................................12 6.4. Test Result of Radiated Emission .................................................................................................................................................13 7. Antenna Factor & Cable Loss ......................................................................................................................31 8. EMI Suppression Component List...............................................................................................................32 9. List of Measuring Equ…

Text truncated - open the document above for the full version.

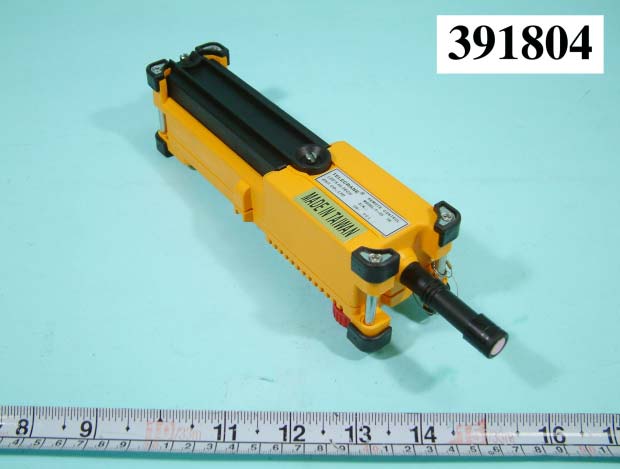

FCC TEST REPORT Report No. : F391804 SPORTON International Inc. FCC ID : LWNF-23 TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued : Oct. 21, 2003 1.1. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
