M4Y-AC720M802.11ac Wireless LAN USB Module

1 AC-720M 802.11ac Wireless LAN USB Module User’s Manual Draft V0.1 2 TABLE OF CONTENTS 1. Introduction ........................................................................................................ 3 2. Features ............................................................................................................. 3 5. Hardware Installation ........................................................................................... 4 5.1. Installation Overview ........................................................................................... 4 5.2. Safety Recommendations ..................................................................................... 4 5.3. Maintaining Safety with Electricity .......................................................................... 5 5.4. Installing the AC-720M ......................................................................................... 5 6. Antenna Information ............................................................................................ 6 7. Module Outline Drawings ...................................................................................... 6 8. Regulatory Approval ............................................................................................. 7 8.1. FCC Compliance Information ................................................................................. 7 8.2. Radiation Exposure Statement ............................................................................... 7 8.3. KDB 996369 D03 OEM Manual v01 rule sections: ..................................................... 8 3 1. Introduction The IEEE 802.11b/g/n/an/ac 2.4G/5G Wireless LAN USB Module is the perfect solution for your wireless network applications based on the IEEE 802.11ac standard offering a data rate of up to 433Mbps in a wireless LAN environment. The AC-720M wireless module can easily integrate into a wide range of devices such as IoT devices, Printer Servers, IP Cameras and Internet Video Server, etc. The wireless LAN USB module offers dramatic performance improvement. It provides high-speed wireless connection with data rate up to 433Mbps (one stream) and connects to farther distance. 2. Features . Supports 1Tx/1Rx to enable data rate up to 433Mbps link rate for 80MHz channel . Support IEEE 802.11ac dual band USB module . Support USB2.0 interface 3. Hardware Specifications Features Additional Information RF Chipset Solution QCA9377-7 Standard Compliance IEEE 802.11a/b/g/n/ac Wi-Fi Compliant Host interface USB 2.0 Operating Voltage DC 5V±5% Power Consumption ≦750mA Frequency Range & Number of Channel 2.412 ~ 2.462 GHz: Channel 1~11 5.180 - 5.240 GHz: 36, 38, 40, 42, 44, 46, 48 5.260 - 5.320 GHz: 52, 54, 56, 58, 60, 62, 64 5.500 – 5.720 GHz : 100, 102, 104, 106, 108, 110, 112, 116, 118, 120, 122, 124, 126, 128, 132, 134, 136, 138, 140, 142, 144 5.745 – 5.825 GHz: 149, 151, 153, 155, 157, 159, 161, 165 Modulation 802.11b : DSSS (DBPSK, DQPSK, CCK) 802.11g : OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac : OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) Channel Bandwidths 20/40/80MHz Data Rate 802.11b: 1, 2, 5.5, 11 Mbps 802.11 a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: up to 72.2 Mbps 802.11ac: up to 433 Mbps Antenna Connector U.FL Operating Temperature -30 ~ 75 °C Operating Humidity <90% RH Storage Temperature -30 ~ 80 °C Storage Humidity 10 ~ 90% RH 4 4.Pin Assignment & Pinout Information Figure 4-1. The wireless module Pin Assignment Table 4-1: The wireless module Pin Description Pin #Pin NameTypeDescription 1 RSTDigital Input -Active-low hard Reset pin -When the Reset pin is asserted low, the module is in the Reset state. When the Reset pin is asserted high, the module functions normally -This pin must connect to a host output that is low by default on power-up. If the host output is tri-stated, add a 1M Ohm pull-down resistor to ensure a low level at power-up -Signal Level 3.3V is High 2 VBUS (+5 Vdc)Power -Power supply pin for DC/DC converter -Power supply voltage DC +5 V ±5% 3 USB_D-, USB_DM AI,AO USB 2.0 Differential pair 4 USB_D+, USB_DP AI,AO 5 GNDGNDGround pin 5. Hardware Installation The following sections in this chapter describe how to install AC-720M Module 5.1. Installation Overview AC-720M USB Module is designed for Access Point, Router, ATU-R, Printer Server series, IP Camera series and Internet Video Server only. 5.2. Safety Recommendations The safety guidelines are as follows: -Keep the board area clear and dust-free before, during, and after installation. -Keep tools away from walk areas where you and others could fall over them. -Do not wear loose clothing or jewelry, such as earrings, bracelets, or chains, that could get caught in the board. 5 -Wear safety glasses if you are working under any conditions that might be hazardous to your eyes. -Do not perform any action that creates a potential hazard to people or makes the equipment unsafe. -Never attempt to lift an object that is too heavy for one person to handle. 5.3. Maintaining Safety with Electricity Warning: Before working on a board or working near power supplies, unplug the power cord on AC units; on DC units, disconnect the power at the circuit breaker. Follow these guidelines when working on equipment powered by electricity: -Do not work alone if potentially hazardous conditions exist anywhere in your work space. -Never assume that power is disconnected from a circuit; always check the circuit, extension cables, frayed power cords, and missing safety grounds. -If an electrical accident occurs, proceed as follows: 1. Use caution; do not become a victim yourself. 2. Disconnect power from the system. 3. If possible, send another person to get medical aid. Otherwise, assess the condition of the victim and then call for help. 4. Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate action. 5.4. Installing the AC-720M Before you install the…

Text truncated - open the document above for the full version.

Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 DFS client device channel plan and software operational declaration Date: 2022-08-15 We, Z-Com, Inc. declare that the device, FCC ID: M4Y-AC720M Model Name: AC-720M, does not have Ad Hoc on “non-US frequencies” and/or on“ DFS frequencies“. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad- hoc peer-to-peer modes. Below is the channel / frequency plan for the device 5G band 1 (U-NII-1) 5G band 2 (U-NII-2A) 5G band 3 (U-NII-2C) 5G band 4 (U-NII-3) CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 46 48 Frequency (MHz) 5180 5190 5200 5210 5220 5230 5240 Scan Type Active Active Active Active Active Active Active CH 52 54 56 58 60 62 64 Frequency (MHz) 5260 5270 5280 5290 5300 5310 5320 Scan Type Passive Passive Passive Passive Passive Passive Passive CH 100 102 104 106 108 110 112 116 118 120 122 Frequency (MHz) 5500 5510 5520 5530 5540 5550 5560 5580 5590 5600 5610 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 124 126 128 132 134 136 138 140 142 144 Frequency (MHz) 5620 5630 5640 5660 5670 5680 5690 5700 5710 5720 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 5755 5765 5775 5785 5795 5805 5825 Scan Type Active Active Active Active Active Active Active Active Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 Also, on DFS channels, the WLAN driver in the device operates under the control of an AP at all times, except when in ad-hoc mode on US non-DFS channels. The device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by a special signature and CRC checksum. Signature and CRC checksum will be calculated and verified before firmware upgrade. Unauthorized modification to firmware will lead to the failure of verification and thus firmware upgrade will not be allowed. Sincerely yours, Sincerely yours, ----------------------------------- Jeff Jiang / Compliance Engineer Z-Com, Inc. Tel: 886 3 577-7364 Fax: 886 3 578-3583 E-mail: [email protected]

Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 Date: 2022-07-20 FCC ID: M4Y-AC720M To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Jeff Jiang / Compliance Engineer Z-Com, Inc. Tel: 886 3 577-7364 Fax: 886 3 578-3583 E-mail: [email protected]

Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 Date: 2022-07-20 FCC ID: M4Y-AC720M To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 60 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Jeff Jiang / Compliance Engineer Z-Com, Inc. Tel: 886 3 577-7364 Fax: 886 3 578-3583 E-mail: [email protected]

Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 Date: 2022-07-20 FCC ID: M4Y-AC720M AUTHORIZATION LETTER To Whom It May Concern: Z-Com, Inc. hereby authorizes Emerald Chen/ Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald / Specialist of BV CPS Taoyuan on Z-Com, Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Jeff Jiang / Compliance Engineer Z-Com, Inc. Tel: 886 3 577-7364 Fax: 886 3 578-3583 E-mail: [email protected]

Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 Date: 2022-08-10 FCC ID: M4Y-AC720M Declaration Letter We, Z-Com, Inc. declare that the device will enable only WLAN 2.4GHz & 5GHz function through the applicant’s proprietary firmware and is not user changeable. If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! ----------------------------------- Jeff Jiang / Compliance Engineer Z-Com, Inc. Tel: 886 3 577-7364 Fax: 886 3 578-3583 E-mail: [email protected]

FCC ID: M4Y-AC720M Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch August 15, 2022 Dear Application Examiner, Z Com Inc., 802.11ac Wireless LAN USB Module, FCC ID: M4Y-AC720M would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip QCA9377-7. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is QCA9377-7. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: M4Y-AC720M 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Emerald Chen Specialist Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

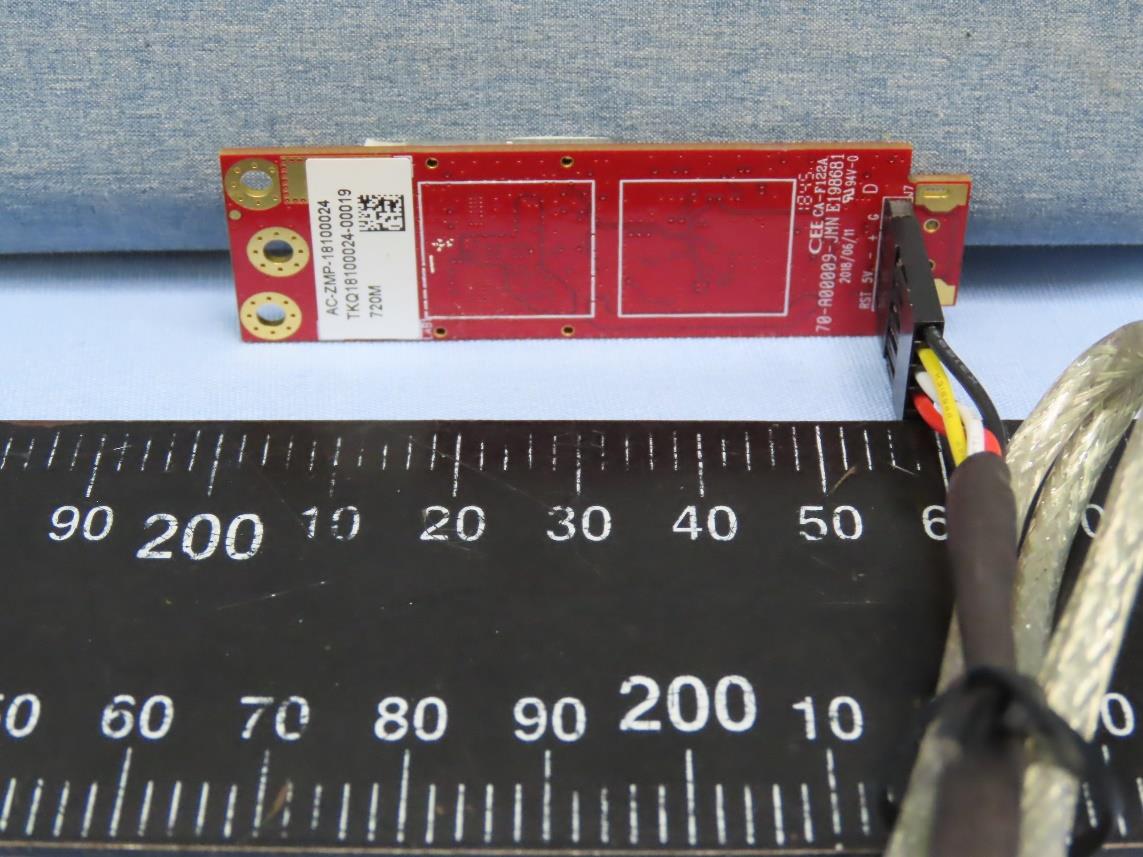

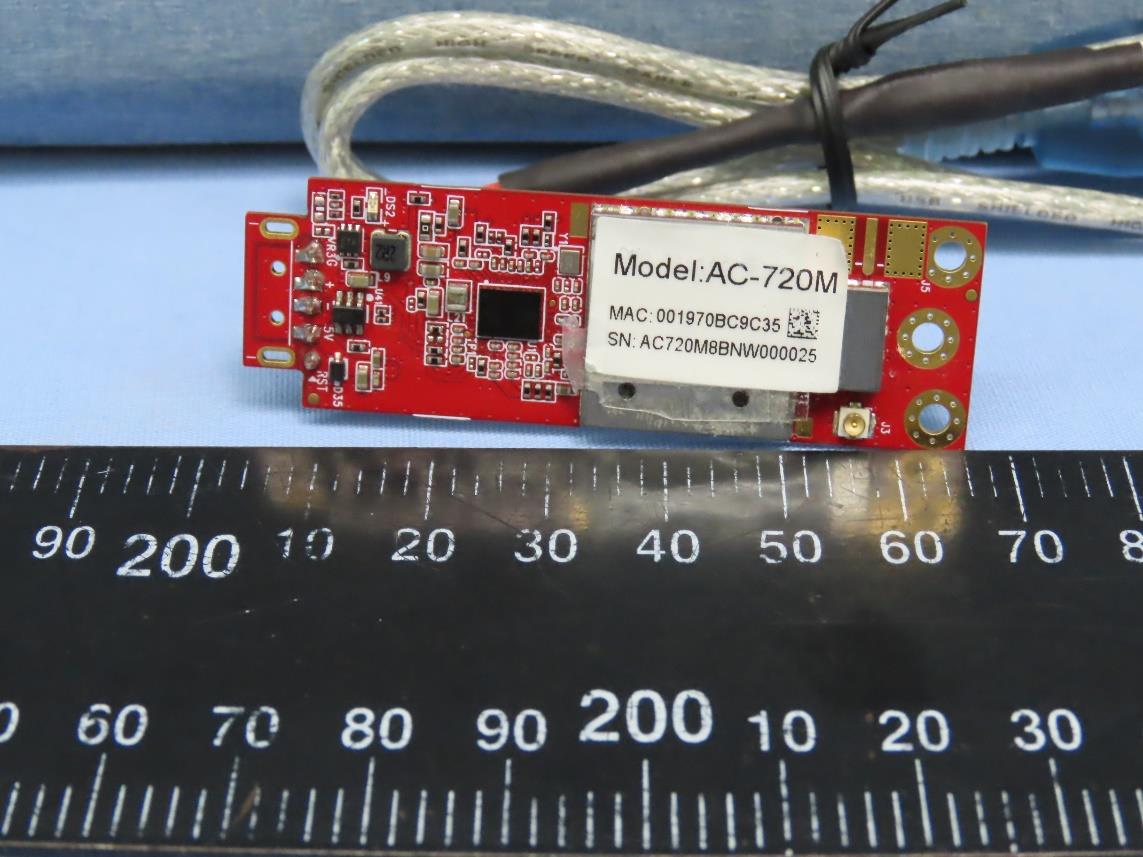

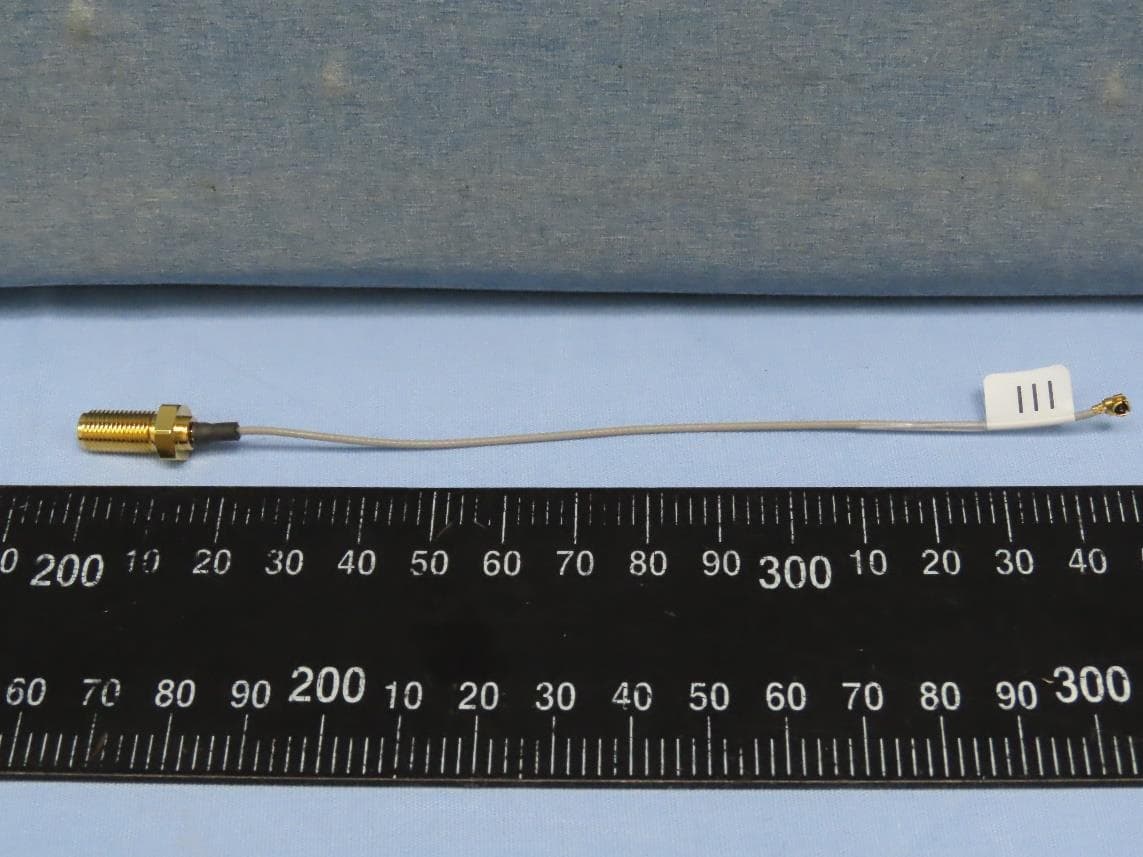

Reference No.:BDMW-WTW-P22060516_EXT Page 1/6 CONSTRUCTION PHOTOS OF EUT Reference No.:BDMW-WTW-P22060516_EXT Page 2/6 Reference No.:BDMW-WTW-P22060516_EXT Page 3/6 Reference No.:BDMW-WTW-P22060516_EXT Page 4/6 Reference No.:BDMW-WTW-P22060516_EXT Page 5/6 Reference No.:BDMW-WTW-P22060516_EXT Page 6/6

Z-Com, Inc. 5F, No.8 HSIN-ANN RD. HSINCHU SCIENCE PARK, HSINCHU, 300 TAIWAN TEL: 886 3 577-7364 FAX: 886 3 578-3583 Label Location FCC ID: M4Y-AC720M Top of EUT The label will be permanently affixed and readily visible.

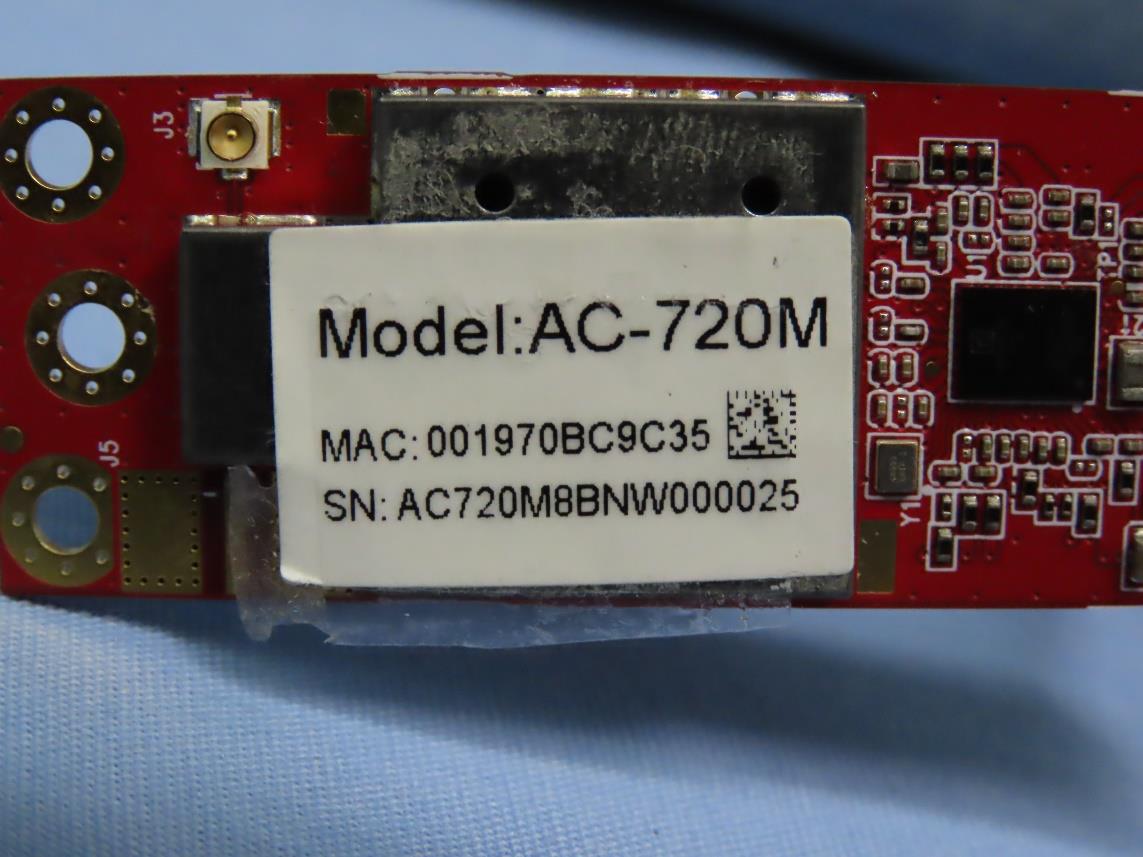

Reference No.:BDMW-WTW-P22060516_INT Page 1/3 CONSTRUCTION PHOTOS OF EUT Reference No.:BDMW-WTW-P22060516_INT Page 2/3 Reference No.:BDMW-WTW-P22060516_INT Page 3/3

Report No.: MFBDMW-WTW-P22060516 Page No. 1 / 9 Report Format Version: 7.1.0 Reference No.: BDMW-WTW-P22060516 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091 & 2.1093) Report No.: MFBDMW-WTW-P22060516 FCC ID: M4Y-AC720M Model No.: AC-720M Received Date: 2022/6/20 Test Date: 2022/7/26 Issued Date: 2022/8/4 Applicant: Z-COM, INC. Address: 5F, No.8, HSIN ANN RD., HSINCH SCIENCE PARK, HSINCHU, 300 TAIWAN Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2022/8/4 May Chen / Manager This test report consists of 9 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vito Lung / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBDMW-WTW-P22060516 Page No. 2 / 9 Report Format Version: 7.1.0 Reference No.: BDMW-WTW-P22060516 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 3 Applicable Evaluation Criteria .................................................................................................................................. 6 4 Test Results ................................................................................................................................................................ 7 5 Conclusion .................................................................................................................................................................. 8 6 Information of the Testing Laboratories .................................................................................................................. 9 Report No.: MFBDMW-WTW-P22060516 Page No. 3 / 9 Report Format Version: 7.1.0 Reference No.: BDMW-WTW-P22060516 Release Control Record Issue No. Description Date Issued MFBDMW-WTW-P22060516 Original release. 2022/8/4 Report No.: MFBDMW-WTW-P22060516 Page No. 4 / 9 Report Format Version: 7.1.0 Reference No.: BDMW-WTW-P22060516 1 Certificate Product: 802.11ac Wireless LAN USB Module Brand: ZCOM Test Model: AC-720M Sample Status: Mass product Applicant: Z-COM, INC. Test Date: 2022/7/26 FCC Rule Part: FCC Part 2 (Section 2.1091 & 2.1093) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBDMW-WTW-P22060516 Page No. 5 / 9 Report Format Version: 7.1.0 Reference No.: BDMW-WTW-P22060516 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatialaverage SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average …

Text truncated - open the document above for the full version.

L-com, Inc. 50 High St., West Mill, 3 rd Floor, Suite #30 North Andover, MA 01845 www.L-com.com E-mail: [email protected] Phone: 1-800-343-1455 Fax: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. HyperLink Wireless 2.4/4.9/5.8 GHz 3 dBi Tri-Band Rubber Duck Antenna Model: HG2458RD-XXX Applications  2.4 GHz, 4.9 GHz and 5.8 GHz band applications  IEEE 802.11a/b/g/n and 802.11ac WiFi access points and routers  4.9 GHz homeland security, public safety services, fire, police and security applications  5.8 GHz wireless video and security systems Features  Three frequency ranges in one antenna  Flexible rubber duck design  Provides better performance than most stock access point antennas  Tilt and swivel design  Available with SMA Male, TNC Male, RP-SMA Plug and RP-TNC Plug connectors RP-SMA Plug Version Shown Description The HyperLink HG2458RD series is a high performance tri-band rubber-duck antenna designed to operate from 2.4 GHz to 2.5 GHz, 4.9 GHz to 5.3 GHz and 5.7 GHz to 5.8 GHz which eliminates the need to purchase different antennas for each frequency. The tri-band design of this antenna helps reduce interference and noise since it will reject out-of-band signals between the three bands of this antenna. This omnidirectional "rubber-duck" antenna provides broad coverage and 3 dBi gain. Measuring 7.79" long, this flexible antenna features a tilt-and-swivel connector which allows them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many wireless access points and routers that are equipped with similar type antennas. The HG2458RD is available with SMS Male, TNC Male, RP-RSP Plug or RP-TNC Plug connectors. Specifications Models Model Number Connector HG2458RD-TM TNC Male HG2458RD-SM SMA Male HG2458RD-RSP Reverse Polarity SMA Plug HG2458RD-RTP Reverse Polarity TNC Plug L-com, Inc. 50 High St., West Mill, 3 rd Floor, Suite #30 North Andover, MA 01845 www.L-com.com E-mail: [email protected] Phone: 1-800-343-1455 Fax: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Electrical Specifications Frequency Ranges 2400-2500 MHz 4900-5350 MHz 5725-5850 MHz Gain 3 dBi Horizontal Beam Width 360° Impedance 50 Ohm Max. Power 50W VSWR < 2:1 Mechanical Specifications Weight .96 oz. (27 g) Length 7.79" (198 mm) Max. Diameter 0.51" (13.1 mm) Finish Matte Black Operating Temperature -40° C to 60° C (-40° F to 140° F) Polarization Vertical Flame Rating UL 94HB RoHS Compliant Yes RF Antenna Patterns

Report No.: RFBDMW-WTW-P22060516-2 Page No. 1 / 23 Report Format Version: 6.1.2 DFS Test Report Report No.: RFBDMW-WTW-P22060516-2 FCC ID: M4Y-AC720M Test Model: AC-720M Received Date: 2022/6/20 Test Date: 2022/7/8 Issued Date: 2022/8/4 Applicant: Z-COM, INC. Address: 5F, No.8, HSIN ANN RD., HSINCH SCIENCE PARK, HSINCHU, 300 TAIWAN Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwa. Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan. FCC Registration / Designation Number: 723255 / TW2022 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBDMW-WTW-P22060516-2 Page No. 2 / 23 Report Format Version: 6.1.2 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 EUT Information .................................................................................................................................... 5 2.1 Operating Frequency Bands and Mode of EUT .................................................................................. 5 2.2 EUT Software and Firmware Version .................................................................................................. 5 2.3 Description of Available Antennas to the EUT .................................................................................... 5 2.4 EUT Maximum Conducted Power ....................................................................................................... 6 2.5 EUT Maximum EIRP Power ................................................................................................................ 6 2.6 Transmit Power Control (TPC) ............................................................................................................ 7 2.7 Statement of Manufacturer .................................................................................................................. 7 3. U-NII DFS Rule Requirements ............................................................................................................. 8 3.1 Working Modes and Required Test Items ........................................................................................... 8 3.2 Test Limits and Radar Signal Parameters ........................................................................................... 9 4. Test & Support Equipment List ......................................................................................................... 12 4.1 Test Instruments ................................................................................................................................ 12 4.2 Description of Support Units ............................................................................................................. 12 5. Test Procedure .................................................................................................................................... 13 5.1 DFS Measurement System ............................................................................................................... 13 5.2 Calibration of DFS Detection Threshold Level .................................................................................. 14 5.3 Deviation From Test Standard ........................................................................................................... 15 5.4 Conducted Test Setup Configuration ................................................................................................ 15 5.4.1 Client without Radar Detection Mode ................................................................................................ 15 6. Test Results ......................................................................................................................................... 16 6.1 Summary of Test Results .................................................................................................................. 16 6.2 Test Results ....................................................................................................................................... 17 6.2.1 Test Mode: …

Text truncated - open the document above for the full version.

Report No.: RFBDMW-WTW-P22060516-1 Page No. 1 / 149 Report Format Version: 7.1.0 Refer…

Text truncated - open the document above for the full version.
