M65TR01Transmitter of car alarm system

Rev. 7.00 - Last Updated: 10/08/2007 EASY‐GO TX303 AND EG30‐H HANDS‐FREE ENTRY SYSTEM WITH DYNAMIC IMMOBILIZER & SMART ANTI‐HIJACK SYSTEM FEATURES: 1. AUTO‐UNLOCK The system UNLOCKS the vehicle when the user is approximately 2 meters away and trigger waves are sent to the transponder to confirm user’s presence. 2 seconds after the system is UNLOCKED, the vehicle enters Immobilizer Mode. 2. DYNAMIC IMMOBILIZER The Immobilizer function will be automatically disabled when the system performs Hand‐Shake confirmation with the transponder upon inserting the key and turning ON the ignition. The vehicle CANNOT be started with just the key as the transponder must be present as well when attempting to start the vehicle. *The vehicle CANNOT be started unless all doors are closed, to change this setting, please refer to the Miscellaneous Settings & Wiring Diagram section below. 3. SMART ANTI‐HIJACK When Anti‐Hijack Mode is set to ON, if any doors are opened and closed anytime after Ignition ON, the system will check‐in with the transponder after 2 minutes. If the transponder is not present after 60 consecutive checks (approx. 40 seconds), the system enters Anti‐Hijack Mode, activating Starter Disable or Petroleum Pump Disable depending which is installed. * The use of Starter Disable or Petroleum Pump Disable is recommended instead of Engine Block Disable 4. PASSIVE LOCK While in Immobilizer Mode, whenever the vehicle doors are opened and closed, the system will check with the transponder every 15 seconds and LOCKS the vehicle when it is not in range. * If the user is going to work/stay around the vehicle for an extended amount of time, it is recommended to turn off all Easy‐Go features temporarily in order to avoid unnecessary drain of transponder battery (see below) 961019 Rev. 7.00 - Last Updated: 10/08/2007 5. AUTOMATIC RE‐LOCK The system will Re‐LOCK the vehicle if 1 of 2 conditions applies: 1) The user enters and leave the Detection Zone without opening the doors; 2) The user opens and closes the doors without turning on the ignition and leave. HOW TO TEMPORARILY DISABLE EASY‐GO FEATURES: At any given time, the user may perform the below operations to disable/resume all Easy‐Go functions: * Press the transponder button ONCE and within 3 seconds, press the transponder button AGAIN (Car Lamp flashes ONCE): ‐ Vehicle Locks/Unlocks; All Easy‐Go functions are temporarily disabled (until the next Ignition ON) * Press the transponder button ONCE ONLY (without pressing again within 3 seconds): ‐ Vehicle Locks/Unlocks; All Easy‐Go functions are resumed or will continue to function if not previously disabled. S MART TRANSPONDER LOW‐BATTERY WARNING: If the transponder battery is low, the vehicle will turn off all Easy‐Go functions and warn the user by the following actions: Upon System UNLOCK: Car Lamp FLASHES 5 times and horn HONK 5 times Upon System LOCK: Car Lamp FLASHES 5 times and horn HONKS 3 times. At this time, all receiving functions on the transponder will be turned OFF to allow the user enough time to change the battery. After the battery is replaced, simply press the transponder button once to LOCK/UNLOCK the vehicle and all Easy‐Go functions will be restored. Rev. 7.00 - Last Updated: 10/08/2007 SYSTEM LEARNING & CONFIGURATION: TRANSPONDER LEARNING: 1. Insert the key and turn to IGNITION. 2. Press and Hold Override Switch for 5 seconds, LED stays solid ON indicating Learning Mode. 3. Press the transponder button. 4. LED flashes ONCE indicating transponder learned, LED then stays on solid. 5. Repeat Step 3 until all transponders are learned by the system (Maximum of 4 transponders can be learned). 6. The system exits Learning Mode after 10 seconds, to exit at any time, turn the IGNITION to OFF. LED INDICATOR SETTING: 1. Take the battery out and put it back in. 2. With in 10 seconds , Press and Hold the transponder button for 3 seconds. 3. The transponder LED will now flash when communicating with the vehicle. TRANSPONDER RANGE ADJUSTMENT: *This adjustment can be done at anytime OR after the 10‐second period upon replacing the battery. 1. Press and hold the transponder button for 3 seconds. 2. The transponder LED flashes in the order of: ONCE (long), TWICE (medium), and THREE (short) times. 3. Release the transponder button AFTER your desired range is FLASHED. (i.e. Releasing the button after the LED flashes THREE times sets the range to SHORT) USER PROGRAMMABLE FUNCTIONS: 1. Insert the key and turn to IGNITION. 2. Press Override Switch 5 times, car lamp flashes 5 times, car horn honks 5 times, LED stays solid ON, indicating Factory Settings Mode. 3. Press Override Switch ONCE to enter Dome Light Delay Setting (Car Horn honk ONCE) then press the transponder button to TOGGLE the feature ON/OFF. The LED flashes ONCE to indicate ON and flashes TWICE to indicate OFF. 4. Refer to the Programming Table below for the number of Override Switch PRESS for each setting. PROGRAMMING TABLE: (√ indicates Factory Default settings for each feature) Override Switch Chirp Press Transponder Button to Toggle the Functions ON/OFF Press Once 1 Dome Light Delay √Disable Press Twice 2 Anti‐HiJack Mode √Disable Press 3 Times 3 √ Complete Easy‐Go Functions Disable Press 4 Times 4 √ Central Door Lock Trigger (0.6 sec.) Central Door Lock Trigger (3 sec.) Press 5 Times 5 √ 1 Chirp after Arming No Chirp after Arming Press 6 Times 6 √ 5 Sec. Automatic Door Lock on Ignition Disable Press 7 Times 7 √ Door Unlock on Ignition OFF Disable Press 8 Times 8 √ Car Horn Alarm Siren Press 9 Times 9 √ Chirp Duration 30ms Chirp Duration 50ms Press 10 Times 10 √ Transponder Check every 6 seconds Transponder Check every 1 seconds Press 11 Times 11 Press the transponder button ONCE again to confirm reset all settings to Factory Default Rev. 7.00 - Last Updated: 10/08/2007 OVERRIDE SWITCH 2 P WHITE 2 P WHITE LED N/C N/O 6 WHITE UNLOCK N/C LOCK N/O COM COM 7 P WHITE IGNITION KILLER＼PETROLEUM PUMP DISABLE OUTPUT（－） （＋）12V VDC PARKING LIGHTOUT…

Text truncated - open the document above for the full version.

穩壓 IC +5 V I/O INPUT OUTPUT TX303 TM03 TX1 Power +12 U4, PIC16F716, 4MHz CPU SAW 303.875 MHz 433.92 MHz Receive r

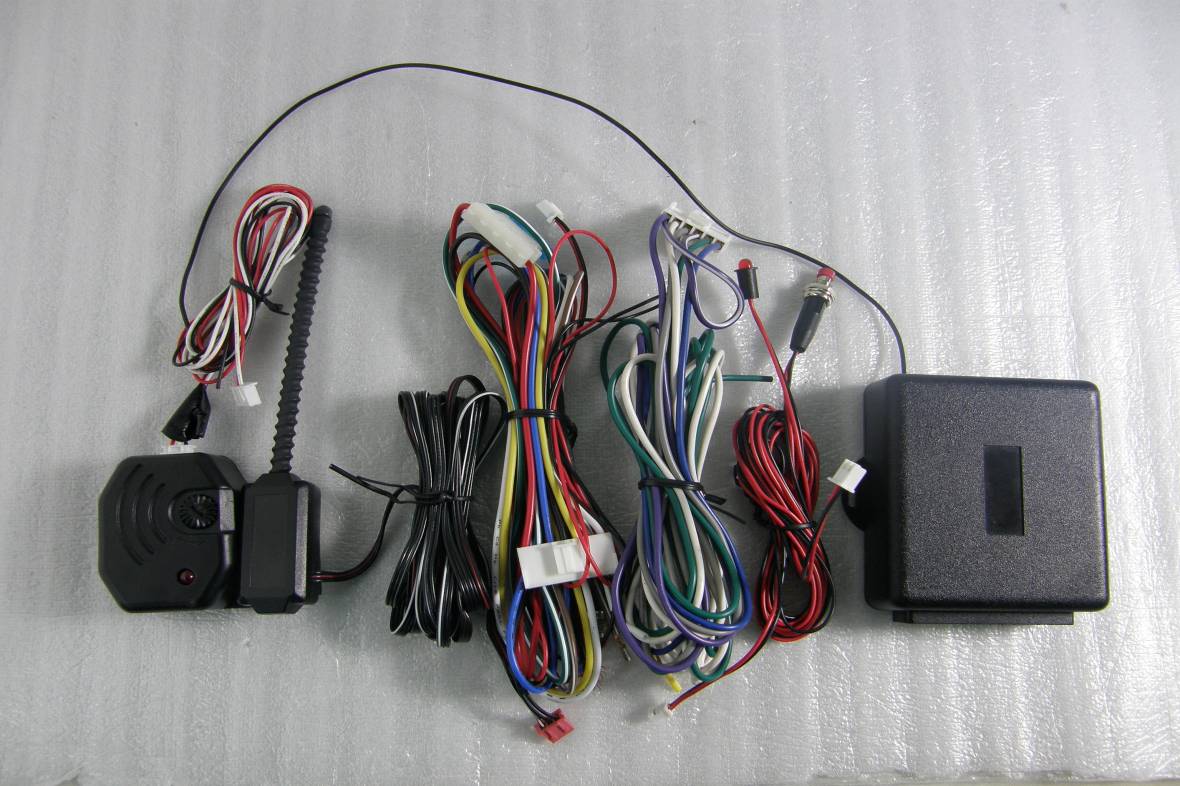

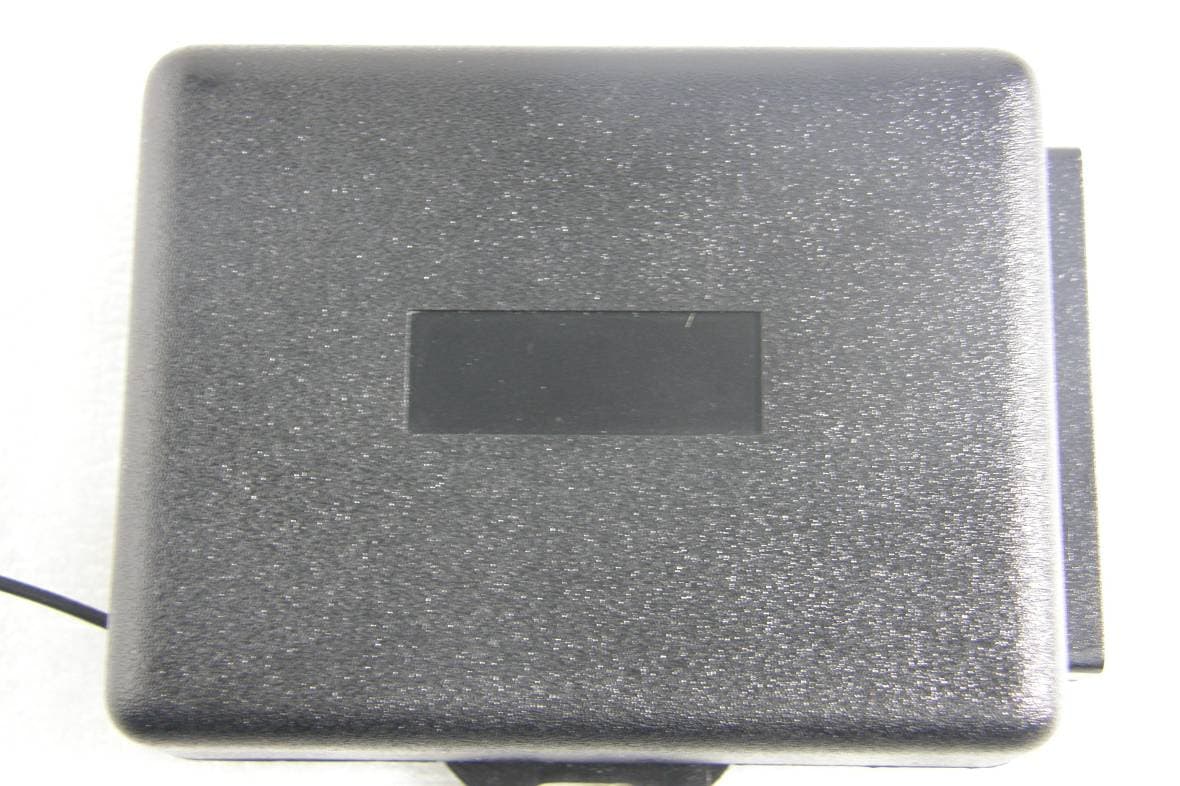

Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 26 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 27 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT (TX303) Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 28 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT (TX303) Front View of EUT (EG30-H) Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 29 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT (EG30-H) Site View of EUT – 1 (EG30-H) Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 30 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Site View of EUT – 2 (EG30-H) Site View of EUT – 31 (EG30-H)

FCC ID LABEL FORMAT AND LOCATION Applicant: SuperNova Corp. FCC ID: M65TR01 6MM 15MM Model:TX303 FCC ID : M65TR01

Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 31 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 32 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT (TX303) Internal of EUT – 1 (TX303) Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 33 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 2 (TX303) Open View of EUT (EG30-H) Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 34 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 (EG30-H) Internal of EUT – 2 (EG30-H) Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 35 of 34 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 3 (EG30-H) Internal of EUT – 4 (EG30-H) ~ End of Report ~

TX303 and EG30-H Operating Description The system TX303 and EG30‐H (referred to as the EUT in this report) are a periodic Car Alarm remoter system which includes a CPU unit (433.92 MHz receiver and some of Wired I/O sensor function) and a 303.875MHz transmitter unit. The transmitter unit is powered by 12Vdc through CPU unit by a cable. Working mode description 1. DYNAMIC IMMOBILIZER The system checks with the transponder (433.92 MHz remoter) every time during Ignition ON. The vehicle CANNOT be started with just the key as the transponder must be present as well when attempting to start the vehicle. 2. SMART ANTI‐HIJACK When the Anti‐Hijack Mode is set to ON, if any doors are opened and closed anytime after Ignition ON, 2 minutes later, the system (TX303 and EG30‐2H ) will page the transponder (433.92 MHz remoter) every 15 seconds by 303.875MHz. If the transponder (433.92 MHz remoter) responds to any one of the paging, then Anti‐HiJack mode will be disabled. If the system does not receive a feedback from the transponder after 10 times, the car horn honks for 30 seconds then the system enters Anti‐HiJack mode. EG30‐2H generate a coded signal to transmitter TX303 by a pulse modulator every 15 second in Smart Anti‐Hijack mode. The pulse stream has around 230ms.

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2007/12/19 Sheet of File: D:\11-20061024\..\EG30H_V06.SchDoc Drawn By: C5 470u/16V R4RH 3.5*9*0.8 C3 220u/25V C6 104P VI 3 VO 1 GND 2 U1 7551 C4104P R7 0R VCC VCC_+12V +11V4 VREF HORN HONK P5.7 P1.2 LOCK_OUT UNLOCK_OUT OUT0 S.K_AUX P5.4P5.5P5.3 I0 1 I1 2 I2 3 I3 4 I4 5 I5 6 I6 7 GND 8 O0 16 O1 15 O2 14 O3 13 O4 12 O5 11 O6 10 COM 9 U22003 P0.0 P5.5P5.4DOOR P1.0 P5.7 P5.2 P5.1P5.0P5.3 P1.2 1 P1.3 2 P0.0/INT0 3 P1.5/RST 4 VSS 5 VDD 14 P5.0 6 P5.1 7 P5.2 8 P5.3 9 P5.4 10 P5.5 11 P5.6 12 P5.7 13 XOUT/P1.4 15 XIN/P1.6 16 P1.0 17 P1.1 18 U4PIC16F716 VCC VCC EG30H V06 UNLOCK_NO LOCK_NO LOCK_OUT UNLOCK_OUT LOCK_COMLOCK_NC UNLOCK_COMUNLOCK_NC 1 23 54 RY3RELAY SPDT VCC_+12V VCC_+12V 1 23 54 RY2 RELAY SPDT OUT0 PARK LIGHT VCC_+12V 1 23 54 RY1 RELAY SPDT LOCK_NCLOCK_COMLOCK_NOUNLOCK_NCUNLOCK_COMUNLOCK_NO PARK LIGHTS.K_AUXIGNI+DOOR SENSORHORN HONK VCC_+12V P1.2 LED +11V4 P5.1 VCC IGNI+ P5.0 P1.0 +5V RX_D GND TX1 VCC +11V4 DOOR SENSOR VCC DOOR SENSOR DOOR-ADOOR+A DOOR CS 1 CLK 2 DI 3 DO 4 VSS 5 ORG 6 NU 7 VCC 8 U393LC46 R31K P5.2 R1847K 123 MX5_TXJST2.5-3P-90 123 MX6_MJST2.5-3P-90 R1 27K R5 22K C1 104P C7104P C17 104P C16104P R27 NI R26 0R GND R26:+5VR27:+12V A4 12 MX3_KEY1JST2.5-2P-90 R847K C8 104P 1 2 3 4 JP2JP2.54-2P*2-90 R21 22KR13 27K R101K R2322K C10 103P 1234567 MX1VH3.96-7P-90 123456 MX2VH3.96-6P-90 12 MX4 LED1JST2.0-2P-90 R24750RR25750R R12 4K7 R15 4K7 R16 4K7 R19 4K7 R20 4K7 C12104P C11104P 1234 CN2 1234 CN3 DODICS ANT 123 MX5_TX1PH2.54-3P-180 C2104P +11V4 TX1 123 MX7_SHJST2.5-3P-90 SHOCK_EN +11V4 SS VCC R29 10K R14220K VCC R2247K P0.0 P1.6 P1.6RX_D SHOCK_EN 1 2 L1COIL SHOCK SENSOR Override_SW 303M_TX1 303M_TX MICROWAVE SENSOR ZNR1ZNR VCC_+12V ZNR2ZNR 1234 PTTXJP04 VCC_+12V P5.0P5.7 +5V GND 123 MX7_MJST2.5-3P-90 C13 104P A4 R2220K P1.5 MICROWAVE SENSOR A1 A1 P1.5 D81N4148 D41N4148 D71N4148 D11N4148 D61N4004 D51N4004 D111N4004 D91N4004 D101N4004 D2 1N4004 D3 1N4004 R284K7 R17 1R R61K VCC Q12N3904 Q22N3904 R947K R1147K VCC VCC Q52N3906 434_RX R301K +11V4

11 22 33 44 D D C C B B A A Title Number Revision Size A Date: 2007/9/26 Sheet of File: D:\1-20061024\..\TM03.SCHDOC Drawn By: 47KR1 100RR2 10PC71P8C6 102PC1 18nHL1 2SC3356 Q1 2PC3 5PC5 3PC2 12nHL2 102PC4 DATA 12V ANTANT1 TM03 V02 Transmitter Module MikeLO 47KR3 10RR4 +V 1 GND 2 GND 3 303.875MhzSAW1 123 JP03J1 12KR7 2N3904Q3 2N3906Q2 1K5R6 100KR5 100KR8

Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 1 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服 務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品 負責。本報告未經本公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Transmitter of car alarm system Brand: N/A Model Name: TX303 (TX unit) and EG30-H (Main unit) Model Different: N/A FCC ID: M65TR01 Report No.: ER/2007/60011 Issue Date: Dec. 28, 2007 Rule Part: §15.231(e) Prepared by: SuperNova Corp. No. 34, Wu-Chuan 6 Rd., Wu-Ku Industrial Zone, Wu-Ku Hsiang Taipei Taiwan R.O.C. Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 2 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: SuperNova Corp. No. 34, Wu-Chuan 6 Rd., Wu-Ku Industrial Zone, Wu-Ku Hsiang Taipei Taiwan R.O.C. Product Name: Transmitter of car alarm system Brand / Marketing Name: N/A FCC ID Number: M65TR01 Model No.: TX303 (TX unit) and EG30-2H (Main unit) Model Difference: N/A File Number: ER/2007/60011 Date of test: Jun. 07, 2007 ~Dec. 08, 2007 Date of EUT Received: Jun. 07, 2007 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231(e). The test results of this report relate only to the tested sample identified in this report. Test By: Date Dec. 28, 2007 Sky Wang / Sr. Engineer Prepared By: Date Dec. 28, 2007 Eva Kao / Sr. Engineer Approved By: Date Dec. 28, 2007 Vincent Su / Manager Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 3 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Dec. 28, 2007 Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 28, 2007 Page: 4 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號…

Text truncated - open the document above for the full version.

Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 10, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No: ER/2007/60011 FCC ID: M65TR01 Issue Date: Dec. 10, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Setup Photos
