M6JNL1502LCD Monitor

MultiSync LCD1535VI User’s Manual UÏivatelská pfiíruãka Bedienerhandbuch
δηγίες ρήσης Manual del usuario Manuel Utilisateur Manuale utente Gebruikershandleiding Podr ́cznik u ̋ytkowinka Руководство пользователя Kullan∂c∂ Klavuzu 00Cover_all.p6511.09.2000, 7:56 Uhr1 English-1 English TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. CAUTION WARNING RISK OF ELECTRIC SHOCK • DO NOT OPEN Caution: When operating the MultiSync LCD1535VI (LCD1535VI-BK) with a 100-240V AC power source in Europe, use the power cord provided with the monitor. In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier. When operating the MultiSync LCD1535VI (LCD1535VI-BK) with a 100-240V AC power source in Australia, use the power cord provided with the monitor. For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country. ENERGYSTA R is a U.S. trademark. As an ENERGYSTA R ® Partner, NEC-Mitsubishi Electronics Display of America, Inc. has determined that this product meets the E NERGYSTA R guidelines for energy efficiency. The E NERGYSTA R emblem does not represent EPA endorsement of any product or service. IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of International Business Machines Corporation. Apple and Macintosh are registered trademarks of Apple Computer Inc. Microsoft and Windows are registered trademarks of the Microsoft Corporation. NEC is a registered trademark of NEC Corporation. All other trademarks or registered trademarks are property of their respective owners. English-2 Declaration Declaration of the Manufacturer We hereby certify that the colour monitor MultiSync LCD1535VI (LCD1535VI-BK) is in compliance with Council Directive 73/23/EEC: – EN 60950 Council Directive 89/336/EEC: – EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024 (IEC 61000-4-2) (IEC 61000-4-3) (IEC 61000-4-4) (IEC 61000-4-5) (IEC 61000-4-6) (IEC 61000-4-8) (IEC 61000-4-11) and marked with NEC-Mitsubishi Electric Visual Systems, Corp. MS Shibaura Bldg., 13-23, Shibaura 4-chome, Minato-Ku, Tokyo 108-0023, Japan Power consumption of the monitor is less than 3 W when in power-saving mode. English-3 English For the Customer to use in U.S.A. or Canada Canadian Department of Communications Compliance Statement DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du Canada. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CSA C22.2 #950. Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950. FCC Information 1. Use the attached specified cables with the MultiSync LCD1535VI (LCD1535VI-BK) colour monitor so as not to interfere with radio and television reception. (1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A. & Europe, and meet the following condition. Power supply cordNon shield type, 2-power code Length conductor(1.8 m) Plug shape U.S.A. Europe (2) Shielded video signal cable. Use of other cables and adapters may cause interference with radio and television reception. English-4 2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for complicance could void the user‘s authority to operate the equipment. If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4. Declaration …

Text truncated - open the document above for the full version.

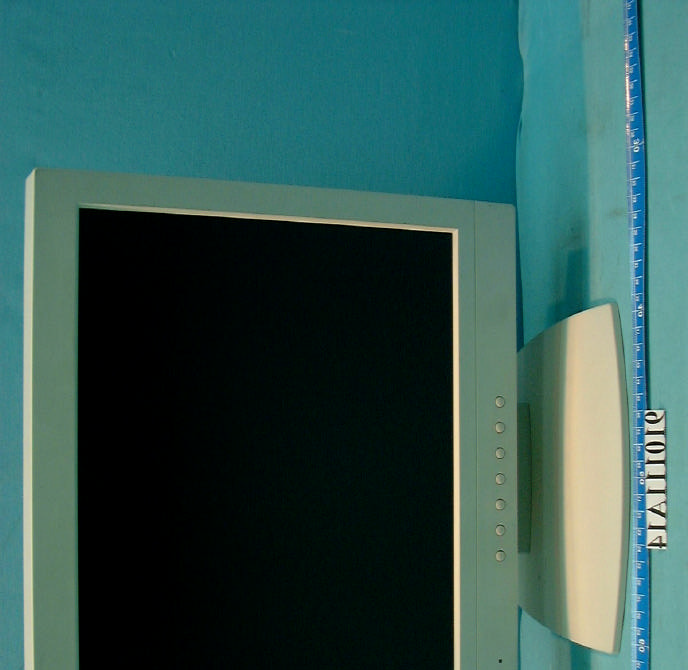

(Photo 1) FCC ID:M6JNL1502 (Photo 2) FCC ID:M6JNL1502

REVISIONS ECN REV DESCRIPTIONDATE APPROVED HIGH VISCOSITY AND PERMANENT TYPE ADHESIVE ITEM MATERIAL THICKNESS THE KIND OF ADHESIVE ART WORK NUMBER THE MATERIAL TO BE ADHERED THE SURFACE CONDITION OF THE MATERIAL TO BE ADHERED ABS/ABS+PC FLAT t=0.1 POLYESTER FILM DESCRIPTION MATERIAL : 2F, NO.8, TUN HWA N. RD., TAIPEI, TAIWAN. R.O.C. TEL : (02)8733-5516 FAX : (02)2772-0502 DISPLAY LIMITED UNIT : mm. DATE : 90.12.10 P / No. : 1 PAST No. : 1500127PROJECT : NL1502 FILE NAME : 15001271PAST NAME : NAME PLATE INSTRUCTION NL1501 SHEET : 1 / 1 SCALE : 1 / 1 DRAWN :CHECKED : =1Nov 9.2001 R2-4 (NOTE) 1.) VENDOR MUST SUBMIT SAMPLE AND GAIN THE APPROVAL OF NPG ENGINEER BEFORE M.P. 2.) TO BE PRINTED MARK OF PROOF OF MANUFACTURED BY A FACTORY APPROVED BY C.S.A. 3.) REGARDING COMBINED CONDITION WHICH ARE ADHEREND(POLYSTYRENE)& LABEL  MATERIAL (POLYESTER FILM) TO BE PRINTED THE APPROVED TYPE NAME OF UL. 4.) COLOR OF LETTER AND FRAME: SILVER (PRINTABLE SURFACE) 5.) BASE COLOR AND INSIDE FRAME: BLACK CSA/UL MARK FOR VENDOR Jane CAUTION: TO Prevent electric shock, do not remove back cover. No user serviceable parts inside. Refer servicing to qualified service personnel. This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. Apparatet må kun tilkoples jordet stikkontakt. Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk. Complies with Canadian ICES-003 Class B Conforme a la NMB-003 Class B U L ® C US LISTED I.T.E. 92UJ E173835 100-240V~ ,50-60Hz, 1A Model: NL1502 720NP Made in China 15001271 FCC ID : M6JNL1502 Made in Chia NEC - MITSUBISHI ELECTRIC VISUAL SYSTEMS CORPORATION 4-13-23, SHIBAURA, MINATO-KU, TOKYO 108-0023, JAPAN

(Fig. 1) FCC ID: M6JNL1502 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

(Photo 3) FCC ID:M6JNL1502 (Photo 4) FCC ID:M6JNL1502 (Photo 5) FCC ID:M6JNL1502 (Photo 6) FCC ID:M6JNL1502 (Photo 7) FCC ID:M6JNL1502 2 (Photo 8) FCC ID:M6JNL1502 (Photo 9) FCC ID:M6JNL1502 3 (Photo 10) FCC ID:M6JNL1502 (Photo 11) FCC ID:M6JNL1502

(Photo 12) FCC ID:M6JNL1502 (Photo 13) FCC ID:M6JNL1502 (Photo 14) FCC ID:M6JNL1502 (Photo 15) FCC ID:M6JNL1502 (Photo 16) FCC ID:M6JNL1502

(Photo 17) FCC ID:M6JNL1502 (Photo 18) FCC ID:M6JNL1502 (Photo 19) FCC ID:M6JNL1502 (Photo 20) FCC ID:M6JNL1502 (Photo 21) FCC ID:M6JNL1502 1 1

FCC ID: M6JNL1502 Report No.: F910111A141Issued: Jan. 17, 2002 FCC TEST REPORT REPORT NO.: F910111A14 MODEL NO.: NL1502 RECEIVED: Jan. 11, 2002 TESTED: Jan. 14~15, 2002 APPLICANT:NPG Display LTD., Taiwan Branch ADDRESS: 2FL-1, No. 8, Tunhua N. Rd., Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: M6JNL1502 Report No.: F910111A142Issued: Jan. 17, 2002 Table of Contents 1CERTIFICATION............................................................................................. 3 2SUMMARY OF TEST RESULTS .................................................................... 4 3GENERAL INFORMATION ............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF SUPPORT UNITS ............................................................6 4EMISSION TEST ............................................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 4.1.2 TEST INSTRUMENTS.....................................................................................7 4.1.3 TEST PROCEDURE........................................................................................8 4.1.4 DEVIATION FROM TEST STANDARD............................................................8 4.1.5 TEST SETUP...................................................................................................8 4.1.6 EUT OPERATING CONDITIONS ....................................................................9 4.1.7 TEST RESULTS (A).......................................................................................10 4.1.8 TEST RESULTS (B).......................................................................................12 4.2RADIATED EMISSION MEASUREMENT......................................................14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................14 4.2.2 TEST INSTRUMENTS...................................................................................15 4.2.3 TEST PROCEDURE......................................................................................15 4.2.4 DEVIATION FROM TEST STANDARD..........................................................16 4.2.5 TEST SETUP.................................................................................................16 4.2.6 EUT OPERATING CONDITIONS ..................................................................16 4.2.7 TEST RESULTS (A).......................................................................................17 4.2.8 TEST RESULTS (B).......................................................................................19 5PHOTOGRAPHS OF THE TEST CONFIGURATION ................................... 21 6APPENDIX - INFORMATION ON THE TESTING LABORATORIES ............ 25 FCC ID: M6JNL1502 Report No.: F910111A143Issued: Jan. 17, 2002 1 CERTIFICATION PRODUCT:LCD MONITOR BRAND NAME:NEC MODEL NO:NL1502 TEST ITEM:ENGINEERING SAMPLE APPLICANT:NPG Display LTD., Taiwan Branch STANDARDS:FCC Part 15, Subpart B, Class B CISPR 22: 1997, Class B ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Jan. 14 ~ 15, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: M6JNL1502 Report No.: F910111A144Issued: Jan. 17, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: StandardTest TypeResultRemarks Conducted TestPASS Meets Class B Limit Minimum passing margin is –12.17 dB at 0.199 MHz FCC Part 15, Subpart B, Class B / CISPR 22: 1997, Class B Radiated TestPASS Meets Class B Limit Minimum passing margin is – 2.20 dB at 153.99, 210.00 MHz NOTE: For conducted emission test, the test limit used is according to FCC Part 15.107. In this part, conducted emission test for telecom port is not mentioned and therefore this item is not tested. FCC ID: M6JNL1502 Report No.: F910111A145Issued: Jan. 17, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTLCD MONITOR MODEL NO.NL1502 POWER SUPPLY Switching Input:100-240V, 1.0A, 50/60Hz Power Cord: Non-shielded, 3 pin, AC (1.8m) DATA CABLE D-SUB cable: shielded (1.5m) with two cores DVI cable: shielded (2.0m) with two cores NOTE: The EUT is a LCD MONITOR with resolution up to 1024x768. The EUT has 2 types of input signals: DVI & D-Sub connector. Both DVI and D-sub video functions were pre-tested with horizontal and vertical synchronization speed modes as the following: DVI video function resolutionD-sub video function resolution 1024x768 (75Hz/60kHz)1024x768 (75Hz/60kHz) 800x600 (75Hz/48kHz)800x600 (75Hz/48kHz) 640 x 480 (60Hz/31kHz)640 x 480 (60Hz/31kHz) For the final test, the EUT was tested under the following modes and their data are recorded separately in this report: MODEVIDEO FUNCTION HORIZONTAL & VERTICAL RESOLUTION 1D-Sub connector1024x768 (75Hz/60kHz) 2DVI connector1024x768 (75Hz/60kHz) For a more detailed features description, please refer to the manufacturer's specifications or the User's Ma…

Text truncated - open the document above for the full version.

FCC ID: M6JNL1502 Report No.: F910111A1421Issued: Jan. 17, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (for Mode 1) FCC ID: M6JNL1502 Report No.: F910111A1422Issued: Jan. 17, 2002 (for Mode 2) FCC ID: M6JNL1502 Report No.: F910111A1423Issued: Jan. 17, 2002 RADIATED EMISSION TEST (for Mode 1) FCC ID: M6JNL1502 Report No.: F910111A1424Issued: Jan. 17, 2002 (for Mode 2)
