M9HMOV001Handheld Top Up Terminal

USER GUIDE MOV001 Description Introduction Congratulations, you have just purchased new terninal MOV001. It is recommended that you read this handbook carefully in order to use your terninal efficiently and in the best conditions. WARNING Depending on the model, network configuration and associated subscription cards, certain functions may not be available. Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Technical features - Terminal Weight: 300 g (with pager and battery) Size: 190.7 X 81 X 54.5 mm Original battery: Li-ion 900 mAh Battery life (*) Standby time: up to 280 h - Power Supply Unit Class equipment: Class II equipment Electrical mains network: 100-240VCA/47-63 Hz Power supply unit: Exterbal detachable power supply unit 200 mA Max consumption: 650 mA RMS - For device using condition: Indoor device Operating temperature: +5°C to +45°C Operating humidity: 10 to 80 %RH (34°C {93°F} at 80 %, non-condensing) Storage temperature: -10°C to +55°C - For paper roll: Thermal Paper Specification: -- Paper type: Single-ply thermal paper roll (Heat-sensitive surface must be wrapped facing the outer side.) -- Specified paper: Original Paper No. TF50KS-E2C NIPPON PAPER INDUSTRIES CO., LTD. TF50KS-E2D NIPPON PAPER INDUSTRIES CO., LTD. KF50 KANZAN P350 KSP PD150R OJI PAPER CO., LTD. PD160R OJI PAPER CO., LTD. -- Size: 57.5 ± 0.5 (width) mm {2.26" ± 0.02"} × 80 mm {3.15"} or less (outside diameter) NOTES: Use the specified paper. Otherwise, the proper print quality cannot be obtained, print head reliability may decrease, or there may be damage to the print head. Paper compartment Pull both sides of it to open, then put into the paper. Large graphic display Connector for charger, handset or USB cable. Keyboards Battery cover Push and then pull the battery cover Charge connection Using the terminal Switching ON Long press the Red key to switch ON. A short display appears. If access to the SIM card is protected, the terminal prompts you to enter the PIN number: between 4 and 8 digits given to you when the SIM card was issued. These digits do not appear on the screen for security reasons. WARNING When a wrong PIN number is entered three times consecu- tively, your SIM card will be blocked. To unblock it: - Enter the PUK (Personal Unblocking Key) code provided by your operator, and validate. - Enter a new PIN number and validate. - Enter your new PIN number again and validate. After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You must then contact your operator or your SMC to obtain a new card. Switching OFF When the terminal is ON, short press the Red Key to come back to the idle screen. When at the idle screen, long press the Red Key to switch OFF. Settings - Phone Profile: to select the profile as Normal or Silent mode. Silent mode can also be accessed via the idle screen by holding down the key, and it does not remain after switching off your terminal. Sounds: to select Keypad beeps as Beep, Tones, Inactive or Fun. To activate a beep for the Battery Beep. Display: Select Wallpager to set a background picture from different options. Battery status: to display the status of the battery. Date / Time: to set the date and time, select to set the Display type, Time zone, Time format etc., select the Automatic update to set as Automatic, On demand or Manual. Languages: to select the display language. If select Automatic, the language used will be the one relative to your SIM card. - Connectivity Network: Select Selection to activate Automatic or Manual of the networks accessible. Select Prelerred to view all the pre- registered networks. Select Network type to set the network as GSM-DCS, PCS or Automatic. Select GPRS to set the way to be connected on the GPRS network: always or only when needed. Java: to set various parameters to download Java applications. Battery & SIM card Battery & SIM card insertion Switch off and disconnect the charger. 1. Push and then pull the battery cover, Take out battery if already installed. 2. Slide the SIM card, with cut corner as shown on the terminal, into the card holder with gold side down. 3. Place the battery by first inserting the upper section into the opening. 4. Replace the back cover. Browser: Select Profiles to set or modify your provider’s configuration settings or to configure others provider’s settings. Select Connection time-out to choose the time after which the call is automatically disconnected if you have forgotten to log off from a service. - Security PIN number: to activate and modify the PIN number. Only after activated the PIN number, it can be modified. PIN2 number: you have a second PIN number to allow you to access certain functions. These functions may or may not be available depending on you SIM card. Browsing The browser navigator is under licence: The browser navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of these softwares. - Bookmarks To storebookmarks (addresses of Internet sites). A book mark stored in the list can be modified, sent or deleted. - History Backward and forward navigation of the pages displayed are kept in memory. - Browser Reset Select to clear the memory of Bookmarks, Cache, Cookies as well as History. My Files This menu contains the directories of all the download objects. This is where new version of the Movilway services will be recorded after download. Installing paper roll - Open the paper compartment by lifting the catch loacted at the rear of the MOV001 and pull the cover to the rear of the terminal. - Insert the paper roll in the compartment - Pull the pager up to the top of the terminal - Maintain the paper and close the lid - Press simultaneously on both ends of the top of the paper flap, until it clips into position. Battery charging procedu…

Text truncated - open the document above for the full version.

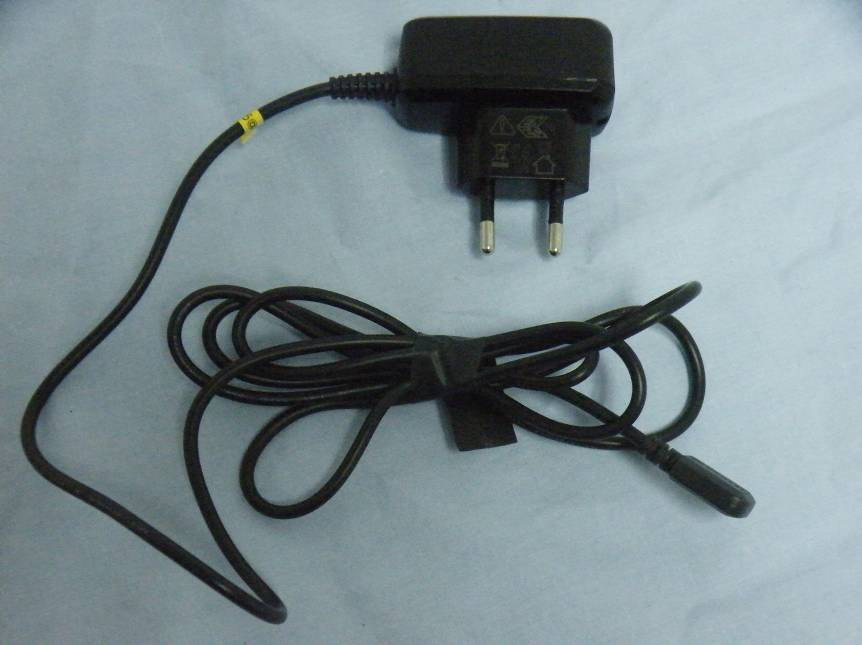

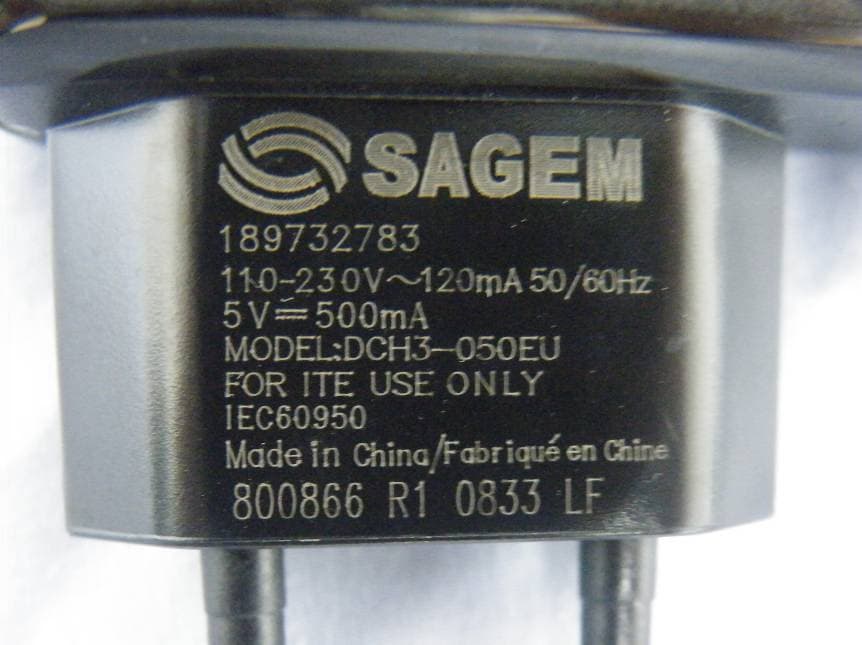

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. APPENDIX: External APPENDIX: External APPENDIX: External APPENDIX: External P PP Photographs hotographshotographs hotographs Front View of EUT Front View of EUTFront View of EUT Front View of EUT Back View of EUT Back View of EUTBack View of EUT Back View of EUT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Side View of EUT Side View of EUTSide View of EUT Side View of EUT- -- -1 11 1 Side View of EUT Side View of EUTSide View of EUT Side View of EUT- -- -2 22 2 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Side View of EUT Side View of EUTSide View of EUT Side View of EUT- -- -3 33 3 Side View of EUT Side View of EUTSide View of EUT Side View of EUT- -- -4 44 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Battery BatteryBattery Battery SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. P PP Power supply 01 ower supply 01ower supply 01 ower supply 01 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. P PP Power supply 02 ower supply 02ower supply 02 ower supply 02 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. P PP Power supply 03 ower supply 03ower supply 03 ower supply 03
