NCP-7100 Document for SAR & FCC 1/15 Standard Telecom Co., Ltd 11. Operating Manual - NCP-7100 - For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the BeltClip providing a minimal spacing of 2.0 cm. from the body to the back of the phone/antenna. To maintain compliance with FCC RF exposure compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user’s body and the back of the phone, including the antenna. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance requirements, and should be avoided. WARNING! Read this information before using your phone NCP-7100 Document for SAR & FCC 2/15 Standard Telecom Co., Ltd 1. Getting Started 1.Phone Parts and Function Key Description F Function Key Description Green Light Light up when using the power key to turn on the phone, when giving a charge of electricity to a storage battery, and when there are incoming calls and messages. Light off, finishing a charge of electricity to a storage battery completely. LCD Screen Display the messages and indicator icons. SEND Key Places and receives a call. END Key Disconnect a call. Also exits all the way out of a menu back to the phone’s idle state display without change any setting. CLR Switch Clears letters, numbers or returns to the previous menu option. Press once to erase one character. Press and hold a few seconds to erase all characters and to go back to the idle state display. UP Key Left soft key or Scroll up on Menu. Earpiece Volume Controls. DOWN Key Right soft key or Scroll down on Menu. Earpiece Volume Controls. MENU Key OK soft key or Select item on Menu Enter the feature menu in the idle state. 1.2.3......Key Input the numbers and the characters. Choose the menu items on menu. NCP-7100 Document for SAR & FCC 3/15 Standard Telecom Co., Ltd 2. LCD Icons ICONS Description Digital Indicator Digital service available. The phone does display the icon on the incoming call No SERVICE The phone is not receiving system signal. In use Call is in progress The phone does not display the icon in the idle state. Roaming The phone is outside of its home service area. Battery level Indicate battery charge level. Signal strength The numbers of bar shown indicate current signal strength. Bell Indicate Bell mode. Lamp Indicate to act only LED lamp instead of bell. Alarm Indicate setting status of Alarm. NCP-7100 Document for SAR & FCC 4/15 Standard Telecom Co., Ltd 2. Basic Functions 1. Turning the phone On and Off 1.1 Turning the phone Power On 1. Install a charged battery pack or connect the phone to an external power sources. 2. Press the [END] key for a few seconds with the green light, at the top of the phone flash. The LCD displays the initial state until the green light, at the top of the phone flash. If the LCD displays “Enter Password”, input the password number using a numeric key. 1.2 Turning the phone Power Off Press and hold the [END] key and then release the button. 2. Making a Call 1. Make sure the phone is turned on. 2. Enter the phone number with area code, if needed. 3. Press the [SEND] key. - If the phone is locked, input the lock code and press the [SEND] key. - “Call failed”, indicates that the call did not go through. 4. Press the [END] key to disconnect the call. 3. Correcting Dialing Mistakes. 1. Press the [CLR] key to erase the most recent digit or letter. 2. Press and hold the [CLR] key for the least 2 seconds to delete all digits or letters. 4. Receiving Calls. Press the all keys except the [END] key, if the ‘Any Key Answer” is ‘YES’ on the menu. Press the [SEND] key in the Power On state. NCP-7100 Document for SAR & FCC 5/15 Standard Telecom Co., Ltd 5. Call waiting. While you are in a call, you may hear two beeps indicating another incoming call. When the call waiting has been enabled, you may put the active call on hold as you answer the other incoming call. Check with your cellular service provider about this feature. 1. Press the [SEND] key to receive a waiting call. 2. Press the [SEND] key again to switch between calls. 6. Mute This function prevents your voice from being transmitted. But you can still hear the other party’s talking. 1. Press the MENU key and the [1] key for mute while you are in a call. 2. Press the MENU key and the [1] key again for cancellation. 7. Reading Last Outgoing Number. Press the [SEND] key to redial the last dialed number. You can also redial any of the last ten numbers you have dialed. Last 10 numbers are stored in the call history list. 8. Adjusting the Volume. You may use the up/down keys to adjust earpiece volume while in a call or idle state. And then you can change the value. The “Volume Set” is on 3 of “Tones/Volume” on the menu 2. The ringer volume can also be adjusted through Feature Menu, and we can select 2 of “Volume Set…

Text truncated - open the document above for the full version.

Standard Telecom Co., Ltd. 926 Kwanyang 2-Dong, Dongan-Ku, Anyang, Kyunggi-Do, Korea Tel - +82 31 420 5248, Fax - +82 423 7949 Federal Communications Commission September. 4. 2001 Equipment Approval Service 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization To whom it may concern : We, the undersigned, hereby authorize PCTEST Engineering Laboratory INC., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. Sincerely, Steve Park R&D Center / Assistant Manager (+82) 31-420-5448 Standard Telecom Co.,Ltd. Standard Telecom Co., Ltd. 926 Kwanyang 2-Dong, Dongan-Ku, Anyang, Kyunggi-Do, Korea Tel - +82 31 420 5248, Fax - +82 423 7949 Federal Communications Commission September. 4. 2001 Equipment Approval Service 7435 Oakland Mills Road Columbia, MD 21046 RF Exposure Warning Statement for Users Manual SUBJECT : STANDARD TELECOM Co.,Ltd FCC ID : MBUNCP7100 Users Manual RF Exposure Warning Statement Standard Telecom Co., Ltd. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual Read this information before using your phone In August 1996 the Federal Communication Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S and international standard bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna, unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the BeltClip providing a minimal spacing of 2.0Cm from the body to the back of the phone / antenna. To maintain compliance with FCC RF exposure compliance requirement, use only belt-clips, holsters or similar accessories that maintain a 2.0Cm separation distance between the user’s body and the back of the phone, including the antenna. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance Standard Telecom Co., Ltd. 926 Kwanyang 2-Dong, Dongan-Ku, Anyang, Kyunggi-Do, Korea Tel - +82 31 420 5248, Fax - +82 423 7949 requirements, and should be avoided. Note : This page is the 1 st page after table of contents on the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, Steve Park R&D Center / Assistant Manager (+82) 31-420-5448 Standard Telecom Co.,Ltd. Standard Telecom Co., Ltd. 926 Kwanyang 2-Dong, Dongan-Ku, Anyang, Kyunggi-Do, Korea Tel - +82 31 420 5248, Fax - +82 423 7949 Federal Communications Commission September. 4. 2001 Equipment Approval Service 7435 Oakland Mills Road Columbia, MD 21046 E911 Compliance Statement SUBJECT : STANDARD TELECOM Co.,Ltd. FCC ID : MBUNCP7100 FCC E911 Requirements Per §22.921 Standard Telecom Co., Ltd. hereby certifies that the PCS mode only mobile telephone (FCC ID : MBUNCP7100), using the Automatic A/B, Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carrier. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Steve Park R&D Center / Assistant Manager (+82) 31-420-5448 Standard Telecom Co.,Ltd. Standard Telecom Co., Ltd. 926 Kwanyang 2-Dong, Dongan-Ku, Anyang, Kyunggi-Do, Korea Tel - +82 31 420 5248, Fax - +82 423 7949 Federal Communications Commission September. 4. 2001 Equipment Approval Service 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request SUBJECT : STANDARD TELECOM Co.,Ltd. FCC ID : MBUNCP7100 FCC Part 24 Certification Request for Confidentiality In accordance with 0.457 of CRF 47, Standard Telecom Co.,Ltd. Hereby requests confidentiality of the Block Diagram, Antenna Specifications, Parts List, Tune-up procedure, Schematics, Operating Manual, Circuit Description for the subject application These documents contain detailed system and equipment description and related information about the product which Standard Telecom Co.,Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Standard Telecom Co.,Ltd. Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Steve Park R&D Center / Assistant Manager (+82) 31-420-5448 Standard Telecom Co.,Ltd. Standard Telecom Co., Ltd. 926 Kwanyang 2-Dong, Dongan-Ku, Anyang, Kyunggi-Do, Korea Tel - +82 31 420 5248, F…

Text truncated - open the document above for the full version.

September 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: STANDARD TELECOM CO., LTD. FCC ID: MBUNCP7100 Part 24 Certification Gentlemen: Attached herewith, on behalf of STANDARD TELECOM CO., LTD., is an application for Part 24 Certification of the following Single-Mode PCS CDMA Phone: FCC ID: MBUNCP7100 TRADE / MODEL(s): NCP-7100 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.321W EIRP PCS CDMA (25.071 dBm) Max. SAR Measurement: 1.470 mW/g PCS CDMA HEAD SAR 0.458 mW/g PCS CDMA BODY SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, User’s Manual Warning Page & Statement Location, SAR Measurement report data and plots, RF Exposure measurement report data and plots, FCC ID label and location, test setup photographs, internal and external photographs, Block Diagrams (confidential), Schematic Diagrams (confidential), Operational/Circuit Description (confidential), Antenna Specs (confidential), Parts List & Tune-up Procedure (confidential), and the User's Manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Steve Park, STC R&D5

December 11, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Standard Telecom Co., Ltd. FCC ID: MBUNCP7100 731 Confirmation No.: EA102542 Correspondence Reference No.: 21280 Request for Tech. Info.: 11/19/01 Dear Martin: Transmitted herewith, on behalf of Standard Telecom Co., Ltd. is an amendment provided in response to the request for technical information dated November 19, 2001. EMC 1. Please find attached the revised Tune-Up Procedure and the DC currents and voltages in the final amplifier stage. 2. Please find attached a clearer version of the schematics. 3. Please find photographs of the test setup of the EUT set up and the substitution antenna. 4. EIRP data using the standard battery is attached. 5. The extended battery was used during the spurious radiation test. 6. We confirm that the conducted and radiated spurious measurements were made up to 20GHz. Please find the revised page 5 of the EMC report indicating this fact. 7. Please find the revised page 2 of the EMC report showing the proper reference diagram. SAR 1. Standard Telecom has confirmed that the only accessories available are the tested ones. 2. Our probe is calibrated at 1900MHz for both brain and muscle. Please find the attached calibration information. Since our phantom is not glycol proof we used a brain simulating tissue with the same permittivity as the new standard but with a higher conductivity. This will lead to an over estimation of SAR. 3. The values for the tissue parameters on the data sheets are measured values. 4. We confirm that the phantom thickness is 2mm. 5. Please find the revised data summary pages showing the test liquid depth and temperature as well as the ambient temperature reading. We have attached z scan data for the highest SAR locations. 6. Please find the attached validation plots taken in the flat phantom with a liquid temperature of 21.6 degrees C and a depth of 15.5cm. 7. Please find the revised page 10 of the SAR report. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Standard Telecom Co., Ltd.

January 9, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Standard Telecom Co., Ltd. FCC ID: MBUNCP7100 731 Confirmation No.: EA102542 Correspondence Reference No.: 21550 Request for Tech. Info.: 12/21/01 Dear Martin: Transmitted herewith, on behalf of Standard Telecom Co., Ltd. is an amendment provided in response to the request for technical information dated December 21, 2001. 1. We tested PCS body SAR using a conversion factor for 1900 MHz muscle which is 4.7. 2. In the case of brain SAR in the PCS band we used a recipe with a conductivity of 1.6 S/m instead of 1.4 S/m as specified in supplement C. Please note that the dielectric constant is within the 5% specified. In this case, the SAR value is directly proportional with the conductivity. The overestimation of SAR should be approximately 14%. SAR = σ E 2 / ρ Where: σ = Conductivity of the tissue-simulant material (S/m) ρ = Mass density of the tissue-simulant material (kg/m 3 ) E = Total RMS electric field strength (V/m) (1.6 S/m — 1.4 S/m) X 100 = 14.28% 1.4 S/m We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Standard Telecom Co., Ltd.

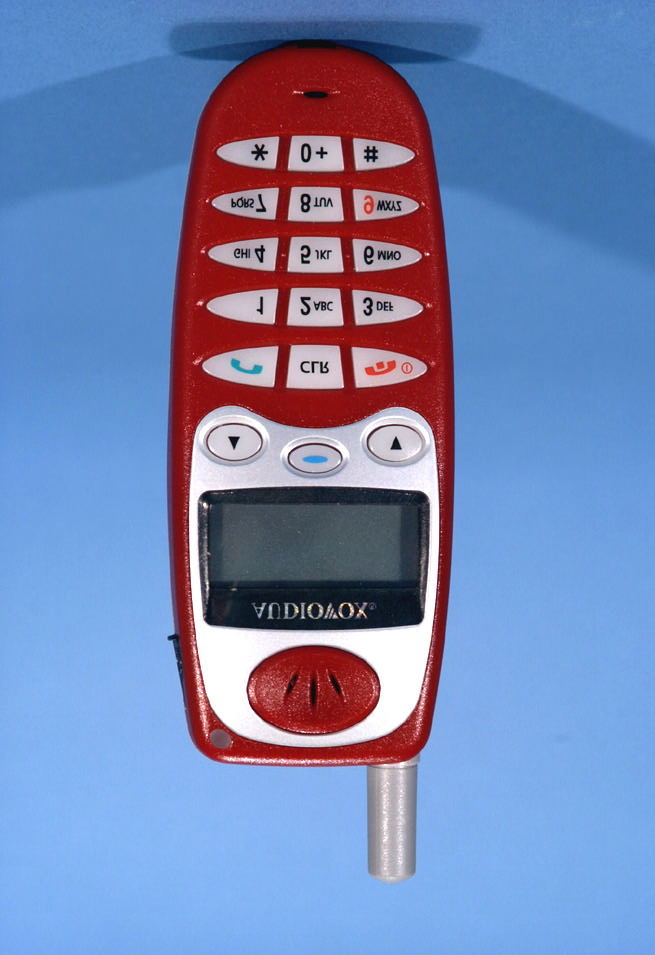

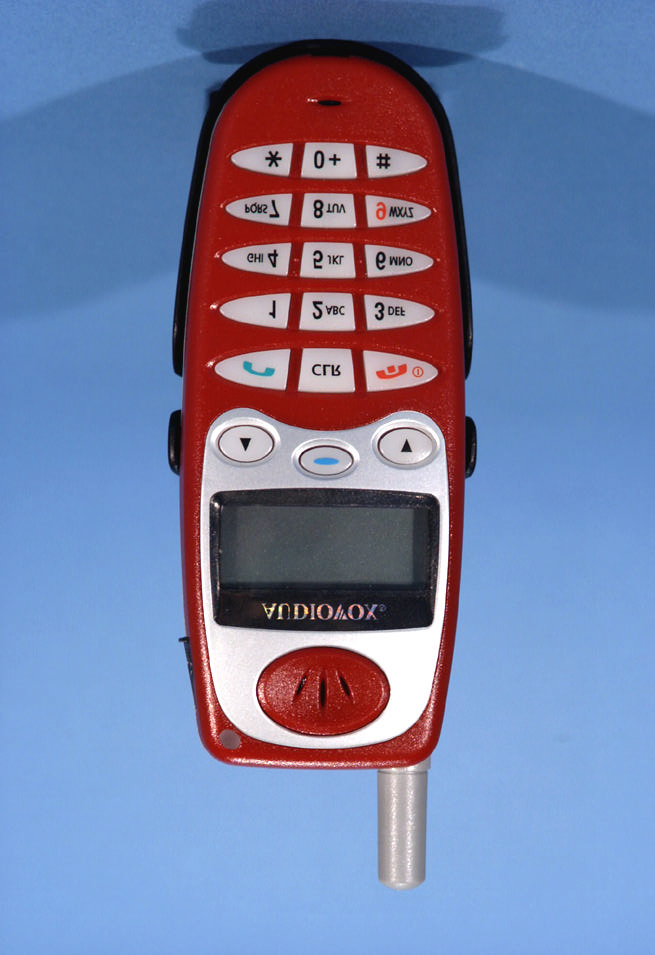

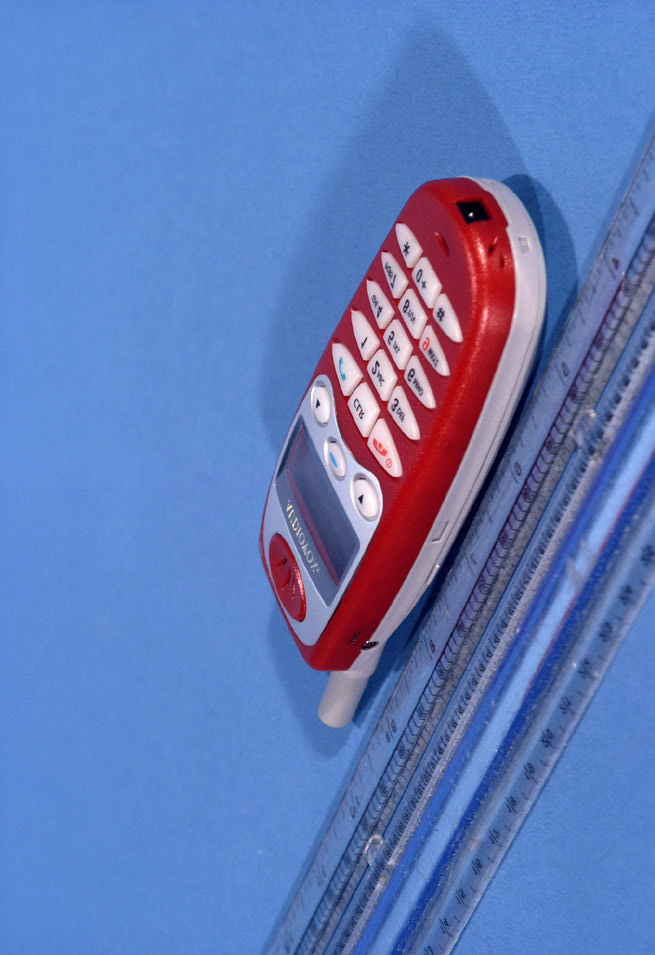

© 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100) © 2001 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7100 NVLAP Lab Code: 100431-0 Single-Mode PCS CDMA Phone (Model: NCP-7100)

STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.954 mW/g, SAR (10g): 0.532 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Extended Battery Conducted Power = 24.5dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 09-05-2001 SAR Tot [mW/g] 8.10E-2 2.43E-1 4.05E-1 5.67E-1 7.29E-1 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.809 mW/g, SAR (10g): 0.445 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Extended Battery Conducted Power = 24.5dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 09-05-2001 SAR Tot [mW/g] 6.68E-2 2.00E-1 3.34E-1 4.68E-1 6.01E-1 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.00 mW/g, SAR (10g): 0.547 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Extended Battery Conducted Power = 24.5dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 09-05-2001 SAR Tot [mW/g] 8.37E-2 2.51E-1 4.18E-1 5.86E-1 7.53E-1 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.965 mW/g, SAR (10g): 0.529 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Standard Battery Conducted Power = 24.5dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 09-05-2001 SAR Tot [mW/g] 8.28E-2 2.48E-1 4.14E-1 5.80E-1 7.45E-1 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.41 mW/g, SAR (10g): 0.783 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Extended Battery Conducted Power = 24.5dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 09-05-2001 SAR Tot [mW/g] 1.22E-1 3.66E-1 6.11E-1 8.55E-1 1.10E+0 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.14 mW/g, SAR (10g): 0.633 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Extended Battery Conducted Power = 24.5dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 09-05-2001 SAR Tot [mW/g] 1.00E-1 3.00E-1 5.01E-1 7.01E-1 9.01E-1 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.47 mW/g, SAR (10g): 0.792 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Extended Battery Conducted Power = 24.5dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 09-05-2001 SAR Tot [mW/g] 1.28E-1 3.85E-1 6.41E-1 8.97E-1 1.15E+0 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.40 mW/g, SAR (10g): 0.748 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Standard Battery Conducted Power = 24.5dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 09-05-2001 SAR Tot [mW/g] 1.30E-1 3.90E-1 6.49E-1 9.09E-1 1.17E+0 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.869 mW/g, SAR (10g): 0.465 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Extended Battery Conducted Power = 24.5dBm; Right Head Phantom, Cheek/Touch Position Test Date -- 09-05-2001 SAR Tot [mW/g] 8.57E-2 2.57E-1 4.28E-1 6.00E-1 7.71E-1 PCTEST Engineering Laboratory, Inc. STANDARD TELECOM FCC ID:MBUNCP7100 -- PCS CDMA Head SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.789 mW/g, SAR (10g): 0.419 mW/g STANDARD TELECOM PCS CDMA Only Phone Model:NCP-7100 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Extended Battery Conducted Power = 24.5dBm; Right Head Phantom, Cheek/Touch Position Test Date -- 09-05-2001 SAR Tot [mW/g] 7.46E-2 2.24E-1 3.73E-1 5.22E-1 6.71E-1 PCTEST Engineering Laboratory, Inc. STANDAR…

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) STANDARD TELECOM CO., LTD. Dates of Tests: September 04-05, 2001 926 Kwanyang 2-Dong, Test Report S/N: SAR.210904528.MBU Dongan-Ku, Anyan-City Test Site: PCTEST Lab, Columbia, MD USA Kyunggi-Do, KOREA 431-062 Attn: Mr. Steve Park / STC R&D5 FCC ID MBUNCP7100 APPLICANT STANDARD TELECOM CO., LTD. EUT Type: Single-Mode PCS CDMA Phone Tx Frequency: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.321 W EIRP (25.071 dBm) Max. SAR Measurement: 1.470mW/g PCS CDMA Head SAR; 0.458mW/g PCS CDMA Body SAR Trade Name/Model(s): NCP-7100 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C [July 2001] Application Type: Certification Antenna Manufacturer: SB TELCOM CO., LTD. Model No.: NSB123-1900-SD5 Antenna Dimensions: Length = 3.055 cm. [1/4 Helical] This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528 (Draft Aug.2000). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210904528.MBU SAR Measurement Report FCC Part 24 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 HEAD SAR TEST POSITIONS OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-18 14.1 SAR TEST EQUIPMENT LIST 19 15.1 CONCLUSION 20 16.1 REFERENCES 21 Test Report S/N: SAR.210904528.MBU SAR Measurement Report Test Date(s): September 04-05, 2001 FCC Part 24 Certification STANDARD TELECOM FCC ID: MBUNCP7100 © 2001 PCTEST Lab Single-Mode PCS CDMA Phone (Model: NCP-7100) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: STANDARD TELECOM CO., LTD. Address: 926 Kwanyang 2-Dong, Dongan-Ku, Anyan-City, Attention: Kyunggi-Do, KOREA 431-062 Mr. Steve Park / STC R&D5 • EUT Type: Single-Mode PCS CDMA Phone • Trade Name / Model: NCP-7100 • FCC IDENTIFIER: MBUNCP7100 • Tx Frequency: 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Frequency: 1931.25 — 1988.75 MHz (PCS CDMA) • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s): CDMA • FCC Rule Part(s): §2.1093, OET Bulletin 65, Supplement C (July 2001) • Max. RF Output Power: 0.321 W EIRP - PCS CDMA (25.071 dBm) • Max SAR Measurement: 1.470mW/g PCS Head SAR; 0.458mW/g PCS Body SAR • Antenna Manufacturer: SB TELCOM CO., LTD. Model No.: NSB123-1900-SD5 Antenna Dimensions: Length = 3.055 cm. [1/4 Helical] • Application Type: Certification • Dates of Tests: September 04-05, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210904528.MBU 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210904528.MBU SAR Measurement Report Test Date(s): September 04-05, 2001 FCC Part 24 Certification STANDARD TELECOM FCC ID: MBUNCP7100 © 2001 PCTEST Lab Single-Mode PCS CDMA Phone (Model: NCP-7100) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF …
