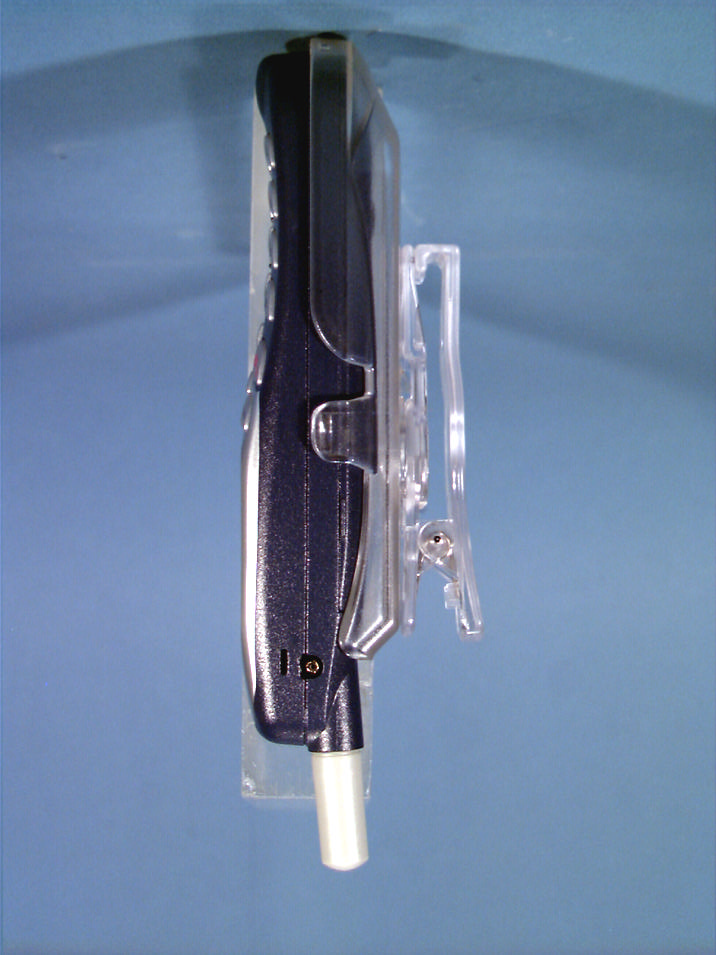

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the belt-clip, which provides 2.5 cm. from the body. To comply with RF exposure requirements, a minimum separation distance of 2.5 cm. must be maintained between the user’s body and the belt-clip, including the antenna. The use of other belt-clip/holsters and other non-tested accessories may not comply with FCC RF Exposure requirements and should be avoided. WARNING! Read this information before using your phone

July 2, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: STANDARD TELECOM Co., Ltd. FCC ID: MBUNCP7200 Part 24 Certification Gentlemen: Submitted herewith, on behalf of STANDARD TELECOM Co., Ltd., is an application for Part 24 Certification of the Single-Mode PCS Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: STANDARD TELECOM Co., Ltd.

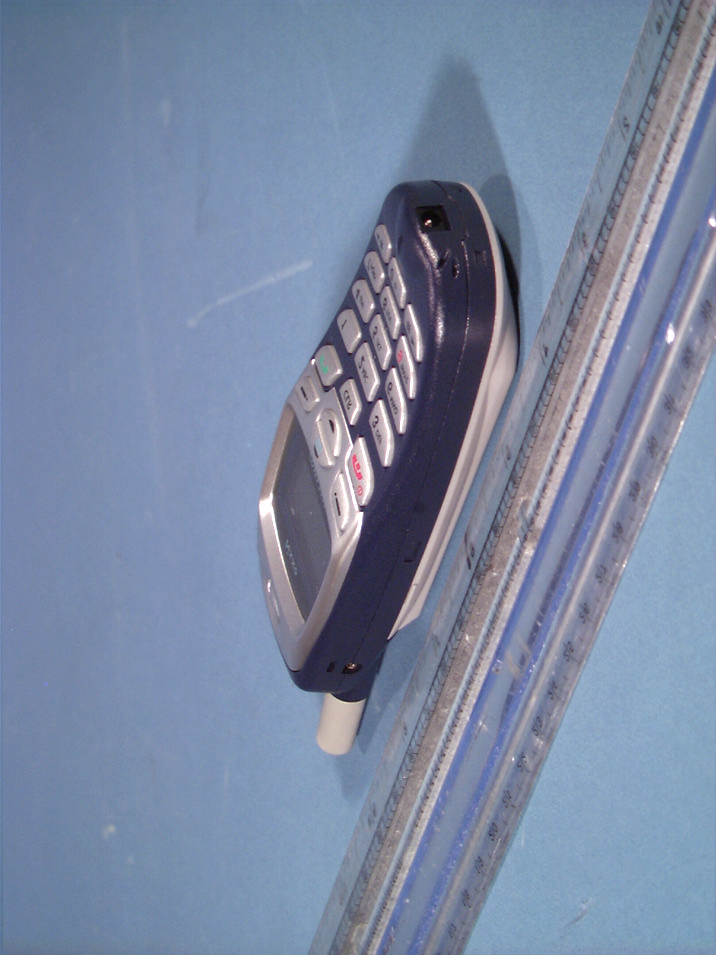

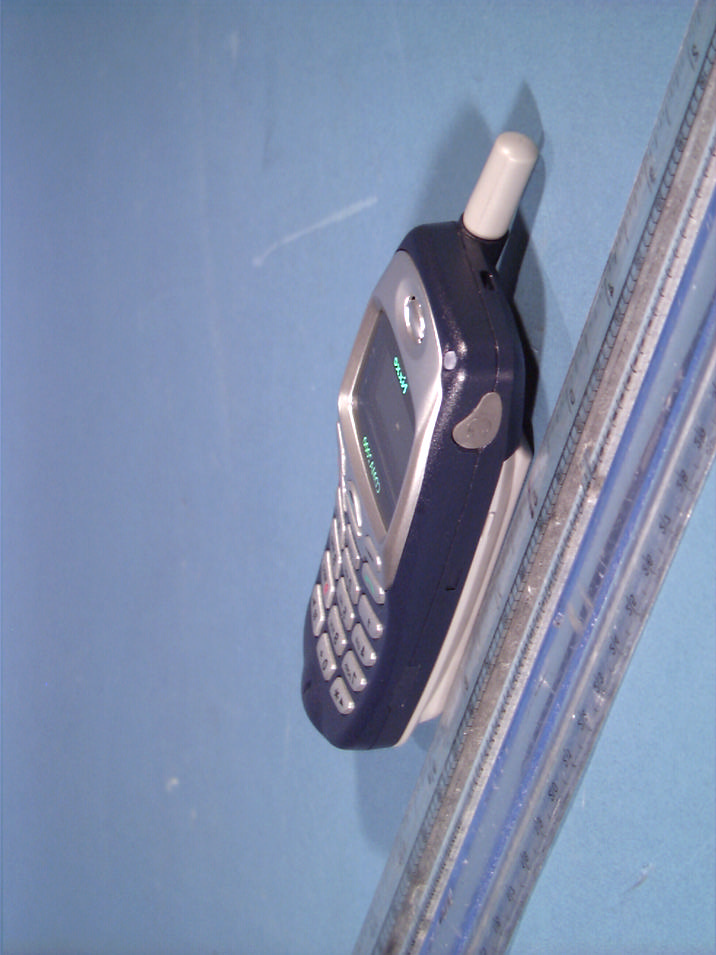

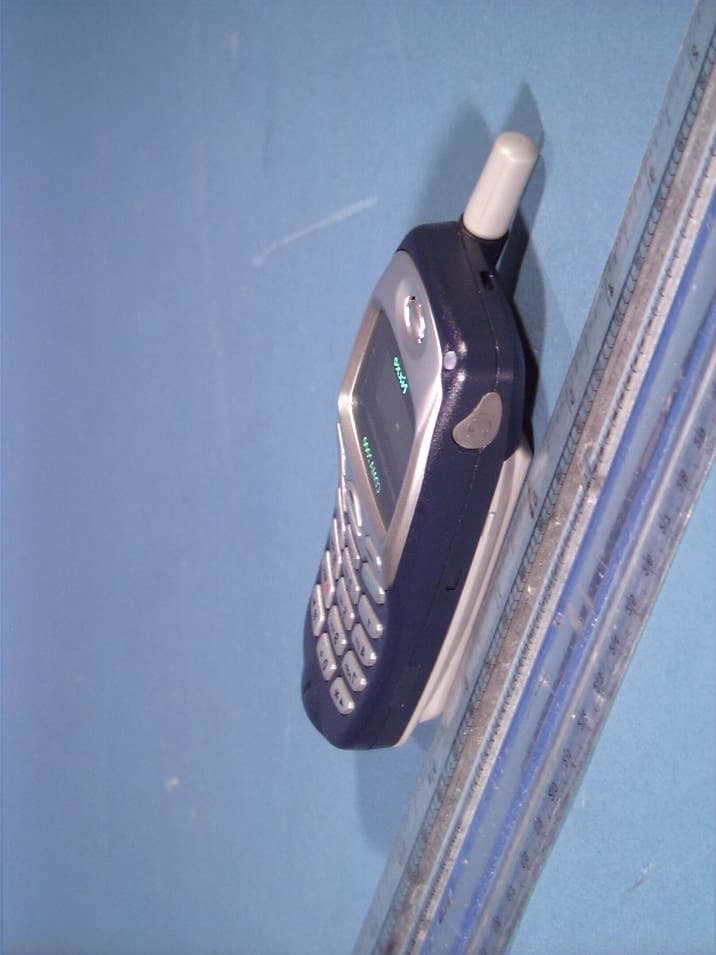

© 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200)

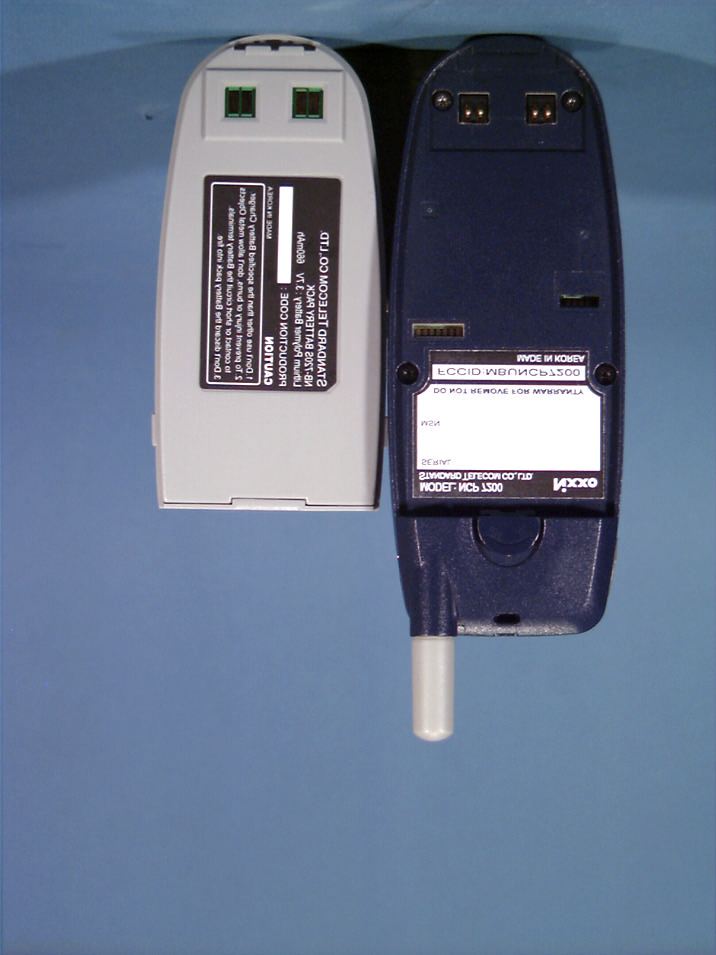

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200)

SAR Data Report 02061714 Start : 17-Jun-02 03:58:29 pm End : 17-Jun-02 04:04:45 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : STC Model Number : NCP-7200 Serial Number : 8 Frequency : 1908.75 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 41.000 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: PCS Mode CH-1175 Cheek CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=12.0 y=-8.0 = 0.94 W/kg Zoom Scan - Max Peak SAR Value at x=10.0 y=-6.0 z=0.0 = 1.56 W/kg Max 1g SAR at x=11.0 y=-7.0 z=0.0 = 0.99 W/kg Max 10g SAR at x=13.0 y=-8.0 z=0.0 = 0.57 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:10.0 y:-6.0 1g SAR Values 0.988 0.942 0.897 0.851 0.805 0.760 0.714 0.669 0.623 0.578 0.532 SAR Data Report 02061709 Start : 17-Jun-02 03:06:17 pm End : 17-Jun-02 03:12:34 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : STC Model Number : NCP-7200 Serial Number : 8 Frequency : 1908.75 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 41.000 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: PCS Mode CH-1175 Tilt CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=-2.0 y=-2.0 = 1.10 W/kg Zoom Scan - Max Peak SAR Value at x=-3.0 y=-1.0 z=0.0 = 1.86 W/kg Max 1g SAR at x=-2.0 y=-1.0 z=0.0 = 1.12 W/kg Max 10g SAR at x=-2.0 y=-2.0 z=0.0 = 0.64 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-3.0 y:-1.0 1g SAR Values 1.119 1.066 1.013 0.960 0.907 0.854 0.802 0.749 0.696 0.643 0.590 SAR Data Report 02061705 Start : 17-Jun-02 02:21:57 pm End : 17-Jun-02 02:28:17 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : STC Model Number : NCP-7200 Serial Number : 8 Frequency : 1908.75 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 41.000 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: PCS Mode CH-1175 Cheek CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=14.0 y=2.0 = 0.77 W/kg Zoom Scan - Max Peak SAR Value at x=9.0 y=3.0 z=0.0 = 1.11 W/kg Max 1g SAR at x=14.0 y=2.0 z=0.0 = 0.78 W/kg Max 10g SAR at x=13.0 y=2.0 z=0.0 = 0.46 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:9.0 y:3.0 1g SAR Values 0.779 0.734 0.689 0.644 0.599 0.554 0.509 0.464 0.419 0.373 0.328 SAR Data Report 02061701 Start : 17-Jun-02 01:49:23 pm End : 17-Jun-02 01:55:54 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : STC Model Number : NCP-7200 Serial Number : 8 Frequency : 1908.75 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 41.000 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: PCS Mode CH-1175 Tilt CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=-13.0 y=11.0 = 1.21 W/kg Zoom Scan - Max Peak SAR Value at x=-13.0 y=11.0 z=0.0 = 2.19 W/kg Max 1g SAR at x=-12.0 y=11.0 z=0.0 = 1.29 W/kg Max 10g SAR at x=-9.0 y=9.0 z=0.0 = 0.70 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-13.0 y:11.0 1g SAR Values 1.285 1.206 1.128 1.049 0.970 0.892 0.813 0.734 0.656 0.577 0.498 SAR Data Report 02061721 Start : 17-Jun-02 05:21:38 pm End : 17-Jun-02 05:27:42 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : STC Model Number : NCP-7200 Serial Number : 8 Frequency : 1908.75 MHz Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.900 Tissue Conductivity : 1.510 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Muscle Calibrated Dielectric : 53.900 Calibrated Conductivity : 1.480 Calibrated D…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200) © 2002 PCTEST Lab STANDARD TELECOM FCC ID: MBUNCP7200 Single-Mode PCS Phone (Model: NCP-7200)

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

SAR Data Report 02061722 Start : 17-Jun-02 01:27:15 pm End : 17-Jun-02 01:32:43 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 1900 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 41.000 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 1900 MHz Validation CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=0.0 y=1.0 = 9.76 W/kg Zoom Scan - Max Peak SAR Value at x=0.0 y=1.0 z=0.0 = 17.46 W/kg Max 1g SAR at x=0.0 y=2.0 z=0.0 = 10.33 W/kg Max 10g SAR at x=0.0 y=1.0 z=0.0 = 5.44 W/kg Validation Results at 0.25 W: Peak Nominal = 18.0, Error: -3.15 % 1g Nominal = 9.9, Error: 4.13 % 10g Nominal = 5.1, Error: 6.11 % 0 2 4 6 8 10 12 14 16 18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:0.0 y:1.0 1g SAR Values 10.33 9.79 9.25 8.70 8.16 7.61 7.07 6.52 5.98 5.43 4.89

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220617318.MBU Test Dates: June 17-18, 2002 Phone Type: Single-Mode PCS FCC ID: MBUNCP7200 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Standard Telecom Co., Ltd. Dates of Tests: June 17-18, 2002 926 Kwanyang 2-Dong, Dongan-Ku, Test Report S/N: SAR.210617318.MBU Anyang-City, Kyunggi-Do, Korea 431-062 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ho-Sang Yun Manager, R&D Center FCC ID: MBUNCP7200 APPLICANT: STANDARD TELECOM CO., LTD. EUT Type: Single-Mode PCS Phone Tx Frequency: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.373W EIRP PCS CDMA (25.721 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.29W/kg PCS CDMA Head SAR; 0.73W/kg PCS CDMA Body SAR Trade Name/Model(s): NCP-7200 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220617318.MBU PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220617318.MBU Test Dates: June 17-18, 2002 Phone Type: Single-Mode PCS FCC ID: MBUNCP7200 Page 2 of 25 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster /Belt Clip Configurations.................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment .................................................................................... 14 Controlled Environment ........................................................…

Text truncated - open the document above for the full version.

PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220617317.MBU Test Dates: June 17-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: MBUNCP7200 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Standard Telecom Co., Ltd. Dates of Tests: June 17-18, 2002 926 Kwanyang 2-Dong, Dongan-Ku, Test Report S/N: 24.220617317.MBU Anyang-City, Kyunggi-Do, Korea 431-062 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ho-Sang Yun Manager, R&D Center FCC ID MBUNCP7200 APPLICANT STANDARD TELECOM CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Mode PCS Phone Model: NCP-7200 Tx Frequency Range: 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.373W EIRP PCS CDMA (25.721 dBm) Max. SAR Measurement: 1.29W/kg PCS CDMA Head SAR; 0.73W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220605286.JVP PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220617317.MBU Test Dates: June 17-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: MBUNCP7200 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 7.1 RADIATED MEASUREMENTS 9-11 8.1 FREQUENCY STABILITY 12-13 9.1 PLOTS OF EMISSIONS 14 10.1 LIST OF TEST EQUIPMENT 15 11.1 SAMPLE CALCULATIONS 16 12.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220617317.MBU Test Dates: June 17-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: MBUNCP7200 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: STANDARD TELECOM CO., LTD. Address: 926 Kwanyang 2-Dong, Dongan-Ku, Anyang-City, Kyunggi-Do, Korea 431-062 Attention: Mr. Ho-Sang Yun Manager, R&D Center • FCC ID: MBUNCP7200 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.373W EIRP PCS CDMA (25.721 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Mode PCS Phone • Modulation(s): PCS CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E) • Dates of Tests: June 17-18, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.220617317.MBU PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220617317.MBU Test Dates: June 17-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: MBUNCP7200 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeated using …
