MCI14010BaseT WLAN link

tel: 650-726-1263 fax: 650-726-1252 internet: [email protected] Thomas N. CokeniasEMC & Radio Type Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory12 January 1999 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Applicant: RadioLAN Inc. FCC ID: MCI140 To whom it may concern, On behalf of my client, RadioLAN Inc., I request that certain parts of the certification application for the referenced device be kept confidential and be withheld from public review. This request is made under the provisions of 0.459 et seq of the Rules. The portions of this application for which confidentiality are requested: Circuit block diagrams Theory of operation Circuit schematics Rationale for request for confidentiality: RadioLAN has invested time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, T.N. Cokenias Agent for RadioLAN

1366 Bordeaux Dr. Sunnyvale, CA 94089-1005 USA Tel: (408) 752-8166 Fax: (408) 752-8168 Data#: 7File#: 99U0009.EMIDate: 01-11-1999 Time: 16:00:10 Level (dBuV)Compliance Certification Services 80 40 0 0.4530 Frequency (MHz) 1.2.5.1020 FCC CLASS-B Trace: 3 Ref Trace: Project No. : 99u0009 Report No. : 990111 Test Engr : Pete Krebill Company : Radiolan EUT : 5.8GHz TX/RX Test Config.: EUT/PC Type of Test: FCC B Mode of Op. : TX : Peak: L1_Black, L2_Green : 110Vac, 60Hz

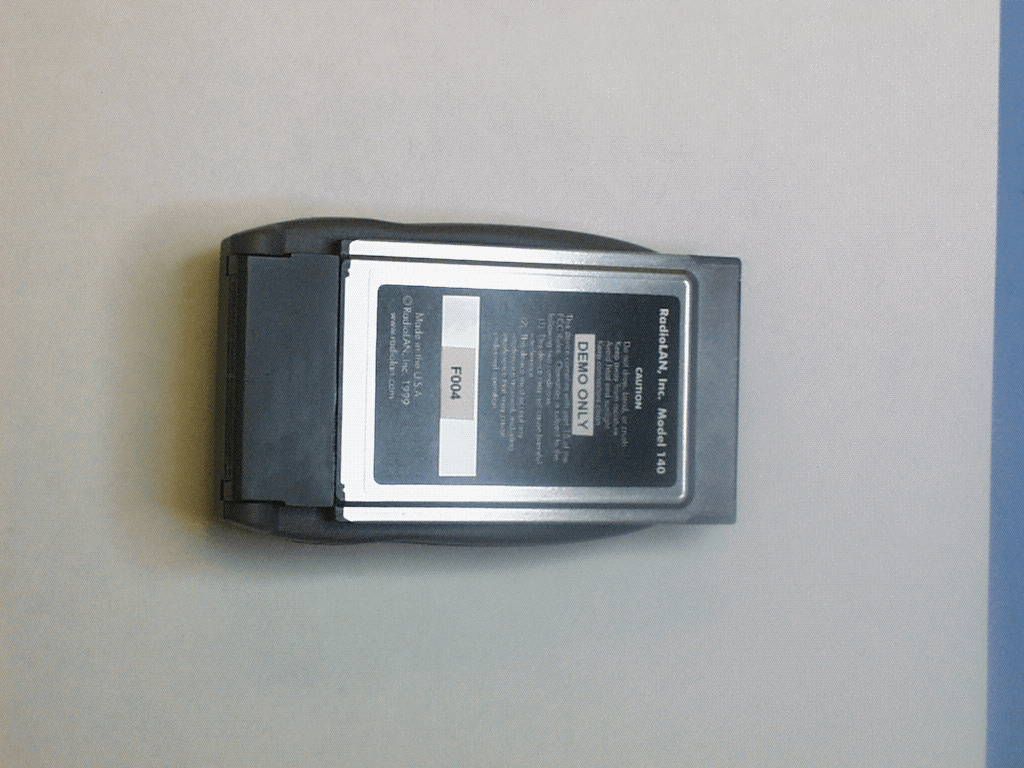

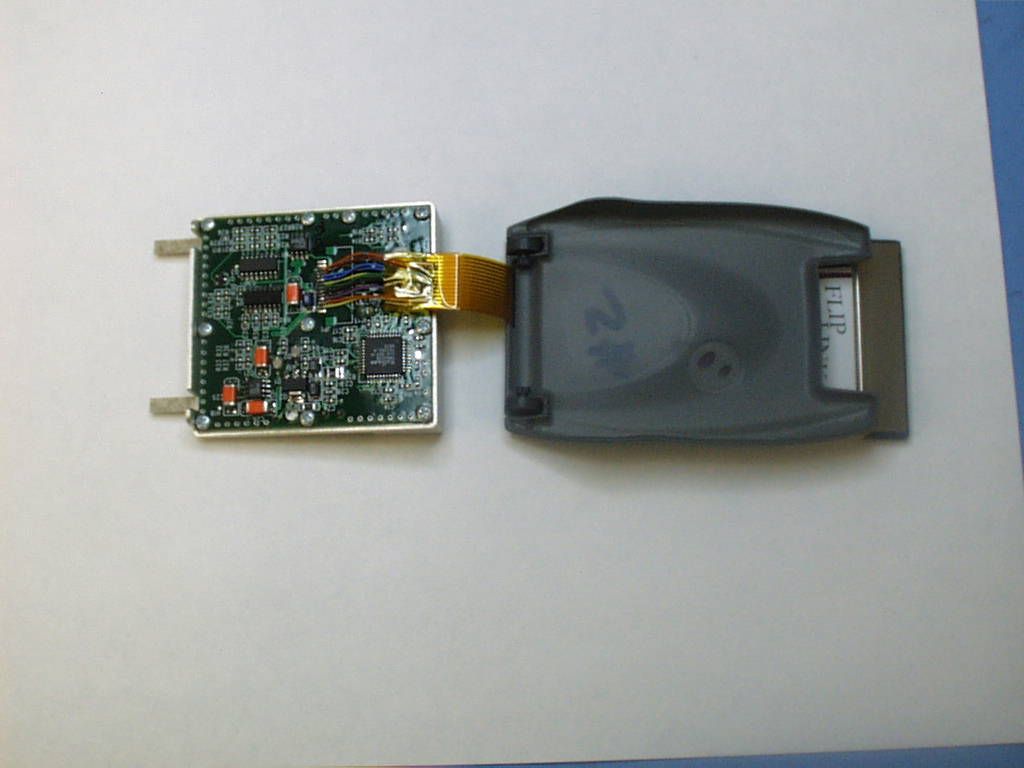

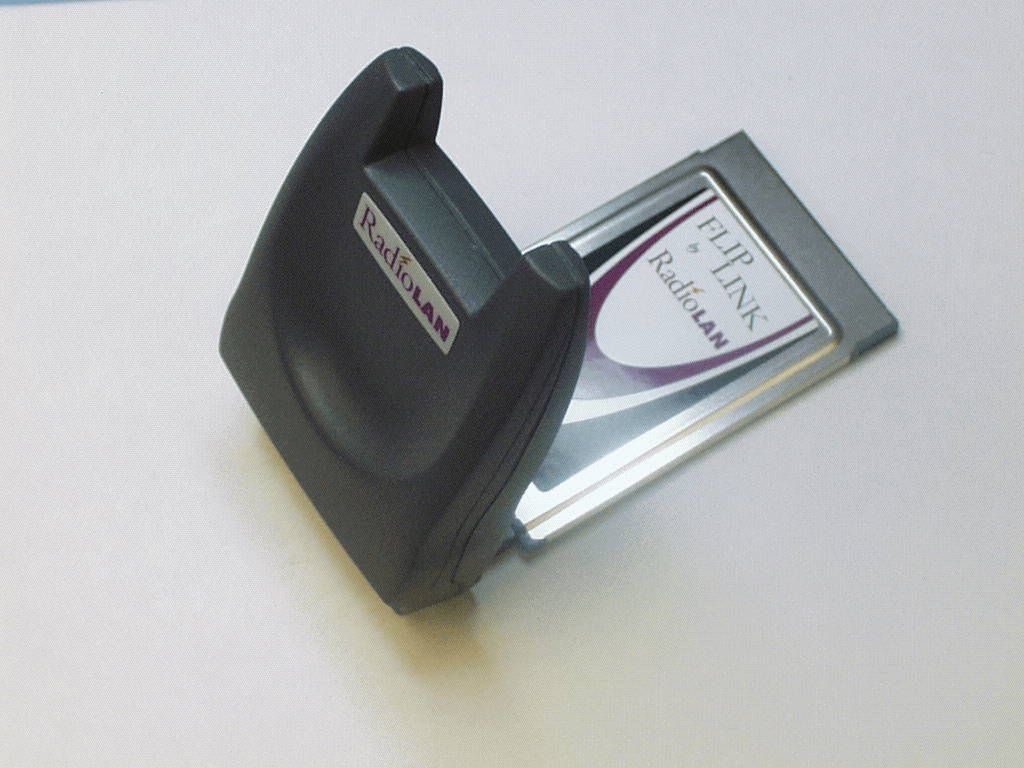

tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 1 of 11 pagesFCC ID: MCIP140 Thomas N. CokeniasEMC/RFI Specialist Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 CERTIFICATION TEST REPORT FOR A 5800 MHz TRANSCEIVER Applicant: RadioLAN 455 DeGuigne Drive Sunnyvale, CA 94089 Model:Model 140 (“Flip radio”) FCC ID:MCI140 Operating Frequency:5800 MHz FCC Rule Part:15.249 Used For:WLAN in offices, etc. Power Source:Power from host computer via PCMCIA connector Test Location:Compliance Consulting Services 951F Monterey Road Morgan Hill, CA 95087 All tests were performed by me or under my supervision. The RadioLAN Model 140 meets all emissions and modulation requirements specified under Parts 2 and 15 of the Commission’s Rules. THOMAS N. COKENIAS11 Jan 1999 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 2 of 11 pagesFCC ID: MCIP140 EXHIBITS EXHIBIT A: Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT B: Information for which Confidentiality is Requested B1: Theory of Operation B2: Block Diagram B3 Schematics EXHIBIT C: Product Photographs EXHIBIT D: FCC ID Label Drawing EXHIBIT E: User Manual EXHIBIT F: Report of Measurements tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 3 of 11 pagesFCC ID: MCIP140 EXHIBIT A:Letter Requesting Confidentiality under Sec. 0.457(d) - see attachment MCI140 Confidentiality Letter tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 4 of 11 pagesFCC ID: MCIP140 EXHIBIT B:Information for which Confidentiality is Requested B1: Theory of Operation: see attachment theory B2:Block Diagram: see attachment system block and digital block diagram B3 Schematics: see attachments schematic 1 and 2 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 5 of 11 pagesFCC ID: MCIP140 EXHIBIT C:Product Photographs see attached photos in JPEG tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 6 of 11 pagesFCC ID: MCIP140 EXHIBIT D:FCC ID Label Drawing see attachment FCC ID Label tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 7 of 11 pagesFCC ID: MCIP140 EXHIBIT E:User Manual see attachment User manual tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 8 of 11 pagesFCC ID: MCIP140 EXHIBIT I: Report of Measurements tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 9 of 11 pagesFCC ID: MCIP140 TEST PROCEDURES Radiated Emissions Test Requirement: 15.249(a) Measurement Equipment Used: HP 8566B Spectrum Analyzer HP 8449 B Preamplifier, 1-26 GHz ARA Systems DRG-118A Horn, 1 - 18 GHz ARA MWH 1826/B Horn, 18 - 26 GHz HP 11970A harmonic mixer, 26.5 - 40 GHz HP 11975A levelling pre-amplifier for harmonic mixer Test Set-Up d: 0.25 - 3 ft 1-2m EUT d -or- preamplifier HP11970A HP11975A Fig. 1 Test Procedures 1. The EUT was placed on a wooden table. The search antenna was placed 3 ft from the EUT. The EUT antenna was mounted vertically as per normal installation. 2. The EUT was slowly rotated to locate the direction of maximum emission at each emission being measured. tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 10 of 11 pagesFCC ID: MCIP140 3. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Results: Refer to Excel spread sheet Radiated emissions 1/11/99 Occupied Bandwidth Test Requirement: 15.249(c) Measurement Equipment Used: HP 8564E Spectrum Analyzer HP 8449 B Preamplifier, 1-26 GHz AH Systems SAS-200/571 Double Ridge Waveguide Horn, 1 - 18 GHz EMCO 3116 Ridged Waveguide Horn, 18 - 40 GHz Test Set-Up Refer to Figure 1. Test Procedures 1. Antenna to EUT distance was decreased to approximately 4 inches. 2. The spectrum analyzer was set to display the entire 5725-5875 MHz frequency range. 3. The MAX HOLD and MARKER features of the analyzer were used to determine the occupied bandwidth of the signal. Test Results All out of band signals were at least 50 dB below the fundamental or else met the radiated requirements of 15.209. Refer to spectrum analyzer charts UBE.jpg and LBE.jpg AC Line Conducted Emissions Test Requirement: 15.107, 15.207 Measurement Equipment Used: Rohde & Schwarz EMI Receiver ESHS-20 Fischer Custom Communication LISN, FCC-LISN-50/250-25-2 Test Set-up tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 11 of 11 pagesFCC ID: MCIP140 LISN AC AC-DC converter Figure 2 FIM Test Procedure 1. The EUT was placed on a wooden table 40 cm from a vertical ground plane and approximately 80 cm above the horizontal ground plane on the floor. The EUT was set to transmit in a normal mode. 2. Line conducted data was recorded for both NEUTRAL and HOT lines. Test Results Refer to attached graph MCI140 AC Line Cond. Radiated Emissions from ITE Portion of EUT Test Requirement: 15.101, 15.109 The EUT meets the requirements for a class A device. The classification is applicable to this product because it will be sold and used in an office network environment. A verification report will be sent to RadioLAN by the test laboratory. THOMAS N. COKENIAS11 Jan 1999 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] RadioLAN 140 15.249 page 12 of 11 pagesFCC ID: MCIP140

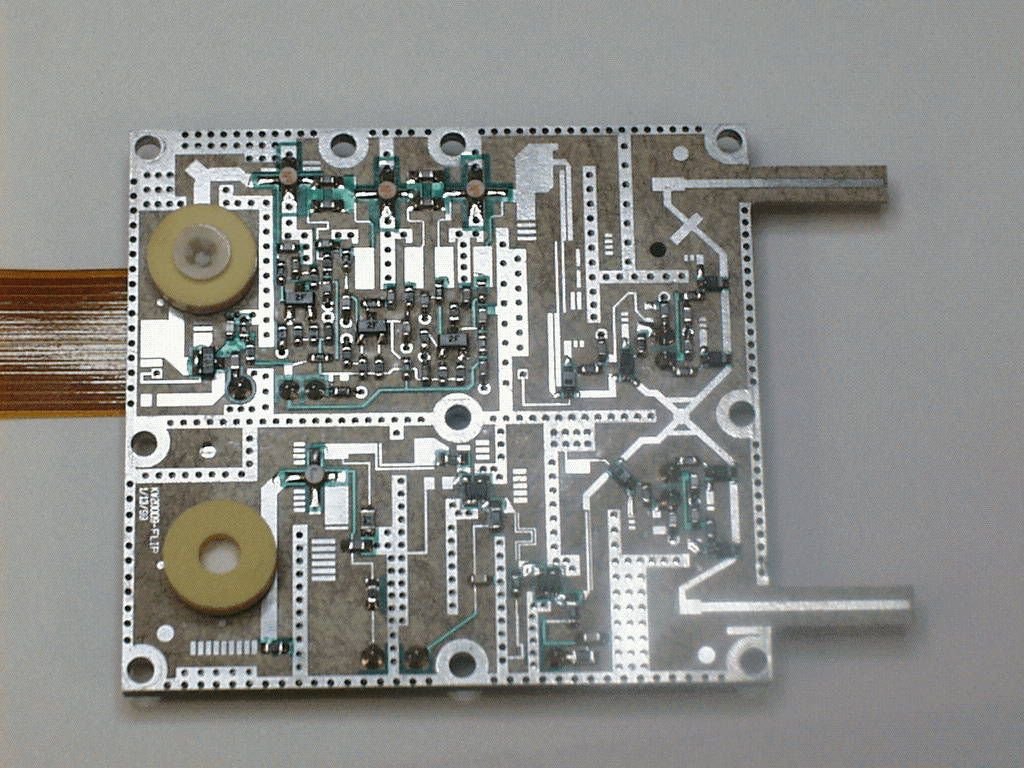

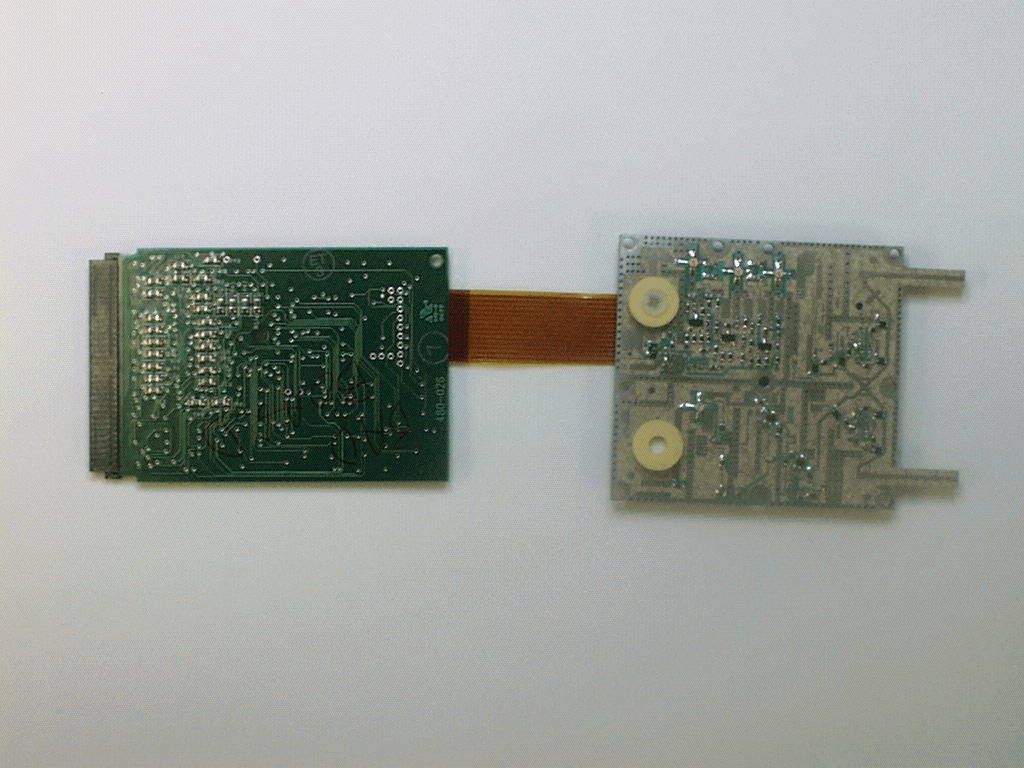

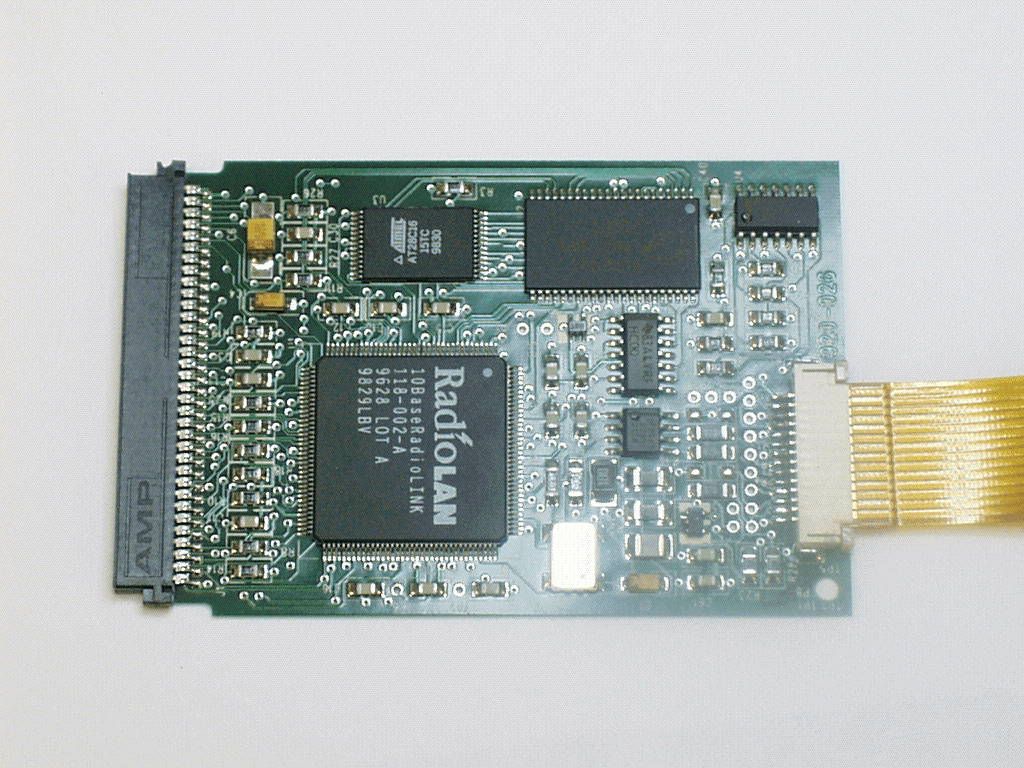

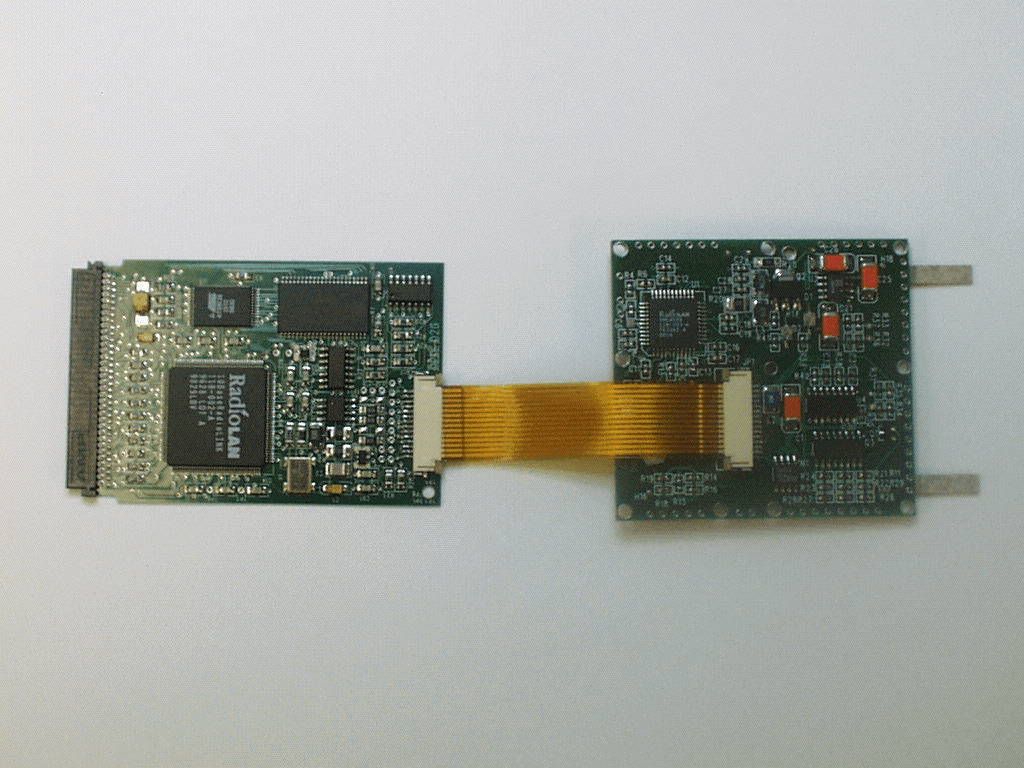

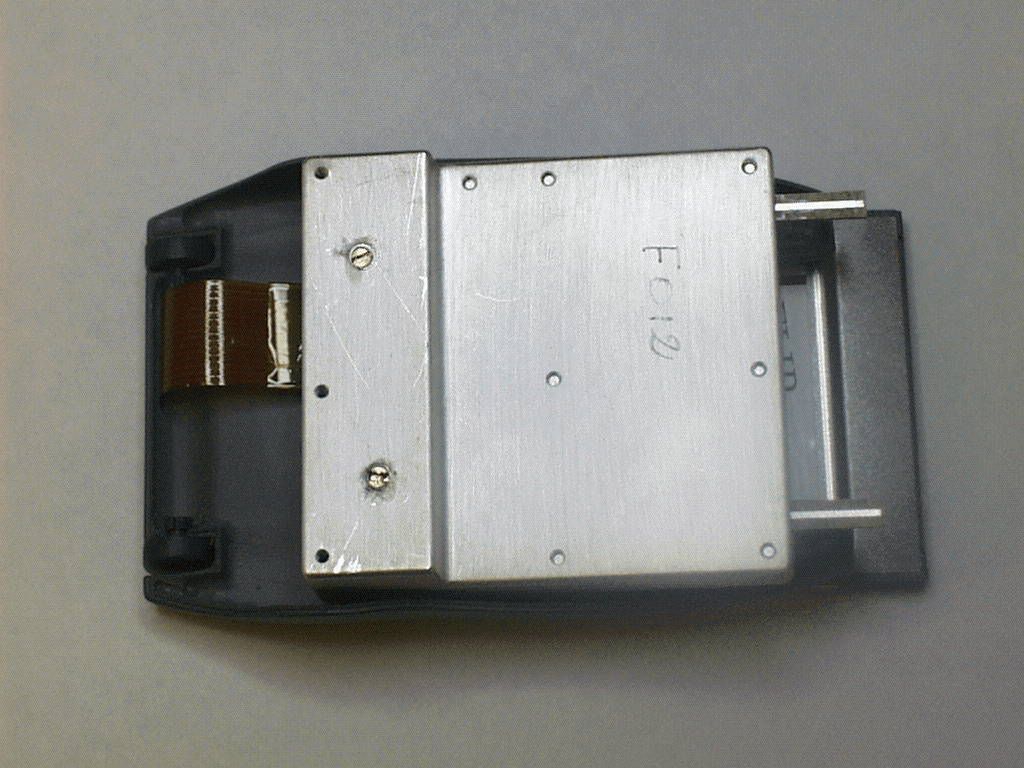

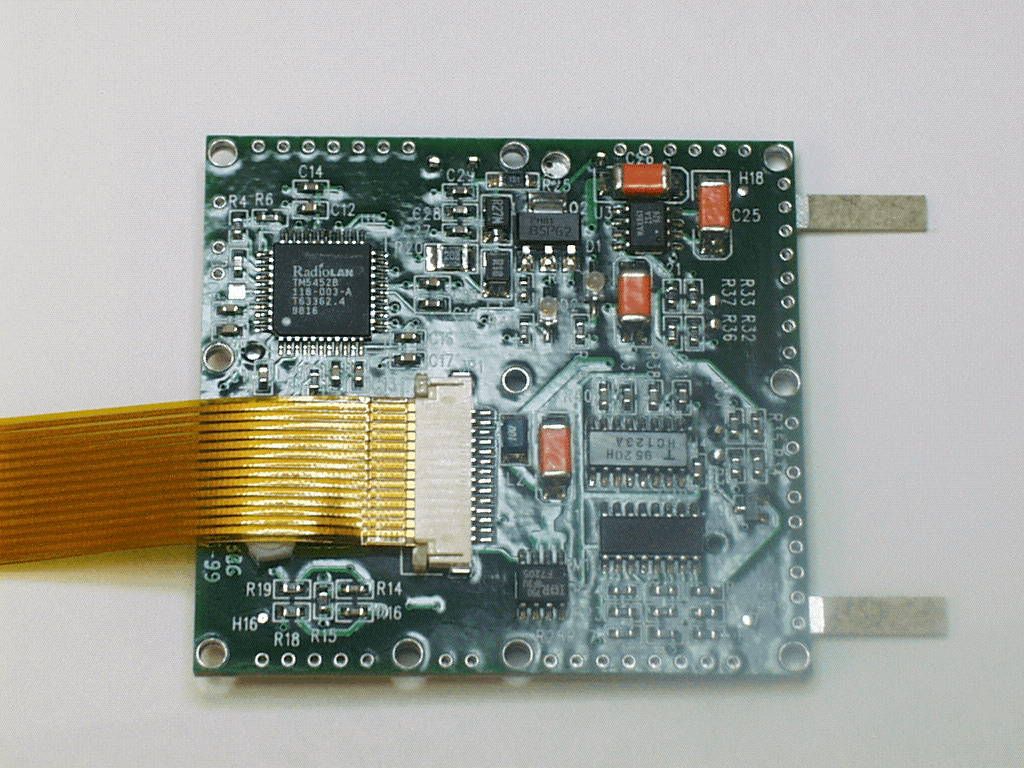

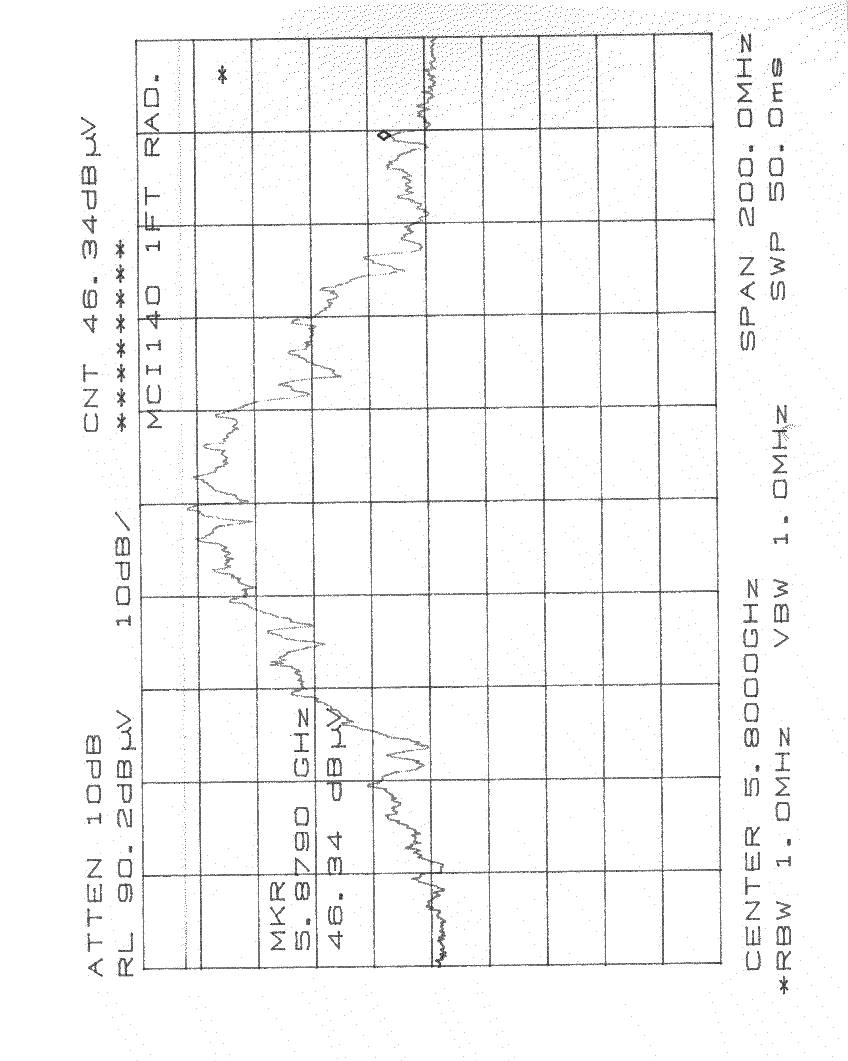

RADIATED EMISSIONS Company: RadioLanDate:11-Jan-99 5.8 GHz radio with attached PCMCIA card FCC ID:MCI140Tested At:Compliance Certification Services Tested To: 15.205, 15.249561F Monterey Road Morgan Hill, CA 95037 Tested By: P. KrebillSite A Test Distance: 1 ft and 3 ft F(MHz)Level, dBuV AF, dBDist, dB Amp, dBCable loss Duty Cycle E, dBuV/m Lim, dBuV/ m 5800Pk82.636.0-2004.40103114 5800Av82.636.0-2004.4-23.279.894 5725(LBE)Pk42.236.0-2004.4062.674 5725(LBE)Av42.236.0-2004.4-23.239.454 5879(UBE)Pk46.336.0-2004.4066.774 5879(UBE)Av46.336.0-2004.4-23.243.554 11600Pk81.136.0-20-358.2070.374 11600Av81.136.0-20-358.2-23.247.154 17397Pk(V)53.648.5-10-3511.2068.374 17397Av(V)53.648.5-10-3511.2-23.245.154 23231Pk(V)62.633.0-20-3513.7054.374 23231Av(V)62.633.0-20-3513.7-23.231.154 to 40 GHzno emissions detected within 20 dB of limit Notes:Meas. Dist, Ft.Dist, dB NF:Noise floor AF:Antenna Factor Dist:Distance Corr.1 ft-20 3ft-10 Margin, dBNOTES -11 -14.2 -11.4lower bandedge -14.6lower bandedge -7.3upper bandedge -10.5upper bandedge -3.7NF+4 dB -6.9NF+4 dB -5.7NF -8.9NF -19.7NF -22.9NF
