MFM-11-136802.11b WLAN Card

11Mbps WIRELESS LAN Card OEM installation guide 11-136 STATEMENT FOR MODUAL APPROVAL This product is sold to OEM integrators only. The manual for the OEM integrators must include some instructions to be followed by the end users in the user manual. For example: The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. The OEM integrators must be instructed about the end product labeling ("Contains TX FCC ID: MFM-11-136") This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: MFM-11-136". Manual Information for End Users Following RF exposure info shall be supplied in end-users manual depends on the application. For mobile configuration RF Exposure Information: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter For Laptop Configuration RF Exposure information: This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers with side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter.

1 1 1 1 M M b b p p s s W W I I R R E E L L E E S S S S L L A A N N C C a a r r d d Quick Start Guide 1 1 1 1 - - 1 1 3 3 6 6 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assume no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to overcome the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. IMPORTANT NOTE Following RF exposure info shall be supplied in end-users manual depends on the application. For mobile configuration RF Exposure Information: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter For Laptop Configuration RF Exposure information: This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers with side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. 1. Introductions: The 11Mbps WIRELESS LAN Card aims to let your computer quickly and seamlessly communicate with 802.11b (at up to 11 Mbps) networks. It allows you to configure the Wireless LAN as both independent networks known as peer-to-peer or ad-hoc network, and infrastructure networks. The former is suitable for small or temporary peer-to-peer networking requirement, and the later is offering fully distributed data connectivity via micro cells and roaming. In addition, the detachable antenna design allows the Card to apply more applications. Wired Network Ad-Hoc Network Configuration Access Point Infrastructure Network Configuration Printer Internet 2. Installation Procedures : 1. Insert the 11Mbps WIRELESS LAN Card to your computer’s PCMCIA slot. 2. The Found New Hardware message box will appear once the system detected the insertion of the Card. Click Cancel to ignore it. 3. Put the supplied CD-ROM into your CD-ROM drive, and the startup window will appear automatically. If it does not, double click the Autorun.exe icon in the CD’s directory to awake the Setup Wizard manually. 4. In the startup window, click Install Driver to start the installation. 5. Click Next in the Welcome to the InsterShield Wizard dialog box to continue. And the system will start to copy the drivers found. 6. Windows XP system will then send out a warning message box. Because the device has been tested to work with Windows system without problem, click Continue Anyway to ignore it. 7. On the Install Finished screen, click Finish to complete the installation. Note that when you are running Win98/98SE/ME, the computer will be restarted automatically after you click the Finish button. Note: For Win98 users, the system will ask for Win98 CD-ROM after rebooting. Please replace the supplied CD with the required one and click OK to proceed. 8. Then, you shall see the status icon of the Configuration Tool appeared in the system tray, and the installation is entirely finished at the moment. Double-click the icon to launch the PRISM Wireless Se…

Text truncated - open the document above for the full version.

TELETRONICS INTERNATIONAL INC. Corporate Headquarters 1803 Research Blvd., Suite 404, Rockville, MD 20850 USA •Tel: 301.309.8500 •Fax: 301.309.8851 Asian Branch Office: 30F, No29-5. Sec 2, Chungcheng E.Rd. Tamshui, Taipei Hsien 251,Taiwan, ROC •Tel: 886-2- 8809-7992• Fax: 886-2-8809-7830 Date: Jan 16, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all manners relating to application for “11Mbps WIRELESS LAN Card (Model11-136,FCC ID No.MFM-11-136)” authorization, including signing of all documents relating to these manners. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, By: __________________ Name: Nusrat Jamal Title: Chief Operating Officer

TELETRONICS INTERNATIONAL INC. Corporate Headquarters 1803 Research Blvd., Suite 404, Rockville, MD 20850 USA •Tel: 301.309.8500 •Fax: 301.309.8851 Asian Branch Office: 30F, No29-5. Sec 2, Chungcheng E.Rd. Tamshui, Taipei Hsien 251,Taiwan, ROC •Tel: 886-2- 8809-7992• Fax: 886-2-8809-7830 Data: Jan 17, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID:MFM-11-136 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics and PCB Layout 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, By: __________________ Name: Nusrat Jamal Title: Chief Operating Officer

TELETRONICS INTERNATIONAL INC. Corporate Headquarters 1803 Research Blvd., Suite 404, Rockville, MD 20850 USA •Tel: 301.309.8500 •Fax: 301.309.8851 Asian Branch Office: 30F, No29-5. Sec 2, Chungcheng E.Rd. Tamshui, Taipei Hsien 251,Taiwan, ROC •Tel: 886-2- 8809-7992• Fax: 886-2-8809-7830 Modular Approval Request Letter Date: Jan 17, 2004 FCC ID: MFM-11-136 Dear Application Examiner, Teletronics International Inc.’s 11Mbps WIRELESS LAN Card, FCC ID:MFM-11-136 requests your authorization as a limited modular approval specific to products below: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, video capture and similar equipment). The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs; it is integrated in chip ISL3871AIKXX serial. 3. “The modular transmitter must have its own power supply regulation”. The zero IF transceiver which will influence the frequency radiation, have to be 2.8V DC powered, so there are regulators in front of these chips; the part number of this regulator is RT9182ACES. The PCMCIA interface provide 3.3VDC and 5.0VDC. It’s can operation. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C). “The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA interface to test kit. Please ses section Photographs of Test Configuration in the test report, the EUT was plugged in this test kit. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. “The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are giver in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me of you have any further questions. Thanks for your attention. Best Regards, Sincerely Yours, By: __________________ Name: Nusrat Jamal Title: Chief Operating Officer

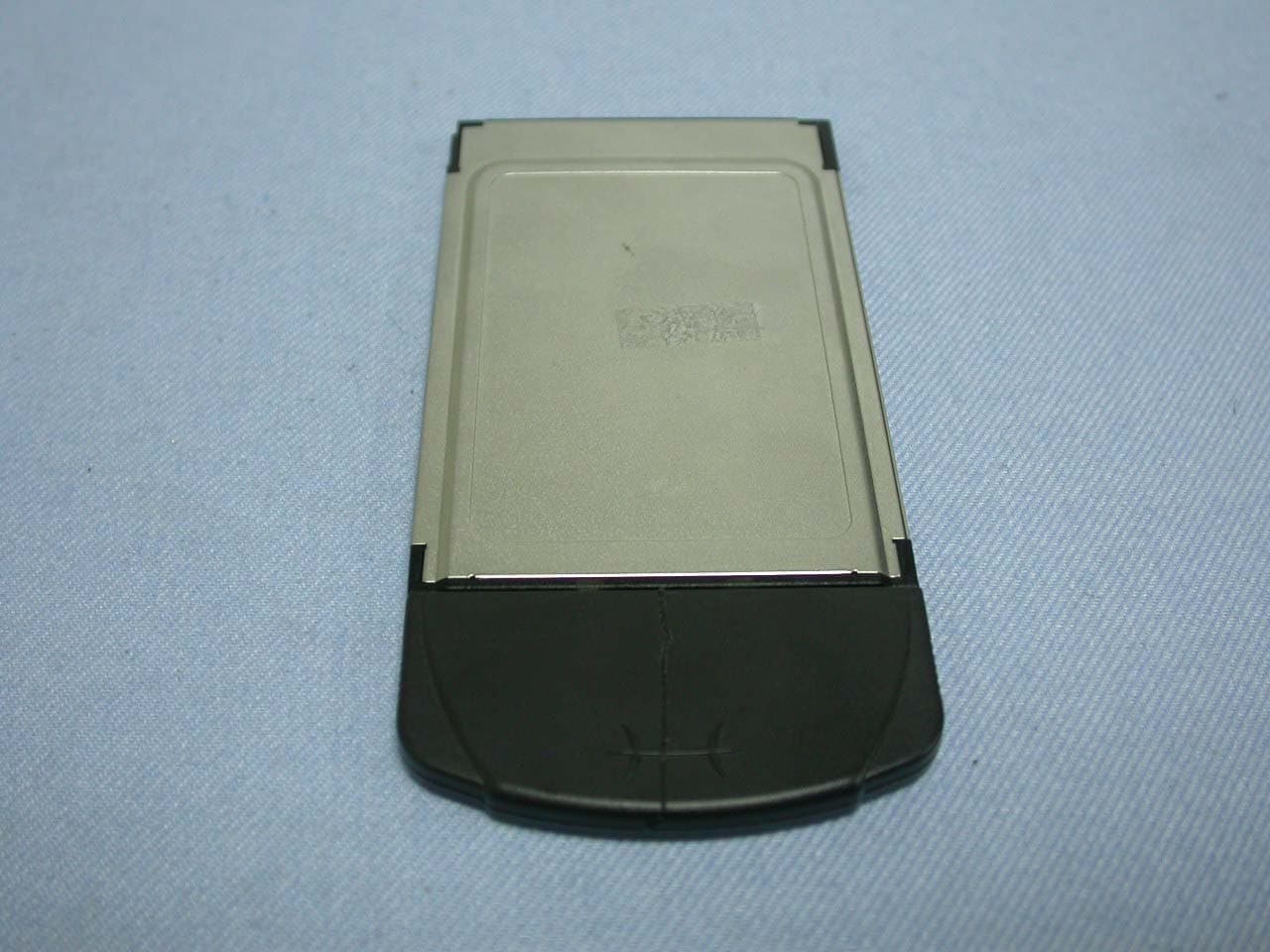

Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 1 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 2

FCC ID LABEL FORMAT AND LOCATION Applicant: Teletronics International Inc. FCC ID: MFM-11-136 11Mbps Wireless LAN card FCC ID: MFM-11-136 Model:11-136

Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 3 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 4 Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 5 Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 6 Compliance Certification Services Inc. Report No: B31225201 Date of Issue: February 13, 2004 Page 7

Antenna test report 11- 136 ANTENNA TEST REPORT 11-136 Antenna test report 11-136 1-1. GENERAL DESCRIPTION OF EUT & SPEC MANUFACTURER: Teletronics MODEL ON: 11-136 FREQUENCY RANGE: 2.4G~2.5GHz, IMPEDANCE: 50 ANTENNA GIAN: 0 dBi ANTENNA MODEL: Printed Antenna Layer 1 Inner Layer 2 Inner Layer 3 Layer 4 Antenna test report 11-136 1-2. MEASURE RESULT: 2.42-E.ant 2.42-H.ant Antenna test report 11-136 2.45-E.ant 2.45-H.ant Antenna test report 11-136 2.48-E.ant 2.48-H.ant

Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: February 16, 2004 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C TEST REPORT For Teletronics International Inc. 11Mbps Wireless LAN card Model: 11-136 Trade Name: Teletronics International Inc. Prepared for Teletronics International Inc. 1803 Research Blvd., Suite 404 Rockville, MD 20850-3155 USA Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 26 Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: February 16, 2004 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: February 13, 2004 Applicant: Teletronics International Inc. 1803 Research Blvd., Suite 404 Rockville, MD 20850-3155 USA Model Number: 11-136 FCC ID: MFM-11-136 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 23.80dBm Max. SAR (1g): 0.977W/kg Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Jonson Lee / Director James Lee / Senior engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Page 2 Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: February 16, 2004 TABLE OF CONTENTS 1. EUT DESCRIPTION.....................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC....5 3. DOSIMETRIC ASSESSMENT SYSTEM...................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM.........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 DASY4 Measurement Server.............................................................................................7 Data Acquisition Electronics (DAE)..................................................................................7 ET3DV6 Isotropic E-Field Probe for Dosimetric Measurements......................................7 SAM Phantom (V4.0)........................................................................................................8 Device Holder for SAM Twin Phantom............................................................................8 System Validation Kits......................................................................................................8 4. EVALUATION PROCEDURES................................................................................... 9 5. MEASUREMENT UNCERTAINTY.........................................................................12 6. EXPOSURE LIMIT.....................................................................................................13 7. MEASUREMENT RESULTS.....................................................................................14 7.1 SYSTEM PERFORMANCE CHECK..............................................................................14 7.2 TEST LIQUID CONFIRMATION...................................................................................15 7.3 EUT TUNE-UP PROCEDURES......................................................................................16 7.4 SAR MEASUREMENTS RESULTS...............................................................................17 8. EUT PHOTOS..............................................................................................................23 9. EQUIPMENT LIST & CALIBRATION STATUS...................................................24 10. REFERENCES.............................................................................................................25 11. ATTACHMENTS.........................................................................................................26 Page 3 Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: February 16, 2004 1. EUT DESCRIPTION Applicant: Teletronics International Inc. 1803 Research Blvd., Suite 404 Rockville, MD 20850-3155 USA Model Number: 11-136 FCC ID: MFM-11-136 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 23.80dBm Max. SAR (1g): 0.977W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Printed Ant. Test Host: Compaq P/N: PP2150 S/N:1V31LDL23407 Test Host: IBM P/N: 2659-HT2 S/N:AK-VNDOG Test Host: IBM P/N: 2662-GT1 S/N:FX-T5362 Page 4 Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: Februa…

Text truncated - open the document above for the full version.

Date/Time: 02/13/04 09:32:38 Test Laboratory: Compliance Certification Services Inc. D2450V2 SN 728 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 (σ = 1.85 mho/m, ε r = 39, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ;Liquid Temperature 24.3 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.1, 5.1, 5.1); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 95.1 V/m Power Drift = 0.1 dB Maximum value of SAR = 10.8 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 95.1 V/m Power Drift = 0.1 dB Maximum value of SAR = 19.8 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 29.1 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.3 mW/g Reference Value = 95.1 V/m Power Drift = 0.1 dB Maximum value of SAR = 15.4 mW/g Page1 Page2 Date/Time: 02/13/04 10:24:39 Test Laboratory: Compliance Certification Services Inc. Test Configuration-1 0 dB = 0.843mW/g Page1 Date/Time: 02/13/04 10:01:58 Test Laboratory: Compliance Certification Services Inc. Touch mode(with Compaq) DUT: 802.11b Wireless LAN Cardbus Card ; Type: 11-36; Serial: N/A Communication System:IEEE 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: BSL2450 (σ = 1.98 mho/m, ε r = 51.3, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ;Liquid Temperature 24.3 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(4.6, 4.6, 4.6); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Low Rate=11M bit/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 24.1 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.753 mW/g Low Rate=11M bit/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 24.1 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.909 mW/g Low Rate=11M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 2.08 W/kg SAR(1 g) = 0.977 mW/g; SAR(10 g) = 0.484 mW/g Reference Value = 24.1 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.07 mW/g Page1 Page2 Date/Time: 02/13/04 10:01:58 Test Laboratory: Compliance Certification Services Inc. Touch mode(with Compaq) DUT: 802.11b Wireless LAN Cardbus Card ; Type: 11-36; Serial: N/A Communication System: IEEE 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: BSL2450 (σ = 1.98 mho/m, ε r = 51.3, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ;Liquid Temperature 24.3 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(4.6, 4.6, 4.6); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 mid Rate=11M bit/Area Scan (7x6x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 24.3 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.785 mW/g mid Rate=11M bit/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 24.3 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.877 mW/g mid Rate=11M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 2.05 W/kg SAR(1 g) = 0.953 mW/g; SAR(10 g) = 0.471 mW/g Reference Value = 24.3 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.03 mW/g Page1 Page2 Date/Time: 02/13/04 10:01:58 Test Laboratory: Compliance Certification Services Inc. Touch mode(with Compaq) DUT: 802.11b Wireless LAN Cardbus Card ; Type: 11-36; Serial: N/A Communication System: IEEE 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: BSL2450 (σ = 1.98 mho/m, ε r = 51.3, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ;Liquid Temperature 24.3 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(4.6, 4.6, 4.6); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 High Rate=11M bit/Area Scan (7x6x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 20.9 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.921 mW/g High Rate=11M bit/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 20.9 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.810 mW/g High Rate=11M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.98 W/kg SAR(1 g) = 0.911 mW/g; SAR(10 g) = 0.447 mW/g Reference Value = 20.9 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.978 mW/g Page1 Page2 Date/Time: 02/13/04 14:24:39 Test Laboratory: Compliance Certification Services Inc. Touch mode(with IBM-R31) DUT: 802.11b Wireless LAN Cardbus Card ; Type: 11-36; Serial: N/A Communication System: IEE 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: BSL2450 (σ = 1.98 mho/m, ε r = 51.3, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ;Liquid Temperature 24.3 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(4.6, 4.6, 4.6); Cal…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: February 16, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 26 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C TEST REPORT For Teletronics International Inc. 11Mbps Wireless LAN card Model: 11-136 Trade Name: Teletronics International Inc. Prepared for Teletronics International Inc. 1803 Research Blvd., Suite 404 Rockville, MD 20850-3155 USA Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B31225201-SF Date of Issue: February 16, 2004 Page 2 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: February 13, 2004 Applicant: Teletronics International Inc. 1803 Research Blvd., Suite 404 Rockville, MD 20850-3155 USA Model Number: 11-136 FCC ID: MFM-11-136 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 23.80dBm Max. SAR (1g): 0.977W/kg Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these me…

Text truncated - open the document above for the full version.
