MIVCFS0100PS2C

User’s Manual enabling information anywhere Enfora, Inc. 661 East 18th Street Plano, Texas 75074-5601 www.enfora.com ® Pocket SpiderIIC for Palm OS This manual is copyrighted. All rights reserved. No portion of this document may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine form without prior consent in writing from Enfora, Inc. © 2002 Enfora, Inc. All rights reserved. The information in this document is subject to change without notice and does not represent a commitment on the part of Enfora, Inc. All product names mentioned within this document are the trademark of their respective owners. Adobe® Acrobat Reader, © 1987-1999 Adobe Systems Inc. All rights reserved. Adobe and Acrobat are trademarks of Adobe Systems Inc. Enfora, Inc. 661 East 18th Street Plano, Texas 75074-5601 USA www.enfora.com Phone: (972)633-4400 Fax: (972)633-4444 Enfora, Inc. Proprietary Information CFS0100PB001MAN The products and specifications, configurations, and other technical information regarding the services described or referenced in this guide are subject to change without notice. All statements, technical information, and recommendations contained in this guide are believed to be accurate and reliable, but are presented "as is", without warranty of any kind, express or implied. Users must take full responsibility for their application of any products specified in this document. Enfora, Inc. makes no implied warranties of merchantability or fitness for a purpose as a result of this guide or the information described within, and all other warranties, express or implied, are excluded. CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 2 CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 3 Contents Introduction............................................4 ® About the Pocket Spider IIc.................................4 Contents of Basic Package.....................................4 About this Manual..................................................4 Battery Operation...................................6 Pocket Spider® IIc Installation.................6 Registering with a Carrier.......................5 CDPD Basics............................................................5 Activating Your Service..........................................5 Registration.............................................................5 CDPD Charges........................................................6 Modem Setup..........................................8 Connecting to a Network......................10 Auto Upgrade........................................12 Technical Support..................................14 Regulatory Information.........................15 Warranty Information............................16 LED Display............................................................14 Operational Status..................................................14 Battery Power Indication.......................................14 Monitoring Modem Status......................14 Introduction CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 4 Contents of Basic Package The package from Enfora includes the following items: ® Pocket Spider IIC ® Pocket Spider IIC Internal rechargeable battery Battery Charger/Wall transformer (AC adapter) Installation CD-ROM ® Welcome to the world of wireless data. Your Pocket Spider II is a compact, wireless data modem that uses the Cellular Digital Packet Data (CDPD) wireless communication system, allowing you to transfer data on the go (i.e., without wires). Wireless IP (Internet Protocol) supports browser-based applications, giving you feature rich capability with the Internet in your hand. C The is the first wireless IP (CDPD) modem designed exclusively for a compact flash slot. With the power of wireless data and GPS, Enfora is ® Pocket Spider IIC With this modem, you are taking advantage of the latest development in ® wireless data technology. The Pocket Spider IIC modem offers the convenience of wireless data, the benefits of the CDPD network, ease of use, and minimal power consumption. ® About the Pocket SpiderIIc revolutionizing the world of PocketPC®, Palm and handheld PC devices. This Users Manual describes the use of the modem with a Palm device. The is compatible with Palm OS 3.5.1. and above. Please read all instructions carefully ® Pocket Spider IIC ® Pocket Spider IIC before installing your Pocket If you have any questions regarding installation, set up, or operation of the PocketSpider, please contact Enfora Technical Support. Website: Voice: (972) 578-CDPD Email: http://www.enfora.com [email protected] About this Manual ® Spider IIC modem. Registering with a Carrier CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 5 CDPD, short for Cellular Digital Packet Data, is also known as "Wireless IP". It is a data transmission technology developed for use on cellular phone frequencies. CDPD uses cellular channels (in the 800 to 900 MHz range) to transmit data in packets. This technology offers data transfer rates of up to 19.2 Kbps, quicker call set up, and better error correction than using modems on an analog cellular channel. CDPD is based on TCP/IP, the same protocols that power the Internet. See the document on CD-ROM forAll About CDPD Just as you would do with a cell phone, you must first register for service with a local CDPD carrier. The PocketSpider will work with any CDPD carrier. Decide which carrier offers…

Text truncated - open the document above for the full version.

LNA Mixer Downconverter FM / IF Limiter / Detector Mixer PA I/Q Modulator Power Cntrl SAW Duplexer Rx Ant Tx Pout = + 28 dBm max Pout = + 0 dBm min Pin = - 111 dBm min Pin = - 51 dBm max Dual PLL/ VCO I Lowpass Filter Q Lowpass Filter 0 90 60KHz Active Filter RC Filter Comparator DC Amp Main LO Freq 914.04-938.97 MHz 60KHz Active Filter Detect Lim IF Splitter Buffer Amp TXLO Freq 90 MHz TX Carrier Freq 824.04- 848.97 MHz Amp 15.36 MHz VTCXO I Q FPGA Microprocessor AVR Serial Interface 40 pin Connector PLL/VCO RXLO Freq 89.88 MHz Vcntrl From AVR Transceiver Control & Monitoring RSSI to FPGA External Power 3.15-4.2 VDC Digital LDO Power Management TX LDO TCVCXO LDO Xilinx LDO Memory file: Enabler-A.vsd, REV. 8/14/01 Temp Sense To Monitor Intfc. EEProm / 2 RX LDO DRAM 2MB Flash 1MB 45MHz IF RX Freq 869.04- 893.97 MHz 40 pin Connector Main Board 5V DC 2.5A input 4.5V LDO Battery Charger 4.2V Li-ion 1.2Ah System Power 3.6-4.5V Compact Flash (CF) CF Slot Pocket Spider ® II C Functional Block Diagram

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.celltechlabs.com February 11, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ENFORA INC. FCC ID: MIVCFS0100PS2C Part 22.901(d) Certification Gentlemen: On behalf of Enfora Inc. is an application for Part 22.901(d) Certification of the Pocket Spider IIc CDPD Data Modem Module for HP Jornado handheld electronic organizer as follows: FCC ID: MIVCFS0100PS2C Model Name: Pocket Spider IIc Model No.: CFS0100 Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) Equipment Type: CDPD Data Modem Module for HP Jornado Electronic Organizer Tx Freq. Range: 824.04 - 848.97 MHz Rx Freq. Range: 869.04 - 893.97 MHz Max. RF Output Power: 0.568 Watts (ERP) Emission Designator: 30K0DXW Attached is the applicant’s Letter of Authorization, Confidentiality Request, Part 22 EMC measurement report data and test plots, SAR RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagrams (confidential), operational description, antenna specifications, tune-up procedure, and the user's manual with RF exposure warning statement. The Enfora Pocket Spider IIc incorporates the Enfora Enabler CDPD modem FCC ID: MIVCDP10EAM granted by the Commission on January 7, 2002. Please see attached test report with conducted spurious emissions test data, occupied bandwidth test data, and frequency stability test data applicable for the subject application. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Enfora Inc.

661 East 18 th Street Plano, Texas 75074-5601 972-633-4400 Tel 972-633-4444 Fax www.nextcell.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission: FCC ID: MIVCFS0100PS2C On our behalf, I appoint Celltech Research, Inc. to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a "party" for these purposes, see 47 CFR 1.2002(b). Dated this 29th Day of January 2002 Agency agreement expiration date: By: Durward E. Rutledge, P.E. Title: Vice President Product Integrity Telephone: 972-437-3342 Applicant: Enfora, Inc. 661 East 18 th Street Plano, Texas 75074-5601

661 East 18 th Street Plano, Texas 75074-5601 972-633-4400 Tel 972-633-4444 Fax www.nextcell.com REQUEST FOR CONFIDENTIALITY Enfora, Inc. hereby requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. MIVCFS0100PS2C. (1) Schematic diagrams contained in electronic files identified below. • CDP10D01MG002SCH It is the opinion of Enfora, Inc. that disclosure of this information would result in significant loss of revenue. This information should be kept confidential for 3 years. Durward E. Rutledge, P.E. Durward E. Rutledge, P.E. Vice President of Product Integrity Enfora, Inc. 661 E. 18 th Street Plano, Texas 75074-5601

661 East 18 th Street Plano, Texas 75074-5601 972-633-4400 Tel 972-633-4444 Fa x www.enfora.com March 6, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: REQUEST FOR EXTENSION ON SUBMITTAL OF SAR & EMC TEST REPORTS REFERENCES: (a) FCC ID MIVCFS0100PS2C (b) Form 731 Confirmation Number: EA749361 Enfora, Inc. submitted the Reference (a) application, confirmation number Reference (b), on February 11, 2002. Shortly after the submittal we encountered manufacturing issues with the device metal housing that we have not been able to resolve in a timely manner. We therefore decided to change to a plastic material for the housing. We recognize that this material change potentially affects the RF and EMC emission characteristics of the device, and the decision was made to re-test to ensure compliance with FCC requirements is maintained. It is therefore respectfully requested that the SAR and EMC test reports submittal date be extended to no later than March 22, 2002. However, we anticipate having the re-tests accomplished and the appropriate test and compliance information submitted prior to that date. In summary, Enfora, Inc. continues to diligently make every effort in good faith to ensure that all applicable FCC requirements will be met for our devices. If you have any questions or need additional information, please contact the undersigned, or Mr. Jonathan Hughes with Celltech Research Inc. at 250-860-3130. Sincerely, Durward E. Rutledge, P.E. 972-437-3342 Applicant: Enfora, Inc. 661 East 18 th Street Plano, Texas 75074-5601

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.celltechlabs.com March 22, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ENFORA INC. FCC ID: MIVCFS0100PS2C Part 22.901(d) Certification Gentlemen: On behalf of Enfora Inc. is an application for Part 22.901(d) Certification of the Pocket Spider IIc CDPD Data Modem Module for Sharp SL5000 handheld PDA as follows: FCC ID: MIVCFS0100PS2C Model Name: Pocket Spider IIc Model No.: CFS0100 Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) Equipment Type: CDPD Data Modem Module for Sharp SL5000 Handheld PDA Tx Freq. Range: 824.04 - 848.97 MHz Rx Freq. Range: 869.04 - 893.97 MHz Max. RF Output Power: 0.382 Watts (ERP) Rated Conducted Power: 28.5 dBm Emission Designator: 30K0DXW Attached is the applicant’s Letter of Authorization, Confidentiality Request, Part 22 EMC measurement report data and test plots, SAR RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagrams (confidential), operational description, antenna specifications, tune-up procedure, and the user's manual with RF exposure warning statement. The Enfora Pocket Spider IIc incorporates the Enfora Enabler-A CDPD modem FCC ID: MIVCDP10EAM granted by the Commission on January 7, 2002. Please see attached copy of the test report for conducted spurious emissions test data, occupied bandwidth test data, and frequency stability test data submitted for this filing. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Enfora Inc.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.celltechlabs.com April 18, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Joe Dichoso SUBJECT: ENFORA INC. FCC ID: MIVCFS0100PS2C 731 Confirmation No.: EA749361 Correspondence Ref. No.: 22616 Dear Joe: On behalf of Enfora Inc. is our response to your e-mail dated April 15, 2002 requesting additional information for the subject application. SAR 1. The 568mW power output listed on the Form 731 was applicable for the original filing of the metal-housed unit, which will no longer be manufactured. The test report re-submission with the plastic housing unit lists the highest ERP measurement as 382mW, therefore we are requesting 382mW power output to be listed on Form 731 and the grant. The SAR rated conducted power level of 708mW is the maximum power level specified by the manufacturer for this device (low channel 991). 2. For future applications we will use the uncertainty budget from the latest draft of IEEE Std 1528. EMC 1. The EUT incorporates a CDPD modem (Model: Enabler-A) that has an individual FCC ID (MIVCDP10EAM). This test report was uploaded with the filing and in the cover letter it was requested that the test requirements for 2.1049, 2.1051, and 2.1055 be referenced to CDPD modem test report. The only difference between the CDPD modem test report and this filing is that the modem has been incorporated into a plastic housing with fixed antenna for use with Sharp SL5000 PDA. 2. Please see attached test data for compliance with the requirements of 2.1049, 2.1051, and 2.1055. The test data submitted for 2.1051 and 2.1053 complies with the requirements of 2.1057. 3. At this time the EUT is designed only for use with the Sharp SL5000 PDA. Furthermore, the RF exposure warning statement in the users manual states that this device must only be used with the Sharp SL5000 PDA to ensure FCC RF exposure compliance. 4. We acknowledge that this application is not for a modular approval. 5. This application is not for a software defined radio authorization. The Form 731 was inadvertently submitted stating an application software defined radio authorization. Please disregard this reference. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Enfora Inc.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.celltechlabs.com April 29, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Joe Dichoso SUBJECT: ENFORA INC. FCC ID: MIVCFS0100PS2C 731 Confirmation No.: EA749361 Correspondence Ref. No.: 22721 Dear Joe: On behalf of Enfora Inc. is our response to your e-mail dated April 26, 2002 requesting additional information for the subject application. SAR 1. The measured ERP of 0.382 Watts is an absolute value and is independent of the measurement uncertainty in the conducted power measured between the two test facilities (692mW measured at our facility, and 708mW measured at Nemko Dallas for the Enabler-A CDPD modem certification). The test unit used for the EMC, ERP, and SAR reports is the same unit. The measurement uncertainty in the conducted power for the Nemko Dallas EMC report is +- 0.6dB and a similar measurement uncertainty exists for the ERP report. It is therefore assumed that the 0.1dB discrepancy in the measured conducted RF output power between the ERP/SAR reports and the Nemko Dallas EMC report is due to measurement uncertainty only. EMC 1. The internal software restricts the device to function with the Sharp PL5000 PDA only. Please see attached letter from the applicant. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Enfora Inc. 661 East 18 th Street Plano, Texas 75074-5601 972-633-4400 Tel 972-633-4444 Fa x www.enfora.com April 26, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: RESPONSE TO FCC EMC QUESTION (1) REFERENCES: (a) email, Joe Dichoso to Jonathan Hughes, April 26, 2002 (b) FCC ID MIVCFS0100PS2C (c) Form 731 Confirmation Number: EA749361 Reference (a) contained EMC Question (1) relating to ensuring use of the Reference (b) device on the particular host PDA. The PocketSpider-IIc was designed under contract with Sharp Electronics. As a part of this contract: 1. Sharp Electronics has been granted exclusive rights to purchase and market this device. 2. If any changes to this contract were to be negotiated to allow the use of this device with other manufacturer's PDA devices, the PS-IIc will be tested with representative devices once software is available, and the results will be submitted to the FCC. In summary, Enfora, Inc. continues to diligently make every effort in good faith to ensure that all applicable FCC requirements will be met for our devices. If you have any questions or need additional information, please contact the undersigned, or Mr. Jonathan Hughes with Celltech Research Inc. at 250-860-3130. Sincerely, Durward E. Rutledge, P.E. 972-437-3342 Applicant: Enfora, Inc. 661 East 18 th Street Plano, Texas 75074-5601

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.celltechlabs.com April 29, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Joe Dichoso SUBJECT: ENFORA INC. FCC ID: MIVCFS0100PS2C 731 Confirmation No.: EA749361 Correspondence Ref. No.: 22751 Dear Joe: On behalf of Enfora Inc. is our response to your e-mail dated April 29, 2002 requesting additional information for the subject application. 1. We confirm on behalf of the applicant that the maximum conducted output power for this device shall be no greater than 28.4 dBm. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Enfora Inc.

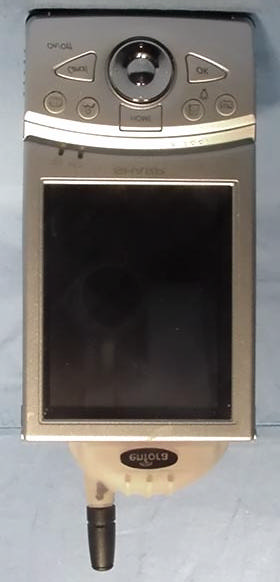

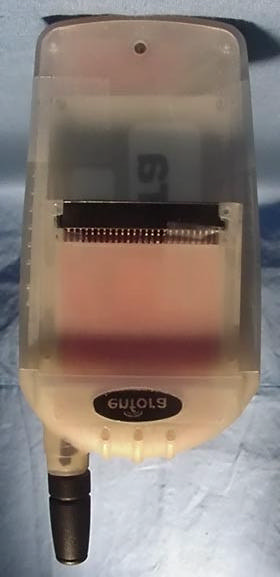

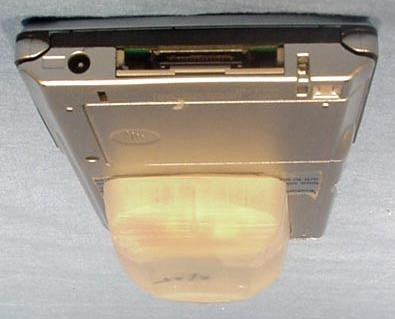

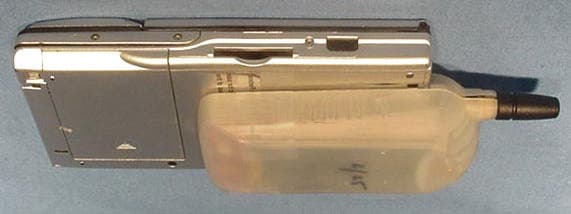

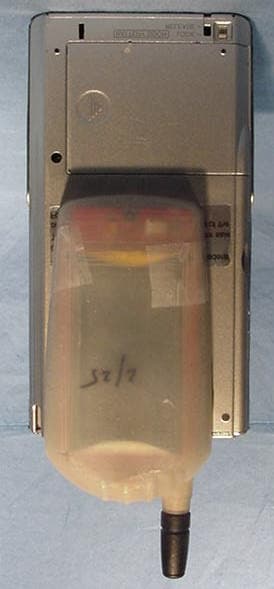

CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 012402-202MIV 1955 Moss Court, Kelowna Test Dates: January 24-25, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) SAMPLE FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) SAMPLE FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) IINTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 031402-221MIV 1955 Moss Court, Kelowna Test Date(s): March 15, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. ENFORA INC. FCC ID: MIVCFS0100PS2C Pocket Spider IIc CDPD Modem Module (824-849MHz) INTERNAL EUT PHOTOGRAPHS

ENFORA Pocket Spider ® II C OPERATIONAL AND FUNCTIONAL DESCRIPTION This Enfora Pocket Spider ® II C integrates an Enfora Enabler-A CDPD wireless modem into a small form-factor accessory designed to provide wireless Internet services for PDA devices. Communication to the PDA is established through the compact flash (CF) interface. The Functional Block Diagram shows functionality interfaces of the Pocket Spider ® II C , with user interfaces described in the User’s Manual. The CDPD Enabler-A (also known as Enabler-C) Functional Description Document provides an overview of the CDPD network, theory of operation for the modem, and details on frequency allocation, digital and RFR sections of the modem device, and the transmit path. Functional Description For Enfora Enabler-A CDPD Modem Enfora, Inc. 661 E. 18th Plano, TX 75074 WARNING: This document contains proprietary information and must not be reproduced without the prior written consent of Enfora, Inc. Table Of Contents 1. CDPD BACKGROUND....................................................................................................................... 3 2. THEORY OF OPERATION............................................................................................................... 3 2.1 I NTRODUCTION ................................................................................................................................3 2.2 A BBREVIATIONS .............................................................................................................................. 4 2.3 F REQUENCY A LLOCATION (M-ES).................................................................................................. 4 2.3.1 Power control ......................................................................................................................... 5 2.4 D IGITAL S ECTION ............................................................................................................................ 6 2.4.1 Processor and Memory...........................................................................................................6 2.4.2 I&Q Generation and Transmission Control ........................................................................... 6 2.4.3 ADC – System and Data ......................................................................................................... 6 2.4.4 Serial Interface ....................................................................................................................... 7 2.4.5 FPGA Functions ..................................................................................................................... 7 2.4.6 RF interface and Frequency Generation ................................................................................ 7 2.5 R ECEIVER S ECTION ......................................................................................................................... 8 2.5.1 Duplexer ................................................................................................................................. 8 2.5.2 LNA and First Conversion ...................................................................................................... 8 2.5.3 First IF Stage.......................................................................................................................... 8 2.5.4 Second Conversion, Limiter and IF filtering .......................................................................... 8 2.6 T RANSMIT P ATH .............................................................................................................................. 9 1. CDPD Background The Cellular Digital Packet Data (CDPD) network is a two-way wireless data communication system. This system uses cellular telephone channels to transfer data seamlessly from a mobile end system. CDPD operates within the already existing cellular telephone infrastructure utilizing the idle time that exist on cellular voice channels to send small packets of data, called datagrams, to a designated receiver. Researchers estimate that over 30% of a cellular channel’s airtime is idle, even during heavy traffic. The CDPD system sends down the various cellular channels to locate an open channel. This process is called “sniffing.” Once the CDPD system has located an open channel, the modem begins to send datagrams over the channel to the designated end user. In order that this process does not interfere with the cellular phone transmission, the CDPD system has regulated channel “hops” to ensure that CDPD usage will not block a cellular voice channel for an extended period of time. Also, if a voice channel is activated, the CDPD system detects this voice message and automatically “hops” to the next available idle channel. This process is quite complex. However, the user need not be aware of this process. The CDPD system manages the routing of the individual data packets to the proper destination. On a basic level, the CDPD network operates like any other computer network with the exception that the CDPD mobile end system is …
