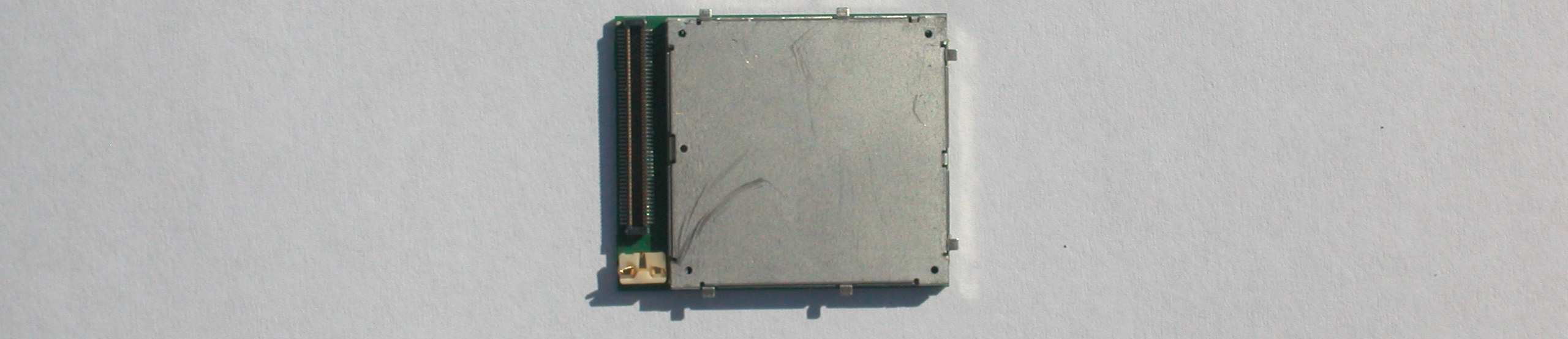

MIVEDG0308GSM/GPRS/EDGE Transmitter Module

Integration Guide: EDG0308IG001 Enfora Enabler IIIE Integration Guide Version: Draft Enfora Enabler IIIE Modem Integration Guide EDG0308IG001 Draft –03/07/2008 Document Title: Enfora Enabler IIIE Modem Integration Guide Version: Draft Date: 03/08/08 Status: DRAFT Document Control ID: EDG0308IG001 General All efforts have been made to ensure the accuracy of material provided in this document at the time of release. However, the items described in this document are subject to continuous development and improvement. All specifications are subject to change without notice and do not represent a commitment on the part of Enfora, Inc. Enfora, Inc. will not be responsible for any loss or damages incurred related to the use of information contained in this document. This product is not intended for use in life support appliances, devices or systems where a malfunction of the product can reasonably be expected to result in personal injury. Enfora, Inc. customers using, integrating, and/or selling this product for use in such applications do so at their own risk and agree to fully indemnify Enfora, Inc. for any damages resulting from illegal use or resale. Copyright Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Enfora, Inc. Enfora may have patents, patent applications, trademarks, copyrights or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from Enfora, the furnishing of this document does not give you any license to these patents, trademarks, copyrights or other intellectual property. ©2002, 2003, 2004, 2005, 2006, 2007, 2008 Enfora, Inc. All rights reserved. Enabler and Spider are either registered trademarks or trademarks of Enfora, Inc. in the United States. Enfora Enabler IIIE Modem Integration Guide EDG0308IG001 Draft –03/07/2008 Table of Contents 1. SAFETY PRECAUTIONS.................................................................................................................................1 1.1. IMPORTANT SAFETY INFORMATION................................................................................................................1 2. REGULATORY COMPLIANCE FCC.............................................................................................................1 2.1. INTEGRATION CONSIDERATIONS AND INSTALLATION REQUIREMENTS...........................................................1 2.2. DISCLAIMER...................................................................................................................................................3 3. MANUAL OVERVIEW......................................................................................................................................4 3.1. REVISION HISTORY.........................................................................................................................................4 3.2. REFERENCE DOCUMENTS...............................................................................................................................5 3.2.1. Enfora Enabler IIIE Product Documentation........................................................................................5 3.2.2. GSM Device Specifications....................................................................................................................6 3.2.3. US Government......................................................................................................................................6 3.2.4. Federal Communications Commission (FCC).......................................................................................6 3.2.5. FCC Office of Engineering and Technology (OET)..............................................................................6 3.2.6. Industry Canada....................................................................................................................................6 3.2.7. Environmental Regulations....................................................................................................................6 3.2.8. Mechanical Specifications.....................................................................................................................7 3.2.9. RF and EMI Specifications....................................................................................................................7 4. INTRODUCTION...............................................................................................................................................8 4.1. PRODUCT OVERVIEW......................................................................................................................................8 4.2. KEY FEATURES OF THE ENABLER III MODULE...............................................................................................8 4.3. WIRELESS DATA APPLICATION POSSIBILITIES..............................................................................................10 4.4. SUMMARY OF FEATURES FOR THE ENABLER IIIE MODULE..........................................................................11 4.5. GENERAL DESIGN GUIDELINES FOR UTILIZING ENFORA GSM MODULES......................................................13 4.5.1. Advanced Tips for an RF Friendly Layout...........................................................................................14 4.5.1.1. Ground Plane................................................................................................................................................... 14 4.5.1.2. Thermal Relief.....................................................................................................…

Text truncated - open the document above for the full version.

February 13, 2008 February 13, 2008 AGENCY AUTHORIZATION AGENCY AUTHORIZATION Telecommunication Certification Body Telecommunication Certification Body RFI Global Services Ltd. RFI Global Services Ltd. Pavilion A Pavilion A Ashwood Park Ashwood Park Basingstoke Basingstoke Hampshire Hampshire RG23 8BG RG23 8BG United Kingdom United Kingdom To whom it may concern To whom it may concern This is to certify that Enfora, Inc. authorises RFI Global Services Ltd. to act on our behalf for the application of the EDG0308 to RFI Global Services Ltd. Telecommunication Certification Body. This is to certify that Enfora, Inc. authorises RFI Global Services Ltd. to act on our behalf for the application of the EDG0308 to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Sincerely Sincerely Rob Holden Rob Holden Manager, Compliance Engineering Enfora, Inc. 972-633-4400 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

March 7, 2008 FCC Modular approval request Subject: Modular Approval Application FCC ID: MIVEDG0308 Enfora, Inc., requests modular approval for our EDG0308 module FCCID MIVEDG0308, the module has been designed to meet the following criteria: 1. The module has its own shielding and does not rely on any shielding from integrating the module into a final product. 2. The module has interfaces that are digital and do not allow excessive data rates or over-modulation to occur. 3. The module will operate with input power in the range 3.3 to 4.5 VDC 4. The external antenna connector provided on the PCB is considered a unique connector. 5. The module has been tested as a stand-alone device. 6. The module is labelled with a unique FCC Identifier and the integration guide documents the requirement for an external label if the module label will not be visible in the final product. 7. The integration guide has been provided with this application. 8. The module complies with the RF Exposure requirements defined for devices operated at >20cm from the user. 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

March 3 rd , 2008 March 3 rd , 2008 REQUEST FOR CONFIDENTIALITY REQUEST FOR CONFIDENTIALITY Telecommunication Certification Body Telecommunication Certification Body RFI Global Services Ltd. RFI Global Services Ltd. Pavilion A Pavilion A Ashwood Park Ashwood Park Basingstoke Basingstoke Hampshire Hampshire RG23 8BG RG23 8BG United Kingdom United Kingdom Subject: Certification Application FCC ID: MIVEDG0308 Subject: Certification Application FCC ID: MIVEDG0308 Enfora, Inc., requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID MIVEDG0308, Enfora PN EDG0308 Enfora, Inc., requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID MIVEDG0308, Enfora PN EDG0308 (1) Schematic Diagrams contained in electronic files – EDG0308MG820_Schematic.pdf (1) Schematic Diagrams contained in electronic files – EDG0308MG820_Schematic.pdf (2) Block Diagram located in electronic file – EDG0308_BlockDiagram.pdf (2) Block Diagram located in electronic file – EDG0308_BlockDiagram.pdf (3) Bill Of Materials (BOM) located in electronic file – EDG0308_BOM.pdf (3) Bill Of Materials (BOM) located in electronic file – EDG0308_BOM.pdf It is the opinion of Enfora, Inc., that disclosure of this information would result in significant loss of revenue as it contains Enfora IP. As such this information should be kept confidential indefinitely. It is the opinion of Enfora, Inc., that disclosure of this information would result in significant loss of revenue as it contains Enfora IP. As such this information should be kept confidential indefinitely. Sincerely Sincerely Rob Holden Rob Holden Manager, Compliance Engineering Enfora, Inc. 972-633-4400 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

February 13, 2008 February 13, 2008 EDG0308 Circuit Description EDG0308 Circuit Description General Description General Description The EDG0308 Module utilizes the Texas Instruments Neptune baseband processor integrated circuit, TI Triton power management / analog integrated circuit, and Renesas RF transceiver, PA, and Front End Module (FEM). Radio Interface The Renesas transceiver, PA, and Front-End-Module (FEM) comprise the complete RF front-end for the GSM/GPRS/ EDGE functions. The FEM contains the TX/RX RF switch, and the RF RX band-select SAW filters. The transceiver contains the up-conversion circuits (for TX), down-conversion circuits (for RX), and PA and FEM control circuitry. The transceiver uses a digitally controlled crystal (26 MHz) oscillator (DCXO) that integrates the reference oscillator and varactor functionality. The PA contains a high band (1800/1900 MHz) and low band (850/900 MHz) PA’s, and automatic power control (APC) feedback elements. Baseband Interface The Neptune baseband processor provides all digital interfaces and control of the system. The Triton analog and power management chip controls all power domains and analog interfaces. It utilizes input from a 32KHz crystal oscillator to provide real-time clock and synchronization for external interfaces. Triton also performs digital to analog translation and amplification for all audio interfaces. 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

February 13, 2008 February 13, 2008 Tune-Up Procedure Description for EDG0308 Tune-Up Procedure Description for EDG0308 Power Adjustments Power Adjustments The RF power output of the modem is preset during the manufacturing process via software-controlled adjustment of calibration parameters referenced to a base-station simulator. Under normal operation, the RF output power is maintained via an ALC circuit. Neither the integrator nor end-user has access to the calibration/power adjustment of the device. Frequency Adjustments Under normal operation, the transmitter uses a frequency synthesizer synchronized to a base-station clock, thus there are no frequency alignments that must be made. Sincerely Rob Holden Manager, Compliance Engineering Enfora, Inc. 972-633-4400 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

Enabler ® ΙΙΙE FCC MPE Calculation Revision 1.0 Confidential and Proprietary Information - © 2007 Enfora, Inc. Do not duplicate without express permission from Enfora, Inc. Enabler ® ΙΙΙE FCC MPE Calculation MPE Calculation for Enfora Enabler IIIE - OET Bulletin 65 The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from a device to the body of a user. The transmitter operation for the Enabler IIIE radio module covers GSM850 and PCS1900 operating bands. The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power (EIRP = P x G) P = Conducted Transmitter Power G = Antenna Gain (relative to an isotropic radiator) R = distance to the centre of radiation of the antenna Summary Conclusion The required 20cm RF exposure limits for General Population/ Uncontrolled Exposure FCC Rule Part 1.1310 will not be exceeded for the Enabler IIIE using antennas having a maximum gain of 1.4dBi (850MHz) and 7.0dBi (1900MHz) respectively. Enfora, Inc. 2 OET Bulletin 65 Enabler ® ΙΙΙE FCC MPE Calculation For the Enabler IIIE @ GSM850 Requirement: From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for GSM850 S = f/1500 mW/cm 2 (f = operating frequency) Transmitter frequency range = 824MHz to 849MHz Max. Transmitter Power = 33dBm (2.0W) @ antenna socket S = 824/1500 = 0.55 mW/cm 2 (worst case) Calculation to D etermine Maximum Antenna Gain (G) S = 0.55 mW/cm 2 P = 2000mW R = 20cm S = PxG/4 π R 2 G = S x (4 π R 2 ) / P G = 0.55 x (12.56 x 20 2 ) / 2000 G = 1.38 (1.40dBi) For the Enabler IIIE @ GSM1900 Requirement: From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for PCS1900 S = f/1500 mW/cm 2 (f = operating frequency) Transmitter frequency range = 1850MHz to 1910MHz Max. Transmitter Power = 30dBm (1.0W) @ antenna socket S = 1.0 mW/cm 2 (worst case) Calculation to determine maximum Antenns Gain (G) S = 1.0 mW/cm 2 P = 1000mW R = 20cm S = P x G / (4 π R 2 ) G = S x (4 π R 2 ) / P G = 1 x (12.56 x 20 2 )/ 1000 G = 5.02 (7.0dBi) Enfora, Inc. 3 OET Bulletin 65

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 Test Report Serial No: RFI/RPTE2/RP72345D13A Supersedes Test Report Serial No: RFI/RPTE1/RP72345D13A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader RPG: Checked By: Nigel Davison ppReport Copy No: PDF01 Issue Date: 12 March 2008 Test Dates: 19 December 2007 to 08 January 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72345D13A Page: 2 of 73 Issue Date: 12 March 2008 Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72345D13A Page: 3 of 73 Issue Date: 12 March 2008 Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 Table of Contents 1. Client Information............................................................................................................. 4 2. Equipment Under Test (EUT)..........................................................................................5 3. Test Specification, Methods and Procedures................................................................8 4. Deviations from the Test Specification..........................................................................9 5. Operation of the EUT during Testing...........................................................................10 6. Summary of Test Results..............................................................................................11 7. Measurements, Examinations and Derived Results...................................................13 8. Measurement Uncertainty.............................................................................................68 Appendix 1. Test Equipment Used...................................................................................69 Appendix 2. Test Configuration Drawings.......................................................................71 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72345D13A Page: 4 of 73 Issue Date: 12 March 2008 Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 1. Client Information Company Name: Enfora Inc. Address: 251 Renner Parkway Richardson Texas 75080 USA Contact Name: Mr R Holden RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72345D13A Page: 5 of 73 Issue Date: 12 March 2008 Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Enabler IIIE Brand Name: Enfora Model Name or Number: EDG0308 Serial Number: SDK0119M6702 IMEI Number: 001036000122179 Hardware Version: 5 Software Version: 2.0.3 FCC ID Number: MIVEDG0308 IC ID Number: 4160A-EDG0308 Country of Manufacture: USA Date of Receipt: 19 December 2007 Description: Switch Mode PSU Brand Name: Enfora Model Name or Number: EPA-101MU-05A Serial Number: None Country of Manufacture: China Date of Receipt: 19 December 2007 2.2. Description of EUT The EUT is a GSM, GPRS and EGPRS module designed to work in the 850MHz and 1900MHz bands. 2.3. Modifications Incorporated in EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72345D13A Page: 6 of 73 Issue Date: 12 March 2008 Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 2.4. Additional Information Related to Testing Power Supply Requirement: Nominal 110 V, 60 Hz AC Mains transformer Intended Operating Environment: Within GSM coverage Equipment Category: GSM, GPRS and EGPRS Type of Unit: Transceiver module Modulation Type: GMSK and 8PSK Channel Spacing: 200 kHz Antenna Type: PCB Antenna type Enfora SDK Quad Band Antenna Gain: 850MHz band +0.5dBi /1900MHz band +3.0dBi Antenna Connection: Antenna Port FCC Part 22 and RSS-132 Transmit Frequency Range: 824.2 MHz to 848.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 824.2 Middle 190 836.6 Transmit Channels Tested: Top 251 848.8 Receive Frequency Range: 869.2 MHz to 893.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 869.2 Middle 190 881.4 Receive Channels Tested: Top 251 893.8 Maximum Power Output (ERP): 30.7 dBm RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72345D13A Page: 7 of 73 Issue Date: 12 March 2008 Test of: Enfora Inc. Enfora Enabler IIIE To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 2 June 2005 & RSS-Gen Issue 2 June 2007 Additional Information Related to Testing (Continued) FCC Part 24 and RSS-133 Transmit Frequency Range: 1850.2 MHz to 1909.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 512 1850.2 Middle 660 1879.8 Transmit Channels Tested: Top 810 1909.8 Receive Frequency Range: 1930.2 MHz to 1989.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 512 1930.2 Middle 660 1959.8 Rece…
