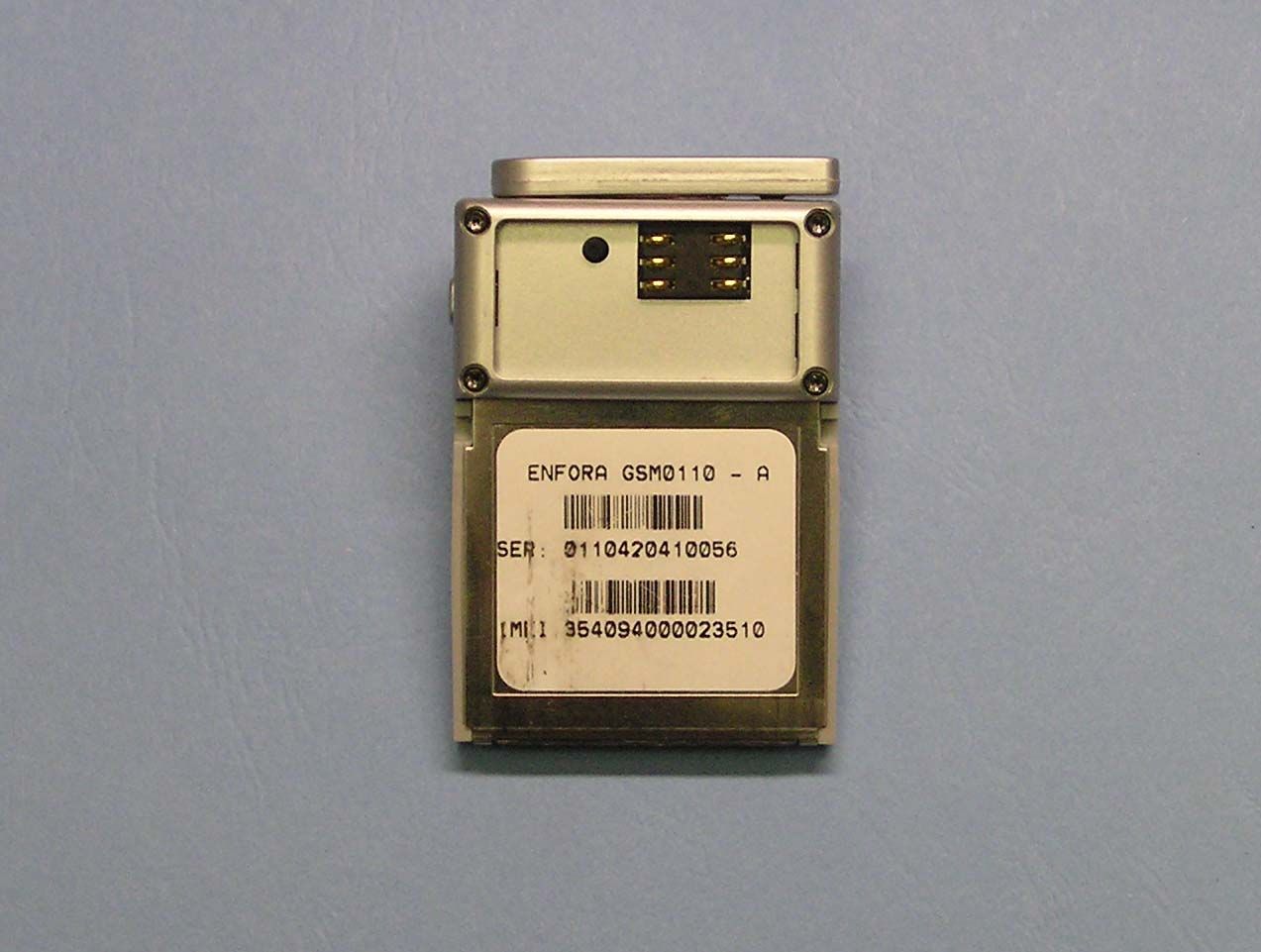

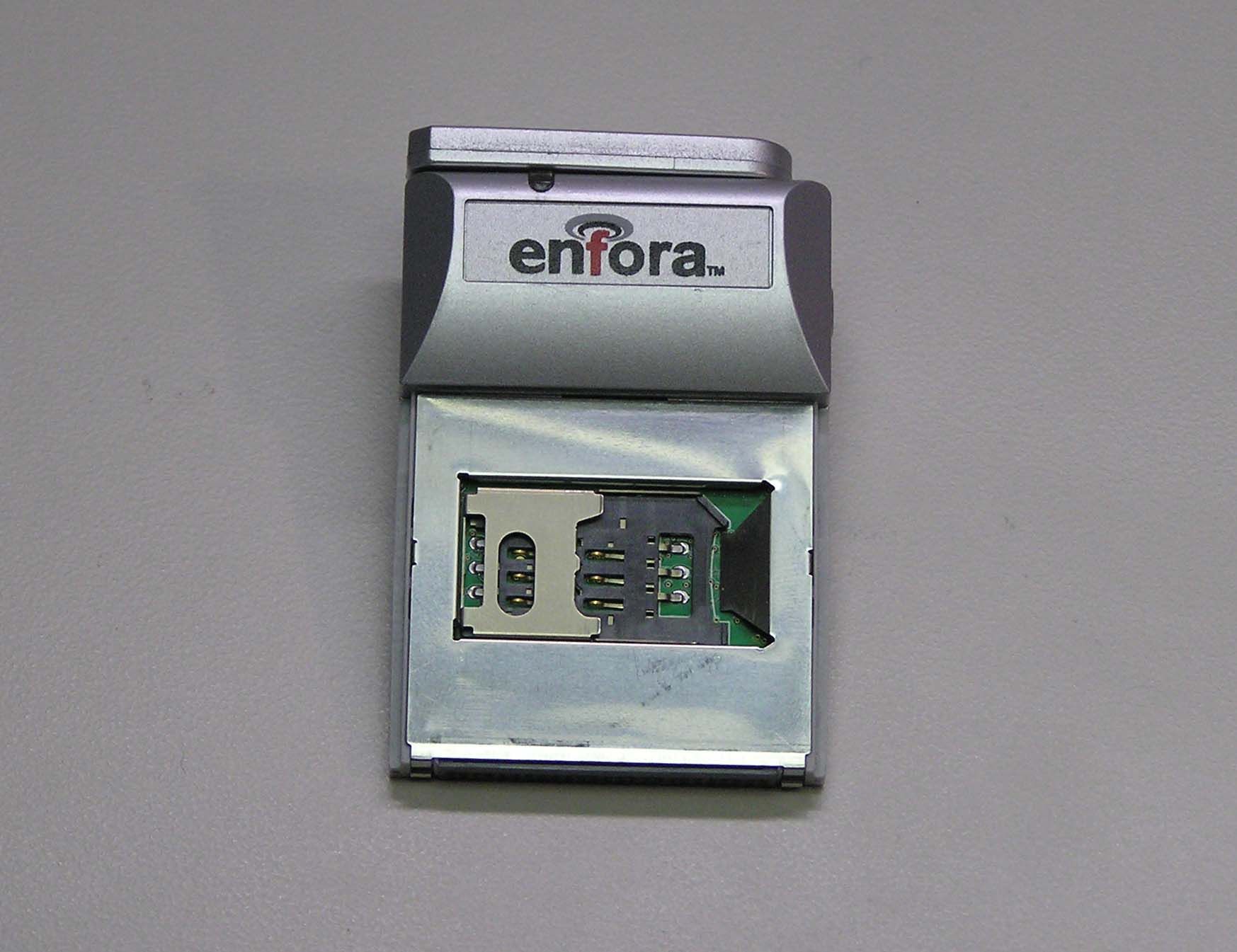

MIVGSM0110Dual-Band GSM GPRS Compact Flash Card

Enfora GSM/GPRS Compact Flash Card Users Manual Version 1.0 Enfora L.P. 661 E. 18 th Street Plano Texas 75074 www.enfora.com Copyright Statement Copyright 2004 by Enfora L.P. All rights reserved. No portion of this document may be copied, photocopied, reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Enfora L.P. © 2004 Enfora, L.P. All rights reserved. Disclaimer Enfora L.P. makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, Enfora L.P. reserves the right to revise this publication, and to make changes from time to time in the contents hereof without obligation of Enfora L.P. to notify any person of such revision or changes. ALL INFORMATION IS PROVIDED BY ENFORA L.P. ON AN “AS IS” BASIS ONLY. THIS COMPANY PROVIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PORPOSE, MERCHANTABILITY AND NONINFRINGEMENT. All product names mentioned within this document are the trademark of their respective owners. Enfora, LP. Proprietary Information GSM0110MAN001 Adobe® Acrobat Reader, © 1987-1999 Adobe Systems Inc. All rights reserved. Adobe and Acrobat are trademarks of Adobe Systems Inc. GSM/GPRS Compact Flash Card ii Safety Information for Wireless Handheld Devices FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your wireless device. In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or approved antenna. Unauthorized antenna modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. Please contact your local dealer for replacement antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov The equipment certifications appropriate to your device are marked on the device and product specific information. The use of the equipment is subject to the following conditions: FCC COMPLIANCE STATEMENT This device complies with Part 15b of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION Changes or modifications without the express consent of Enfora, L.P. voids the user’s authority to use the equipment and will avoid any applicable warranty. This equipment has been tested and found to comply with the limits pursuant to Part 15 Subpart B , Part 22 and Part 24 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation distance between the equipment and the receiver Contact Enfora, L.P. Technical Support for assistance. GSM/GPRS Compact Flash Card iii Safety Instructions • Use of radio equipment is prohibited in hospitals and may interfere with the use of medical equipment. Do NOT use the GSM/GPRS Compact Flash Card in hospitals. • FCC regulations prohibit using your wireless device during any air flight. Switch OFF your GSM/GPRS Compact Flash Card prior to flight and in accordance with airlines acceptable devices policy. • DO NOT use the GSM/GPRS Compact Flash Card in the vicinity of explosive atmospheres. Turn your GSM/GPRS Compact Flash Card OFF in a “Blasting Area” or gas station. Obey all signs and instructions • Certain traffic laws prohibit the use of radio communication equipment while driving to avoid distractions and prevent accidents. DO NOT use the GSM/GPRS Compact Flash Card while driving to avoid distractions and prevent accidents. If the equipment must be used, use with only approved hands-free accessories. • The Health Industry Manufactures Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless device and a pacemaker to avoid potential interference with the pacemaker. Operating Instructions Never violate any of the following Rules and Regulations of the FCC when using your wireless device. Such violations are punishable by fine, imprisonment, or both. • Never use obscene, indecent, or profane language. • Never use our GSM/GPRS Compact Flash Card to send false distress calls. • Never wiretap or otherwise intercept a device call, unless you have first obtained the consent of the parties participating in the call. • Never make any anonymous calls to annoy, harass or molest other people. • Never charge another account without authorization, to avoid payment for service. • Never willfully or maliciously interfere with any other radio communications. • Never refuse to yield …

Text truncated - open the document above for the full version.

Enfora, L.P. 661 E. 18 th Street Plano, TX 75074-5601 (972) 633-4400 Fax (972) 633-4444 REQUEST FOR CONFIDENTIALITY Enfora Inc. requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. MIVGSM0110 including “SAR” approvals. (1) Schematic diagrams contained in electronic file GSM0110MG001.Schematic.PDF. (2) Operational Description contained in the electronic file GSM0110.OperationalDescription.PDF. (3) Functional Block Diagram in electronic file GSM0110.BlockDiagram.PDF. It is the opinion of Enfora, L.P. that disclosure of this information would result in significant loss of revenue. These documents are also covered under multiple non-disclosure agreements with other companies. This information should be kept confidential for a minimum of 5 years. Scott Yarberry Sr. Director, Product Development Enfora, L.P. 661 E. 18 th St Plano, TX 75074 972-633-4400

Enfora, L.P. 661 E. 18 th Street Plano, TX 75074-5601 (972) 633-4400 Fax (972) 633-4444 GSM0110 Tune-Up Procedure The Enfora GSM0110 is a Compact Flash GSM Modem. The GSM0110 Compact Flash does not allow for any user adjustments to frequency or power output. In normal operation, the GSM network tunes the GSM0110’s radio and sets the power level. Date: June 14, 2004 By: Scott Yarberry Title: Sr. Director, Product Development Telephone: 972-633-3560 Applicant: Enfora, L.P., 661 E. 18 th St., Plano, TX 75074

Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 68 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 69 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS - HOST LAPTOP PC DUT with Sony VAIO Laptop PC - Bottom PCMCIA Slot - Laptop AC Power Bottom Side of Laptop PC Touching Planar Phantom - 6.0 mm Separation Distance from DUT to Planar Phantom 10 mm 6 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 70 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS - HOST LAPTOP PC DUT with Sony VAIO Laptop PC - Bottom PCMCIA Slot - DUT External Battery Power Bottom Side of Laptop PC facing Planar Phantom (13 mm External DUT Battery Thickness to Phantom) (20 mm External Battery & Pivot Connector Separation Distance from DUT to Planar Phantom) 13 mm 24 mm 20 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 71 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS - HOST LAPTOP PC DUT with Compaq Armada Laptop PC - Single PCMCIA Slot - Laptop AC Power Bottom Side of Laptop PC Touching Planar Phantom - 5.0 mm Separation Distance from DUT to Planar Phantom 9 mm 5 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 72 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS - HOST LAPTOP PC DUT with Compaq Armada Laptop PC - Single PCMCIA Slot - DUT External Battery Power Bottom Side of Laptop PC facing Planar Phantom (13 mm External DUT Battery Thickness to Phantom) (17 mm External Battery & Pivot Connector Separation Distance from DUT to Planar Phantom) 13 mm 21 mm 17 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 73 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation 13 mm BODY SAR TEST SETUP PHOTOGRAPHS - HOST LAPTOP PC DUT with Dell Inspiron Laptop PC - Bottom PCMCIA Slot - Laptop AC Power Bottom Side of Laptop PC Touching Planar Phantom - 6.0 mm Separation Distance from DUT to Planar Phantom 10 mm 6 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 74 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation 13 mm BODY SAR TEST SETUP PHOTOGRAPHS - HOST LAPTOP PC DUT with Dell Inspiron Laptop PC - Bottom PCMCIA Slot - DUT External Battery Power Bottom Side of Laptop PC facing Planar Phantom - (13 mm External DUT Battery Thickness to Phantom) (18.0 mm External Battery & Pivot Connector Separation Distance from DUT to Planar Phantom) 13 mm 22 mm 18 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 75 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS - HOST PDA (LAP-HELD) DUT with HP iPAQ PDA - Compact Flash Slot - PDA Battery Power Bottom Side of PDA facing Planar Phantom (2 mm DUT Thickness Spacing from PDA to Planar Phantom) Bottom Side of DUT Touching Planar Phantom 2 mm 4 mm Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 76 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS - HOST PDA (LAP-HELD) DUT with HP iPAQ PDA - Compact Flash Slot - DUT External Battery Power Bottom Side of PDA…

Text truncated - open the document above for the full version.

Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 19 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation APPENDIX A - SAR MEASUREMENT DATA Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 20 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation Date Tested: 03/09/05 Body SAR - PCS GPRS Mode - DUT with Sony VAIO Laptop PC - Bottom PCMCIA Slot - Laptop AC Power DUT: Enfora GSM0110; Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter); Serial: 0110430410292 Ambient Temp: 23.6 qC; Fluid Temp: 22.5 qC; Barometric Pressure: 102.8 kPa; Humidity: 30% Power Source: Host Laptop PC (AC) Communication System: PCS GPRS RF Output Power: 28.0 dBm (Conducted) Frequency: 1880.0 MHz; Duty Cycle: 1:8.3 Medium: M1880 (ı = 1.53 mho/m; İ r = 52.2; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1590; ConvF(4.58, 4.58, 4.58); Calibrated: 24/05/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Body SAR - 1880.0 MHz - Bottom of Sony VAIO Laptop PC Touching Planar Phantom (6 mm Separation Distance from Bottom of DUT to Planar Phantom) - Mid Channel Area Scan (19x25x1): Measurement grid: dx=15mm, dy=15mm Body SAR - 1880.0 MHz - Bottom of Sony VAIO Laptop PC Touching Planar Phantom (6 mm Separation Distance from Bottom of DUT to Planar Phantom) - Mid Channel Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.9 V/m; Power Drift = -0.0432 dB Peak SAR (extrapolated) = 0.689 W/kg SAR(1 g) = 0.431 mW/g; SAR(10 g) = 0.258 mW/g Body SAR - 1880.0 MHz - Bottom of Sony VAIO Laptop PC Touching Planar Phantom (6 mm Separation Distance from Bottom of DUT to Planar Phantom) - Mid Channel Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.463 W/kg SAR(1 g) = 0.283 mW/g; SAR(10 g) = 0.179 mW/g Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 21 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation Date Tested: 03/09/05 Body SAR - PCS GPRS Mode - DUT with Sony VAIO Laptop PC - Bottom PCMCIA Slot - DUT External Battery Power DUT: Enfora GSM0110; Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter); Serial: 0110430410292 Ambient Temp: 23.6 qC; Fluid Temp: 22.5 qC; Barometric Pressure: 102.8 kPa; Humidity: 30% Power Source: 3.7V 1000mAh Li-ion Battery (External) Communication System: PCS GPRS RF Output Power: 28.0 dBm (Conducted) Frequency: 1880.0 MHz; Duty Cycle: 1:8.3 Medium: M1880 (ı = 1.53 mho/m; İ r = 52.2; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 – SN1590; ConvF(4.58, 4.58, 4.58); Calibrated: 24/05/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Body SAR - 1880.0 MHz - Bottom of Sony VAIO Laptop PC facing planar phantom (13 mm External Battery Spacing) (20 mm Separation Distance from Bottom of DUT to Planar Phantom) - (External Battery Folded Underneath Host Laptop PC) Mid Channel/Area Scan (19x25x1): Measurement grid: dx=15mm, dy=15mm Body SAR - 1880.0 MHz - Bottom of Sony VAIO Laptop PC facing planar phantom (13 mm External Battery Spacing) (20 mm Separation Distance from Bottom of DUT to Planar Phantom) - (External Battery Folded Underneath Host Laptop PC) Mid Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.6 V/m; Power Drift = 0.162 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.701 mW/g; SAR(10 g) = 0.361 mW/g Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 22 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation Date Tested: 03/09/05 Body SAR - PCS GPRS Mode - DUT with Compaq Armada Laptop PC - Single PCMCIA Slot - Laptop AC Power DUT: Enfora GSM0110; Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter); Serial: 0110430410292 Ambient Temp: 23.6 qC; Fluid Temp: 22.5 qC; Barometric Pressure: 102.8 kPa; Humidity: 30% Power Source: Host Laptop PC (AC) Communication System: PCS GPRS RF Output Power: 28.0 dBm (Conducted) Frequency: 1880.0 MHz; Duty Cycle: 1:8.3 Medium: M1880 (ı = 1.53 mho/m; İ r = 52.2; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 – SN1590; ConvF(4.58, 4.58, 4.58); Calibrated: 24/05/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Body SAR - 1880.0 MHz - Bottom of Compaq Armada Laptop PC Touching Planar Ph…

Text truncated - open the document above for the full version.

Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 1 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation Performed By: Spencer Watson Compliance Technologist Celltech Labs Inc. Reviewed By: Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all person taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ENFORA, L.P. 661 East 18 th Street Plano, TX 75074-5601 United States FCC IDENTIFIER: MIVGSM0110 Model No.: GSM0110 Model Name: Orion Rule Part(s): FCC 47 CFR §2.1093 Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) Device Classification: PCS Licensed Transmitter (PCB) Device Description: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) Tx Frequency Range(s): 1850.2 - 1909.8 MHz (PCS GSM) 824.2 - 848.8 MHz (Cellular GSM) RF Output Power Tested: 28.0 dBm (PCL 0) - Peak Conducted (PCS GPRS) 31.0 dBm (PCL 5) - Peak Conducted (Cellular GPRS) Power Source(s) Tested: Li-ion 3.7 V, 1000 mAh External Battery (Model: GWBC100) Host Laptop PC AC Power Host PDA Battery Power Antenna Type(s) Tested: External ¼ O Host Laptop PCs Tested: Dell Inspiron 3800 (Bottom PCMCIA slot - Left Side of PC) Compaq Armada M300 (Single PCMCIA slot - Right Side of PC) Sony VAIO PCG-955A (Bottom PCMCIA slot - Left Side of PC) Host PDAs Tested: Casio Cassiopeia E-125 (Compact Flash slot) Casio Cassiopeia E-200 (Compact Flash slot) HP iPAQ H2200 Series (Compact Flash slot) Max. SAR Level(s) Evaluated: 0.751 W/kg (1g) - PCS GPRS (Dell Inspiron Laptop PC) 0.911 W/kg (1g) - PCS GPRS (HP iPAQ PDA) 0.689 W/kg (1g) - Cellular GPRS (Sony VAIO Laptop PC) 0.668 W/kg (1g) - Cellular GPRS (Casio E-200 PDA) Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________ 3 2.0 DESCRIPTION of Device Under Test (DUT) _____________________________________ 3 3.0 SAR MEASUREMENT SYSTEM_______________________________________________ 4 4.0 MEASUREMENT SUMMARY _________________________________________________ 5 MEASUREMENT SUMMARY (Cont.) ______________________________________________ 6 MEASUREMENT SUMMARY (Cont.) ______________________________________________ 7 MEASUREMENT SUMMARY (Cont.) ______________________________________________ 8 5.0 DETAILS OF SAR EVALUATION ______________________________________________ 9 DETAILS OF SAR EVALUATION (Cont.) __________________________________________ 10 6.0 EVALUATION PROCEDURES _______________________________________________ 10 7.0 SYSTEM PERFORMANCE CHECK ___________________________________________ 11 8.0 SIMULATED EQUIVALENT TISSUES _________________________________________ 12 9.0 SAR SAFETY LIMITS ______________________________________________________ 12 10.0 ROBOT SYSTEM SPECIFICATIONS _________________________________________ 13 11.0 PROBE SPECIFICATION (ET3DV6)__________________________________________ 14 12.0 SAM PHANTOM V4.0C ____________________________________________________ 14 13.0 PLANAR PHANTOM ______________________________________________________ 14 14.0 DEVICE HOLDER ________________________________________________________ 14 15.0 TEST EQUIPMENT LIST ___________________________________________________ 15 16.0 MEASUREMENT UNCERTAINTIES __________________________________________ 16 MEASUREMENT UNCERTAINTIES (Cont.) ________________________________________ 17 17.0 REFERENCES___________________________________________________________ 18 APPENDIX A - SAR MEASUREMENT DATA _______________________________________ 19 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA ____________________________ 54 APPENDIX C - MEASURED FLUID DIELECTRIC PARAMETERS ______________________ 63 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS ___________________________ 68 APPENDIX E - SYSTEM VALIDATION ____________________________________________ 97 APPENDIX F - PROBE CALIBRATION ____________________________________________ 98 APPENDIX G - SAM PHANTOM CERTIFICATE OF CONFORMITY _____________________ 99 APPENDIX H - PLANAR PHANTOM CERTIFICATE OF CONFORMITY _________________ 100 Applicant: Enfora, L.P. FCC I…

Text truncated - open the document above for the full version.

Applicant: Enfora, L.P. FCC ID: MIVGSM0110Freq. Range(s):824.2 - 848.8 / 1850.2 - 1909.8 MHz Model:GSM0110DUT Type: Dual-Band GSM GPRS Compact Flash Card (with PCMCIA Adapter) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 98 of 100 Test Report S/N: 030205MIV-T621-S24G Test Date(s): March 04, 07-09, 2005 Test Type: FCC SAR Evaluation APPENDIX F - PROBE CALIBRATION

Nemko Test Report No.: 4L0194RUS3REV1 Applicant: Enfora, Inc. 661 E. 18 th Street Plano, TX 75074 Equipment Under Test: GSM0110 In Accordance With: FCC Part 22, Subpart H 800 MHz Cellular Subscriber Units Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Dustin Oaks, Engineer Date: 4/08/2005 Nemko USA FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: GSM0110 TEST REPORT NO.: 4L0194RUS3 Page 2 of 33 Table of Contents Section 1. Summary of Test Results........................................................................ 3 Section 2. General Equipment Specification............................................................ 5 Section 3. RF Power Output .................................................................................... 7 Section 4. Occupied Bandwidth ............................................................................... 9 Section 5. Spurious Emissions at Antenna Terminals ........................................... 10 Section 6. Field Strength of Spurious .................................................................... 14 Section 7. Frequency Stability................................................................................ 17 Section 8. Test Equipment List .............................................................................. 19 ANNEX A - TEST DETAILS ........................................................................................ 20 ANNEX B - TEST DIAGRAMS .................................................................................... 30 Nemko USA FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: GSM0110 TEST REPORT NO.: 4L0194RUS3 Page 3 of 33 Section 1. Summary of Test Results Manufacturer: Enfora, Inc. Model No.: GSM0110 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit This test report relates only to the item(s) tested. The following deviations from, additions to, or exclusions from the test specifications have been made. None See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: GSM0110 TEST REPORT NO.: 4L0194RUS3 Page 4 of 33 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 2.1046 *Complies Audio Frequency Response 2.1047 NA Audio Low Pass Filter Response 2.1047 NA Modulation Limiting 2.1047 NA Occupied Bandwidth (GSM) 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 *Complies Frequency Stability 2.1055 Complies Footnotes: The device is GSM/GPRS only. Radiated Measurements redone due to a redesign of antenna. Conducted measurements were originally taken in April 2004 . Nemko USA FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: GSM0110 TEST REPORT NO.: 4L0194RUS3 Page 5 of 33 Section 2. General Equipment Specification Frequency Range: 824.2 to 848.8 MHz Tunable Bands: 824.2 to 848.8 MHz Necessary Bandwidth: 300 kHz Emission Designator: 300KG7W Output Impedance: 50 ohms Operator Selection of Frequency: Software Controlled Power Output Adjustment Capability: Software Controlled Nemko USA FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: GSM0110 TEST REPORT NO.: 4L0194RUS3 Page 6 of 33 Operational Description This device is a wireless PCMCIA GSM/GPRS wireless modem that operates in the PCS ba…
