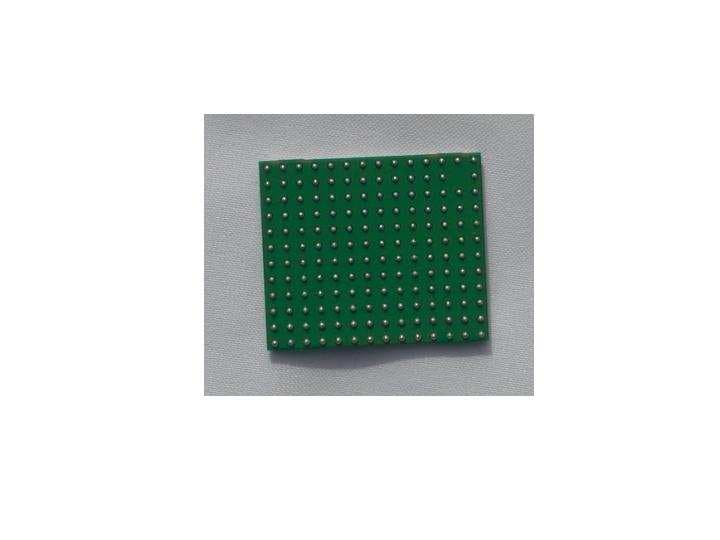

MIVGSM0408GSM/ GPRS Transmitter Module

Integration Guide: GSM0408IG001 Enfora Enabler IIIG BGA Integration Guide Version: Draft Enfora Enabler IIIG BGA Modem Integration Guide Document Title: Enfora Enabler IIIG BGA Modem Integration Guide Version: 1.0x Date: 3/3/08 Status: Draft Document Control ID: GSM0408IG001 General All efforts have been made to ensure the accuracy of material provided in this document at the time of release. However, the items described in this document are subject to continuous development and improvement. All specifications are subject to change without notice and do not represent a commitment on the part of Enfora, Inc. Enfora, Inc. will not be responsible for any loss or damages incurred related to the use of information contained in this document. This product is not intended for use in life support appliances, devices or systems where a malfunction of the product can reasonably be expected to result in personal injury. Enfora, Inc. customers using, integrating, and/or selling this product for use in such applications do so at their own risk and agree to fully indemnify Enfora, Inc. for any damages resulting from illegal use or resale. Copyright Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Enfora, Inc. Enfora may have patents, patent applications, trademarks, copyrights or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from Enfora, the furnishing of this document does not give you any license to these patents, trademarks, copyrights or other intellectual property. ©2002, 2003, 2004, 2005, 2006, 2007, 2008 Enfora, Inc. All rights reserved. Enabler and Spider are either registered trademarks or trademarks of Enfora, Inc. in the United States. GSM0408IG002 Version 1.00 – 12/07/2007 Enfora Enabler IIIG BGA Modem Integration Guide Table of Contents 1. .................................................................................................................. 1 SAFETY PRECAUTIONS 1.1. ..................................................................................................... 1 IMPORTANT SAFETY INFORMATION 2. ................................................................................................ 1 REGULATORY COMPLIANCE FCC 2.1. ................................................... 1 INTEGRATION CONSIDERATIONS AND INSTALLATION REQUIREMENTS 2.2. ...................................................................................................................................... 3 DISCLAIMER 3. ....................................................................................................................... 4 MANUAL OVERVIEW 3.1. ........................................................................................................................... 4 REVISION HISTORY 3.2. .................................................................................................................. 5 REFERENCE DOCUMENTS 3.2.1. .................................................................. 5 Enfora Enabler IIIG BGA Product Documentation 3.2.2. ..................................................................................................... 6 GSM Device Specifications 3.2.3. ....................................................................................................................... 6 US Government ................................................................................6 3.2.3.1.Federal Communications Commission (FCC) ........................................................................6 3.2.3.2.FCC Office of Engineering and Technology (OET) 3.2.4. ...................................................................................................................... 6 Industry Canada 3.2.5. ..................................................................................................... 6 Environmental Regulations 3.2.6. ....................................................................................................... 7 Mechanical Specifications 3.2.7. ...................................................................................................... 7 RF and EMI Specifications 3.2.8. .......................................................................................................... 7 Joint Industry Standards 4. ................................................................................................................................8 INTRODUCTION 4.1. ........................................................................................................................ 8 PRODUCT OVERVIEW 4.2. ......................................................................... 8 KEY FEATURES OF THE ENABLER IIIG BGA MODULE 4.3. ............................................................................................... 10 PROVIDING MULTI-BAND OPERATION 4.4. ................................................................................... 10 WIRELESS DATA APPLICATION POSSIBILITIES 4.5. ....................................................... 11 SUMMARY OF FEATURES FOR THE ENABLER IIIG BGA MODULE 4.6. ........................................................................... 13 LAYOUT GUIDELINES FOR THE ENABLER IIIG BGA 4.6.1. .............................................................................................................................. 13 Placement 4.6.2. ........................................................................................................................ 14 Ground Plane 4.6.3. ..................................................................................................................…

Text truncated - open the document above for the full version.

March 5, 2008 March 5, 2008 AGENCY AUTHORIZATION AGENCY AUTHORIZATION Telecommunication Certification Body Telecommunication Certification Body RFI Global Services Ltd. RFI Global Services Ltd. Pavilion A Pavilion A Ashwood Park Ashwood Park Basingstoke Basingstoke Hampshire Hampshire RG23 8BG RG23 8BG United Kingdom United Kingdom To whom it may concern To whom it may concern This is to certify that Enfora, Inc. authorises RFI Global Services Ltd. to act on our behalf for the application of the GSM0408 to RFI Global Services Ltd. Telecommunication Certification Body. This is to certify that Enfora, Inc. authorises RFI Global Services Ltd. to act on our behalf for the application of the GSM0408 to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Sincerely Sincerely Rob Holden Rob Holden Manager, Compliance Engineering Enfora, Inc. 972-633-4400 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

March 3 rd , 2008 March 3 rd , 2008 REQUEST FOR CONFIDENTIALITY REQUEST FOR CONFIDENTIALITY Telecommunication Certification Body Telecommunication Certification Body RFI Global Services Ltd. RFI Global Services Ltd. Pavilion A Pavilion A Ashwood Park Ashwood Park Basingstoke Basingstoke Hampshire Hampshire RG23 8BG RG23 8BG United Kingdom United Kingdom Subject: Certification Application FCC ID: MIVGSM0408 Subject: Certification Application FCC ID: MIVGSM0408 Enfora, Inc., requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID MIVGSM0408, Enfora PN GSM0408 Enfora, Inc., requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID MIVGSM0408, Enfora PN GSM0408 (1) Schematic Diagrams contained in electronic files – GSM0408MG800_Schematic.pdf (1) Schematic Diagrams contained in electronic files – GSM0408MG800_Schematic.pdf (2) Block Diagram located in electronic file – GSM0408_BlockDiagram.pdf (2) Block Diagram located in electronic file – GSM0408_BlockDiagram.pdf (3) Bill Of Materials (BOM) located in electronic file – GSM0408_BOM.pdf (3) Bill Of Materials (BOM) located in electronic file – GSM0408_BOM.pdf It is the opinion of Enfora, Inc., that disclosure of this information would result in significant loss of revenue as it contains Enfora IP. As such this information should be kept confidential indefinitely. It is the opinion of Enfora, Inc., that disclosure of this information would result in significant loss of revenue as it contains Enfora IP. As such this information should be kept confidential indefinitely. Sincerely Sincerely Rob Holden Rob Holden Manager, Compliance Engineering Enfora, Inc. 972-633-4400 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

March 7, 2008 FCC Modular approval request Subject: Modular Approval Application FCC ID: MIVGSM0408 Enfora, Inc., requests modular approval for our GSM0408 module FCCID MIVGSM0408, the module has been designed to meet the following criteria: 1. The module has its own shielding and does not rely on any shielding from integrating the module into a final product. 2. The module has interfaces that are digital and do not allow excessive data rates or over-modulation to occur. 3. The module will operate with input power in the range 3.3 to 4.5 VDC 4. The external antenna connector provided on the PCB is considered a unique connector. 5. The module has been tested as a stand-alone device. 6. The module is labelled with a unique FCC Identifier and the integration guide documents the requirement for an external label if the module label will not be visible in the final product. 7. The integration guide has been provided with this application. 8. The module complies with the RF Exposure requirements defined for devices operated at >20cm from the user. 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

GSM0408 A 01 I M E I Sxxxx 1.1.1 0889 FCC ID: MIVGSM0408 IC ID: 4160A-GSM0408 Enabler

March 6 th , 2008 GSM0408 Operational Description General Description The GSM0408 Module utilizes the Texas Instruments Locosto digital signal processor/digital radio processor (DSP/DRP) integrated circuit. This DSP/DRP is highly integrated and provides all modem functions when combined with the TI Triton Lite analog and power management IC. RF amplification and routing is accomplished with a combined RF power amplifier/switch module. Radio Interface The Locosto DRP and RF amplifier/switch provide the complete RF front-end for the GSM/GPRS functions. The receiver section encompasses the RF switch, RF band-select SAW filters and the DRP. The DRP is directly integrated to the DSP on the same IC. All down conversion and signal processing is done directly within the DRP. The transmit section consists of a direct connection from DRP through the power amplifier/switch module to the RF connector port. All carrier generation and modulation is performed within the DRP. The DSP/DRP uses a digitally controlled crystal (26 MHz) oscillator (DCXO) that integrates the reference oscillator and varactor functionality. Baseband Interface The Locosto DSP provides all digital interfaces and control of the system. The Triton Lite analog and power management chip controls all power domains and analog interfaces. It utilizes input from a 32KHz crystal oscillator to provide real-time clock and synchronization for external interfaces. Triton also performs digital to analog translation and amplification for all audio interfaces. 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

February 13, 2008 February 13, 2008 Tune-Up Procedure Description for GSM0408 Tune-Up Procedure Description for GSM0408 Power Adjustments Power Adjustments The RF power output of the modem is preset during the manufacturing process via software-controlled adjustment of calibration parameters referenced to a base-station simulator. Under normal operation, the RF output power is maintained via an ALC circuit. Neither the integrator nor end-user has access to the calibration/power adjustment of the device. Frequency Adjustments Under normal operation, the transmitter uses a frequency synthesizer synchronized to a base-station clock, thus there are no frequency alignments that must be made. Sincerely Rob Holden Manager, Compliance Engineering Enfora, Inc. 972-633-4400 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

Enabler ® ΙΙΙG BGA FCC MPE Calculation Revision 1.0 Confidential and Proprietary Information - © 2008 Enfora, Inc. Do not duplicate without express permission from Enfora, Inc. Enabler ® ΙΙΙE FCC MPE Calculation MPE Calculation for Enfora Enabler IIIG BGA - OET Bulletin 65 The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from a device to the body of a user. The transmitter operation for the Enabler IIIG BGA (GSM0408) radio module covers GSM850 and PCS1900 operating bands. The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power (EIRP = P x G) P = Conducted Transmitter Power G = Antenna Gain (relative to an isotropic radiator) R = distance to the centre of radiation of the antenna Summary Conclusion The required 20cm RF exposure limits for General Population/ Uncontrolled Exposure FCC Rule Part 1.1310 will not be exceeded for the Enabler IIIG BGA using antennas having a maximum gain of 1.4dBi (850MHz) and 7.0dBi (1900MHz) respectively. Enfora, Inc. 2 OET Bulletin 65 Enabler ® ΙΙΙE FCC MPE Calculation For the Enabler IIIG BGA @ GSM850 Requirement: From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for GSM850 S = f/1500 mW/cm 2 (f = operating frequency) Transmitter frequency range = 824MHz to 849MHz Max. Transmitter Power = 33dBm (2.0W) @ antenna socket S = 824/1500 = 0.55 mW/cm 2 (worst case) Calculation to D etermine Maximum Antenna Gain (G) S = 0.55 mW/cm 2 P = 2000mW R = 20cm S = PxG/4 π R 2 G = S x (4 π R 2 ) / P G = 0.55 x (12.56 x 20 2 ) / 2000 G = 1.38 (1.40dBi) For the Enabler IIIG BGA @ GSM1900 Requirement: From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for PCS1900 S = f/1500 mW/cm 2 (f = operating frequency) Transmitter frequency range = 1850MHz to 1910MHz Max. Transmitter Power = 30dBm (1.0W) @ antenna socket S = 1.0 mW/cm 2 (worst case) Calculation to determine maximum Antenns Gain (G) S = 1.0 mW/cm 2 P = 1000mW R = 20cm S = P x G / (4 π R 2 ) G = S x (4 π R 2 ) / P G = 1 x (12.56 x 20 2 )/ 1000 G = 5.02 (7.0dBi) Enfora, Inc. 3 OET Bulletin 65

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Enfora Inc. Enfora Enabler IIIGBGA (GSM0408) To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 4 February 2008 & RSS-Gen Issue 2 June 2007 Test Report Serial No: RFI/RPTE2/RP49741D05A Supersedes Test Report Serial No: RFI/RPTE1/RP49741D05A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader Radio Performance Group: pp Brian Watson Checked By: Brian Watson Report Copy No: PDF01 Issue Date: 31 March 2008 Test Dates: 14 February to 22 February 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49741D05A Page: 2 of 76 Issue Date: 31 March 2008 Test of: Enfora Inc. Enfora Enabler IIIGBGA (GSM0408) To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 4 February 2008 & RSS-Gen Issue 2 June 2007 This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49741D05A Page: 3 of 76 Issue Date: 31 March 2008 Test of: Enfora Inc. Enfora Enabler IIIGBGA (GSM0408) To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 4 February 2008 & RSS-Gen Issue 2 June 2007 Table of Contents 1. Client Information...............................................................................................................................4 2. Equipment Under Test (EUT)............................................................................................................5 3. Test Specification, Methods and Procedures..................................................................................8 4. Deviations from the Test Specification............................................................................................9 5. Operation of the EUT during Testing...............................................................................................10 6. Summary of Test Results..................................................................................................................11 7. Measurements, Examinations and Derived Results.......................................................................13 8. Measurement Uncertainty.................................................................................................................71 Appendix 1. Test Equipment Used.......................................................................................................72 Appendix 2. Test Configuration Drawings...........................................................................................74 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49741D05A Page: 4 of 76 Issue Date: 31 March 2008 Test of: Enfora Inc. Enfora Enabler IIIGBGA (GSM0408) To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 4 February 2008 & RSS-Gen Issue 2 June 2007 1. Client Information Company Name: Enfora Inc. Address: 251 Renner Parkway Richardson Texas 75080 USA Contact Name: Mr R Holden RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49741D05A Page: 5 of 76 Issue Date: 31 March 2008 Test of: Enfora Inc. Enfora Enabler IIIGBGA (GSM0408) To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 4 February 2008 & RSS-Gen Issue 2 June 2007 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: GSM/GPRS BGA Module Brand Name: Enfora Model Name or Number: GSM0408 Enabler IIIGBGA Serial Number: None Stated IMEI Number: 001036000150428 Hardware Version: 1 Software Version: 1.1.1 FCC ID Number: MIVGSM0408 Country of Manufacture: USA / China Date of Receipt: 14 February 2008 2.2. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Switching Mode Power Supply Brand Name: None Stated Model Name or Number: SMP-2000A Serial Number: None stated Cable Length and Type: 2m Twin Core Connected to Port: SDK Power Description: SDK Development Board Brand Name: Enfora Model Name or Number: SDK0408 Serial Number: None stated Cable Length and Type: Not applicable Connected to Port: Not applicable RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49741D05A Page: 6 of 76 Issue Date: 31 March 2008 Test of: Enfora Inc. Enfora Enabler IIIGBGA (GSM0408) To: FCC Part 22: 2007, FCC Part 24: 2007, RSS-132 Issue 2 September 2005, RSS-133 Issue 4 February 2008 & RSS-Gen Issue 2 June 2007 2.3. Description of EUT The EUT is a GSM/GPRS module. 2.4. Modifications Incorporated in EUT During the course of testing the EUT was not modified. 2.5. Additional Information Related to Testing Power Supply Requirement: Nominal 110 V, 60 Hz AC Mains Supply (supplying 5 V into SDK, SDK converts to 3.6 to deliver to module) Intended Operating Environment: Within GSM coverage Equipment Category: GSM/GPRS Type of Unit: Modular Transceiver Modulation Type: GMSK Channel Spacing: 200 kHz Antenna Type: External Antenna Gain: 850 band 1.1dBi 1900 band -1.31dBi Antenna Connection: Balls on Module FCC Part 22 and RSS-132 Transmit Frequency Range: 824.2 MHz to 848.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 824.2 Middle 190 836.6 Transmit Channels Tested: Top 251 848.8 Receive Frequency Range: 869.2 MHz to 893.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 869.2 Middle 190 881.4 Receive Channels Tested: Top 251 893.8 Maximum Power Output (ERP): 33.1 dBm RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49741D05A Page: 7 of 76 Issue Date: 3…
