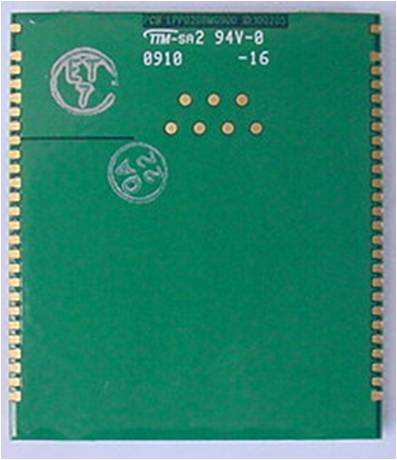

MIVLPP0208GSM/ GPRS Embedded Module

www.enfora.com Enfora Enabler III LPP Integration Guide LPP0208IG001 Revision: 0.00 5/1 4/2010 Integration Guide Page I Revision: 0.00 GENERAL TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY From time to time, Enfora, in its sole discretion, may make available for download on its website (www.enfora.com), or may transmit via mail or email, updates or upgrades to, or new releases of, the firmware, software or documentation for its products (collectively, 'New Materials'). Use of such New Materials is subject to the terms and conditions set forth below, and may be subject to additional terms and conditions as set forth in Enfora's Technical Support Policy (posted on its website) and/or any written agreement between the user and Enfora. All New Materials are provided AS IS. Enfora makes no warranty or representation with respect to the merchantability, suitability, functionality, accuracy or completeness of any such New Materials. The user of such New Materials assumes all risk (known or unknown) of such use. Enfora reserves all rights in such New Materials. The user shall have only a revocable and limited license to use such New Materials in connection with the products for which they are intended. Distribution or modification of any New Materials without Enfora's consent is strictly prohibited. IN NO EVENT WILL ENFORA BE RESPONSIBLE FOR ANY INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES AS A RESULT OF THE USE OF ANY NEW MATERIALS. ENFORA'S MAXIMUM LIABILITY FOR ANY CLAIM BASED ON THE NEW MATERIALS SHALL NOT EXCEED FIFTY U.S. DOLLARS ($50). COPYRIGHT © 2009 Enfora, Inc. All rights reserved. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Enfora, Inc. Enfora and the Enfora logo are either registered trademarks or trademarks of Enfora, Inc. in the United States. 251 Renner Pkwy Richardson, TX 75080 USA 972-633-4400 Phone: (972) 633-4400 Fax: (972) 633-4444 Email: info@ enfora.com www.enfora.com Integration Guide Page II Revision: 0.00 TABLE OF CONTENTS General ......................................................................................................................... 1 COPYRIGHT ................................................................................................................. 1 Table of Contents ......................................................................................................... 2 Table of Figures ............................................................................................................ 5 Table of Tables ............................................................................................................. 5 1 Safety Precautions .................................................................................................... 1 1.1 Important Safety Information .............................................................................. 1 2 Regulatory Compliance FCC ........................................ Error! Bookmark not defined. 2.1 Integration Considerations and Installation RequirementsError! Bookmark not defined. 2.2 Disclaimer .......................................................................................................... 2 3 Manual Overview ....................................................................................................... 3 3.1 References ........................................................................................................ 3 3.1.1 Enfora Enabler III LPP Product Documentation Manuals .............................. 3 3.1.2 GSM Device Specifications ......................................................................... 3 3.1.3 Federal Communications Commission (FCC) ............................................... 3 3.1.4 FCC Office of Engineering and Technology (OET) ........................................ 4 3.1.5 Industry Canada ......................................................................................... 4 3.1.6 Environmental Regulations .......................................................................... 4 3.1.7 Mechanical Specifications ........................................................................... 4 3.1.8 RF and EMI Specifications .......................................................................... 4 4 Introduction ............................................................................................................... 5 4.1 Product Overview .............................................................................................. 5 4.2 Key Features of the Enabler III LPP Module ........................................................ 5 4.3 Providing Multi-Band Operation .......................................................................... 6 4.4 Summary of Enabler III LPP Module Features ..................................................... 7 4.5 General design guidelines for utilizing Enfora GSM modules ............................... 9 4.5.1 Advanced tips for an RF friendly layout ...................................................... 10 4.5.1.1 Ground Plane................................................................................................................. 10 4.5.1.2 Thermal Relief ................................................................................................................ 11 4.5.1.3 Antenna and RF Signal Trace ........................................................................................ 12 Integration Guide Page III Revision: 0.00 4.5.1.4 Vbat Input ...................................................................................................................... 13 4.5.2 Audio Reference Design ..........…

Text truncated - open the document above for the full version.

251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com June 8, 2010 AGENCY AUTHORIZATION Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern This is to certify that Enfora, Inc. authorises RFI Global Services Ltd. to act on our behalf for the application of the LPP0208-40 to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Sincerely Rob Holden Director, Compliance Engineering Enfora, Inc. 972-633-4400

251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com June 8, 2010 FCC Modular approval request Subject: Modular Approval Application FCC ID: MIVLPP0208 Enfora, Inc., requests modular approval for our LPP0208 module FCCID MIVLPP0208, the module has been designed to meet the following criteria: 1. The module has its own shielding and does not rely on any shielding from integrating the module into a final product. 2. The module has interfaces that are digital and do not allow excessive data rates or over-modulation to occur. 3. The module will operate with input power in the range 3.3 to 4.5 VDC 4. The external antenna connector provided on the PCB is considered a unique connector. 5. The module has been tested as a stand-alone device. 6. The module is labelled with a unique FCC Identifier and the integration guide documents the requirement for an external label if the module label will not be visible in the final product. 7. The integration guide has been provided with this application. 8. The module complies with the RF Exposure requirements defined for devices operated at >20cm from the user. Sincerely Rob Holden Director, Compliance Engineering Enfora, Inc. 972-633-4400

251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com June 18, 2010 REQUEST FOR CONFIDENTIALITY Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: MIVLPP0208 Enfora, Inc., requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID MIVLPP0208, Enfora PN LPP0208. (1) Schematic diagram located in electronic files – LPP0208_Schematic.pdf (2) Block Diagram located in electronic file – LPP0208_BlockDiagram.pdf (3) Bill of Materials (BOM) located in electronic file – LPP0208_BOM.pdf (4) TuneUp Procedure located in electronic file - LPP0208_Tuneup.pdf It is the opinion of Enfora, Inc., that disclosure of this information would result in significant loss of revenue as it contains Enfora Intellectual Property. As such this information should be kept confidential indefinitely. Sincerely Robert Holden Director Compliance Engineering Enfora, Inc. 972-633-4400

Page 1 of 3 Information in this document is proprietary to Enfora Inc. LPP0208 Operational Description EN001 Rev 2 WARNING: Information in this document is proprietary and confidential to Enfora, Inc. Do not copy or distribute without prior written consent of Enfora, Inc. Revision History Date Rev Author Description 5/14/10 1 B. Wrightson Preliminary 6/14/10 2 R Holden Update LPP0208 Operational Description LPP0208EN001 Rev 1 Page 2 of 3 Enfora, Inc. Internal Use ONLY. Information in this document is proprietary to Enfora, Inc. 1.0 GENERAL DESCRIPTION The LPP0208 Module utilizes the Texas Instruments Locosto digital signal processor/digital radio processor (DSP/DRP) integrated circuit, a Texas Instruments MSP430 microcontroller, and a Texas Instruments GPS chip solution. The DSP/DRP is highly integrated and provides all modem functions when combined with the TI Triton Lite analog and power management IC. RF amplification and routing is accomplished with a combined RF power amplifier/switch module. The GPS device is a self contained solution requiring minimal control interface. System sequencing and control is maintained by the MSP430. The LPP0208 module is a compact, wireless OEM module that utilizes the Global System for Mobile Communications (GSM) and General Packet Radio Services (GPRS) international communications standard to provide two-way wireless capabilities via GSM services. This GSM/GPRS module is combined with a Global Positioning System (GPS) chipset to provide physical location, an MSP430 processor to ensure very low power standby configurations, and vibration sensor to detect movement of the module. The LPP0208 module is a fully Type-approved GSM/GPRS device, enabling application-specific, two-way communication and control. The small size of the LPP0208 module allows it to be integrated easily into the application and packaging. The LPP0208 module provides 4 frequency bands for compatibility with worldwide frequency standards. 850/1900 frequency bands are primarily used in North and South America, while 900/1800 bands are used throughout the world. The LPP0208 offers all four bands for use worldwide. 2.0 RADIO INTERFACE The Locosto DRP and RF amplifier/switch provide the complete RF front-end for the GSM/GPRS functions. The receiver section encompasses the RF switch, RF band-select SAW filters and the DRP. The DRP is directly integrated to the DSP on the same IC. All down conversion and signal processing is done directly within the DRP. The transmit section consists of a direct connection from the DRP through the power amplifier/switch module to the RF connector port. All carrier generation and modulation is performed within the DRP. The DSP/DRP uses a digitally controlled crystal (26 MHz) oscillator (DCXO) that integrates the reference oscillator and varactor functionality. The LPP0208 is a quad-band GSM/GPRS OEM module. In North America it will be running in the GSM (850 MHz) band and the PCS (1900 MHz) band. The module is/will be certified by PTCRB and uses GMSK modulation via a Digital Signal Processor. Transmit Frequencies Used in North America: GSM Band: 824 MHz to 849 MHz PCS Band: 1850 MHz to 1910 MHz LPP0208 Operational Description LPP0208EN001 Rev 1 Page 3 of 3 Enfora, Inc. Internal Use ONLY. Information in this document is proprietary to Enfora, Inc. 3.0 BASEBAND INTERFACE The Locosto DSP provides all digital interfaces and control of the system. The Triton Lite analog and power management chip controls all power domains and analog interfaces when the modem function is enabled. It utilizes input from a 32kHz crystal oscillator to provide real-time clock and synchronization for external interfaces. Triton also performs digital to analog translation and amplification for all audio interfaces. 4.0 GPS INTERFACE The GPS frontend section only requires a SAW filter, all other signal conditioning including the LNA, down conversion and signal processing is integrated onto the GPS IC. The GPS chip solution uses a temperature controlled oscillator (TCXO) running at 38.4 MHz. 5.0 MSP430 MICROCONTROLLER A low power microcontroller is used as a system controller to sequence when the GPS and/or the GSM modem are enabled. The microcontroller is a self contained system requiring a minimum number of external components. The clock source for the microcontroller is a 32kHz crystal oscillator which is internally multiplied up to a desired frequency.

Enabler ® LPP FCC MPE Calculation Revision 2.0 Confidential and Proprietary Information - © 2010 Enfora, Inc. Do not duplicate without express permission from Enfora, Inc. Enabler LPP Enfora, Inc. FCC MPE Calculation 2 OET Bulletin 65 MPE Calculation for Enfora Enabler ® LPP - OET Bulletin 65 The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency The transmitter operation for the Enabler LPP (LPP0208-40) radio module covers GSM850 and PCS1900 operating bands. at a distance of 20 cm from a device to the body of a user. The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power (EIRP = P x G) P = Conducted Transmitter Power G = Antenna Gain (relative to an isotropic radiator) R = distance to the centre of radiation of the antenna Summary Conclusion The required 20cm RF exposure limits for General Population / Uncontrolled Exposure FCC Rule Part 1.1310 will not be exceeded for the Enabler LPP using antennas having a maximum gain of 1.4dBi (850MHz) and 3.0dBi (1900MHz) respectively. Enabler LPP Enfora, Inc. FCC MPE Calculation 3 OET Bulletin 65 For the Enabler LPP @ GSM850 Requirement: From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for GSM850 S = f/1500 mW/cm 2 (f = operating frequency) Transmitter frequency range = 824MHz to 849MHz Max. Transmitter Power = 33dBm (2.0W) @ antenna socket S = 824/1500 = 0.55 mW/cm 2 (worst case) Calculation to Determine Maximum Antenna Gain (G) S = 0.55 mW/cm 2 P = 2000mW R = 20cm S = PxG/4 π R G = S x (4 π R 2 2 G = 0.55 x (12.56 x 20 ) / P 2 G = 1.38 (1.40dBi) ) / 2000 For the Enabler LPP Transmitter frequency range = 1850MHz to 1910MHz @ GSM1900 Max. Conducted Transmitter Power P = 30dBm (1.0W) @ antenna socket Calculation for Maximum radiated power output Part 2.1091(c) Part 24 PCS1900 devices operating at frequencies above 1.5GHz with effective radiated power (ERP) of 3 watts or more are subject to routine RF exposure evaluation, otherwise they are categorically excluded. Part 24.232 (b) Mobile/ Portable stations are limited to 2 Watts EIRP peak power Maximum antenna gain G that can be used to comply with the maximum transmitter power limit of 2W EIRP of Part 24.232(b) is calculated as: P x G = 2 ie: G = 2/1 = 2 (3dBi) For 3dBi antenna gain maximum ERP is < 3.0W, so from Part 2.1091(c), routine RF exposure evaluation is categorically excluded. The 3dBi maximum gain antenna will therefore comply with the required FCC rule parts.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Enfora LPP0208-40 – Enabler IIIG LPP To: FCC Part 22: 2009 Subpart H, FCC Part 24: 2009 Subpart E, Industry Canada RSS 132 Issue 2, September 2005 and RSS-133 Issue 5, February 2009 Test Report Serial No: RFI-RPT-RP77171JD05A This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: pp Checked By: R. Graham Signature: Date of Issue: 07 June 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP77171JD05A VERSION 1.0 ISSUE DATE: 07 JUNE 2010 Page 2 of 47 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP77171JD05A VERSION 1.0 ISSUE DATE: 07 JUNE 2010 RFI Global Services Ltd Page 3 of 47 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 12 5. Measurements, Examinations and Derived Results ................................................................ 13 6. Measurement Uncertainty .......................................................................................................... 46 Appendix 1. Test Equipment Used ................................................................................................47 TEST REPORT SERIAL NO: RFI-RPT-RP77171JD05A VERSION 1.0 ISSUE DATE: 07 JUNE 2010 Page 4 of 47 RFI Global Services Ltd 1. Customer Information Company Name: Enfora Inc. Address: 251 Renner Parkway Richardson TEXAS 75080 USA TEST REPORT SERIAL NO: RFI-RPT-RP77171JD05A VERSION 1.0 ISSUE DATE: 07 JUNE 2010 RFI Global Services Ltd Page 5 of 47 2. Summary of Testing 2.1. General Information – FCC Part 22 Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 22 Subpart H (Public Mobile Services) Specification Reference: RSS-Gen Issue 2, June 2007 Specification Title: General Requirements and Information for the Certification of Radiocommunication Equipment Specification Reference: RSS-132 Issue 2, September 2005 Specification Title: Cellular Telephones Employing New Technologies Operating in the Bands 824-849 MHz and 869-894 MHz Specification Reference: SRSP-503 Issue 7, September 2008 Specification Title: Technical Requirements for Cellular Radiotelephone Systems Operating in the Bands 824 – 849 MHz and 869 – 894 MHz Site Registration: FCC: 209735 Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 12 April 2010 to 06 May 2010 2.2. Summary of Test Results – GSM 850 FCC Reference (47CFR ) Industry Canada Reference Measurement Result Part 15.107 RSS-Gen Section 7.2.2 Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109 RSS-Gen Section 4.10 Receiver/Idle Mode Radiated Spurious Emissions Part 22.913(a) RSS-132 Section 4.4 Transmitter Output Power and ERP Part 22.355 RSS-132 Section 4.3 Transmitter Frequency Stability (Temperature Variation) Part 22.355 RSS-132 Section 4.3 Transmitter Frequency Stability (Voltage Variation) Part 2.1049 RSS-Gen 4.6.1 Transmitter Occupied Bandwidth Part 2.1053/22.917 RSS-132 4.5 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 RSS-132 4.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP77171JD05A VERSION 1.0 ISSUE DATE: 07 JUNE 2010 Page 6 of 47 RFI Global Services Ltd 2.3. General Information – FCC Part 24 Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 24 Subpart E (Personal Communication Services) Specification Reference: RSS-Gen Issue 2, June 2007 Specification Title: General Requirements and Information for the Certification of Radiocommunication Equipment Specification Reference: RSS-133 Issue 5, Feb 2009 Specification Title: 2 GHz Personal Communications Services Specification Reference: SRSP-510 Issue 5, February 2009 Specification Title: Technical Requirements for Personal Communications Services (PCS) in the Bands 1850-1915 MHz and 1930-1995 MHz Site Registration: FCC: 209735 Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 12 April 2010 to 06 May 2010 2.4. Summary of Test Results – PCS 1900 FCC Reference (47CFR) Industry Canada Reference Measurement Result 15.107 RSS-Gen Section 7.2.2 Receiver/Idle Mode AC Conducted Spurious Emissions 15.109 RSS-Gen Section 4.10 Receiver/Idle Mode Radiated Spurious Emissions 15.207 RSS-Gen Section 7.2.2 Transmitter AC Conducted Spurious Emissions 24.232(c) SRSP-510 Section 5.1.2 Transmitter Output Power and EIRP 24.235 RSS-133 Section 6.3 Transmitter Frequency Stability (Temperature & Voltage Variation) 2.1049/24.238 RSS-Gen Section 4.6.1 Transmitter Occupied Bandwidth 2.1053/24.238 RSS-133 Section 6.5 Transmitter Out of Band Radiated Emissions 2.1053/24.238 RSS-133 Section 6.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP77171JD05A VERSION 1.0 ISSUE DATE: 07 JUNE 2010 RFI Global…
