MIVPRT0100PFPortfolio Radio Modem

Enfora, Inc. 661 East 18th Street Plano, Texas 75074-5601 www.enfora.com Wireless Portfolio Users Manual enabling information anywhere Draft This manual is copyrighted. All rights reserved. No portion of this document may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine form without prior consent in writing from Enfora, Inc. © 2001 Enfora, Inc. All rights reserved. The information in this document is subject to change without notice and does not represent a commitment on the part of Enfora, Inc. All product names mentioned within this document are the trademark of their respective owners. Adobe® Acrobat Reader, © 1987-1999 Adobe Systems Inc. All rights reserved. Adobe and Acrobat are trademarks of Adobe Systems Inc. Enfora, Inc. 661 East 18th Street Plano, Texas 75074-5601 USA www.enfora.com Phone: (972)633-4400 Fax: (972)633-4444 Enfora, Inc. Proprietary Information CDP0901PB001MAN The products and specifications, configurations, and other technical information regarding the services described or referenced in this guide are subject to change without notice. All statements, technical information, and recommendations contained in this guide are believed to be accurate and reliable, but are presented "as is", without warranty of any kind, express or implied. Users must take full responsibility for their application of any products specified in this document. Enfora, Inc. makes no implied warranties of merchantability or fitness for a purpose as a result of this guide or the information described within, and all other warranties, express or implied, are excluded. CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 2 CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 3 Contents Wireless Portfolio (Illustration)...............4 Introduction............................................5 About the Wireless Portfolio.................................5 About This manual.................................................5 Contents of Basic Package.....................................5 Battery Operation...................................7 Cd Installation Process............................7 Palm OS Setup........................................8 Connecting to a Network.....................12 Registering with a Carrier.......................6 CDPD Basics............................................................6 Activating Your Service..........................................6 Registration.............................................................6 CDPD Charges........................................................7 Third-Party Applications........................14 Internet and E-mail...............................................14 GPS Mapping Software........................................14 Technical Support..................................14 Regulatory Information.........................15 Warranty Information............................16 CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 4 Wireless Portfolio Power LED Signal Strength LED Modem Registration LED Power Jack IR Transceiver CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com Introduction 5 Contents of Basic Package The Wireless Portfolio package from Enfora includes: Wireless Portfolio (CDP0901). Wall transformer (AC adapter) for imbedded battery charger. Installation and Documentation CD-ROM. About the Wireless Portfolio Welcome to the world of wireless data. The Wireless Portfolio is a compact, wireless data solution that uses a Cellular Digital Packet Data (CDPD) modem, allowing the transfer of data on the go (i.e., without wires). Wireless IP (Internet Protocol) supports browser-based applications, giving you feature rich capability with the Internet in your hand. The Wireless Portfolio also incorporates the power of the Global Positioning Satellite (GPS) system with a built in GPS module and antenna; enabling mobile professionals to utilize mapping software to establish travel routes while simultaneously retrieving mission critical data from a company database via the Wireless Portfolio’s CDPD modem. Enfora’s Wireless Portfolio is the first wireless IP modem/GPS device designed to work exclusively with the IR port of any Personal Data Assistant (PDA). With the power of wireless data and GPS, Enfora is revolutionizing the world of Palm, PocketPC, handheld PC devices. This Users Manual describes the use of Enfora’s Wireless Portfolio with a Palm device. The Wireless Porfolio is compatible with Palm OS 3.5+. Please If you have any questions regarding installation, set up, or operation of the Wireless Portfolio, please contact Enfora Technical Support. Website: Voice: (972) 578-CDPD Email: http://www.enfora.com [email protected] About this Manual read all instructions carefully before installing the Wireless Portfolio. Registering with a Carrier 6 CDPD, short for Cellular Digital Packet Data, is also known as "Wireless IP". It is a data transmission technology developed for use on cellular phone frequencies. CDPD uses cellular channels (in the 800 to 900 MHz range) to transmit data in packets. This technology offers data transfer rates of up to 19.2 Kbps, quicker call set up, and better error correction than using modems on an analog cellular channel. CDPD is based on TCP/IP, the same protocols that power the Internet. See the document on CD-ROM forAll About CDPD Just as you would do with a cell phone, you must first register for service with …

Text truncated - open the document above for the full version.

Portfolio Functional Block Diagram LN A Mi x e r Down c o n v e r te r FM / IF L i mi t e r / De t e c t or Mix e r PA I / Q M o d u l at or P o we r Cn t r l SA W Du ple x e r Rx An t Tx P o u t = + 2 8 d B m m a x P o u t = + 0 d B m m i n P i n = - 11 1 d B m m i n Pi n = - 5 1 dB m m a x Du al P L L/ VCO I Lo w p a s s Fi l t er Q L o w p a s s Fi l t e r 0 9 0 60 K H z Ac t i ve Fi lt e r RC F i l t e r Co m p ar a t or DC A m p Ma i n L O F r e q 91 4. 04 - 938. 97 MHz 60K H z A c t i v e F ilt e r De t e c t Li m IF S p lit t e r Bu f f e r Am p TX LO Fre q 90 M H z T X C a rri e r F r eq 82 4. 04 - 848. 97 M H z Am p 15. 36 M H z VT C X O I Q FPG A Micr o p ro ces so r AVR S e r i a l Inte rfac e 40 pin Connector PL L/ V C O RXLO F r e q 89 . 88 M H z V c nt rl Fr o m A V R T r an sc e i ve r C o nt ro l & Mo ni t o ri ng RS SI t o F P G A E x t e r nal Po w e r 3. 15- 4. 2 VD C Dig i t a l LDO P o w e r M a na geme nt TX LD O TC V C X O LDO Xi l i n x LD O Me mo r y f i le : E n a b le r - A . v s d , REV. 8/1 4 /01 Te mp Se n s e T o M o n i t o r In tf c . EEP r o m / 2 RX LDO DRA M 2M B F l ash 1MB 45M H z I F RX F r eq 869. 04- 893. 97 M H z 40 pin Connector Mai n B o a r d 40 pin Connector 40 pin Connector GPS U n i t 3.3V LD O 5V D C 2. 5 A i n put 4. 5 V LD O Ba t t e r y C h ar ge r 4.2V Li - i on 1.2 A h Sy st e m Po we r 3.6- 4. 5V IR IR Tr an sc e i v e r Wa k e 7P i n C onne c t or 7P i n C onne c t or

661 East 18 th Street Plano, Texas 75074-5601 972-633-4400 Tel 972-633-4444 Fax www.nextcell.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint Nemko Dallas, Inc. to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a "party" for these purposes, see 47 CFR 1.2002(b). Dated this 13th Day of August 2001 Agency agreement expiration date: By: Durward E. Rutledge, P.E. Title: Vice President Product Integrity Telephone: 972-437-3342 Applicant: Enfora, Inc. 661 East 18 th Street Plano, Texas 75074-5601

November 6, 2001 SUBJECT: REQUEST FOR CONFIDENTIALITY Enfora, Inc. hereby requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID No. MIVPRT0100PF. (1) Schematic diagrams contained in electronic files identified below. • PRT0000MG100SCH • CDP10D01MG002SCH It is the opinion of Enfora, Inc. that disclosure of this information would result in significant loss of revenue. This information should be kept confidential for at least 3 years. Durward E. Rutledge, P.E. Durward E. Rutledge, P.E. Vice President of Product Integrity Enfora, Inc. 661 E. 18 th Street Plano, Texas 75074-5601 661 East 18 th Street Plano, Texas 75074-5601 972-633-4400 Tel 972-633-4444 Fax www.nextcell.com

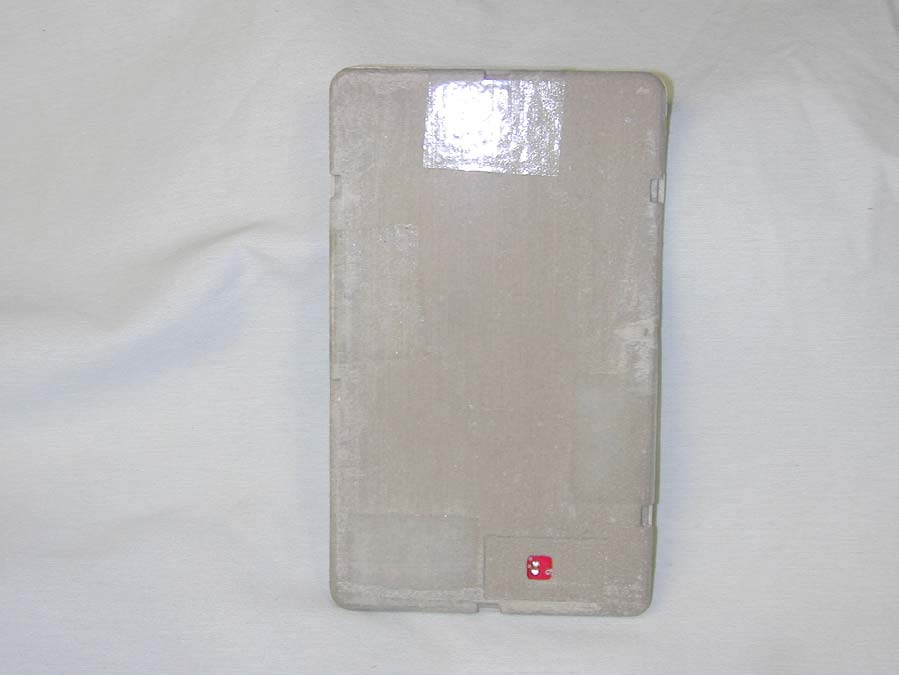

External Photo External Photo

This device has not been authorized as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, until authorization is obtained.

FCC Label and Statements

Internal Photo Internal Photo Internal Photo Internal Photo Internal Photo Internal Photo

Functional Description For Enfora Enabler-A CDPD Modem Enfora, Inc. 661 E. 18th Plano, TX 75074 WARNING: This document contains proprietary information and must not be reproduced without the prior written consent of Enfora, Inc. Table Of Contents 1. CDPD BACKGROUND....................................................................................................................... 3 2. THEORY OF OPERATION............................................................................................................... 3 2.1 I NTRODUCTION ................................................................................................................................3 2.2 A BBREVIATIONS .............................................................................................................................. 4 2.3 F REQUENCY A LLOCATION (M-ES).................................................................................................. 4 2.3.1 Power control ......................................................................................................................... 5 2.4 D IGITAL S ECTION ............................................................................................................................ 6 2.4.1 Processor and Memory...........................................................................................................6 2.4.2 I&Q Generation and Transmission Control ........................................................................... 6 2.4.3 ADC – System and Data ......................................................................................................... 6 2.4.4 Serial Interface ....................................................................................................................... 7 2.4.5 FPGA Functions ..................................................................................................................... 7 2.4.6 RF interface and Frequency Generation ................................................................................ 7 2.5 R ECEIVER S ECTION ......................................................................................................................... 8 2.5.1 Duplexer ................................................................................................................................. 8 2.5.2 LNA and First Conversion ...................................................................................................... 8 2.5.3 First IF Stage.......................................................................................................................... 8 2.5.4 Second Conversion, Limiter and IF filtering .......................................................................... 8 2.6 T RANSMIT P ATH .............................................................................................................................. 9 1. CDPD Background The Cellular Digital Packet Data (CDPD) network is a two-way wireless data communication system. This system uses cellular telephone channels to transfer data seamlessly from a mobile end system. CDPD operates within the already existing cellular telephone infrastructure utilizing the idle time that exist on cellular voice channels to send small packets of data, called datagrams, to a designated receiver. Researchers estimate that over 30% of a cellular channel’s airtime is idle, even during heavy traffic. The CDPD system sends down the various cellular channels to locate an open channel. This process is called “sniffing.” Once the CDPD system has located an open channel, the modem begins to send datagrams over the channel to the designated end user. In order that this process does not interfere with the cellular phone transmission, the CDPD system has regulated channel “hops” to ensure that CDPD usage will not block a cellular voice channel for an extended period of time. Also, if a voice channel is activated, the CDPD system detects this voice message and automatically “hops” to the next available idle channel. This process is quite complex. However, the user need not be aware of this process. The CDPD system manages the routing of the individual data packets to the proper destination. On a basic level, the CDPD network operates like any other computer network with the exception that the CDPD mobile end system is free to roam wirelessly and conduct network operation from other locations using the network of cellular carriers. The CDPD network is made of a series of cellular networks that are operated by various cellular carriers. These carriers provide the user with network management as well as application services. To increase user security carriers use forward error correction, authentication, and encryption. The cellular carrier is responsible for all accounting services for the CDPD service. The user selects the CDPD carrier service with which to operate by registering with an individual carrier. Generally, an area will have two cellular carriers that provide CDPD service. The user may sign up with either of the two carriers. 2. Theory of Operation 2.1 Introduction Enfora’s Enabler-A CDPD M-ES RF circuitry may be divided into 3 major sections namely, 2 independent sections, the RX circuit, and the TX circuit and LO’s in which the RX circuit and TX circuits depend on for proper operation. The RX section uses a dual conversion superheterodyne technology to downconvert the cellular RF channel signal to its 1st IF of 45 MHz and then to the 2nd IF of 60 KHz. IF pre-filtering is performed at 45 MHz but the main IF filtering is performed at 60 KHz inside the Sony CXA1742Q device. For the TX section, the I & Q waveforms from the FPGA output are conditioned and filtered before they are modulated and upconverted to the 836.01 MHz ( + 12.5 MHz) transmit frequency. Mixing 90 MHz with the Main LO derives the TX frequency. The receive channel and transmit channel frequencies are always 45 MHz apart from each other with an alloc…

Text truncated - open the document above for the full version.

Tuneup Procedure The rf power output is preset during the manufacturing process. The power output is maintained within its operating range via ALC circuit. The transmitter uses a frequency synthesizer thus there are no frequency alignments that must be made.

CONFIDENTIAL AND PROPRIETARY INFORMATION Do not duplicate or distribute without express permission from Enfora, Inc. Enfora, Inc. 661 East 18th Street Plano, TX 75074-5601 www.enfora.com 15 The equipment certifications appropriate to your device are marked on the device and product specific information. The use of the equipment is subject to the following conditions: FCC COMPLIANCE STATEMENT This device complies with Part 15b of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device also complies with FCC Part 22. FCC RF EXPOSURE COMPLIANCE This CDPD device has been tested for FCC RF exposure and SAR compliance in the host hand-held, hand-operated electronic organizer/PC. To maintain FCC RF exposure compliance, a 1cm separation distance must be maintained between the front and back of the portfolio cover containing the device and the user’s or any bystander’s body (excluding hands, wrist, feet and ankles). CAUTION Changes or modifications without the express consent of Enfora, Inc. voids the user’s authority to use the equipment. This equipment has been tested and found to comply with the limits pursuant to Part 15 Subpart B and Part 22 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna · Increase the separation distance between the equipment and the receiver · Contact Enfora, Inc. Technical Support for assistance. Regulatory Information

Nemko Test Report:1L0412RUS1 Applicant:Enfora, Inc. 661 East 18 th Street Plano, TX 75074-5601 Equipment Under Test:Portfolio Radio Modem (E.U.T.) In Accordance With:FCC Part 22, Subpart H 800 MHz Cellular Subscriber Units Tested By:Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date:11/2/01 Total Number of Pages:3939 Nemko Dallas, Inc. FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: Portfolio Radio ModemPROJECT NO.:1L0412RUS1 Page 2 of 39 Table of Contents Section 1. Summary of Test Results........................................................................................3 Section 2. General Equipment Specification.............................................................................5 Section 3. RF Power Output....................................................................................................8 Section 4. Occupied Bandwidth...............................................................................................9 Section 5. Spurious Emissions at Antenna Terminals.............................................................13 Section 6. Field Strength of Spurious.....................................................................................20 Section 7. Frequency Stability...............................................................................................23 Section 8. Test Equipment List..............................................................................................25 ANNEX A - TEST DETAILS..................................................................................................26 ANNEX B - TEST DIAGRAMS..............................................................................................36 Nemko Dallas, Inc. FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: Portfolio Radio ModemPROJECT NO.:1L0412RUS1 Page 3 of 39 Section 1.Summary of Test Results Manufacturer:Enfora Wireless Model No.:Portfolio Radio Modem Serial No.:None General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas, Inc. FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: Portfolio Radio ModemPROJECT NO.:1L0412RUS1 Page 4 of 39 Summary Of Test Data NAME OF TEST PARA. NO.SPEC.RESULT RF Power Output2.10467W ERPComplies Audio Frequency Response2.10476dB/OctaveN/A Audio Low Pass Filter Response2.1047GraphN/A Modulation Limiting2.1047GraphN/A Occupied Bandwidth (Voice & SAT)2.1049MaskN/A Occupies Bandwidth (WB Data & SAT) 2.1049MaskN/A Occupied Bandwidth (ST)2.1049MaskComplies Occupied Bandwidth (SAT)2.1049MaskN/A Occupied Bandwidth (CDPD)2.1049Not SpecifiedN/A Spurious Emissions at Antenna Terminals 2.1051-13 dBmComplies Field Strength of Spurious Emissions2.1053 82.3 dBμV/m Complies Frequency Stability2.10552.5 ppmComplies Footnotes: This device does not provide a facility for voice transmission. The only information transmitted is digital packet data. . Nemko Dallas, Inc. FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: Portfolio Radio ModemPROJECT NO.:1L0412RUS1 Page 5 of 39 Section 2.General Equipment Specification Frequency Range: 824.04 MHz to 848.97 MHz Tunable Bands: 824.04 MHz to 848.97 MHz Necessary Bandwidth: 30 kHz Type of Modulation and Designator: 30K0DXW Output Impedance: 50 ohms RF Power Output (rated): 700 mW Number of Channels: 832 Duty Cycle: Continuous Channel Spacing: 30 kHz Operator Selection of Frequency: Software Controlled Power Output Adjustment Capability: Software Controlled Nemko Dallas, Inc. FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: Portfolio Radio ModemPROJECT NO.:1L0412RUS1 Page 6 of 39 Description of Modifications For Class II Permissive Change Modifications Made During Testing Nemko Dallas, Inc. FCC PART 22, SUBPART H 800 MHz CELLULAR SUBSCRIBER UNITS EQUIPMENT: Portfolio Radio ModemPROJECT NO.:1L0412RUS1 Page 7 of 39 Operational Description This unit incorporates a CDPD wireless modem and GPS receiver into a small binder type case. It is designed to provide wireless Internet services for PDA devices. It also provides GPS receiver functionality to the PDA as well. It is compatible with a wide range of PDA’s, not just the CASIO it was tested with. Communication to the PDA is established through the IR port. System Diagram LNA Mixer Downconverter FM / IF Limiter / Detector Mixer PA I/Q Modulator Power Cntrl SAW Duplexer Rx Ant Tx Pout = + 28 dBm max Pout = + 0 dBm min Pin = - 111 dBm min Pin = - 51 dBm max Dual PLL/ VCO I Lowpass Filter Q Lowpass Filter 0 90 60KHz Active Filter RC Filter ComparatorDC Amp Main LO Freq 914.04-938.97 MHz 60KHz Active Filter Detect LimIF Splitter Buffer Amp TXLO Freq 90 MHz TX Carrier Freq 824.04- 848.97 MHz Amp 15.36 MHz VTCXO I Q FPGAMicroprocessor AVR Serial Interface 40 pin Connector PLL/VCO RXLO Freq 89.88 MHz Vcntrl From AVR Transceiver Control & Monitoring RSSI to FPGA External Power 3.15-4.2 VDC Digital LDO Power Management TX LDO TCVCXO LDO Xilinx LDO Memory file: Enabler-A.vsd, REV. 8/14/01 Te…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 110501-177MIV 1955 Moss Court, Kelowna Date(s) of Tests: November 05, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in OET Bulletin 65, Supplement C, Edition 01-01 (uncontrolled exposure / general population), and was tested in accordance with the appropriate measurement standards, guidelines, and recommended practices specified in American National Standards Institute C95.1-1992. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: ENFORA, INC. 661 East 18 th Street Plano, TX 75074-5601 FCC Rule Part(s): 2.1093; ET Docket 96-326 FCC ID: MIVPRT0100PF Model(s): Portfolio PRT01 EUT Type(s): CDPD Wireless Data Modem in Portfolio Case for PDA Modulation: GMSK Tx Frequency Range(s): 824.04 - 848.97 MHz Nominal Conducted Power: 28.0 dBm Antenna Type(s): Integral CELLTECH RESEARCH INC. Test Report S/N: 110501-177MIV 1955 Moss Court, Kelowna Date(s) of Tests: November 05, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-4 5.0 DETAILS OF SAR EVALUATION............................................ 5 6.0 EVALUATION PROCEDURES................................................. 6 7.0 SYSTEM VALIDATION.......................................................... 7 8.0 TISSUE PARAMETERS......................................................... 7 9.0 SIMULATED EQUIVALENT TISSUES...................................... 8 10.0 SAR LIMITS........................................................................ 8 11.0 SYSTEM SPECIFICATIONS.................................................... 9 12.0 PROBE SPECIFICATION....................................................... 10 13.0 SAM PHANTOM.................................................................... 10 14.0 DEVICE HOLDER................................................................. 10 15.0 TEST EQUIPMENT LIST........................................................ 11 16.0 MEASUREMENT UNCERTAINTIES........................................ 12 17.0 REFERENCES...................................................................... 13 APPENDIX A - SAR MEASUREMENT DATA........................................ 14 APPENDIX B - DIPOLE VALIDATION................................................ 15 APPENDIX C - PROBE CALIBRATION............................................... 16 APPENDIX D - SAR SENSITIVITIES................................................... 17 APPENDIX E - SAR TEST SETUP PHOTOGRAPHS............................... 18 APPENDIX F - EUT PHOTOGRAPHS.................................................. 19 CELLTECH RESEARCH INC. Test Report S/N: 110501-177MIV 1955 Moss Court, Kelowna Date(s) of Tests: November 05, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. ENFORA FCC ID: MIVPRT0100PF (Model: Portfolio PRT01) 1 CDPD Wireless Data Modem in Portfolio Case for PDA (824-849MHz) 1.0 INTRODUCTION This measurement report shows that the ENFORA INC. Portfolio PRT01 CDPD Wireless Data Modem FCC ID: MIVPRT0100PF complies with the regulations and procedures specified in FCC Rule Part 2.1093, ET Docket 96-326 for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (See Reference [1]), and FCC OET Bulletin 65, Supplement C, Edition 01-01 (See Reference [2]) were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Rule Part(s) FCC 2.1093; ET Docket 96-326 Modulation GMSK EUT Type CDPD Wireless Data Modem in Portfolio Case for PDA Tx Frequency Range 824…
