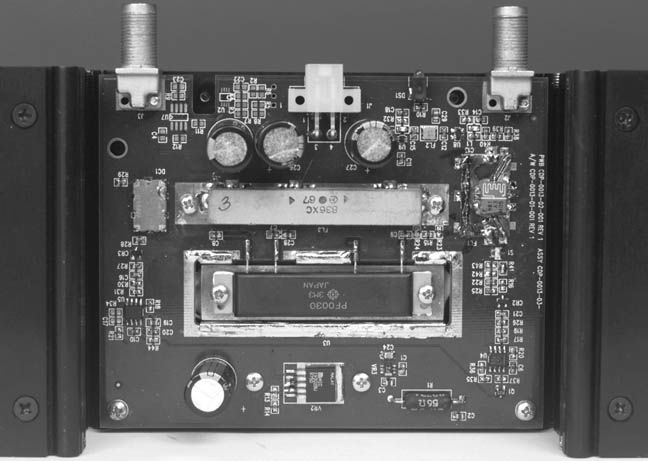

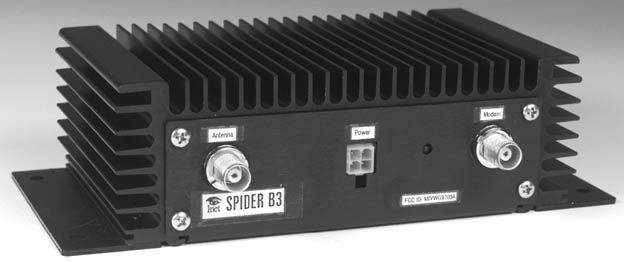

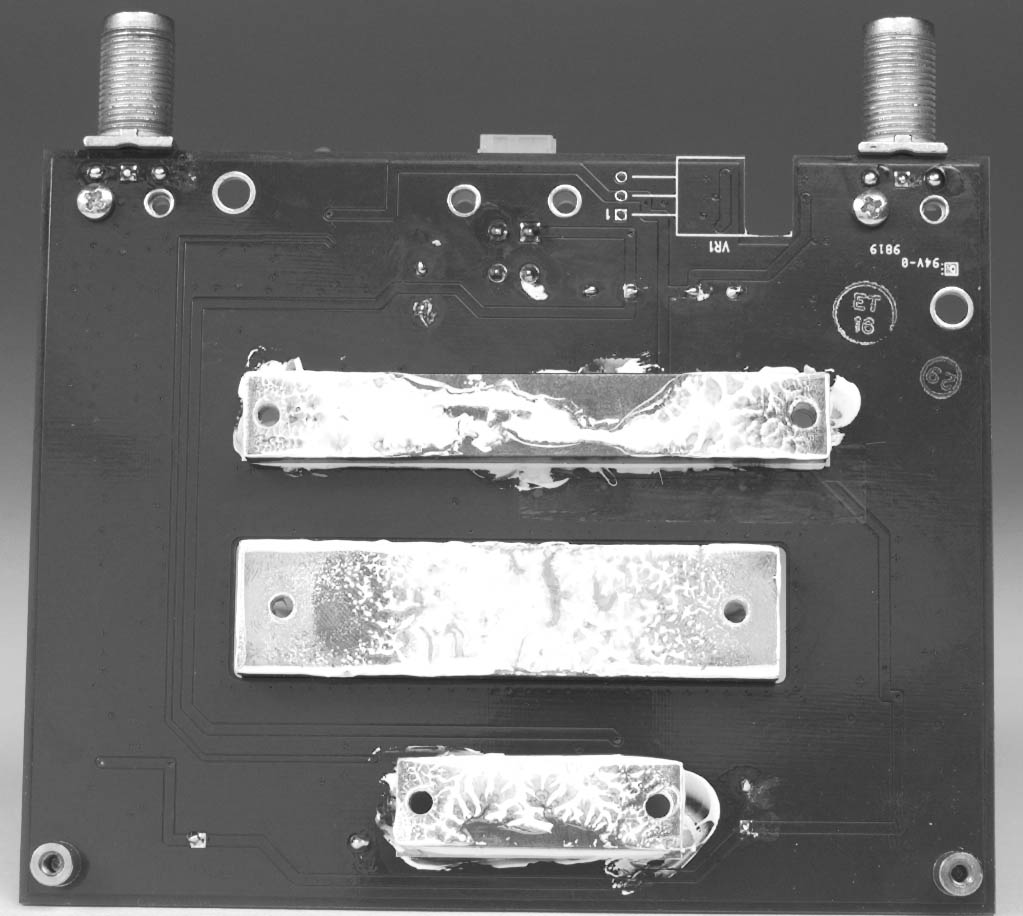

MIVWG9703ACDPD BOOSTER

Item Qty Part Description Detail Reference Desg. 1 1 AMP0030 Power Amp, 6W, 836 mhz PF0030 U3 2 1 AMP82563 MMic GaAs RF amp .1-6 GHz MGA-82563 U9 3 1 AMPVAM7M MMIC RF Amp 180-0711-05-001, IET0021AC U8 4 7 CAP102K2X Capacitor,10%,0603,X7R 1000 pF, 580-0102-05-010, IET0025AC C15,C13,C12,C11,C9,C8,C1 5 4 CAP108RL Electrolytic Capacitor, 1000 uF Digikey order # P5634A-ND C27,C26,C25,C5 6 6 CAP104Z2Y Capacitor,+80/-20%,0603,Y5V 0.1uF, 580-0104-05-020, IET0027AC C20,C18,C14,C10,C7,C6 7 5 CAP105Z3Y Capacitor,+80 -20%,0805,Y5V,16V, 1 uf, 580-0105-05-020, IET0028AC C29,C28,C19,C3,C2 8 1 CAP156K7T Capacitor,10%,1508,TANTALUM 15 uF, 570-0156-05-010, IET0032AC C24 9 2 CAP680J2C Capacitor,5%,0603,COG,50V 68pf, 580-0680-05-005, IET0237AC C21,C16 10 1 CON4PRA connector, booster power order # WM3901-ND, Mfg # 39-29-104B J1 11 2 CONTNCRA Connector, tnc, right angle PCB mount IMS P# 1121.02.2620.009 J3,J2 12 2 DIO4CS1 Diode, Detector MA4CS102A, RF Detector, 270-0102-05-001, IET0056AC CR3,CR2 13 1 DIR15SM Directional Coupler 15dB 100 watt 1D1304-15 DC1 14 1 FIL887S0001 Saw Filter,881 Mhz HWCB606, 260-0001-05-003, IET0058AC FL2 15 1 FILDUPL Duplexer,Ceramic, 836Mhz,881Mhz DFY2R836CR881BHA, 260-0001-05-005, IET0060AC FL1 16 1 FILDUPL10W Duplexer,10W DFYKR836CR881HHA FL3 17 2 INDR10K3M Inductor,10%,0805,Multilayer 100 nh, 260-0100-05-001, IET0072AC L2,L1 18 1 LEDRED LED, SURFACE MOUNT, RED SSF-LXH305ID-TR DS1 20 2 OPA0662 CMOS DUAL OP AMP LPC662 AIM U5,U4 21 1 PCB970301 printed circuit board, booster 23 7 RES103J20 Resistor,5%,0603,Thick Film,200ppm 10 K, RM73B1JT103J, IET0084AC R44,R37,R28,R27,R26, R25,R20 24 6 RES104J20 Resistor,5%,0603,Thick Film,200ppm 100 K, RM73B1JT104J, IET0085AC R36,R31,R30,R21,R19, R18 25 1 RES112J20 Resistor,5%,0603,Thick Film,200ppm 1.1k, RM73B1JT112J R35 26 2 RES121J20 Resistor,5%,0603,Thick Film,200ppm 120 ohm, RM73B1ET121J R39,R15 27 1 RES164J20 Resistor,5%,0603,Thick Film 160K RM73B1JT164J, IET0225AC R13 28 1 RES180J20 Resistor,5%,0603,Thick Film,200ppm 18 ohm, RM73B1JT180J, IET0096AC R41 29 2 RES240J20 Resistor,5%,0603,Thick Film,200ppm 24 ohm, RM73B1JT240J, IET0102AC R33,R32 30 1 RES274J20 Resistor,5%,0603,Thick Film,200ppm 270 K, RM73B1JT274J, IET0105AC R17 31 2 RES301J20 Resistor,5%,0603,Thick Film,200ppm 300 ohm, RM73B1JT301J, IET0106AC R43,R42 32 1 RES471J10 Resistor,5%,0402,Thick Film, 200ppm 470 OHM, RM73BIET471J R22 33 1 RES223J20 Resistor,5%,0603,Thick Film,200ppm 22 K, RM73B1JT223J, IET0100AC R14 34 2 RES510J20 Resistor,5%,0603,Thick Film,200ppm 51 ohm, RM73B1JT510J, IET0115AC R29,16 35 1 RES560JL3 56 ohm, Power resistor, 3 watt, wirewound DK Order # ALSR3J-56-ND R1 36 1 RES621J2C Resistor,5%,0603,Thick Film,200ppm 620 ohm R10 37 4 RES750J20 Resistor,5%,0603,Thick Film,200ppm 75 ohm, RM73BIJT750J, IET0341AC R40,R38,R24,R23 38 1 SPLT01R 0deg Splitter/Combiner STH-01R S1 39 1 SSY970301 subassembly, booster packaging 40 1 VRG1245 Voltage Regulator, 4.5 V, Sot23L TK11245AMTL, 240-0045-05-001, IET0135AC VR3 41 1 VRG29302 Voltage Regulator, 12.0 v. ,TO-236-5P MIC29302BU VR2 43 1 XTR85633 Transistor,NPN,RF,7 GHz NE85633-T1B, 280-0001-05-002, IET0136AC Q1

4790 Eastgate Mall RoadPhone:619-457-6252 San Diego, CA 92121-1761Fax:619-457-6055 October 13, 1998 Federal Communications Commission Equipment Authorization Division Regarding: Correspondence ID: 3922 Confirmation No: EA91624 FCC ID: NFRCVMDBS 1.) Measurement data showing the transmitter frequency stability for temperature and voltage variations as required by Section 2.995 of the Commission’s R&R. The attached Microsoft EXCEL file “CVmdbsf.xls” containing three sheets of charts and data covers the above issue. 2.) Request for Confidentiality, providing “Technical Description”. For this issue, the information is currently in process and will be provided as soon as possible. If there is a problem with extracting the EXCEL data please let me know and provide a address and/or FAX number to where I can send the information. Regards, Peter Kokenis Member Technical Staff II ADC Telecommunications Email. [email protected]

Item Qty Part Description Detail Reference Desg. 1 1 AMP0030 Power Amp, 6W, 836 mhz PF0030 U3 2 1 AMP82563 MMic GaAs RF amp .1-6 GHz MGA-82563 U9 3 1 AMPVAM7M MMIC RF Amp 180-0711-05-001, IET0021AC U8 4 7 CAP102K2X Capacitor,10%,0603,X7R 1000 pF, 580-0102-05-010, IET0025AC C15,C13,C12,C11,C9,C8,C1 5 4 CAP108RL Electrolytic Capacitor, 1000 uF Digikey order # P5634A-ND C27,C26,C25,C5 6 6 CAP104Z2Y Capacitor,+80/-20%,0603,Y5V 0.1uF, 580-0104-05-020, IET0027AC C20,C18,C14,C10,C7,C6 7 5 CAP105Z3Y Capacitor,+80 -20%,0805,Y5V,16V, 1 uf, 580-0105-05-020, IET0028AC C29,C28,C19,C3,C2 8 1 CAP156K7T Capacitor,10%,1508,TANTALUM 15 uF, 570-0156-05-010, IET0032AC C24 9 2 CAP680J2C Capacitor,5%,0603,COG,50V 68pf, 580-0680-05-005, IET0237AC C21,C16 10 1 CON4PRA connector, booster power order # WM3901-ND, Mfg # 39-29-104B J1 11 2 CONTNCRA Connector, tnc, right angle PCB mount IMS P# 1121.02.2620.009 J3,J2 12 2 DIO4CS1 Diode, Detector MA4CS102A, RF Detector, 270-0102-05-001, IET0056AC CR3,CR2 13 1 DIR15SM Directional Coupler 15dB 100 watt 1D1304-15 DC1 14 1 FIL887S0001 Saw Filter,881 Mhz HWCB606, 260-0001-05-003, IET0058AC FL2 15 1 FILDUPL Duplexer,Ceramic, 836Mhz,881Mhz DFY2R836CR881BHA, 260-0001-05-005, IET0060AC FL1 16 1 FILDUPL10W Duplexer,10W DFYKR836CR881HHA FL3 17 2 INDR10K3M Inductor,10%,0805,Multilayer 100 nh, 260-0100-05-001, IET0072AC L2,L1 18 1 LEDRED LED, SURFACE MOUNT, RED SSF-LXH305ID-TR DS1 20 2 OPA0662 CMOS DUAL OP AMP LPC662 AIM U5,U4 21 1 PCB970301 printed circuit board, booster 23 7 RES103J20 Resistor,5%,0603,Thick Film,200ppm 10 K, RM73B1JT103J, IET0084AC R44,R37,R28,R27,R26, R25,R20 24 6 RES104J20 Resistor,5%,0603,Thick Film,200ppm 100 K, RM73B1JT104J, IET0085AC R36,R31,R30,R21,R19, R18 25 1 RES112J20 Resistor,5%,0603,Thick Film,200ppm 1.1k, RM73B1JT112J R35 26 2 RES121J20 Resistor,5%,0603,Thick Film,200ppm 120 ohm, RM73B1ET121J R39,R15 27 1 RES164J20 Resistor,5%,0603,Thick Film 160K RM73B1JT164J, IET0225AC R13 28 1 RES180J20 Resistor,5%,0603,Thick Film,200ppm 18 ohm, RM73B1JT180J, IET0096AC R41 29 2 RES240J20 Resistor,5%,0603,Thick Film,200ppm 24 ohm, RM73B1JT240J, IET0102AC R33,R32 30 1 RES274J20 Resistor,5%,0603,Thick Film,200ppm 270 K, RM73B1JT274J, IET0105AC R17 31 2 RES301J20 Resistor,5%,0603,Thick Film,200ppm 300 ohm, RM73B1JT301J, IET0106AC R43,R42 32 1 RES471J10 Resistor,5%,0402,Thick Film, 200ppm 470 OHM, RM73BIET471J R22 33 1 RES223J20 Resistor,5%,0603,Thick Film,200ppm 22 K, RM73B1JT223J, IET0100AC R14 34 2 RES510J20 Resistor,5%,0603,Thick Film,200ppm 51 ohm, RM73B1JT510J, IET0115AC R29,16 35 1 RES560JL3 56 ohm, Power resistor, 3 watt, wirewound DK Order # ALSR3J-56-ND R1 36 1 RES621J2C Resistor,5%,0603,Thick Film,200ppm 620 ohm R10 37 4 RES750J20 Resistor,5%,0603,Thick Film,200ppm 75 ohm, RM73BIJT750J, IET0341AC R40,R38,R24,R23 38 1 SPLT01R 0deg Splitter/Combiner STH-01R S1 39 1 SSY970301 subassembly, booster packaging 40 1 VRG1245 Voltage Regulator, 4.5 V, Sot23L TK11245AMTL, 240-0045-05-001, IET0135AC VR3 41 1 VRG29302 Voltage Regulator, 12.0 v. ,TO-236-5P MIC29302BU VR2 43 1 XTR85633 Transistor,NPN,RF,7 GHz NE85633-T1B, 280-0001-05-002, IET0136AC Q1

Item Qty Part Description Detail Reference Desg. 1 1 AMP0030 Power Amp, 6W, 836 mhz PF0030 U3 2 1 AMP82563 MMic GaAs RF amp .1-6 GHz MGA-82563 U9 3 1 AMPVAM7M MMIC RF Amp 180-0711-05-001, IET0021AC U8 4 7 CAP102K2X Capacitor,10%,0603,X7R 1000 pF, 580-0102-05-010, IET0025AC C15,C13,C12,C11,C9,C8,C1 5 4 CAP108RL Electrolytic Capacitor, 1000 uF Digikey order # P5634A-ND C27,C26,C25,C5 6 6 CAP104Z2Y Capacitor,+80/-20%,0603,Y5V 0.1uF, 580-0104-05-020, IET0027AC C20,C18,C14,C10,C7,C6 7 5 CAP105Z3Y Capacitor,+80 -20%,0805,Y5V,16V, 1 uf, 580-0105-05-020, IET0028AC C29,C28,C19,C3,C2 8 1 CAP156K7T Capacitor,10%,1508,TANTALUM 15 uF, 570-0156-05-010, IET0032AC C24 9 2 CAP680J2C Capacitor,5%,0603,COG,50V 68pf, 580-0680-05-005, IET0237AC C21,C16 10 1 CON4PRA connector, booster power order # WM3901-ND, Mfg # 39-29-104B J1 11 2 CONTNCRA Connector, tnc, right angle PCB mount IMS P# 1121.02.2620.009 J3,J2 12 2 DIO4CS1 Diode, Detector MA4CS102A, RF Detector, 270-0102-05-001, IET0056AC CR3,CR2 13 1 DIR15SM Directional Coupler 15dB 100 watt 1D1304-15 DC1 14 1 FIL887S0001 Saw Filter,881 Mhz HWCB606, 260-0001-05-003, IET0058AC FL2 15 1 FILDUPL Duplexer,Ceramic, 836Mhz,881Mhz DFY2R836CR881BHA, 260-0001-05-005, IET0060AC FL1 16 1 FILDUPL10W Duplexer,10W DFYKR836CR881HHA FL3 17 2 INDR10K3M Inductor,10%,0805,Multilayer 100 nh, 260-0100-05-001, IET0072AC L2,L1 18 1 LEDRED LED, SURFACE MOUNT, RED SSF-LXH305ID-TR DS1 20 2 OPA0662 CMOS DUAL OP AMP LPC662 AIM U5,U4 21 1 PCB970301 printed circuit board, booster 23 7 RES103J20 Resistor,5%,0603,Thick Film,200ppm 10 K, RM73B1JT103J, IET0084AC R44,R37,R28,R27,R26, R25,R20 24 6 RES104J20 Resistor,5%,0603,Thick Film,200ppm 100 K, RM73B1JT104J, IET0085AC R36,R31,R30,R21,R19, R18 25 1 RES112J20 Resistor,5%,0603,Thick Film,200ppm 1.1k, RM73B1JT112J R35 26 2 RES121J20 Resistor,5%,0603,Thick Film,200ppm 120 ohm, RM73B1ET121J R39,R15 27 1 RES164J20 Resistor,5%,0603,Thick Film 160K RM73B1JT164J, IET0225AC R13 28 1 RES180J20 Resistor,5%,0603,Thick Film,200ppm 18 ohm, RM73B1JT180J, IET0096AC R41 29 2 RES240J20 Resistor,5%,0603,Thick Film,200ppm 24 ohm, RM73B1JT240J, IET0102AC R33,R32 30 1 RES274J20 Resistor,5%,0603,Thick Film,200ppm 270 K, RM73B1JT274J, IET0105AC R17 31 2 RES301J20 Resistor,5%,0603,Thick Film,200ppm 300 ohm, RM73B1JT301J, IET0106AC R43,R42 32 1 RES471J10 Resistor,5%,0402,Thick Film, 200ppm 470 OHM, RM73BIET471J R22 33 1 RES223J20 Resistor,5%,0603,Thick Film,200ppm 22 K, RM73B1JT223J, IET0100AC R14 34 2 RES510J20 Resistor,5%,0603,Thick Film,200ppm 51 ohm, RM73B1JT510J, IET0115AC R29,16 35 1 RES560JL3 56 ohm, Power resistor, 3 watt, wirewound DK Order # ALSR3J-56-ND R1 36 1 RES621J2C Resistor,5%,0603,Thick Film,200ppm 620 ohm R10 37 4 RES750J20 Resistor,5%,0603,Thick Film,200ppm 75 ohm, RM73BIJT750J, IET0341AC R40,R38,R24,R23 38 1 SPLT01R 0deg Splitter/Combiner STH-01R S1 39 1 SSY970301 subassembly, booster packaging 40 1 VRG1245 Voltage Regulator, 4.5 V, Sot23L TK11245AMTL, 240-0045-05-001, IET0135AC VR3 41 1 VRG29302 Voltage Regulator, 12.0 v. ,TO-236-5P MIC29302BU VR2 43 1 XTR85633 Transistor,NPN,RF,7 GHz NE85633-T1B, 280-0001-05-002, IET0136AC Q1

KTL Ottawa Safety - EMI - Telecom - ISO Guide 25 Master: KTLmpefccp1 Date: June 4, 1998 ENGINEERING TEST REPORT ON: "INET 'SPIDER B3' 4 WATT BOOSTER" IN ACCORDANCE WITH: MPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 TESTED FOR: INET INC. 1255 W. 15 TH STREET PLANO, TEXAS 75075-7270 TESTED BY: KTL OTTAWA INC. 3325 RIVER ROAD, R.R. 5 OTTAWA, ONTARIO K1V 1H2 JUNE 1998 This document contains 21 pages including this one. KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaMPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 EQUIPMENT: INET "Spider B3"4 Watt Booster Page 2 of 21 TABLE OF CONTENTS Section 1. Summary of Test Results Test Rationale Section 2. Equipment Under Test (E.U.T.) Description of E.U.T. Modifications Incorporated in E.U.T. Theory of Operation Justification Exercise Program Section 3. Equipment Configuration Equipment Configuration List Inter-connection Cables Configuration of the Equipment Under Test (E.U.T.) Block Diagram Section 4. Test Configuration A Test #1 Test #2 Test #3 Measurements Inside Vehicle with Antenna Mounted In Center Of Roof Test #4 Measurements Inside Vehicle with Antenna Mounted At Rear Section 5. Configuration B Test #1 Test #2 Test #3 Test #4 Test #5 Measurements Inside Vehicle Test #6 Measurements Behind Panel Van Section 6. Test Equipment Section 7. Photos KTL OttawaMPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 EQUIPMENT: INET "Spider B3"4 Watt Booster Page 3 of 21 Section 1.Summary of Test Results Test Rationale This testing was patterned after testing done in FCC/OET document ASD-9601, “Measurements of Environmental Electromagnetic Fields at Amateur Radio Stations” and OET Bulletin 65 Edition 97-01, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. Emissions were measured using a standard Roberts type dipole antenna tuned to cellular channel 383. The measured field strength was then converted to Power Density by the following relation: S = E 2 /3770 where S = power density (mW/cm 2 ) E = electric field strength (V/m) This equation is given on page 9 of OET Bulletin 65. Measurements were made with the E.U.T. feeding a magnetic roof mount antenna as prescribed by the manufacturer. Measurements were made with the system installed on two different vehicles; a standard passenger vehicle and a pickup truck. Field strengths were measured at distances from 0.5 to 3 metres. The receive antenna height was varied from 1 - 3 metres to determine maximum emission levels. Measurements were also performed with the vehicle parked adjacent to a panel van in order to investigate “hot spots” that may be caused by reflection from a nearby metallic object. Conclusion In the configuration tested, the E.U.T. complies with the requirements of MPE Requirements of the FCC Part 1. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATION HAVE BEEN MADE. None Test Performed By: ________________________________Date: ___________________ Tom Tidwell, Senior Technologist Approved By: __________________________________Date: ___________________ W. Waterhouse, RF Engineering Lab Manager KTL OttawaMPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 EQUIPMENT: INET "Spider B3"4 Watt Booster Page 4 of 21 Section 2. Equipment Under Test (E.U.T.) Manufacturer:INET Inc. Model No.:"Spider B3" Serial No.:None Production UnitPre-Production Unit Description of E.U.T. The E.U.T. is a 4 watt booster for connection to the Spider PCMCIA CDPD modem. Modifications Incorporated in E.U.T. The EUT has not been modified from what is described by the brand name and unique type identification stated above. KTL OttawaMPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 EQUIPMENT: INET "Spider B3"4 Watt Booster Page 5 of 21 Theory Of Operation The E.U.T. connects to the FCC approved "Spider" CDPD modem; (FCC ID: MIVWG9501A), to boost the Class III 0.6 watt modem power level to a 4 watt Class I output level. The booster uses duplexers at the input and output to split the Tx and Rx paths. The Tx path has three stages: Electronic Attenuator, PA Driver and PA. The Rx path has four stages: Preamp, SAW Filter, LNA and Electronic Attenuator. Block Diagram DuplexerDuplexer PA LNA Modem Connection Antenna Connection KTL OttawaMPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 EQUIPMENT: INET "Spider B3"4 Watt Booster Page 6 of 21 Justification The E.U.T. was configured for testing as per typical installation. Position and bundling of cables were investigated to establish maximum amplitude of emissions. The following combinations were investigated to establish worst case configuration: (1) E.U.T. transmitting at 4 watts. (2) Antenna mounted in center of vehicle roof. (3) Antenna mounted at back of vehicle roof. (4) Vehicle parked adjacent to vertical metal surface. Exercise Program The E.U.T. exercise program used during testing was designed to exercise the various system components in a manner similar to typical use. Exercise Mode: Not Applicable. KTL OttawaMPE REQUIREMENTS OF THE FCC PART 1 PROJECT NO.: 8R00203.1 EQUIPMENT: INET "Spider B3"4 Watt Booster Page 7 of 21 Section 3.Equipment Configuration Equipment Configuration List: ItemDescriptionModel No.Serial.Rev. (A)Toshiba Satellite Notebook PCPA1196UV10563296-1 (B)PCMCIA ModemSpiderNone (C)Radio Shack Cellular AntennaNoneNone (D)4 Watt BoosterSpider B3None Inter-connection Cables: ItemDescriptionLength (m) (1)Coaxia…

Text truncated - open the document above for the full version.

KTL Ottawa Safety - EMI - Telecom - ISO Guide 25 Master: ktlPT22H Date: May 13, 1998 ENGINEERING TEST REPORT ON: "INET 4 WATT BOOSTER FOR SPIDER B3 PCMCIA CDPD MODEM" FCC ID: MIVWG9703A IN ACCORDANCE WITH: FCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 TESTED FOR: INET INC. 1255 W. 15 TH STREET PLANO, TEXAS 75075-7270 TESTED BY: KTL OTTAWA INC. 3325 RIVER ROAD, R.R. 5 OTTAWA, ONTARIO K1V 1H2 NVLAP LAB CODE: 100351-0 JUNE 1998 This document contains 38 pages including this one. KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 2 of 23 MODEL NO.:Spider B3 SERIAL NO.:None GENERAL: These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See "Summary of Test Data". TESTED BY: ____________________________________ DATE: __________________ Tom Tidwell, Senior Technologist APPROVED BY: _________________________________ DATE: __________________ W. Waterhouse, RF Engineering Lab Manager KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 3 of 23 SUMMARY OF TEST DATA NAME OF TESTPARA. NO.SPEC.MEAS.RESULT RF Power Output22.913(a)500W ERP4.5WComplies Audio Frequency Response22.915(d)6dB/octaveN/AN/A Audio Low-Pass Filter Response2.987(a)N/AN/A Modulation Limiting22.915(b)12 kHzN/AN/A Occupied Bandwidth(Voice)22.917(c)Mask AN/AN/A Occupied Bandwidth(Voice + SAT)22.917(c)Mask CN/AN/A Occupied Bandwidth(CDPD)22.917(d)Mask DPlotsComplies Occupied Bandwidth(Alternate Mod.)NONENONEN/AN/A Spurious Emissions at Antenna Terminals 22.917-13 dBm-21 dBmComplies Field Strength of Spurious Emissions22.917-13 dBm E.I.R.P. -19.4 dBmComplies Frequency Stability22.3551.5 ppmN/AN/A FOOTNOTES FOR N/A’S: The E.U.T. does not contain modulation circuitry or frequency stability circuitry. KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 4 of 23 GENERAL EQUIPMENT SPECIFICATION TRANSMITTER Frequency Range: 869 - 894 MHz Tunable Bands: 1 Necessary Bandwidth:Not Applicable Type of Modulation:Not Applicable Internal/External Data Source: Not Applicable Emission Designator:FXW (CDPD) Output Impedance: 50 ohms RF Power Output (rated):Single: 4 W Composite: Not Applicable Number of Channels: Not Applicable Duty Cycle: Continuous Channel Spacing:Not Applicable Operator Selection of Operating Frequency: Software controlled Power Output Adjustment Capability: Software controlled KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 5 of 23 GENERAL EQUIPMENT SPECIFICATION RECEIVER Frequency Range: 824 - 849 MHz Tunable Bands: 1 Local Oscillators: Not Applicable 1st IF: Not Applicable 2nd IF: Not Applicable Bandwidth: Not Applicable Type of modulation: Not Applicable Operator Selection of Operating Frequency: Software controlled KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 6 of 23 THEORY OF OPERATION The E.U.T. connects to the FCC approved "Spider" CDPD modem; (FCC ID: MIVWG9501A), to boost the Class III 0.6 watt modem power level to a 4 watt Class I output level. The booster uses duplexers at the input and output to split the Tx and Rx paths. The Tx path has three stages: Electronic Attenuator, PA Driver and PA. The Rx path has four stages: Preamp, SAW Filter, LNA and Electronic Attenuator. BLOCK DIAGRAM DuplexerDuplexer PA LNA Modem Connection Antenna Connection KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 7 of 23 NAME OF TEST: RF Power OutputPARA.NO.: 2.985 TESTED BY: Tom TidwellDATE: June 4, 1998 TEST RESULTS:Complies. MEASUREMENT DATA: ChannelInput Level (dBm) Output Power (dBm) Rated Power (dBm) Measured/Rated (dB) 383N/A+7.2+7.8-0.6 383N/A+36.5+36.0+0.5 KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 8 of 23 NAME OF TEST: Audio Frequency ResponsePARA.NO.: 2.987(a) -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1000100000 FREQ UENC Y (Hz ) RESPONSE (dB) AUDIO FREQUENCY RESPONSE FrequencyResponse(dB)FrequencyResponse(dB) 10008000 15009000 200010000 250011000 300012000 350013000 400014000 450015000 500020000 550030000 600040000 700050000 NOT APPLICABLE KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 PCMCIA CDPD Modem FCC ID: MIVWG9703A Page 9 of 23 NAME OF TEST: Audio Low-Pass Filter Frequency ResponsePARA.NO.: 2.987(a) -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1000 FREQUENCY Hz RESPONSE dB Measurement AUDIO LOW PASS FILTER RESPONSE Frequency1k3 k3.5 k4 k4.5 k5 k5.5 k6 k7 k8 k9 k10 k NOT APPLICABLE KTL OttawaFCC PART 22, SUBPART H CELLULAR BAND REPEATERS PROJECT NO.: 8R00203 EQUIPMENT: INET 4 Watt Booster for Spider B3 P…

Text truncated - open the document above for the full version.
