MJCP3Permalog 3

Palmer Environmental Ltd. Registered in England. Registration No. 1463016 FCC Labelling Requirements and Information 05/02/04 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK RE: FCC Labelling Requirements FCC ID: MJCP3 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to this matter. Yours faithfully Simon Harris Product Support Manager On Behalf of Palmer Environmental Ltd. Ty Coch House Llantarnam Park Way Cwmbran NP44 3AW United Kingdom Tel: +44 (0) 1633 489479 Fax: +44 (0) 1633 877857 Email: [email protected] Web: www.palmer.co.uk

Palmer Environmental Ltd. Registered in England. Registration No. 1463016 Request for Confidentiality 05/02/04 RE: Certification Application FCC ID: MJCP3 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Palmer Environmental Ltd. • DOC-043-0001 Block Diagram.pdf • Permalog 3 Schematic V3.PDF • BP-043-0001-D Permalog 3 main PCB.xls • MP-043-0003 RevF USA.xls • DOC-043-0002P3 Technical Description.doc The application contains technical information which Palmer Environmental Ltd. deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Simon Harris Product Support Manager On Behalf of Palmer Environmental Ltd. Ty Coch House Llantarnam Park Way Cwmbran NP44 3AW United Kingdom Tel: +44 (0) 1633 489479 Fax: +44 (0) 1633 877857 Email: [email protected] Web: www.palmer.co.uk

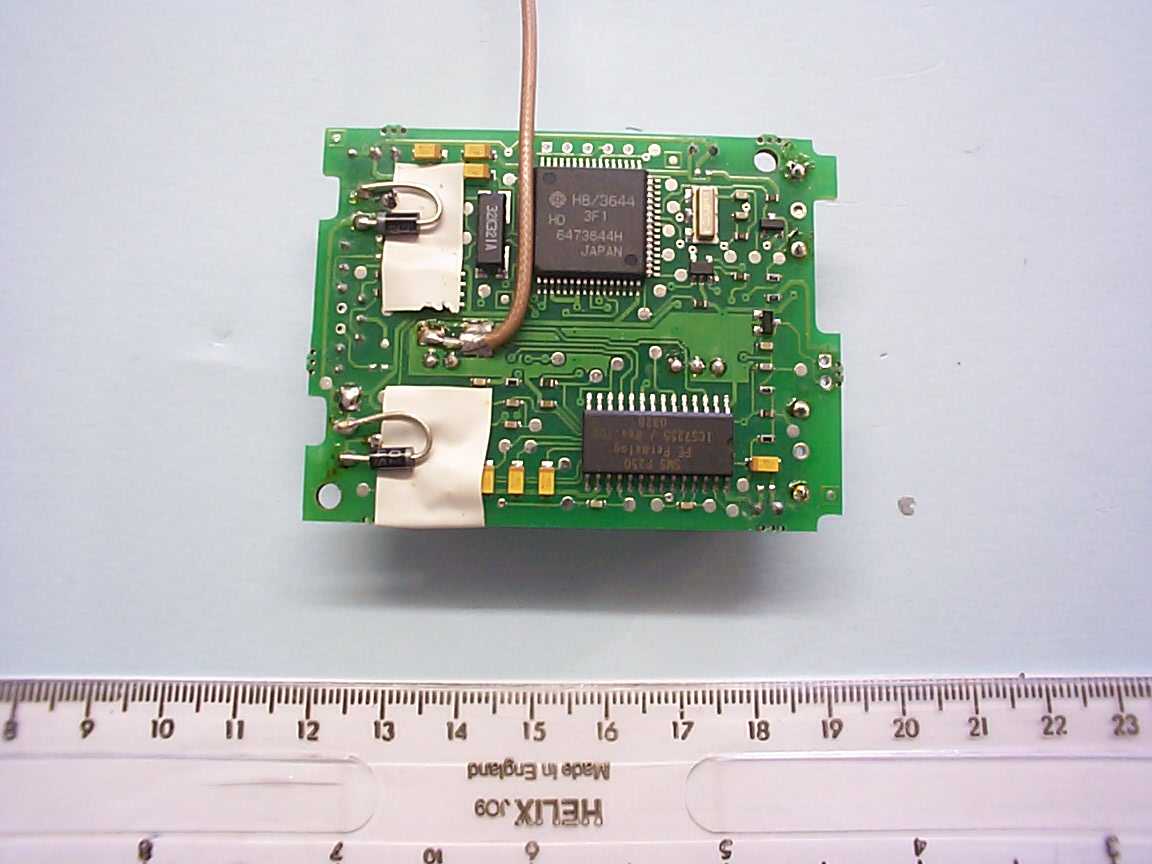

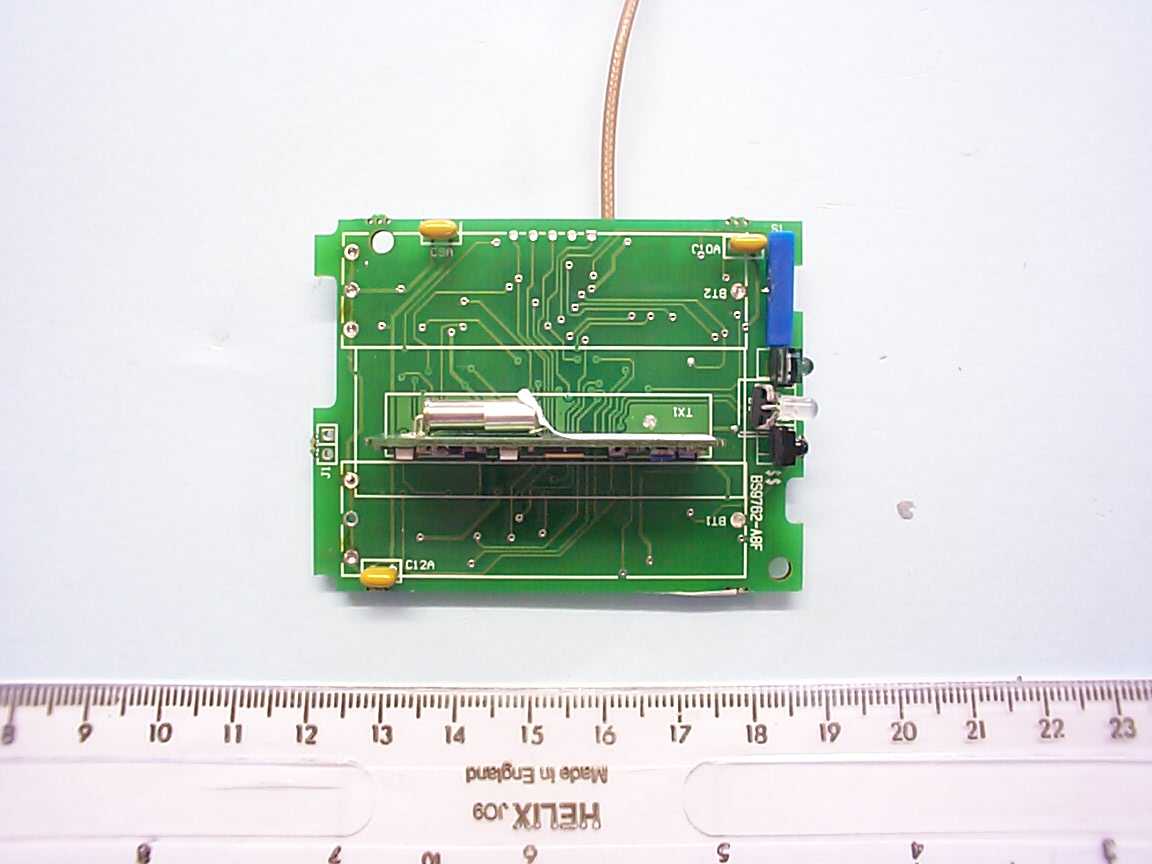

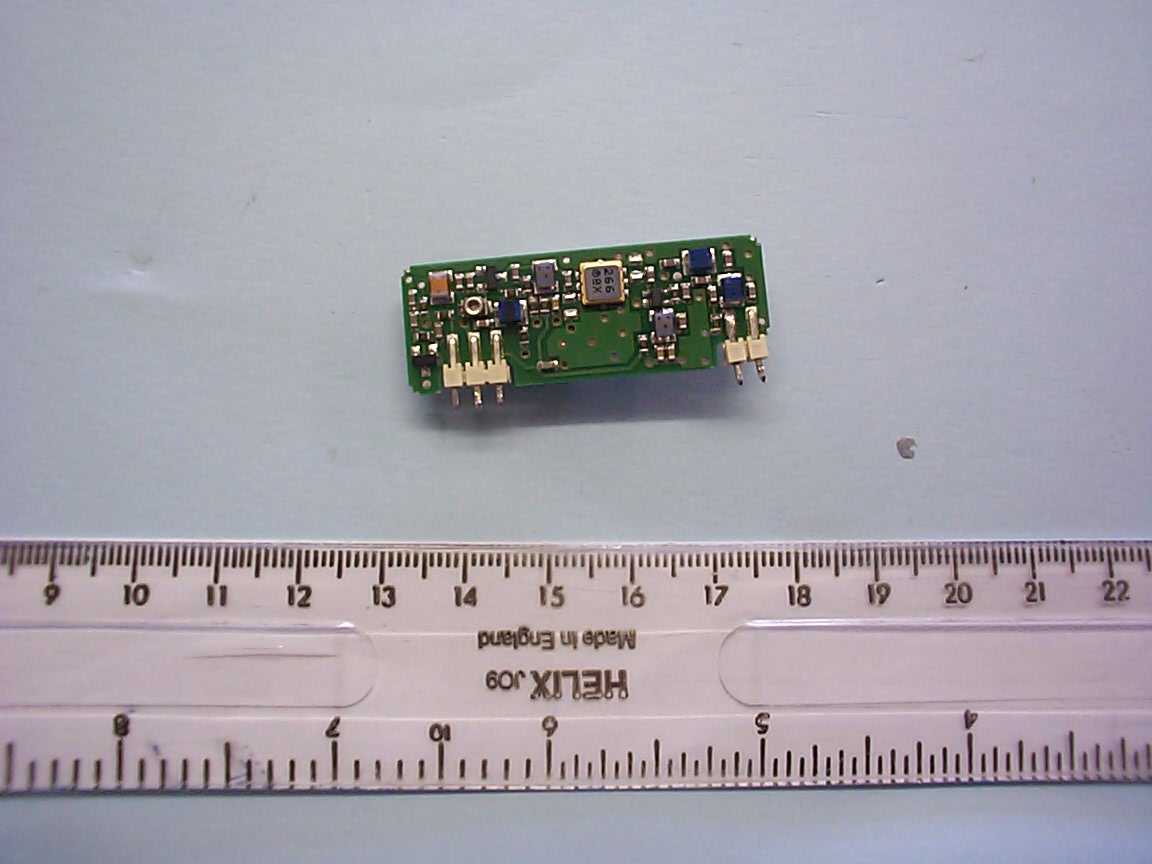

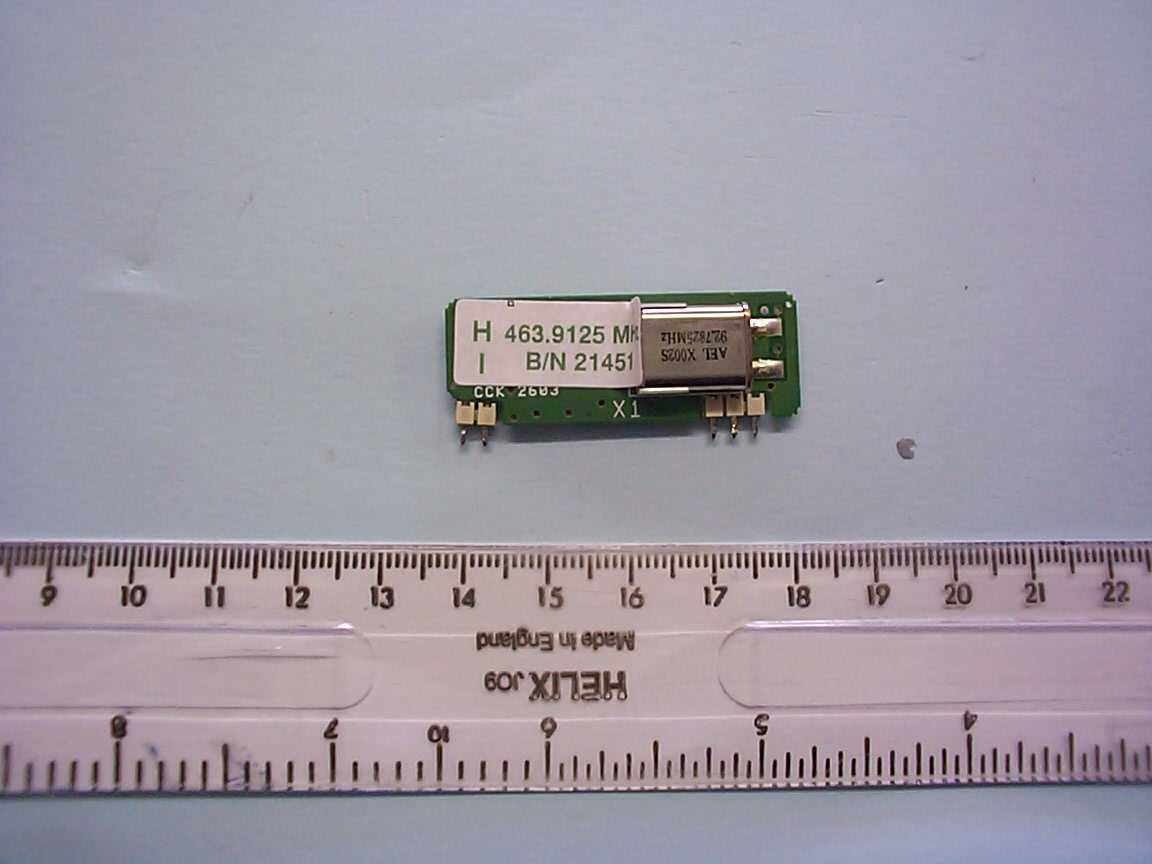

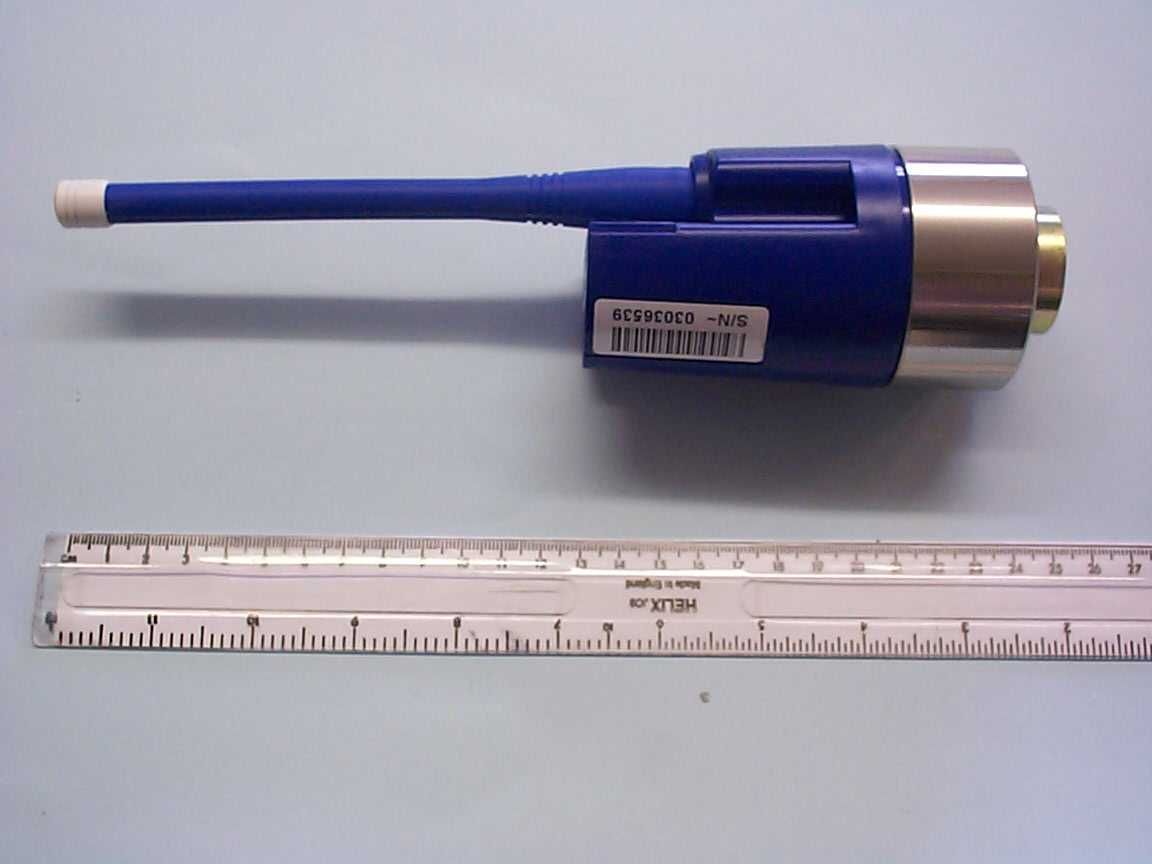

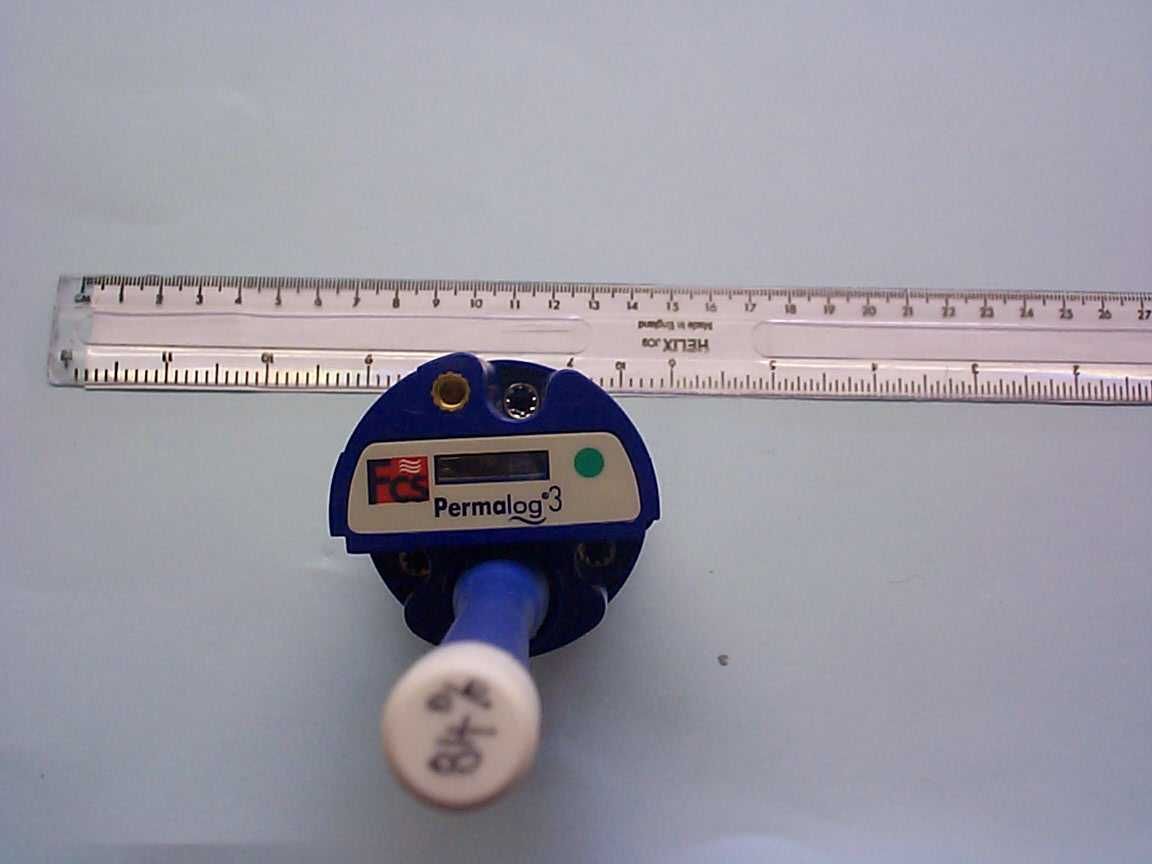

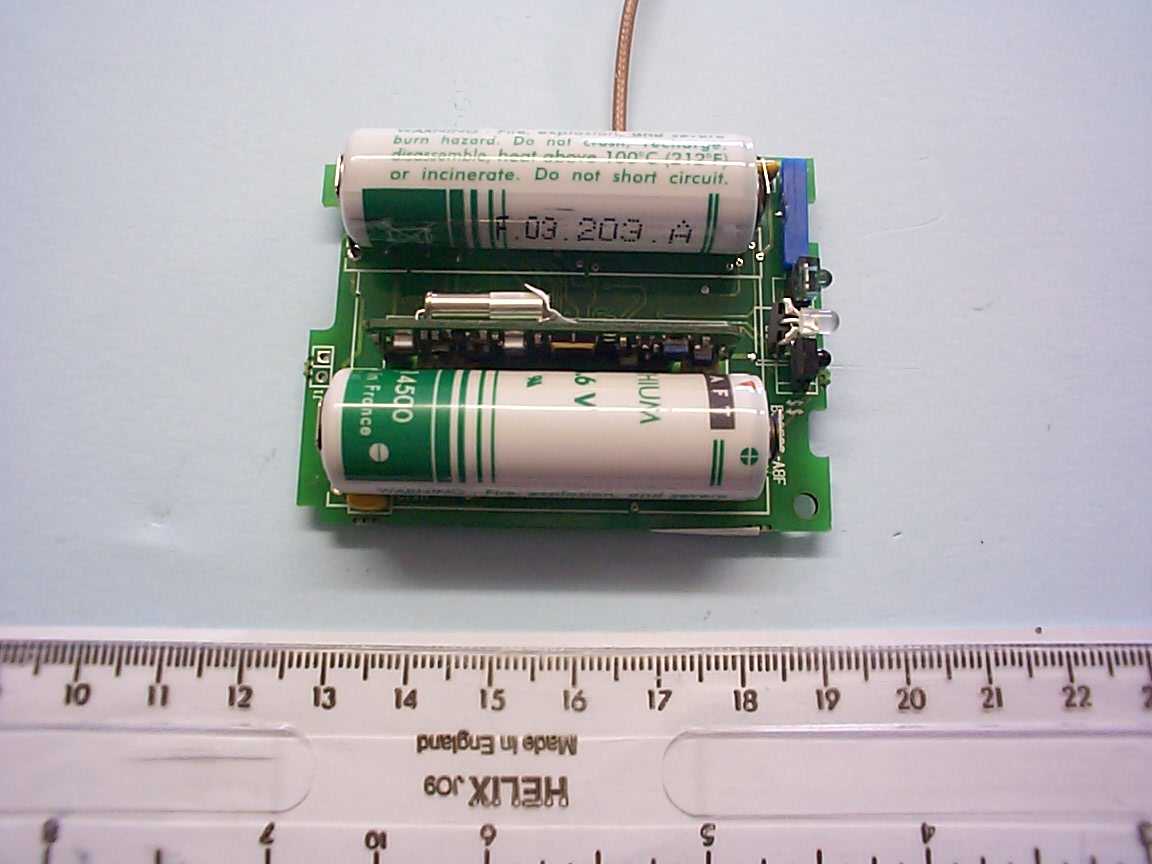

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1078/5373 COPY NO: 2 ISSUE NO: 1 FCC ID: MJCP3 REPORT ON THE CERTIFICATION TESTING OF A Palmer Environmental Limited Permalog 3 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I (b) TEST DATE: 20 th – 23 rd January 2004 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 10 th May 2004 Distribution: Copy Nos: 1. Palmer Environmental Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1078/5373 Page 2 of 26 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-15 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Overview PHOTOGRAPH No. 3: Overview PHOTOGRAPH No. 4: Transmitter PCB top PHOTOGRAPH No. 5: Transmitter PCB Bottom PHOTOGRAPH No. 6: Main PCB Batteries in place PHOTOGRAPH No. 7: Main PCB Bottom PHOTOGRAPH No. 8: Main PCB Batteries removed APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1078/5373 Page 3 of 26 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: MJCP3 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I(b) TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Permalog 3 EQUIPMENT TYPE: Leak Noise Logger ITU EMISSIONS CODE: 6k80F1D MAXIMUM CARRIER POWER: (declared by applicant) 10mW MAXIMUM CARRIER POWER: (measured) 5.3mW ANTENNA TYPE: Whip Fixed CHANNEL SPACING: 12.5kHz CARRIER FREQUNECY 463.91MHz NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: Crystal MODULATION TYPE: F1D POWER SOURCE(s): 3.6Vdc (Battery) TEST DATE(s): 20 th -23 rd January 2004 ORDER No(s): 32022 APPLICANT: Palmer Environmental Limited ADDRESS: Ty Coch House Llanarnam Park Way Cwmbran Gwent NP44 3AW TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1078/5373 Page 4 of 26 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Permalog 3 EQUIPMENT TYPE: Leak Noise Logger PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I(b) TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 32022 APPLICANT’S CONTACT PERSON(s): Mr S Harris E-mail address: [email protected] APPLICANT: Palmer Environmental Limited ADDRESS: Ty Coch House Llanarnam Park Way Cwmbran Gwent NP44 3AW TEL: +44(0) 1633 489479 FAX: +44(0) 1633 877857 MANUFACTURER: Palmer Environmental Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 20 th – 23 rd January 2004 TEST REPORT No: RU1078/5373 RU1078/5373 Page 5 of 26 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART Part 90.217 LIMIT APPLICABILITY Application for Certification 2.1033 - Yes RF Power Output at terminals 2.1046 120mW Yes Modulation Characteristics 2.1047 Not required No (note1) Modulation Limiting Characteristics 2.1047 Not required No (note 1) Occupied Bandwidth 2.1049 All signals ± 25kHz of Fc must be attenuated by 30dBc Yes Spurious Emissions at Antenna Terminals 2.1053 -30dBc No (note 2) Frequency Stability 2.1055 2.5ppm of the Carrier frequency Yes Spurious emissions radiated -30dBc Yes Frequency Spectrum to be Investigated 2.1057 - Yes Note 1: The Permalog is intended to transmit data only. Note 2: The Permalog has a fixed antenna. 2. Product Use: Leak detection 3. Emission Designator: F1D 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom 3.6Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 12.5kHz Wideband [ ] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RU1078/5373 Page 6 of 26 COMPLIANCE TESTS CARRIER POWER – CONDUCTED – PART 2.1046 Ambient temperature = 24 o C Relative humidity = 35% Supply voltage = 3.6Vdc Channel number = See test results The Permalog antenna was removed and replaced with a cable that allowed it to be connected to the spectrum analyser. The power delivered into a 50ohm load was them measured. Frequency (MHz) Level at Spectrum Analyser (dBm) Cable & Attenuator loss (dB) Level (dBm) Level (mW) Limit (mW) 463.91 6.85 0.45 7.3 5.3 120 The level in dBm was converted to mW using the following equation: mW = 10 10 (power dBm/10) TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 CABLE ROSENBERGER MICRO COAX N/A 279 X SIGNAL GENERATOR MARCONI 2042 119388/080 179 Spectrum Analyser TRL479 Cable TRL279 EUT RU1078/5373 Page 7 of 26 TRANSMITTER TESTS MODULATION CHARACTERISTICS TEST – CONDUCTED – Part 2.1047(a) Ambient temperature = N/A Radio Laboratory Relative humidity = N/A Supply voltage = 3.6Vdc Channel number = See test results This test is not applicable the carrier output power is less than 120mW. The transmitter only sends data and not an audio signal . This test was performed to show compliance with the mask . T he test equipment used for the Transmitter Modulated Channel tests is shown overleaf: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 ATTENUATOR BIRD 8304-300-N N/A 220 CMTA RHODE AND SCHWARZ CMTA52 89715/003 05 CABLE ROSENBERGER MICRO COAX N/A 279 SIGNAL GENERATOR MARCONI 2042 119388/080 179 Spectrum Analyser TRL4…

Text truncated - open the document above for the full version.

RU1078/5373 Page 17 of 26 PHOTOGRAPH No. 1 TEST SETUP
