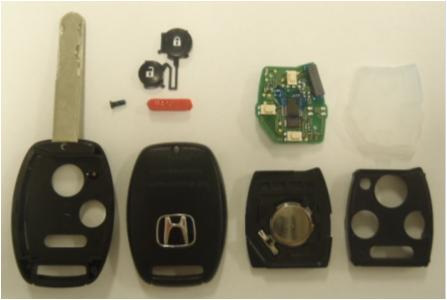

製品写真 （Product photography） Transmitter ASSY P.8 Module PCB Front view Back view Front view Back view

部番 Part number MLBHLIK-1TA ラベル図Figure of label XXXXXXXXXXXX 枠内にレーザー刻印 laser stamp within the limit. 2500A-HLIK1TA HLIK-1TA

製品写真 （Product photography） Transmitter ASSY P.8 Module PCB Front view Back view Front view Back view

Test report No. : 32DE0060-SH-01-A Page : 2 of 19 Issued date : November 18, 2011 FCC ID : MLBHLIK-1TA UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Customer Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Automatically Deactivate 7 6 Radiated Emissions (Fundamental & Spurious) 8 7 Bandwidth 11 Contents of Appendixes 12 APPENDIX 1: Test Data 13 APPENDIX 2: Test instruments 17 APPENDIX 3: Photographs of test setup 18 Test report No. : 32DE0060-SH-01-A Page : 3 of 19 Issued date : November 18, 2011 FCC ID : MLBHLIK-1TA UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Customer Information Company Name : Honda Lock Mfg. Co., Ltd. Address : 3700,Shimonaka Sadowara-Cho,Miyazaki-Shi Miyazaki Pref., 880-0293 Japan Telephone Number : +81 50-3757-5619 Contact Person : Mitsunori Suyama 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Transmitter of Keyless Entry Model No. : HLIK-1TA Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : November 9 and 12, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model: HLIK-1TA (referred to as the EUT in this report) is a Transmitter of Keyless Entry. Equipment type : Transmitter Frequency of operation : 313.85MHz Type of modulation : FSK Mode of Operation : Simplex Power Control : No Antenna type : Loop Antenna *FCC Part15.31 (e) The test was performed with the New Battery (DC3.0V) and the stable voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. *FCC Part15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 32DE0060-SH-01-A Page : 4 of 19 Issued date : November 18, 2011 FCC ID : MLBHLIK-1TA UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2011, final revised on July 8, 2011 and effective August 8, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz 3.2 Procedures & Results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 2.3dB 313.815MHz Horizontal Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 2.0dB 1569.392MHz Horizontal Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.2 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: RSS-Gen 4.6.3 IC: RSS-Gen 4.6.3 Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) RSS-Gen 4.6.1 RSS-210 A1.1.3 RSS-Gen 4.6.1 Radiated - N/A * Other than above, no addition, exclusion nor deviation has been made from the standard. Test report No. : 32DE0060-SH-01-A Page : 5 of 19 Issued date : November 18, 2011 FCC ID : MLBHLIK-1TA UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency range No.1 SAC *1 /SR *2 (±) No.2 SAC/SR (±) No.3 SAC/SR (±) Radiated emission (Measurement distance: 3m) 9kHz-30MHz3.7 dB 3.7 dB 3.6 dB 30MHz-300MHz4.9 dB 5.1 dB 5.0 dB 300MHz-1GHz5.0 dB 5.2 dB 5.0 dB 1GHz-18GHz4.8 dB 4.8 dB 4.9 dB *1: SAC=Semi-Anechoic Chamber *2: SR= Shielded Room is applied besides radiated emission The data listed in this report meets the limits unless the uncertainty is taken into consideration. Bandwidth Measurement uncertainty for this test was: (±) 5.4% 3.5 Test Location UL Japan, Inc. Shonan EMC Lab. 1-22-3, Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 JAB Accreditation No. : RTL02610 FCC Registration No. IC Registration No. Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Maximum measurement distance No.1 Semi-anechoic chamber 697847 2973D-1 20.6 x 11.3 x 7.65 20.6 x 11.3 10m No.2 Semi-anechoic chamber 697847 2973D-2 20.6 x 11.3 x 7.65 20.6 x 11.3 10m No.3 Semi-anechoic chamber 697847 2973D-3 12.7 x 7.7 x 5.35 12.7 x 7.7 5m No.4 Full-anechoic chamber - - 8.1 x 5.1 x 3.55 8.1 x 5.1 - No.1 shielded room - - 6.8 x 4.1 x 2.7 6.8 x 4.1 - No.2 shielded room - - 6.8 x 4.1 x 2.7 6.8 x 4.1 - No.3 shielded room - - 6.3 x 4.7 x 2.7 6.3 x 4.7 - No…

Text truncated - open the document above for the full version.

Test report No. : 32DE0060-SH-01-A Page : 18of 19 Issued date : November 18, 2011 FCC ID : MLBHLIK-1TA UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32DE0060-SH-01-A Page : 19of 19 Issued date : November 18, 2011 FCC ID : MLBHLIK-1TA UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
