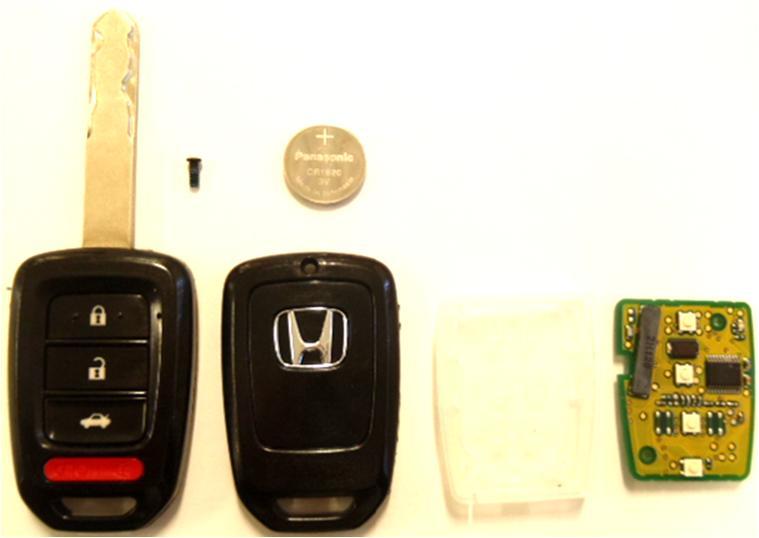

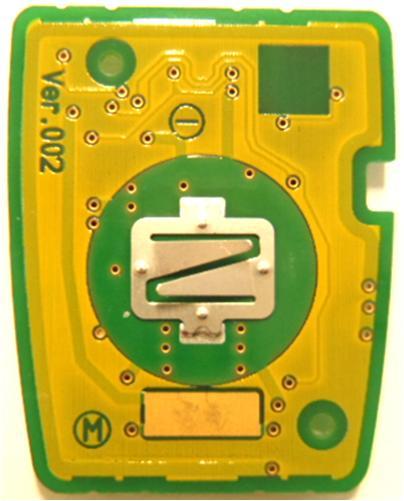

P.8 製品写真 （Product photography） PCB Transmitter ASSY Front view Back view

ラベル図 （Figure of label ） MLBHLIK6-1T 2500A-HLIK61T HLIK6-1T P.9 レーザー刻印 laser stamp

P.8 製品写真 （Product photography） PCB Transmitter ASSY Front view Back view

Test report No. : 32EE0044-SH-01-A-R1 Page : 2 of 19 Issued date : January 31, 2012 FCC ID : MLBHLIK6-1T UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Customer Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Automatically Deactivate 7 6 Radiated Emissions (Fundamental & Spurious) 8 7 Bandwidth 11 Contents of Appendixes 12 APPENDIX 1: Test Data 13 APPENDIX 2: Test instruments 17 APPENDIX 3: Photographs of test setup 18 Test report No. : 32EE0044-SH-01-A-R1 Page : 3 of 19 Issued date : January 31, 2012 FCC ID : MLBHLIK6-1T UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Customer Information Company Name : Honda Lock Mfg. Co., Ltd. Address : 3700,Shimonaka Sadowara-Cho,Miyazaki-Shi Miyazaki Pref., 880-0293 Japan Telephone Number : +81 50-3757-5619 Contact Person : Mitsunori Suyama 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Transmitter of Keyless Entry Model No. : HLIK6-1T Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : December 26, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model: HLIK6-1T (referred to as the EUT in this report) is a Transmitter of Keyless Entry. Equipment type : Transmitter Frequency of operation : 313.85MHz Type of modulation : FSK Mode of Operation : Simplex Power Control : No Antenna type : Loop Antenna *FCC Part15.31 (e) The test was performed with the New Battery (DC3.0V) and the stable voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. *FCC Part15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 32EE0044-SH-01-A-R1 Page : 4 of 19 Issued date : January 31, 2012 FCC ID : MLBHLIK6-1T UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part 15 Subpart C 2011, final revised on November 21, 2011 and effective December 21, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz 3.2 Procedures & Results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 0.4dB 313.850MHz Horizontal Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 5.9dB 3138.500MHz Horizontal Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.2 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: RSS-Gen 4.6.3 IC: RSS-Gen 4.6.3 Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) RSS-Gen 4.6.1 RSS-210 A1.1.3 RSS-Gen 4.6.1 Radiated - N/A * Other than above, no addition, exclusion nor deviation has been made from the standard. Test report No. : 32EE0044-SH-01-A-R1 Page : 5 of 19 Issued date : January 31, 2012 FCC ID : MLBHLIK6-1T UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency range No.1 SAC *1 /SR *2 (±) No.2 SAC/SR (±) No.3 SAC/SR (±) Radiated emission (Measurement distance: 3m) 9kHz-30MHz3.7 dB 3.7 dB 3.6 dB 30MHz-300MHz4.9 dB 5.1 dB 5.0 dB 300MHz-1GHz5.0 dB 5.2 dB 5.0 dB 1GHz-18GHz4.8 dB 4.8 dB 4.9 dB *1: SAC=Semi-Anechoic Chamber *2: SR= Shielded Room is applied besides radiated emission The data listed in this report meets the limits unless the uncertainty is taken into consideration. Bandwidth Measurement uncertainty for this test was: (±) 5.4% 3.5 Test Location UL Japan, Inc. Shonan EMC Lab. 1-22-3, Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 JAB Accreditation No. : RTL02610 FCC Registration No. IC Registration No. Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Maximum measurement distance No.1 Semi-anechoic chamber 697847 2973D-1 20.6 x 11.3 x 7.6520.6 x 11.3 10m No.2 Semi-anechoic chamber 697847 2973D-2 20.6 x 11.3 x 7.6520.6 x 11.3 10m No.3 Semi-anechoic chamber 697847 2973D-3 12.7 x 7.7 x 5.35 12.7 x 7.7 5m No.4 Full-anechoic chamber - - 8.1 x 5.1 x 3.55 8.1 x 5.1 - No.1 shielded room - - 6.8 x 4.1 x 2.7 6.8 x 4.1 - No.2 shielded room - - 6.8 x 4.1 x 2.7 6.8 x 4.1 - No.3 shielded room - - 6.3 x 4.7 x 2.7 6.3 x 4…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. No.3 Semi-Anechoic Chamber Report No.: 32EE0044-SH-01-A-R1 Company: Honda Lock Mfg. Co., Ltd.Regulation: FCC Part15C Section 15.231(a)(1) Equipment: Transmitter of Keyless EntryRegulation : RSS-210 A1.1.1(a) Model: HLIK6-1TTest Distance: 3m Sample No.: 1Date : January 26, 2012 Power: DC 3.0V (Battery)Temperature: 21deg.C Mode: Transmitting (313.85 MHz)Humidity: 33%RH ENGINEER: Tatsuya Arai 0.33875PASS Automatically deactivate: FCC 15.231(a)(1) Time of Transmitting LimitResult [sec][sec] 13 UL Japan, Inc. Shonan EMC Lab. No.3 Semi-Anechoic Chamber Report No.: 32EE0044-SH-01-A-R1 Company: Honda Lock Mfg. Co., Ltd.Regulation : FCC Part15C Section 15.231(b), 15.209 Equipment: Transmitter of Keyless EntryRegulation: RSS-210 A1.1 (Table A), A1.1.2 Model: HLIK6-1TTest Distance: 3m Sample No.: 2Date : December 28, 2011 : January 8, 2012 Power: DC 3.0V (Battery)Temperature: 24deg.C: 20deg.C Mode: Transmitting (313.85 MHz)Humidity: 21%RH: 25%RH ENGINEER: Kenichi Adachi: Tatsuya Arai PK with Duty factor FrequencyAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVer 313.85090.087.114.38.731.9-5.975.272.375.60.43.3 Carrier 627.70042.038.919.49.931.9-5.933.530.455.622.125.2 Outside 941.55042.338.422.810.830.7-5.939.335.455.616.320.2 Outside 1255.40052.752.924.62.840.7-5.933.533.755.622.121.9 Outside 1569.25056.857.725.33.140.9-5.938.439.353.915.514.6 Inside 1883.10052.749.425.93.441.1-5.935.031.755.620.623.9 Outside 2196.95062.657.826.73.641.1-5.945.941.155.69.714.5 Outside 2510.80063.159.727.64.041.1-5.947.744.355.67.911.3 Outside 2824.65052.150.128.34.441.3-5.937.635.653.916.318.3 Inside 3138.50063.961.028.94.441.5-5.949.846.955.65.88.7 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) PK FrequencyAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVerof Restricted Bands 1255.40052.752.924.62.840.7-39.439.675.636.236.0 Outside 1569.25056.857.725.33.140.9-44.345.273.929.628.7 Inside 1883.10052.749.425.93.441.1-40.937.675.634.738.0 Outside 2196.95062.657.826.73.641.1-51.847.075.623.828.6 Outside 2510.80063.159.727.64.041.1-53.650.275.622.025.4 Outside 2824.65052.150.128.34.441.3-43.541.573.930.432.4 Inside 3138.50063.961.028.94.441.5-55.752.875.619.922.8 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) REMARKS Antenna Type: 30M-300MHz Biconical / 300M-1000MHz Logperiodic / 1G-5GHz Horn *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). *Below 30MHz: No noise detected signal from EUT. [dBuV][dBuV/m][dB] ReadingResultMargin ReadingResultMargin Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission [dBuV][dBuV/m][dB] 14 UL Japan, Inc. SHONAN EMC Lab. Report No.: 32EE0044-SH-01-A-R1 Company: Honda Lock Mfg. Co., Ltd. Equipment: Transmitter of Keyless EntryRegulation : FCC Part15C Section 15.231(b), 15.35(c) Model: HLIK6-1TRegulation: RSS-210 & RSS-Gen Sample No.: 2Test Distance: 3m Power: DC 3.0V (Battery)Date : January 26, 2012 Mode: Transmitting (313.85 MHz)Temperature: 21deg.C Humidity: 33%RH ENGINEER: Tatsuya Arai *ON time = (100ms - 1.6ms) / 2 + 1.6ms = 50.8ms The worst case for any 100msec is a period including No.4 *Duty = 20log (On time / Cycle) Reference data *ON time:384.6ms, Cycle:775.6ms, Duty Cycle:0.50 Duty Cycle (Fundamental) ON timeCycleDutyDuty [msec][msec](On time /[dB] 50.81000.51-5.9 １234567 Total time：340.8ms Bit：”0” Bit：”1” 400μs400μs ・Data（No.1,2,3,5,6,7） ・Data（No.4） 400μs 400μs 1600μs ※Manchester code Ref 92 dBμVAtt 10 dB * * * * Center 313.7912 MHz200 μs/ 1 PK CLRWR 2 PK CLRWR * A SGL PS 3DB RBW 100 kHz VBW 100 kHz SWT 2 ms AC 0 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 89.03 dBμV 426.000000 μs 2 Delta 2 [T1 ] 97.412 % 384.615385 μs 3 Delta 3 [T1 ] 52.529 % 775.641026 μs 1 Delta 1 [T1 ] 100.000 % 0.000000 s Date: 27.JAN.2012 21:26:29 15 UL Japan, Inc. Shonan EMC Lab. No.3 Semi-Anechoic Chamber Report No.: 32EE0044-SH-01-A-R1 Company: Honda Lock Mfg. Co., Ltd.Regulation: FCC Part15C Section 15.231(c) Equipment: Transmitter of Keyless EntryRegulation : RSS-210 A1.1.3 Model: HLIK6-1TTest Distance: 3m Sample No.: 2Date : December 28, 2011 Power: DC 3.0V (Battery)Temperature: 24deg.C Mode: Transmitting (313.85 MHz)Humidity: 21%RH ENGINEER: Kenichi Adachi Bandwidth Limit : fundamental Frequency 313.85 X 0.25%= 784.625kHz Bandwidth Limit : fundamental Frequency 313.85 X 0.25%= 784.625kHz 20dB Bandwidth: FCC 15.231(c) 20dB Bandwidth Bandwidth LimitResult 472.9458918 [kHz][kHz] [kHz] 479.3587174 784.625PASS 784.625PASS 99% Occupied Bandwidth Bandwidth LimitResult [kHz] A Unit dBVSWT 5 ms RF Att 10 dB Ref Lvl 90 dBV Ref Lvl 90 dBV Center 313.85 MHzSpan 4 MHz400 kHz/ RBW 50 kHz VBW 200 kHz IN1 1MA1MAX D1 5 0 10 20 30 40 50 60 70 80 -10 90 1 2 2 Delta 2 [T1] 0.13 dB 479.35871743 kHz 2 [T1] 54.96 dBV 313.67845691 MHz 2 [T1] 0.13 dB 479.35871743 kHz 1 [T1] 77.75 dBV 313.85400802 MHz D1 57.75 dBV Date: 29.DEC.2011 03:17:50 A Unit dBVSWT 5 ms RF Att 10 dB 1SA1MAX Ref Lvl 90 dBV Ref Lvl 90 dBV Center 313.85 MHzSpan 4 MHz400 kHz/ RBW 50 kHz VBW 200 kHz IN1 0 10 20 30 40 50 60 70 80 -10 90 1 T1 T2 Marker 1 [T1] 76.71 dB V 313.85501002 MHz 1 [T1] 76.71 dBV 313.85501002 MHz OPB 472.94589178 kHz T1 [T1] 55.21 dBV 313.59749499 MHz T2 [T1] 55.38 dBV 314.07044088 MHz Date: 29.DEC.2011 02:54:17 16 UL Japan, Inc. Page : Test Report No ：32EE0044-SH-01-A-R1 APPENDIX 2 Test Instruments EMI test equipment Control No.InstrumentManufacturerModel NoSerial NoTest ItemCalibration Date * Interval(month) SAF-03Pre AmplifierSONOMA310N290213RE 2011/02/17 * 12 SAT6-03AttenuatorJFW50HF-006N-RE 2011/02/17 * 12 SBA-03Biconical AntennaSchwarzbeckBBA910691032666RE 2011/10/23 * 12 SCC-C1/C2/C 3/C4/C5/C10/ SRSE-03 Coaxial Cable&RF Selector Fujikura/Fujikura/Suhne r/Suhner/Suhner/Suhn er/TOYO 8D2W…

Text truncated - open the document above for the full version.

Test report No. : 32EE0044-SH-01-A-R1 Page : 18of 19 Issued date : January 31, 2012 FCC ID : MLBHLIK6-1T UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view Test report No. : 32EE0044-SH-01-A-R1 Page : 19of 19 Issued date : January 31, 2012 FCC ID : MLBHLIK6-1T UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
