MNJ08035TClip N Go 49 MHz Baby Monitor

Block Diagram Model : 08035 TX Date : Apr 6, 2003 Microphone DC power In (9V) Y1 (16.610Mhz) Microphone ALC circuit Q3, Q6, Q1, Q4, Q2 Regulator Q10, D8 RF Oscillator Q5, D7 Antenna Match Network T1, L2, L1

MNJ08035T Exterior Photos Page 1 of 4 Rear View of EUT MNJ08035T Exterior Photos Page 2 of 4 Side View of EUT with EUT configured in Table Top setup, the stand can also be adjusted vertical to allow wall mounting. MNJ08035T Exterior Photos Page 3 of 4 Front View, showing On/Off and Channel Selector switches. Antenna is at bottom right. MNJ08035T Exterior Photos Page 4 of 4 Side View with stand in vertical position with antenna rotated 90 degrees.

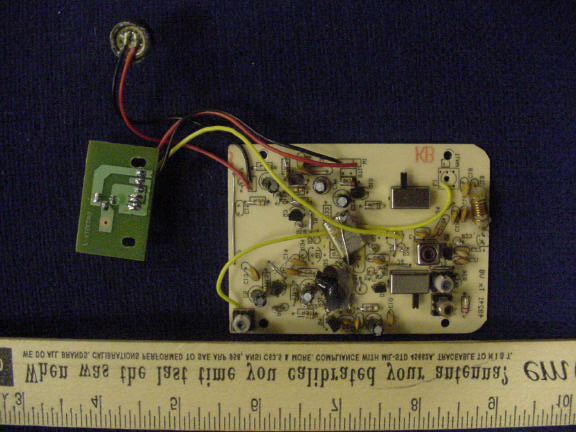

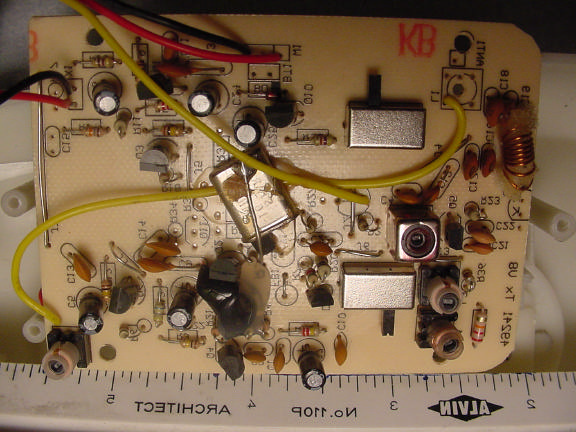

MNJ08035T Interior Photos Page 1 of 6 EUT with rear cover removed, component side of LED/power input board and Solder Side of Main RF board. Also shows permanently attached, soldered on antenna lead, bottom left of main board. MNJ08035T Interior Photos Page 2 of 6 Photo showing removed antenna, and antenna length. MNJ08035T Interior Photos Page 3 of 6 Component Side of main board with associated wiring, power input board and microphone. MNJ08035T Interior Photos Page 4 of 6 Close up of Main/RF board Component Side. MNJ08035T Interior Photos Page 5 of 6 Close up of Main/RF board Solder Side. MNJ08035T Interior Photos Page 6 of 6 Close up of LED/power input board solder side.

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 TEST REPORT TO INDUSTRY CANADA RSS 210 SECTION 8.6.2 FEDERAL COMMUNICATIONS COMMISSION CFR47 PART15.235 Low Power License-Exempt Radio communication Devices Intentional Radiators for Dorel Juvenile Group 45 Dan Road Canton, MA 02021 800-909-7133 of Clip N Go 49MHz Baby Monitor Model 08035 FCC ID: MNJ08035T on 4/1/03 Tested by _____________________________________ Clifton P. Brick Reviewed by _____________________________________ Larry K. Stillings This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • RSS 210 /Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments Page 3 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 TEST DESCRIPTION 1. TEST OBJECTIVE To test the Clip N Go 49MHz Baby Monitor 08035 to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The Clip N Go 49MHz Baby Monitor 08035 is a 49 MHz band 2 channel baby monitor. SERIAL NUMBERS: Production Prototype Page 4 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 TEST RESULTS AND CONCLUSIONS PRODUCT TESTED - Clip N Go 49MHz Baby Monitor MODEL NUMBER - 08035 RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) None. Page 5 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 12-28-2002, calibrated annually. B. Com-Power Biconilog Antenna, Model AC220, S/N 25509. Calibration Date 3-11-2003, calibrated annually. C. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 3-9-2003, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 450 kHz to 30 MHz. Page 6 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 450 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-1992 Standard Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronics Equipment in the Range of 9 kHz to 40 GHz, American National Standard for (ISBN 1- 55937-215-5). Page 7 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 142-03 RSS 210 TEST LIMITS 1. RSS 210 Section 6.2.2, Table 3 Radiation Limits (Quasi-Peak): FCC Part 15.209, 15.235, 15.249 Radiation Limits (Quasi-Peak): Frequency MHz Distance meters Limit dBμV/m Limit μV/m 1.705 - 30 30 29.5* 30* 30 - 88 3 40.0 100 49.82 - 49.90 3 80.0* 10,000* 88 - 216 3 43.5 150 216 - 960 3 46.0 200 902 - 928 3 94.0* 50,000* 960 - 1000 3 54.0 500 1000 - 40000 3 54.0* 500* *NOTE: Average Limits 2 FCC Part 15.207 Conduction Limits (Harmonized) Frequency MHz Quasi-Peak Limit dBμV/m Average Limit dBμV/m 0.150 - 0.5…

Text truncated - open the document above for the full version.

MNJ08035T Test Set Up Photos Page 1 of 4 Conducted Test Setup Front MNJ08035T Test Set Up Photos Page 2 of 4 Rear of conducted Setup MNJ08035T Test Set Up Photos Page 3 of 4 Rear of Radiated Setup MNJ08035T Test Set Up Photos Page 4 of 4 Radiated Test Setup Front
