MNJ08038TXHome Connection Monitor System

User Guide Questions? Comments? Missing Parts? Contact Us: www.safety1st.com (800) 544-1108 ©2003 Dorel Juvenile Group Made in CHINA www.safety1st.com (800) 544-1108 Styles and colors may vary. Distributed by Dorel Juvenile Group, Inc., 2525 State Street, Columbus, IN 47201-7494 In Canada: 12345 Albert-Hudon, Suite 100, Montreal-N, QC Canada H1G 3K9 12/03 Home Connection Monitor System 08038 08038_inst_E_112103 12/10/03 2:00 PM Page 1 PLEASE READ THE FOLLOWING WARNINGS AND ALL ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE USING THE SO CLOSE CRIB MONITOR. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. TERMS USED IN WARNINGS:The term “Receiver” corresponds to “Parent’s Unit” and the term “Transmitter” corresponds to “Baby’s Unit” in the rest of this instruction booklet. • The Home Connection Monitor System is not intended to replace responsible and proper parental supervision. • Check your child’s activity at regular intervals as this monitor will not alert parents to the silent activities of a child. • Before using your Home Connection Monitor System: - Read and follow all instructions carefully. - Read and observe all warnings on the product and in this instruction booklet. • To prevent entanglement with the adapter cord, NEVERplace the cord in or near a crib or playpen.DO NOTplace the Transmitter or Receiver anywhere its AC adapter cord could be within reach of children. • ALWAYSKEEP THE TRANSMITTER, RECEIVER AND AC ADAPTERS OUT OF REACH OF CHILDREN. • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. • It is essential to check reception regularly. Please see the Testing Reception section for complete instructions. • The Transmitter is intended for indoor use only. • NEVERuse the Transmitter or Receiver near water. For example, do not use near a bathtub, bathroom sink, laundry tub, kitchen sink, in a wet basement, etc. • Always unplug the AC adapters from wall outlets during long periods of non-use. • Position the Transmitter, Receiver and AC adapters to allow adequate ventilation and prevent these components from overheating. • To prevent overheating, keep the Transmitter, Receiver and AC adapters away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) which produce heat. Also keep these components out of direct sunlight. • Use only the AC adapters provided. Use of any other adapters may damage the Transmitter and/or Receiver. Plug the AC adapters into standard household current only (120V AC outlet)! To prevent entanglement and overheating, DO NOTuse extension cords. • The AC adapters may become slightly warm to the touch during operation. This is normal. • Position the AC adapter cords so that they are not walked on or pinched by items placed upon or against them, paying particular attention to cords at AC adapter plugs, wall plugs, and the point at which the cords attach to the Transmitter and Receiver. WARNING 2 08038_inst_E_112103 12/10/03 2:00 PM Page 2 3 • This product should be serviced only by qualified service personnel at Dorel Juvenile Group when: -An AC adapter or its plug is damaged, -The Transmitter or Receiver are dropped, -Liquid has spilled into the Transmitter or Receiver or -The Transmitter or Receiver do not appear to operate normally or exhibit a marked change in performance • DO NOTattempt to service this product beyond that described in the Troubleshooting section at the end of these instructions. All other servicing should be referred to qualified personnel at Dorel Juvenile Group. NOTE:The LEDs emit IR (infra red) light that is not harmful. TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER OR BACK OF TRANSMITTER. NO SERVICEABLE PARTS INSIDE. REFER SERVICING TO DOREL JUVENILE GROUP CONSUMER RELATIONS (800) 544-1108. TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER OR MOISTURE. NEVER ATTEMPT TO OPEN THE CASE OF THE TRANSMITTER. THIS IS DANGEROUS AND WILL VOID THE WARRANTY. CAUTION WARNING FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RADIO AND TELEVISION INTERFERENCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes and Modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commissions rules. WARNING:Changes or modifications to this unit not expressly approved by Dorel Juvenile Group could void the user’s authority to use the equipment. 08038_inst_E_112103 12/10/03 2:00 PM Page 3 4 • Lay out and identify all parts. • Do not return this product to the place of purchase. If any parts are missing, or if you are having difficulty using product visit our …

Text truncated - open the document above for the full version.

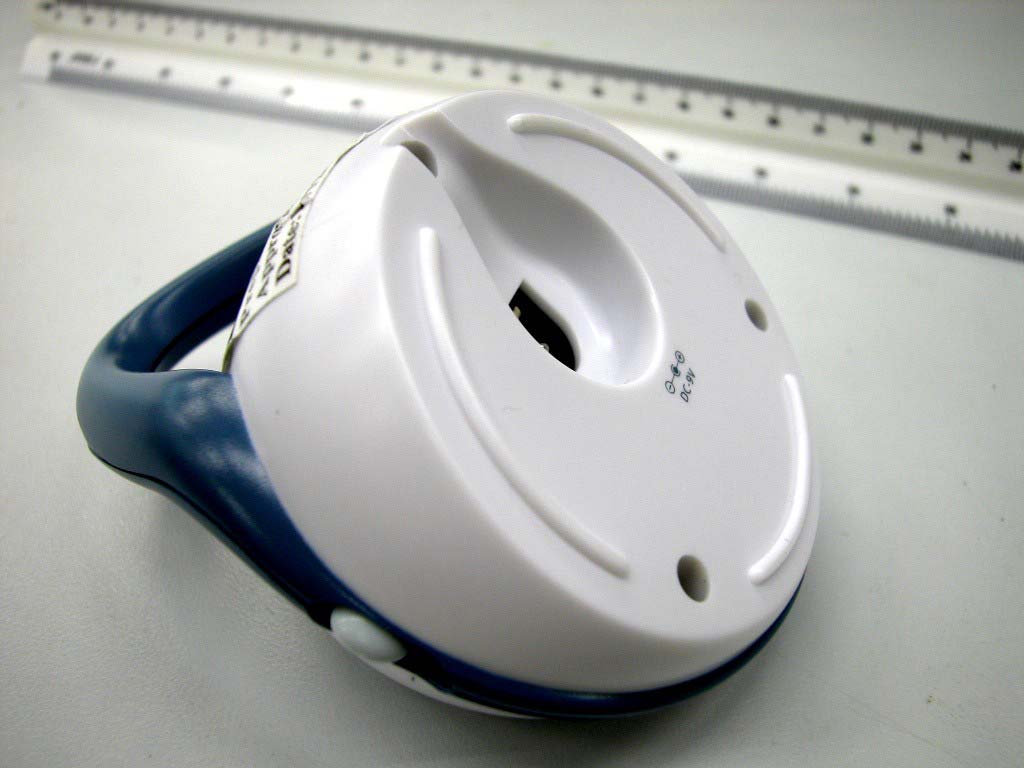

Test Setup FCC ID : MNJ08038TX External Photo -front External Photo - rear

Test Setup FCC ID : MNJ08038TX Internal Photo – 1 Internal Photo - 2 Test Setup FCC ID : MNJ08038TX Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : MNJ08038TX Internal Photo – 5 Internal Photo – 6

1 DESCRIPTION FOR THE MODEL SFT-8038 TX UNIT (Transmitter A/B/C) z Tx Match Filter is a filtering and matching circuit, which includes the capacitors C1-C4, C63, C64 and filter of CF1. z RF Amp is achieved by using a transistor Q1. The RF signal is applied to the base of this transistor of Q1 for amplification only. The signal will be sent to the antenna via TX Match Filter. z The Local Oscillator and Modulator is a combination of circuit components of Q2, DVC1 & DR1 which are constructed to form a modulator circuit. z OSC. & Phase Lock Loop are formed by X1 & U1 z Tracking filter circuit is formed by C24, R11, C25, R9, C23. z Audio Amp is achieved by U3-A, B to provide amplified audio signal to the modulator circuit. The AGC is controlled by Q5, Q6 for automatic level control. z CPU (U) provides a system control on several parts, like providing sensing the channel A & B selector setting, providing the PLL (Phase Lock Loop) control. z Regulator Circuit includes the transistor Q8 and zener diode Z1. They are acted to provide constant voltage to the circuit. z Power ON/OFF Switch of SW3 is used to switch the whole unit power on/off control.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Dorel Juvenile Group Application For Certification (FCC ID: MNJ08038TX) Transmitter 0319352 DL/ Sandy January 30, 2004 INTERTEK TESTING SERVICES FCC ID: MNJ08038TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: MNJ08038TX ii MEASUREMENT/TECHNICAL REPORT Dorel Juvenile Group - MODEL: DJG* 08038-TX FCC ID: MNJ08038TX January 30, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [03-13-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8504 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: MNJ08038TX iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 3.4 Conducted Emission Configuration Photograph................................................ 14 3.5 Conducted Emission Data .....................................................................................15 4.0 Equipment Photographs ................................................................................... 17 5.0 Product Labelling.............................................................................................. 19 6.0 Technical Specifications ................................................................................... 21 7.0 Instruction Manual ............................................................................................ 23 8.0 Miscellaneous Information ............................................................................... 25 8.1 Bandwidth Plot ................................................................................................. 26 8.2 Discussion of Pulse Desensitization.................................................................. 27 8.3 Emissions Test Procedures .............................................................................. 28 INTERTEK TESTING SERVICES FCC ID: MNJ08038TX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: MNJ08038TX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: MNJ08038TX 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter unit of the Home Connection Monitor System operating between 905M…

Text truncated - open the document above for the full version.

Report No.:0319352 Tx Mode Unit A, Channel I Ctrl No.:N/A PAGE 1 Tested By:Ben, Report No.:0319352 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.:0319352 Tx Mode Unit A, Channel I Ctrl No.:N/A Tested By:Ben, Report No.:0319352 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results Report No.:0319352 Tx Mode Unit C, Channel I Ctrl No.:N/A PAGE 1 Tested By:Ben, Report No.:0319352 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.:0319352 Tx Mode Unit C, Channel I Ctrl No.:N/A Tested By:Ben, Report No.:0319352 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

Test Setup FCC ID : MNJ08038TX Radiated - front Radiated - rear Test Setup FCC ID : MNJ08038TX Radiated – front Radiated - rear

Test Setup FCC ID : MNJ08038TX Conduct Photo - 1 Conduct Photo - 2 Test Setup FCC ID : MNJ08038TX Conduct Photo – 3
