MNJ08039TSafe Glow 49 MHz Baby Monitor

MNJ08039T Exterior Photos Page 1 of 4 Rear View of EUT MNJ08039T Exterior Photos Page 2 of 4 Front View MNJ08039T Exterior Photos Page 3 of 4 Top View, showing On/Off /Channel Selector switch. MNJ08039T Exterior Photos Page 4 of 4 Side View.

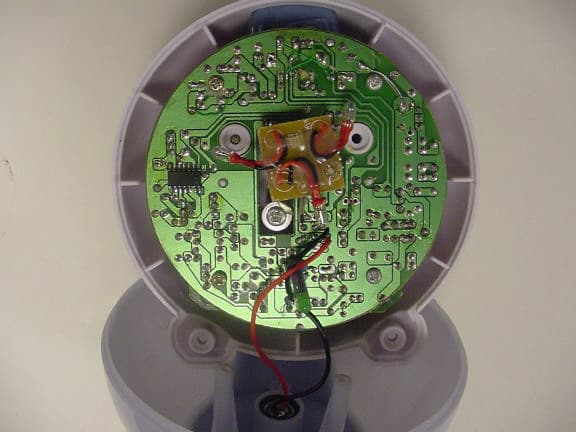

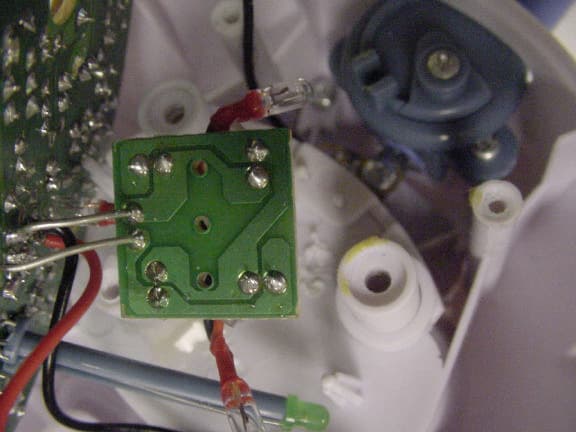

MNJ08039T Interior Photos Page 1 of 7 EUT with rear cover removed, component side of LED board and solder side of main RF board. MNJ08039T Interior Photos Page 2 of 7 Photo showing component side of main board, also shows permanently attached, soldered on antenna lead, bottom left of main board. MNJ08039T Interior Photos Page 3 of 7 Component side of night light switch board. MNJ08039T Interior Photos Page 4 of 7 Solder side of night light switch board. MNJ08039T Interior Photos Page 5 of 7 Solder side of night light switch board (component side can be seen in photo 1). MNJ08039T Interior Photos Page 6 of 7 Component side of dc input board. MNJ08039T Interior Photos Page 7 of 7 Solder side of dc input board.

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 TEST REPORT TO INDUSTRY CANADA RSS 210 SECTION 8.6.2 FEDERAL COMMUNICATIONS COMMISSION CFR47 PART15.235 Low Power License-Exempt Radio communication Devices Intentional Radiators for Dorel Juvenile Group Canton Commerce Center 45 Dan Road Canton, MA 02021 800-909-7133 of Safe Glow 49MHz Baby Monitor Model 08039 FCC ID: MNJ08039T on 5/5/03 Tested by _____________________________________ Clifton P. Brick Reviewed by _____________________________________ Larry K. Stillings This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • RSS 210 /Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments • Photographs Radiated Test Setup (Front & Rear) Conducted Test Setup (Front & Rear) Exterior and Interior Photographs of Product Page 3 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 TEST DESCRIPTION 1. TEST OBJECTIVE To test the Safe Glow 49MHz Baby Monitor 08039 to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The Safe Glow 49MHz Baby Monitor 08039 is a 49 MHz band 2 channel baby monitor with a night light. SERIAL NUMBERS: Production Prototype Page 4 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 TEST RESULTS AND CONCLUSIONS PRODUCT TESTED - Safe Glow 49MHz Baby Monitor MODEL NUMBER - 08039 RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) Unit was examined with the night light on and off, worst case is with the night light off. The data represents worst case. Page 5 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 12-28-2002, calibrated annually. B. Com-Power Biconilog Antenna, Model AC220, S/N 25509. Calibration Date 3-11-2003, calibrated annually. C. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 3-9-2003, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 150 kHz to 30 MHz. Page 6 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 150 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-1992 Standard Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronics Equipment in the Range of 9 kHz to 40 GHz, American National Standard for (ISBN 1- 55937-215-5). Page 7 of 30 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 170-03 RSS 210 TEST LIMITS 1. RSS 210 Section 6.2.2, Table 3 Radiation Limits (Quasi-Peak): FCC Part 15.209, 15.235, 15.249 Radiation Limits (Quasi-Peak): Frequency MHz Distance meters Limit dBμV/m Limit μV/m 1.705 - 30 30 29.5* 30* 30 - 88 3 40.0 1…

Text truncated - open the document above for the full version.

MNJ08039T Test Set Up Photos Page 1 of 4 Conducted Test Setup Front MNJ08039T Test Set Up Photos Page 2 of 4 Rear of conducted Setup MNJ08039T Test Set Up Photos Page 3 of 4 Rear of Radiated Setup MNJ08039T Test Set Up Photos Page 4 of 4 Radiated Test Setup Front
