MNJ08047T2.4GHz Baby Monitor

Color-View Video Monitor 0 8047 User Guide ©2004 Dorel Juvenile Group Made in CHINA www.safety1st.com (800) 544-1108 Styles and colors may vary. Distributed by Dorel Juvenile Group, Inc., 2525 State Street, Columbus, IN 47201-7494 Dorel Canada, 12345 Albert-Hudon, Suite 100, Montreal (QC) Canada H1G 3K9 03/05 4358-3670 ©2004 Dorel Juvenile Group Producto fabricado en CHINA www.safety1st.com (800) 544-1108 Los estilos y colores pueden variar. Distribuido por Dorel Juvenile Group, Inc. 2525 State Street, Columbus, IN 47201-7494 Dorel Canadá, 12345 Albert-Hudon, Suite 100, Montréal (QC) Canadá H1G 3K9 03/05 4358-3670 ADVERTENCIA: POR FAVOR LEA DETENIDAMENTE LAS SIGUIENTES ADVERTENCIAS Y TODAS LAS INSTRUCCIONES DE MONTAJE ANTES DE UTILIZAR EL MONITOR COLOR-VIEW VIDEO. GUARDE ESTAS INSTRUCCIONES PARA SU USO FUTURO. TÉRMINOS USADOS EN LAS ADVERTENCIAS: El término “Receptor” corresponde a la “Unidad de los padres” y el término “Transmisor” corresponde a la “Unidad del bebé” en el resto de este folleto de instrucciones. • El monitor Color-View Videono está pensado para reemplazar la super visión responsable y adecuada por parte de los padres. • Compruebe la actividad de su hijo/a a intervalos regulares, ya que este monitor no alertará a los padres de las actividades silenciosas de un niño. • Antes de utilizar el monitor Color-View Video: -Lea y siga cuidadosamente todas las instrucciones. -Lea y observe todas las advertencias en el pr oducto y en este folleto de instrucciones. • Para evitar enredarse con el cable del adaptador, NUNCA coloque el cable del accesorio de cuna o del adaptador de otra manera que no sea la indicada en estas instrucciones. • SIEMPREMANTENGA EL TRANSMISOR Y EL RECEPTOR Y LOS ADAPTADORES DE CA FUERA DEL ALCANCE DE LOS NIÑOS. • Este producto no está pensado para utilizarse como monitor médico y su uso no debe reemplazar la supervisión por parte de adultos. •Es esencial comprobar con regularidad la recepción. Por favor consulte la sección Cómo comprobar la recepción, para obtener instrucciones completas. •El transmisor está indicado solamente para usarse en ambientes interiores. •NUNCAuse el transmisor o r eceptor cer cadel agua. Por ejemplo, no los use cerca de una bañera, un lavabo, fregadero de la lavandería o de la cocina, en un sótano con humedad, etc. • Siempre desenchufe los adaptadores de CA de los tomacorrientes de la pared cuando no se van a usar durante periodos de tiempo prolongados. • Coloque el transmisor , el receptor y los adaptadores de CA de manera que tengan ventilación adecuada para evitar que estos componentes se recalienten. • Para evitar el sobr ecalentamiento, mantenga el transmisor , el r eceptor y los adaptadores de CA alejados de fuentes de calor como radiadores, registros de calefacción, estufas y otros electrodomésticos (incluyendo amplificador es) que pr oducen calor . Mantenga siempr e estos componentes alejados de la luz directa del sol. • Use solamente los adaptadores de CA proporcionados. El uso de cualquier otro adaptador podría dañar el receptor y/o el receptor. Enchufe los adaptadores de CA solamente en un tomacorrientes estándar de la casa (120 V CA). Para evitar enredos y sobrecalentamiento, NOutilice cables de extensión. •Los adaptadores de CA podrían sentirse ligeramente calientes al tacto durante el funcionamiento. Esto es normal. •Coloque los cables de los adaptador es de CA de manera que no se camine sobr e ellos, ni queden apr esados por objetos que se coloquen sobr e o junto a ellos, pr estando especial atención a los cables de los enchufes de los adaptadores de CA, tomacorrientes de pared, y el lugar en el que los cables se unen el transmisor y receptor. •Solamente el personal calificado de ser vicio de Dor el Juvenile Monitor Color-View Video 0 8047 Guía del usuario WARNING: PLEASE READ THE FOLLOWING WARNINGS AND ALL ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE USING THE COLOR-VIEW VIDEO MONITOR. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. TERMS USED IN WARNINGS: The term “Receiver” corresponds to “Parent’s Unit” and the term “Transmitter” corresponds to “Baby’s Unit” in the rest of this instruction booklet. • The Color-View Video Monitor is not intended to replace responsible and proper parental supervision. • Check your child’s activity at regular intervals as this monitor will not aler t parents to the silent activities of a child. • Before using your Color-View Video Monitor: - Read and follow all instructions carefully. - Read and observe all warnings on the product and in this instruction booklet. •To prevent entanglement with the adapter cord, NEVERinstall the crib attachment or adapter cord in a method other than what is required by these instructions. DO NOTplace the Receiver or Transmitter anywhere its AC adapter cord are within reach of children. • ALWAYSKEEP THE TRANSMITTER, RECEIVER AND AC ADAPTERS OUT OF REACH OF CHILDREN. •This product is not intended to be used as a medical monitor and its use should not replace adult supervision. • It is essential to check reception regularly. Please see the Testing Reception section for complete instructions. • The Transmitter is intended for indoor use only. • NEVERuse the Transmitter or Receiver near water. For example, do not use near a bathtub, bathroom sink, laundry tub, kitchen sink, in a wet basement, etc. • Always unplug the AC adapters from wall outlets during long periods of non-use. • Position the T ransmitter, Receiver and AC adapters to allow adequate ventilation and prevent these components from overheating. • T o pr event overheating, keep the Transmitter, Receiver and AC adapters away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) which produce heat. Also keep these components out of direct sunlight. • Use only the AC adapters provided. Use of any other adapters may damage the Transmitter and/or Receiver. Plug the AC adapters into standard household current only (120V AC outlet)! To prevent entanglement and o…

Text truncated - open the document above for the full version.

SFT-8047-USA-BLOCK0.sch-1 - Tue May 10 18:18:36 2005 8047RFBL0.sch-1 - Wed May 18 13:22:53 2005

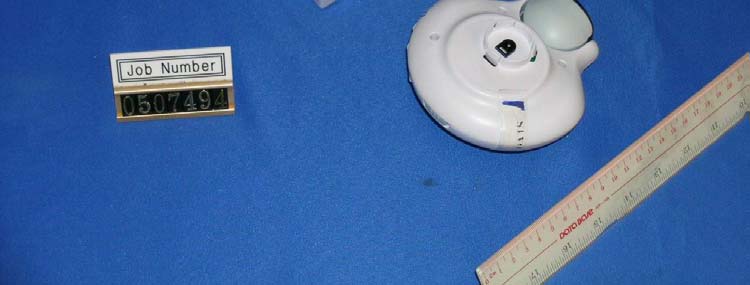

External Photo FCC ID : MNJ08047T External Photo - front External Photo - rear

Internal Photo FCC ID : MNJ08047T Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : MNJ08047T Internal Photo - 3 Internal Photo -4 Internal Photo FCC ID : MNJ08047T Internal Photo -5 Internal Photo 6 Internal Photo FCC ID : MNJ08047T Internal Photo -7 Internal Photo -8 Internal Photo FCC ID : MNJ08047T Internal Photo -9 Internal Photo -10 Internal Photo FCC ID : MNJ08047T Internal Photo -11 Internal Photo -12 Internal Photo FCC ID : MNJ08047T Internal Photo -13 Internal Photo -14 Internal Photo FCC ID : MNJ08047T Internal Photo -15

CIRCUIT DESCRIPTION 10 May 2005 Transmitter Unit: Tx RF Module Part: RF Frequency Oscillator (VCO) Q2 function as oscillator for transmitter. The oscillator frequency is 2.414GHz(CH1) or 2.432GHz(CH2) or 2.450GHz(CH3). RF Amplifier and Power Amplifier Q1 is the power amplifier of transmitter . PLL CIRCUIT U1 (MB15E07SL) is a phase locked loop (PLL) IC. The output of the oscillator XOUT (8MHz) is input to the programmable reference divider. This 8MHz fequency is divided to 100KHz as the reference frequency, RF frequency from VCO is still divided to 100KHz by the pre-scaler built in the PLL IC. The phase difference between the reference frequency and the divided frequency by the pre-scaler will output to the tracking filter (R9, R10, C13, C14, R11, & C12) for locking the frequency. The DC voltage by filtering from the tracking filter is fed the varactor diode to control the VCO oscillator frequency until the VCO frequency is locked. The VCO will be locked at the desired carrier frequency. Modulation Firstly the audio signal is pre-modulated at 6.5MHz sub-carrier frequency by the built in IC U3, the varactor diode VD3 and the LC resonator L7,VC2. then the Video and the audio pre-modulated signals are modulated at RF carrier frequency by the varactor diode VD1. MCU Controller MCU control the location frequency by three data bus LE, DATA and CLK. Power Supply U4 is a regulator that the output DC voltage is 3.3V. This stable output is used to feed to pre-modulation IC U3 and PLL IC U1. Supply 5V stable power RF oscillator Power amplifier and RF amplifier. Tx Camera and MIC Amplifier Part: Video Signal The IC U101 is color NTSC/PAL CMOS sensor, it can be set on NTSC mode by opening R102 and using 14.31818MHz crystal oscillator. The output of the sensor is the color NTSC analog video signal. Audio Amplifier The operational amplifier U103 and the Microphone MIC101 are used in Audio amplifier;Q105,Q106 and C127 are working AGC controller, the controlling range is about 30dB. Night Light The photo sensor D109 and Q104 built in night light detecting; Q101~103 are used for night light driver; The D101~108 is IR Led for night light indication. Power supply U102 is a 5V regulator, those stable output is used to feed to video sensor U101 and MIC amplifier U103;U104 is a 8V regulator, those stable output is used to feed to night light detector and night light IR Led. Tx Main Part: MCU Controller U1,X2,D2 construct the MCU Controller. Powered by a stable 5V supply. Channel Selector SW102 is used to channel select. Antenna The antenna is a “F” type antenna, which is made by PCB. Power Supply The total unit is only powered by AC adaptor; U201 is a 5V LDO regulator, which can supply a stable power for RF module and MCU.

SFT-8047TM-0.sch-1 - Tue May 10 18:17:44 2005 SFT-8047TC-1.sch-1 - Tue May 10 18:17:04 2005 8047TRF2.SCH-1 - Tue May 10 18:14:04 2005

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com May 17, 2005 Eagletron Telecommunications Ltd. 22/F., Concord Technology Centre, 98 Texaco Road, Tsuen Wan, N.T., Hong Kong. Dear Peter Yip : Enclosed you will find your file copy of a Part 15 Certification (FCC ID: MNJ08047T). For your reference, TCB will normally take another 15-20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Tommy Leung Assistant Manager Enclosure • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Dorel Juvenile Group Application For Certification (FCC ID: MNJ08047T) 2.4GHz Transmitter 0507494 TL/ Ann Choy May 17, 2005 INTERTEK TESTING SERVICES FCC ID: MNJ08047T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: MNJ08047T ii MEASUREMENT/TECHNICAL REPORT Dorel Juvenile Group - MODEL: 08047T FCC ID: MNJ08047T May 17, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: MNJ08047T iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 3.4 Conducted Emission Configuration Photograph .................................................16 3.5 Conducted Emission Data.......................................................................................17 4.0 Equipment Photographs .....................................................................................19 5.0 Product Labelling ................................................................................................21 6.0 Technical Specifications ....................................................................................23 7.0 Instruction Manual ..............................................................................................25 8.0 Miscellaneous Information.................................................................................27 8.1 Radiated Emission on the bandedge..................................................................28 8.2 Discussion of Pulse Desensitization ...................................................................31 8.3 Calculation of Average Factor ............................................................................32 8.4 Emissions Test Procedures................................................................................33 INTERTEK TESTING SERVICES FCC ID: MNJ08047T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf O…

Text truncated - open the document above for the full version.

Report No.:0507494 Tx Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:0507494 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.:0507494 Tx Mode Ctrl No.:N/A Tested By:Hong, Report No.:0507494 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results
