MNJ49233RNursery monitor receiver

We are sure that you will find the Clear Connection Nursery Monitor convenient and easy to use. To insure that you will benefit fro m all of the great features that our monitor offers, and to make sure that it is used pro p e r l y, we urge you to: Clear Connection Rechargeable Nursery Monitor O w n e r’s Guide Thank you for purchasing the Safety 1 s t Clear Connection Rechargeable Nursery M o n i t o r. This is a state-of-the-art system that combines some of the most unique f e a t u res that any baby monitor offers. We are confident that you will appre c i a t e its many highlights. As you will soon learn there are many more feature s . . . The Baby’s Unit (Transmitter) has continuous transmission that clearly sends your baby’s sounds to the Pare n t ’s Unit. This gives you the ability to continue with your daily activities throughout the house or yard and at the same time monitor your baby. The Pare n t ’s Unit (Receiver) remains with you wherever you go to pick up the sounds that are transmitted from the Baby’s Unit. It conveniently clips to your belt or easily stands on a table. Both units are completely portable or AC powered. The AC Adapter allows the receiver and transmitter to be plugged into any standard electrical outlet for use with your household electricity. For convenient use without an outlet, use a re c h a rgeable battery pack for the Pare n t ’s unit and a 9 volt alkaline battery for the Baby’s unit (Batteries not included). PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE NURSERY MONITOR KEEP THESE INSTRUCTIONS FOR YOUR FUTURE REFERENCE IF YOU HAVE ANY QUESTIONS, CALL OUR TOLL FREE CONSUMER RELATIONS NUMBER: (800) 723-3065 No. 49233 CAU T I O N : • THE CLEAR CONECTION RECHARGEABLE NURSERY MONITOR IS NOT INTENDED TO REPLACE RESPONSIBLE AND PROPER PA R E N TAL SUPERV I S I O N . • YOU SHOULD CHECK YOUR CHILD’S ACTIVITY AT REGULAR INTERVALS AS THIS MONITOR WILL NOT ALERT PARENTS TO THE SILENT ACTIVITIES OF A CHILD. C AU T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN! CAU T I O N :TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER OR BAC K . NO SERVICEABLE PA RTS INSIDE. REFER TO SAFETY 1 S T CONSUMER RELAT I O N S :(800) 723-3065. WA R N I N G :TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER OR MOISTURE. Sa fe ty Instru ct i o n s READ INSTRU C T I O N S :All the safety instructions should be read before the Nursery Monitor is operated. R E TAIN INSTRU C T I O N S :The safety instructions should be retained for future re f e re n c e . HEED WA R N I N G S :All warnings on the Nursery Monitor and operating instructions should be adhered to. F O L LOW INSTRU C T I O N S :All operating instructions should be followed. Fe at u res and Co m po n e nt s WATER AND MOISTURE:The Nursery Monitor should not be used near water, for example, near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc. V E N T I LAT I O N:The Nursery Monitor should be placed so that its location or position does not interf e re with proper ventilation for the unit. For example, it should N E V E Rbe situated on a bed, sofa, rug or similar surface that may block ventilation. H E AT:The Nursery Monitor should be kept away from heat sources such as radiators, heat registers, stoves or other appliances that produce heat. AC POWER SOURC E :The Nursery Monitor should be connected only to the AC Adapters supplied with the unit. P OWER CORD PROT E C T I O N :The power supply cord should be routed so that it is not likely to be walked on or pinched by items placed upon or against it. Pay particular attention to the cord at the plug, convenience receptacle, and at the point it exits from the AC adapters. C L E A N I N G :Use a dry cotton cloth to keep the Nursery Monitor free from dust. DO NOT USE WAT E R! NON-USE PERIODS:The power cord of the Nursery Monitor should be unplugged from the outlet when unused for long periods of time. The batteries should also be removed during these periods. OBJECT AND LIQUID ENTRY:C a re should be taken so that objects do not fall onto the product, and liquids are not spilled into the enclosure through the openings. D A M AGE REQUIRING SERV I C E :The Nursery Monitor should be serviced by qualified personnel when: A :The power supply cord or plug has been damaged; B :Objects have fallen or liquid has been spilled onto the pro d u c t ; C :The Monitor has been exposed to rain; D :The Monitor does not appear to operate normally or exhibits a marked change in its perf o rm a n c e ; E :The Monitor has been dropped or the enclosure damaged. THE USER SHOULD NOT ATTEMPT TO SERVICE OR REPAIR THE MONITO R .ALL SERVICING SHOULD BE REFERRED TO S A F E TY 1 S T CONSUMER RELAT I O N S :(800) 723-3065. KEEP ALL PA RTS OF THIS MONITOR OUT OF REACH OF CHILDREN! DO NOT MOUNT IN OR ON CRIB! CAU T I O N :THE CLEAR CONNECTION RECHARGEABLE NURSERY MONITOR IS NOT INTENDED TO REPLACE P ROPER ADULT SUPERV I S I O N .YOU SHOULD CHECK YOUR CHILD’S AC T I V I TY AT REGULAR I N T E RVALS AS THIS MONITOR WILL NOT ALERT PA R E N TS TO THE SILENT ACTIVITIES OF A CHILD. Co nte nt s Parent’s Unit (Receiver)Baby’s Unit (Transmitter) Recharging StandAC Adapter On/Off/Volume Switch Channel Switch Sound Lights Plastic Belt Clip Compartment for Rechargeable Battery Speaker Low Battery Indicator (Red) Power On Indicator (Green) Flexible Antenna Battery contact for Recharger Follow these instructions to operate your Clear Connection Rechargeable Monitor. Reference the illustrations provided on pages 2 and 3 for the location of all features described in these instructions. Ba by’s Un i t : STEP 1Remove screw from battery cover on Baby’s Unit (Transmitter) and remove cover. STEP 2I n s e rt a 9-volt battery into the battery compartment by snapping the battery con- tacts into the corresponding connectors on the battery clip in the unit. (Figure 1) No te :The low battery indicator illuminates when the batteries need to be re p l a c e…

Text truncated - open the document above for the full version.

Letter of Authorization FCC ID:MNJ49233R Page 1 of 1

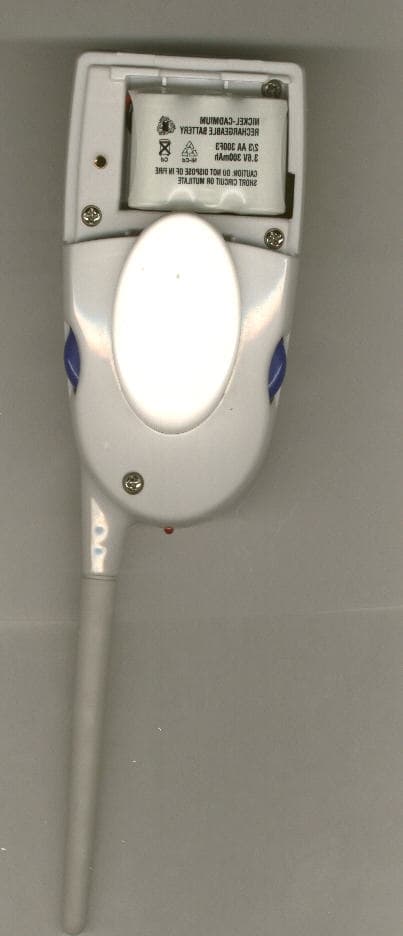

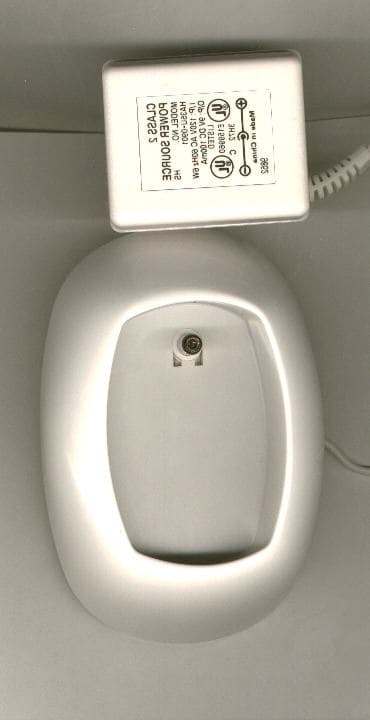

External Photos FCC ID: MNJ49233R Page 1 of 5 External Photos FCC ID: MNJ49233R Page 2 of 5 External Photos FCC ID: MNJ49233R Page 3 of 5 External Photos FCC ID: MNJ49233R Page 4 of 5 External Photos FCC ID: MNJ49233R Page 5 of 5

ID Label/ Location FCC ID: MNJ49233R Page 1 of 1

ID Label/Location FCC ID: MNJ49233R Page 1 of 2 FCC Label FCC ID Label 2.2” x 1.2” Permanently Engraved on Rear of EUT FCC ID: MNJ94054R © 1998 Safety 1st All Rights Reserved Made in China THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPER- ATIONIS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CANADA: 210 © 1998 Safety 1st Tous les droits sont réservés. Fabriqué en Chine. CET APPAREIL EST CONFORME À LA PARTIE 15 DU RÈGLEMENT DE LA FCC. LE FONCTIONNEMENT EST SUJET AUX DEUX CONDITIONS SUIVANTES: (1) CET APPAREIL NE PEUT CAUSERD'INTERFÉRENCES NUISIBLES ET (2) CET APPAREIL REÇOIT TOUTE INTERFÉRENCEMÊME LES INTERFÉRENCES QUI PEU-VENT OCCASIONER UN MAUVAIS FONCTIONNEMENT. ID Label/Location FCC ID: MNJ49233R Page 2 of 2 Location of Label on EUT FCC Label

ID Label/Location FCC ID: MNJ49233R Page 1 of 2 FCC Label FCC ID Label 2.2” x 1.2” Permanently Engraved on Rear of EUT FCC ID: MNJ49233R © 1998 Safety 1st All Rights Reserved Made in China THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPER- ATIONIS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CANADA: 210 © 1998 Safety 1st Tous les droits sont réservés. Fabriqué en Chine. CET APPAREIL EST CONFORME À LA PARTIE 15 DU RÈGLEMENT DE LA FCC. LE FONCTIONNEMENT EST SUJET AUX DEUX CONDITIONS SUIVANTES: (1) CET APPAREIL NE PEUT CAUSERD'INTERFÉRENCES NUISIBLES ET (2) CET APPAREIL REÇOIT TOUTE INTERFÉRENCEMÊME LES INTERFÉRENCES QUI PEU-VENT OCCASIONER UN MAUVAIS FONCTIONNEMENT. ID Label/Location FCC ID: MNJ49233R Page 2 of 2 Location of Label on EUT FCC Label

Internal Photos FCC ID: MNJ49233R Page 1 of 6 Internal front side Internal Photos FCC ID: MNJ49233R Page 2 of 6 Internal back side Internal Photos FCC ID: MNJ49233R Page 3 of 6 Internal Assembled Internal Photos FCC ID: MNJ49233R Page 4 of 6 Internal PCB Component side Internal Photos FCC ID: MNJ49233R Page 5 of 6 Internal PCB Foil Side PCB Foil Side Internal Photos FCC ID: MNJ49233R Page 6 of 6 Power Supply Component side Power Supply Foil side

Internal Photos FCC ID: MNJ49233R Page 1 of 1 Internal PCB Component side

FCC ID: MNJ49233R Page 1 of 1 Schematic Diagram

Revised Schematic Diagram FCC ID: MNJ49233R Page 1 of 2 Revised Schematic Diagram FCC ID: MNJ49233R Page 2 of 2

Nursery Monitor Receiver Radiometrics Midwest Corporation Test Document RP-3902R Issue Date: December 4, 1998 This report concerns: Original grant Equipment type: 49 MHz Receiver Transition Rules per 15.37 are not requested. Tests Performed ForTest Facility Safety 1st, Inc. 210 Boyleston St. Chestnut Hill, Massachusetts 02167 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Phone: (815) 293-0772 FAX: (815) 293-0820 [email protected] Test Report Written ByTest Report Approved By Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE MEASUREMENT/TECHNICAL REPORT Safety 1st, Inc. Model 49233 FCC ID: MNJ49233R APPLICATION FOR CERTIFICATION RF Emission Measurements Performed For Determination of Compliance with the US Code of Federal Regulations Title 47, Chapter I, FCC Part 15 As Required for Certification for Unintentional Radiators Tests Performed ForFCC IDRadiometrics Test DocumentPage Safety 1st, Inc. MNJ49233RRP-3902R2 of 8 Table of Contents 1.0 General Information ........................................................................................................... 3 1.1 Product Description ........................................................................................................3 1.2 Related Submittals .........................................................................................................3 1.3 Tested System Details.................................................................................................... 3 1.4 Test Methodology ...........................................................................................................3 1.5 Test Facility .................................................................................................................... 3 1.6 Test Equipment ..............................................................................................................4 2.0 System Test Configuration ................................................................................................ 4 2.1 Test System and Justification......................................................................................... 4 2.2 EUT Test Configuration .....................................................................................................4 2.3 Special Accessories ....................................................................................................... 4 2.4 Equipment Modifications ................................................................................................ 4 Figure 2.1 Configuration of Tested System .......................................................................... 5 4.0 Radiated Emissions Data .................................................................................................. 6 4.1 Field Strength Calculation .............................................................................................. 7 5.0 Conducted Emission Data ................................................................................................. 8 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. Tests Performed ForFCC IDRadiometrics Test DocumentPage Safety 1st, Inc. MNJ49233RRP-3902R3 of 8 1.0 General Information 1.1 Product Description The Model 49233 (referred to as the EUT in this report) is a Nursery Monitor Receiver. The EUT is manufactured by Safety 1st, Inc. 1.2 Related Submittals The associated transmitter is operated under 15. It is subject to the FCC requirements pursuant to the Certification equipment authorization under Part 15 Subpart C, and is being submitted as FCC ID: MNJ49233T. 1.3 Tested System Details The FCC ID's for all equipment, plus descriptions of all cables used in the tested system which have grants, are: Model Number Serial NumberFCC ID Manufacturer & Description Cable Descriptions M/N: 49233 (EUT)MNJ49233RSafety 1st, Inc. Nursery Monitor Receiver Power (2m, US) to Transformer Note: SH = Shielded; US = Unshielded; m = Cable Length in Meters, 1.4 Test Methodology The test procedures used are in accordance with the ANSI document C63.4-1992, (July 17, 1992) "Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The specific procedures are described herein. Radiated testing was performed at an antenna to EUT distance of 3 meters. The antenna was raised and lowered from 1 to 4 meters. 1.5 Test Facility The open area test site used to collect the radiated data is located on 8625 Helmar Road in Newark, Illinois. The open field test site has a metal ground screen. Details of the site characteristics are on file with the FCC. Conducted emission measurements and preliminary radiated emission scans were performed in shielded enclosure “B” at Radiometrics' Romeoville, Illinois EMI test lab. These sites have been fully described in a report and accepted by the FCC in a letter dated October 1, 1996 (31040/SIT 1300F2). Conducted emission measurements were performed using a Line Impedance Stabilization Network (LISN) as the pick-up device. This device is constructed in accordance with the circuit diagram provided in Figure 3 of ANSI document C63.4-1992. Tests Performed ForFCC IDRadiometrics Test DocumentPage Safety 1st, Inc. MNJ49233RRP-3902R4 of 8 1.6 Test Equipment Radiated emission measurements were performed with linearly polarized broadband antennas. The results obtained with these antennas can be correlated with results obtained with a tuned dipole antenna. Below 1 GHz, when a radiated emission is detected approaching the specification limit, the measurement of the emission is repeated using a tuned dipole antenna with a Roberts Balun. The radiated emission measurements were performed with a spectrum analyzer. The bandwidths of the spectrum analyzers are adjusted to the correct bandwidths as specified by…
