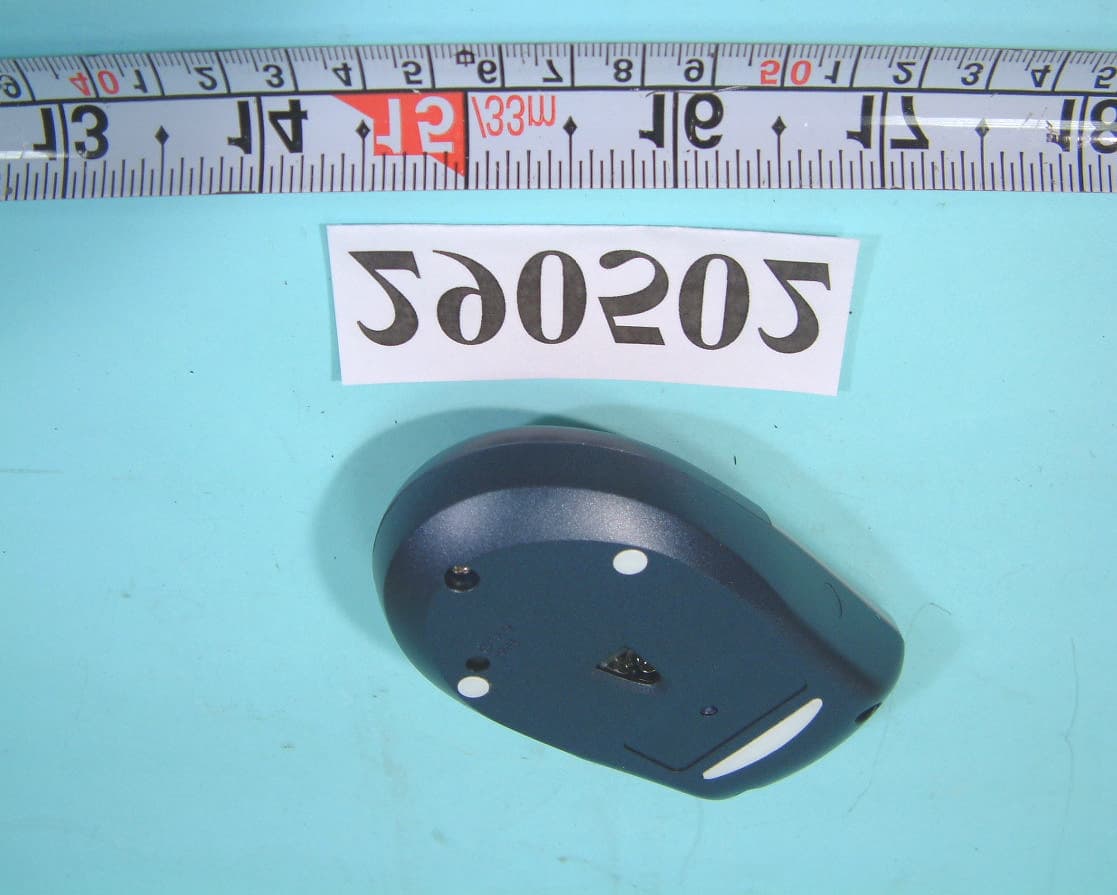

FCC ID : MNL98929110077 NUMBER 1 FRONT SIDE OF EUT(MOUSE) FCC ID : MNL98929110077 NUMBER 2 REAR SIDE OF EUT(MOUSE)

FCC ID: MNL98929110077

FCC ID: MNL98929110077 FCC ID LOCATION

FCC ID : MNL98929110077 Number 1 Mechanical Construction(MOUSE) FCC ID : MNL98929110077 Number 2 Mechanical Construction(MOUSE) FCC ID : MNL98929110077 Number 3 Mechanical Construction(MOUSE) FCC ID : MNL98929110077 Number 4 Front side of Main Board(MOUSE) FCC ID : MNL98929110077 Number 5 REAR side of Main Board(MOUSE)

FCC ID: MNL98929110077 Mouse: 1.When the mouse were moved, the IRPD would detect the glide signal to also transmit signal to the MCU. 2.The MCU will convert the signal and modulate the signal. (Use FSK mode) 3.Through the 27MHZ frequency transmit the modulation signal. Receiver: 1.When the receiver receives the modulation signal will demodulate signal through RF circuit. And responds signal to MCU. 2.The MCU meeting converts the signal PC acceptable format.
