MOZBG3AWRECEIVER

For vehicles sold in U.S.A.: NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: We will not supply the user’s manual because our product(BG3AW) is one of the vehicle parts. However, we will ask the vehicle manufacturer to include the above statements in the vehicle user’s manual in accordance FCC requirements. Receiver Model:BG3AW FCC ID:MOZBG3AW

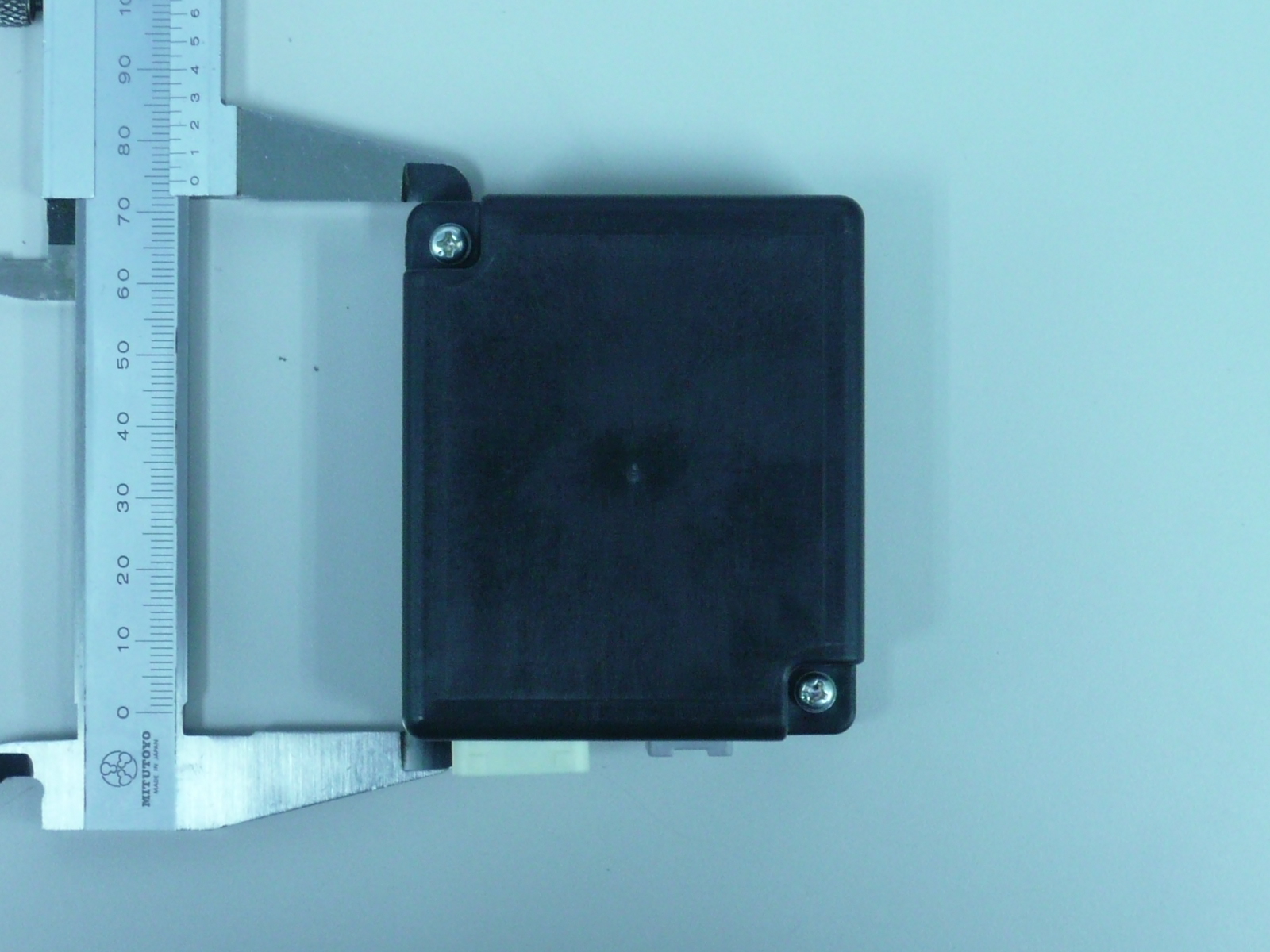

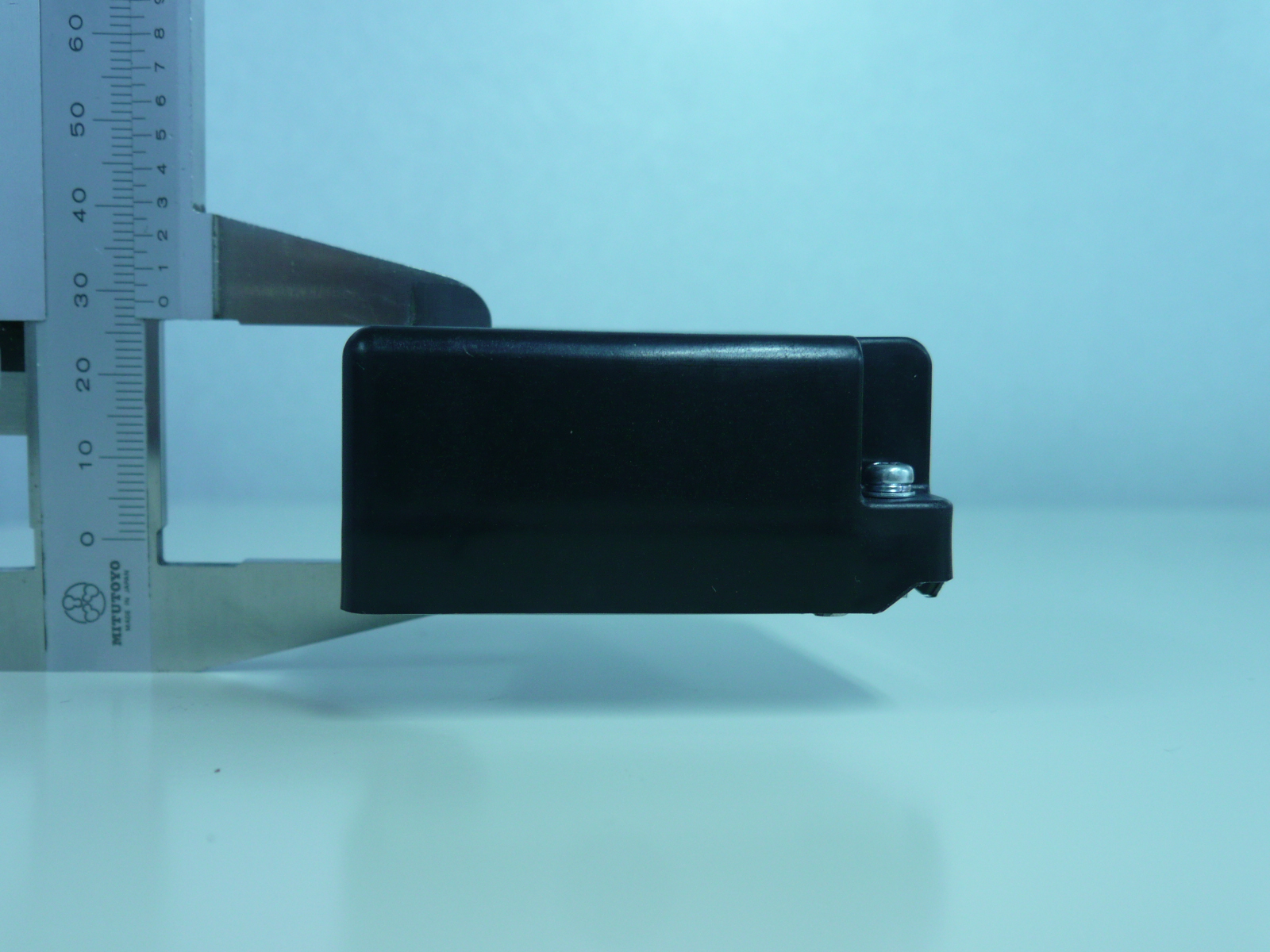

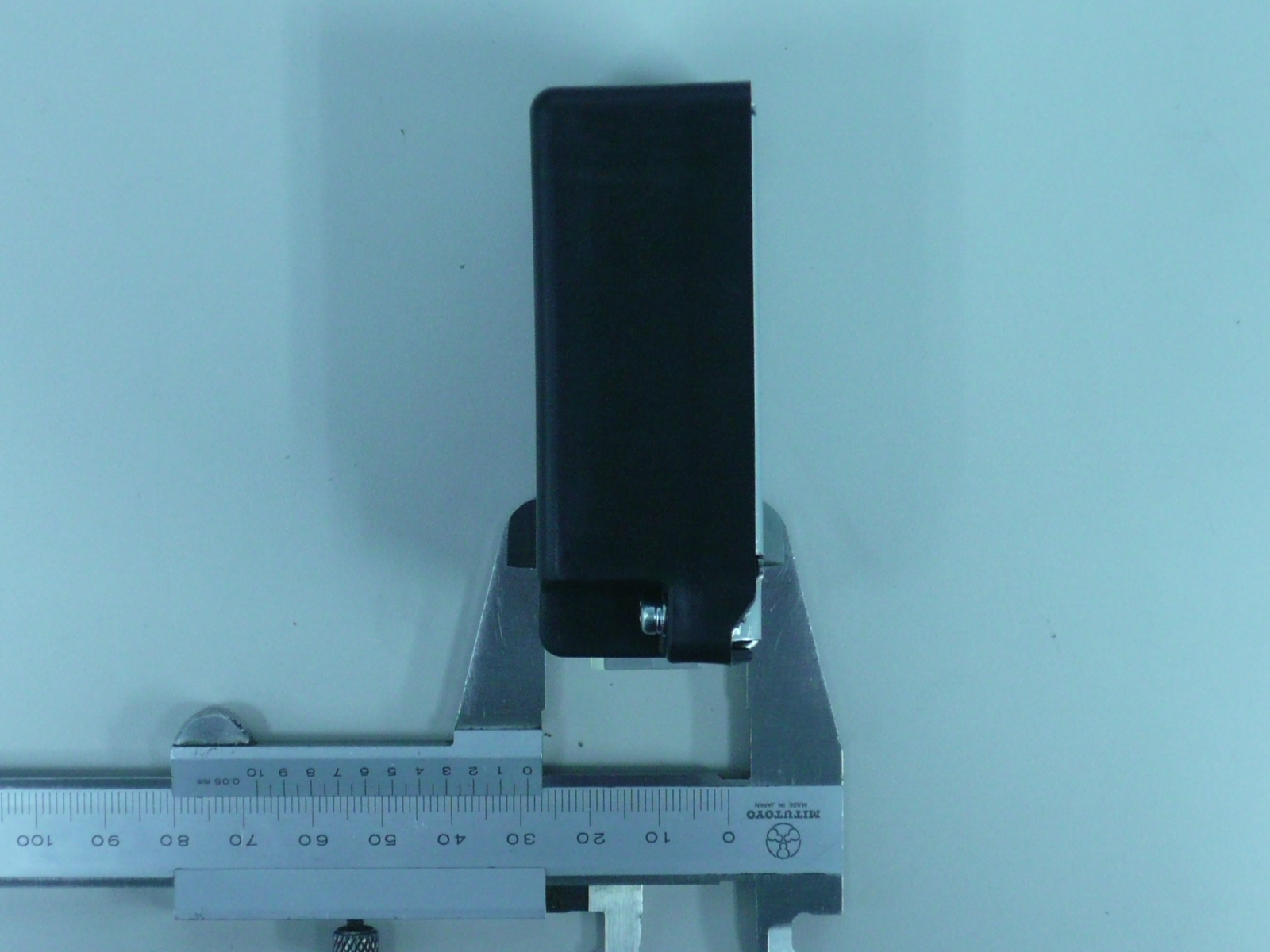

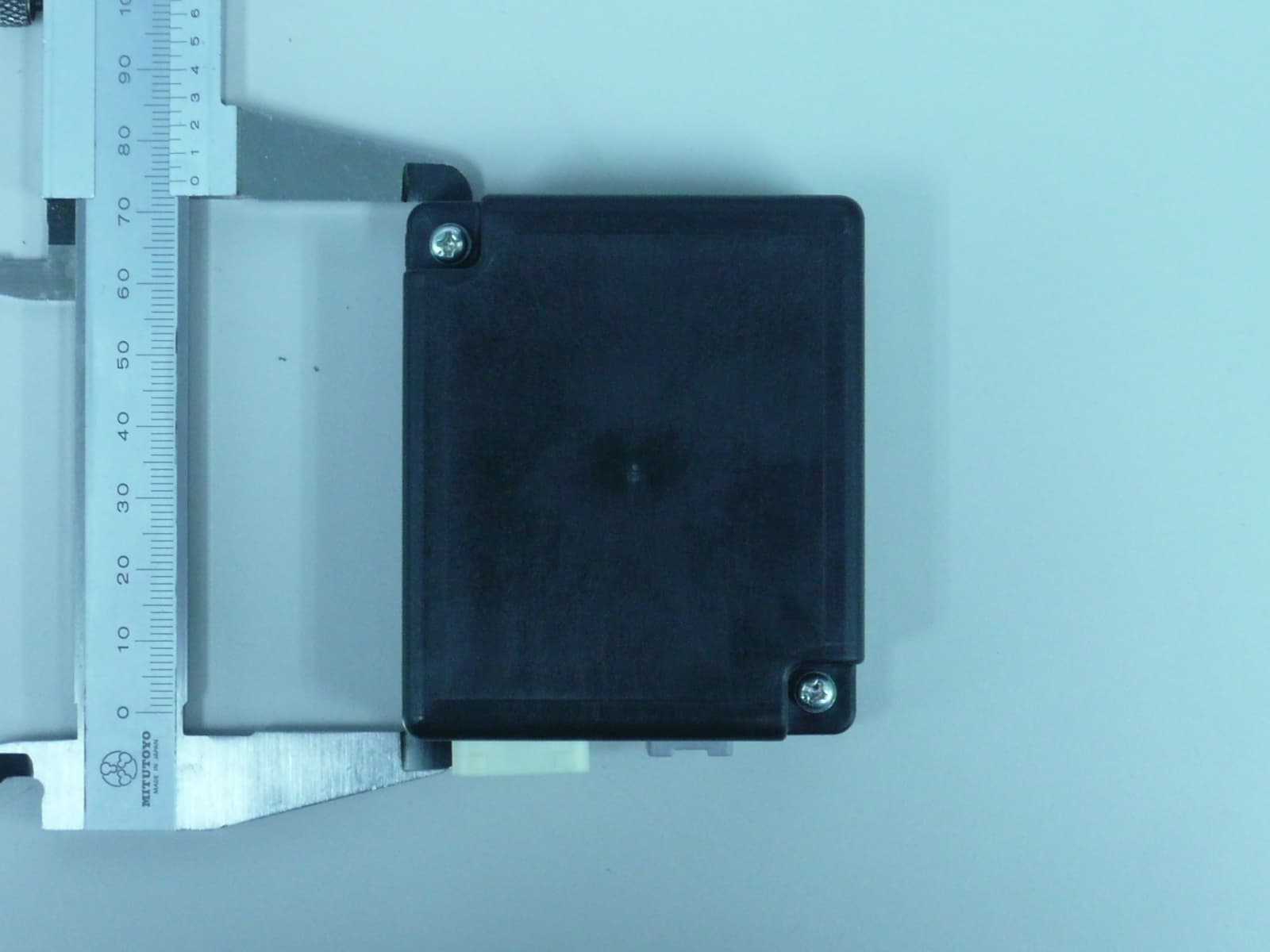

RECEIVER FCC ID:MOZBG3AW Model:BG3AW Exterior Photographs (Representative) Top View Bottom View RECEIVER FCC ID:MOZBG3AW Model:BG3AW Exterior Photographs (Representative) Front View Rear View RECEIVER FCC ID:MOZBG3AW Model:BG3AW Exterior Photographs (Representative) Right View Left View

RECEIVER FCC ID:MOZBG3AW Model:BG3AW Approval Label SCALE: FREE NOTE: The layout of approval number(s)/mark(s), model name and serial number may be changed. This device will be installed inside vehicle and end-user will not see the label. FCC compliance statement will be included in User Manual as it is not practical to place on the device according to FCC Rules §15.19.

RECEIVER FCC ID:MOZBG3AW Model:BG3AW Interior Photographs (Representative) Top View(With Antenna) Top View (Without Antenna) Antenna RECEIVER FCC ID:MOZBG3AW Model:BG3AW Interior Photographs (Representative) Bottom View

Test report No. : 11012811H-A-R1 Page : 1 of 22 Issued date : November 13, 2015 Revised date : January 26, 2016 FCC ID : MOZBG3AW UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 EMI TEST REPORT Test Report No. : 11012811H-A-R1 Applicant : TOKAI RIKA CO., LTD. Type of Equipment : RECEIVER Model No. : BG3AW FCC ID : MOZBG3AW Test regulation : FCC Part 15 Subpart B: 2015 Test Result : Complied Date of test: October 18 to 21, 2015 Representative test engineer: Shinya Watanabe Engineer Consumer Technology Division Approved by: Motoya Imura Engineer Consumer Technology Division 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This test report covers EMC technical requirements. It does not cover administrative issues such as Manual or non-EMC test related Requirements. (if applicable) 7. This report is a revised version of 11012811H-A. 11012811H-A is replaced with this report. NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredited/ Test report No. : 11012811H-A-R1 Page : 2 of 22 Issued date : November 13, 2015 Revised date : January 26, 2016 FCC ID : MOZBG3AW UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 11012811H-A Revision Test report No. Date Page revised Contents - (Original) 11012811H-A November 13, 2015- - 1 11012811H-A-R1 January 26, 2016 P.5 Update to FCC version 1 11012811H-A-R1 January 26, 2016 P.9 Correction of Configuration and peripherals to Clause 4.2; GHD → GND Test report No. : 11012811H-A-R1 Page : 3 of 22 Issued date : November 13, 2015 Revised date : January 26, 2016 FCC ID : MOZBG3AW UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Radiated Emission .......................................................................................... 10 SECTION 6: Antenna Terminal ........................................................................................... 11 APPENDIX 1: Test data ........................................................................................................ 12 Radiated Emission ............................................................................................................................ 12 Antenna Terminal Conducted Emission ......................................................................................... 12 APPENDIX 2: Test instruments ........................................................................................... 20 APPENDIX 3: Photographs of test setup............................................................................. 21 Radiated Emission ............................................................................................................................ 21 Worst Case Position .......................................................................................................................... 22 Test report No. : 11012811H-A-R1 Page : 4 of 22 Issued date : November 13, 2015 Revised date : January 26, 2016 FCC ID : MOZBG3AW UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : TOKAI RIKA CO., LTD. Address : 3-260 Toyota, Oguchi-cho, Niwa-gun, Aichi 480-0195, Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Hiroki Unno SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RECEIVER Model No. : BG3AW Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : October 9, 2015 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: BG3AW (referred to as the EUT in this report) is the RECEIVER which has two modes: Smart Key System mode and Tire Pressure Monitoring System (TPMS) mode. These two modes are switched by signals from Electronic Control Unit (ECU). Model No. BG3AW has variant models. Refer to Section 4, Clause 4.1 for details. Feature of EUT: <RKE mode> Remote Keyless Entry System is mainly used for locking/unlocking doors of a vehicle. RECEIVER receives radio wave signals from Remote Key, and sends demodulated signals to ECU. <TPMS mode> RECEIVER receives radio wave signals from Transmitters on vehicle tires. The signals include information on levels of air pressure/temperature in the vehicle tires and the identity code of Transmitters. When RECEIVER diagnoses the tire(s) as malfunction, RECEIVER sends a warning signal. Type o…

Text truncated - open the document above for the full version.

Test report No. : 11012811H-A-R1 Page : 21 of 22 Issued date : November 13, 2015 Revised date : January 26, 2016 FCC ID : MOZBG3AW UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 11012811H-A-R1 Page : 22 of 22 Issued date : November 13, 2015 Revised date : January 26, 2016 FCC ID : MOZBG3AW UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Horizontal: X-axis/ Vertical: X-axis X-axis Y-axis Z-axis End of Report
