MQ4-AP900802.11b+g Wireless AP(2.4GHz)

Wireless 802.11g Access Point User’s Manual Table of contents INTRODUCTION.....................................................................................1 Features............................................................................................................... 1 LED Indicators................................................................................................... 2 Solid ................................................................................................................. 2 Ports on the Rear Panel ..................................................................................... 2 GETTING CONNECTED.........................................................................4 AP MODES: ............................................................................................5 CONFIGURATION VIA WEB ..................................................................6 Login.................................................................................................................... 6 Info(Information) ............................................................................................... 7 Assoc(Associations)—Only for Access Point mode ......................................... 8 Wireless (Wireless Configuration).................................................................... 9 Access (Access Control)-Only for Access Point mode................................... 11 Advanced (Advanced Wireless) ...................................................................... 12 Security ............................................................................................................. 15 IP Addr (IP Address Settings) -Only for Access Point mode ........................ 17 IP Address Mode ............................................................................................ 17 Access point name ......................................................................................... 18 Admin (Administration) .................................................................................. 19 Change password. .......................................................................................... 19 Reboot/Reset this device................................................................................ 19 Upgrade system firmware. ............................................................................. 19 Help ................................................................................................................... 21 1 Introduction The Wireless 802.11g Access Point is a 54 Mbps Access Point (AP) that can also act as a Media Access Control (MAC) bridge between wired Local Area Networks, and one or more LAN wireless networks. Placed anywhere along with an Ethernet LAN, the Wireless 802.11g Access Point allows up to 200 wireless stations within its area of coverage to access transparently to the corporate network. Features ♦ High speed for wireless LAN connection, 54 Mbps. ♦ Web browser-based configuration utility. ♦ Wireless security of 128-bit WEP Encryption/ MAC Address Filtering ♦ AP Visibility Modes ♦ Firmware upgrades ♦ Static IP Address or DHCP ♦ Automatic Device Discovery 2 LED Indicators LED Indicators on the Front Panel Status LED Indicator Solid Dim/ Flashing Power Glows when power is applied to this device, the LED turns solid yellow. Dim when no power is applied. Status Normal Flashing when upgrading firmware. LAN-Link Glows when Ethernet is connected. Dim when no Ethernet is connected. Flashing when this device is sending/receiving data LAN-100M Glows for 100Mbps Ethernet connection. Dim for 10 Mbps Ethernet connection LAN-Full Duplex Glows for Full duplex mode Dim for half duplex WLAN-Link Glows when this device is associated Dim when it is not associated WLAN-Ready Glows when WLAN is connected. Dim when no WLAN is connected. 3 Flashing when trying to connect to WLAN. WLAN-Active N/A Flashing when this device is actively sending/receiving data over the wireless LAN connection. Ports on the Rear Panel Port/button Functions A 5V DC Connects the power adapter plug. B LAN Connects to your LAN’s network device. C II-X Switch this button for choosing different wiring scheme LAN connection; Switch left to select using a straight Ethernet cable; Switch right to use a Crossover Ethernet cable. . D Antenna Adjust to have better performance E Reboot Use a pin-shape item, for example a pin tip, to press this button to re-boot this device when the device stop working properly. . 4 Getting Connected 1. Find a Location: choose a location to place the Access Point. Usually, the best place for the Access Point is at the center of your wireless network, with line of straight to all your wireless stations. 2. Adjust the Antenna: usually the higher the antenna is placed, the better will be the performance. 3. Connect to your local area network: connect a straight or a crossover Ethernet cable to one of the Ethernet port of the Access Point, and the other end to a hub or switch. (If you are using a straight Ethernet cable, make sure the II-X button is switched right; the other way for Cross Ethernet cable.) 4. Power on the device: connect the included AC power adapter to the Access Point’s power port and the other end to a wall outlet. Note: use only the power adapter that provided with the Access Point. Using a different power adapter may cause permanent damage to the device. 5 AP MODES: This device is shipped with configuration that can be utilized right out of the box. The default configuration is as a AP/bridge depending on your purchase. If you want to change the settings in order to perform more advanced configuration or just configure into the other mode, namely Access Point to bridge or the other way, you can use the web-based utility provided by the manufacturer as described below. 6 Configuration via Web Login Open the browser, enter the local port IP address of the Device (default at 192.168.1. 240), and click “G…

Text truncated - open the document above for the full version.

Abocom Systems , Inc. FCC ID.: MQ4-AP900 No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Tel: 886 2 2796-3100 Federal Communications Commission Sep. 12, 2003 Authorization and Evaluation Division ATTESTATION FCC ID: MQ4-AP900 Product: 802.11b+g Wireless AP(2.4GHz) Model: AP900 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------ Angus Zeng / Lead Product Manager Abocom Systems , Inc.

55 44 33 22 11 D D C C B B A A UbicomIP2022InternetProcessor DavicomDM9000 MACController SST39VF040512Kx8Flash ESMTM21L18128A128Kx8SRAM Minipci WLANRF Module IntersilISL3880 40MHzCrystal RFCircuit 3.2MHzCrystal 25MHzCrystal EthernetTransformerTS6121C RJ45EthernetPort Antenna Abocom 802.11g +b Wireless AP/Bridge Block Diagram 0 802.11g AP/Bridge Block Diagram 11 Wednesday, September 24, 2003 Abocom system Inc., TitleSize Document Number Rev Date: Sheet of

Abocom Systems , Inc. FCC ID.: MQ4-AP900 No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Tel: 886 2 2796-3100 Abocom Systems , Inc. No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian Taipei, Taiwan, R.O.C. Tel: +886 3 5526 588 Fax:+886 3 5526 589 Federal Communications Commission Oct. 08, 2003 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------ Angus Zeng / Lead Product Manager Abocom Systems , Inc.

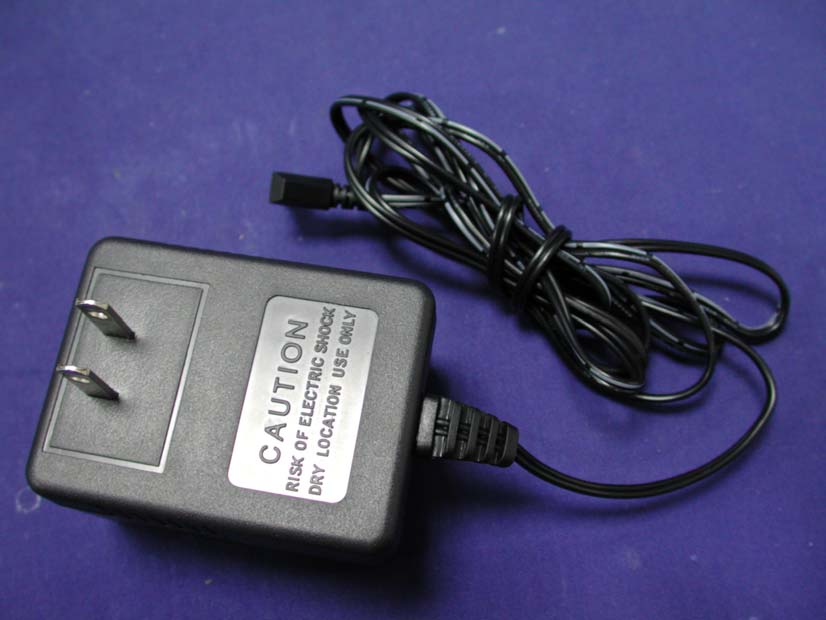

Report No.: 03AL007F Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 03AL007F Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo

Abocom Systems , Inc. FCC ID.: MQ4-AP900 No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Tel: 886 2 2796-3100 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. 802.11b+g Wireless AP(2.4GHz) Abocom Model No.: AP900 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan 802.11b+g Wireless AP(2.4GHz) Model No.: AP900 F F C C C C I I D D : : M M Q Q 4 4 - - A A P P 9 9 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Abocom Systems , Inc. FCC ID.: MQ4-AP900 No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Tel: 886 2 2796-3100 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. 802.11b+g Wireless AP(2.4GHz) Abocom Model No.: AP900 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan 802.11b+g Wireless AP(2.4GHz) Model No.: AP900 F F C C C C I I D D : : M M Q Q 4 4 - - A A P P 9 9 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 03AL007F Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 03AL007F Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 03AL007F Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 03AL007F Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 03AL007F Page : 7 of 7 Version:1.0 (13) EUT Photo (14) EUT Photo

Report No. 03AL007FI Page: 6 of 56 Version:1.0 1.2. Operational Description EUT is a 802.11b+g Wireless AP(2.4GHz) with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This 802.11b+g Wireless AP(2.4GHz), compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the 802.11b+g Wireless AP(2.4GHz) Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Test Mode: Mode 1: 11MHz Mode 2: 54MHz

Report No. 03AL007FI Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : 802.11b+g Wireless AP(2.4GHz) Model No.: AP900 FCC ID: MQ4-AP900 Applicant : Abocom Systems , Inc. Address : No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Date of Receipt : Sep. 29, 2003 Date of Declaration: Oct. 07, 2003 Report No. : 03AL007FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 03AL007FI Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 03AL007FI Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : 802.11b+g Wireless AP(2.4GHz) Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.8dBi in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance (1.8dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2411.90 49.5450 0.0149 6 2436.90 66.5273 0.0200 11 2461.90 64.8634 0.0195 Output Power Into Antenna & RF Exposure Evaluation Distance (1.8dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2411.90 67.4528 0.0203 6 2436.90 70.1455 0.0211 11 2461.90 66.9885 0.0202 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 03AL007FI Page: 1 of 56 Version:1.0 Test Report Product Name : 802.11b+g Wireless AP(2.4GHz) Model No.: AP900 FCC ID: MQ4-AP900 Applicant : Abocom Systems , Inc. Address : No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Date of Receipt : Sep. 29, 2003 Date of Test : Oct. 07, 2003 Report No. : 03AL007FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 03AL007FI Page: 2 of 56 Version:1.0 Test Report Certification Test Date : Oct. 07, 2003 Report No. : 03AL007FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : 802.11b+g Wireless AP(2.4GHz) Applicant : Abocom Systems , Inc. Address : No.77 , Yu-Yih Rd. , Chu-Nan Chen , Miao-Lih Hsian 350 , Taiwan , R.O.C. Manufacturer : Abocom Systems , Inc. Model No. : AP900 Rated Voltage : AC 120V/60Hz Trade Name : Abocom Measurement Standard : FCC Part 15 Subpart C Paragraph 15.247 Measurement Procedure : ANSI C63.4: 1992 Test Result : Complied Documented By : ( Demi Chang ) Tested By : ( Tom Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 03AL007FI Page: 3 of 56 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Test Result of Radiated Emission................................................................................................22 5. Band Edge ..................................................................................................................................34 5.1. Test Equipment............................................................................................................................34 5.2. Test Setup ....................................................................................................................................34 5.3. Limits ..........................................................................................................................................35 5.4. Test Procedure .............................................................................................................................35 5.5. Test Result of Band Edge ............................................................................................................36 6. Occupied Bandwidth ........................................…

Text truncated - open the document above for the full version.

Report No.: 03AL007FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 03AL007FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 03AL007FI Page : 3 of 3 Version:1.0 Front View of High Frequency Radiated Test
