  1. Home/
  2. Abocom Systems Inc/
  3. MQ4-SDW11B

MQ4-SDW11Bdigital transmission system

Abocom Systems Inc
digital transmission system - FCC ID MQ4-SDW11B - Abocom Systems Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 29, 2006
Application Purpose
Original Equipment
Date of Application
Jan 29, 2006
Equipment Note
digital transmission system
Frequency Range
2412.00000000 - 2462.00000000
Company
Abocom Systems Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 SDW11b SD WLAN Card User Manual 2 Table of Contents SD WLAN Card ............................................................................................................................................. 1 FCC Warning................................................................................................................................................... 3 Package Contents & System Requirements ........................................................................................................ 4 Package........................................................................................................................................................... 4 System Requirements ..................................................................................................................................... 4 Introducing SD WLAN Card.......................................................................................................................... 4 SDW11b features and benefits ....................................................................................................................... 4 SDW11b Wireless Network Scenarios ........................................................................................................... 4 Peer-to-Peer (Ad-hoc) Workgroup.................................................................................................................. 5 Home Networking .......................................................................................................................................... 5 2-2-3 Enterprise Networking .......................................................................................................................... 5 About the SDW11b CD-ROM........................................................................................................................ 5 Installing the Driver........................................................................................................................................ 5 Installation of the SDW11b Driver to the Pocket PC using Microsoft Active Sync®.................................... 5 To verify if the installation of the driver was completed successfully:........................................................... 7 SDW11b Configuration Utility ...................................................................................................................... 7 configuring IPC wlan utility ........................................................................................................................... 9 Status tab ........................................................................................................................................................ 9 Statistics tab...................................................................................................................................................10 Tx Success .....................................................................................................................................................10 Site Survey tab...............................................................................................................................................11 Rescan ...........................................................................................................................................................11 Radio tab .......................................................................................................................................................12 S/W Radio .....................................................................................................................................................12 Enable (Fast) : Select to enter power saving mode later (Under the circumstances of not receving/transitting packets, the system will enter Power Saving mode in 10 seconds. ) .............................................................12 About tab .......................................................................................................................................................12 SD WLAN Card Specifications.....................................................................................................................13 Item...............................................................................................................................................................13 Specification ..................................................................................................................................................13 Troubleshooting.............................................................................................................................................14 Introduction ...................................................................................................................................................14 Common Troubleshooting Tips .....................................................................................................................14 LED Activity .................................................................................................................................................14 LED Activity .................................................................................................................................................14 Cannot Connect To Network .........................................................................................................................14 Cannot Find the AP .......................................................................................................................................14 The System is Very Slow...............................................................................................................................15 SDW11b Does Not Operate After Returning From the Stand-by or Sleeping Mode ....................................15 3 FCC W…

Text truncated - open the document above for the full version.

Cover Letter(s)

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. Attention: Application Examiner Re: Request for confidentiality Applicant: AboCom Systems, Inc. FCC ID: MQ4-SDW11B To whom it may concern, Permanent Confidentiality Request is hereby submitted by AboCom Systems, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: AboCom Systems, Inc. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, Project Manager AboCom Systems, Inc. AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. Power of Attorney "I, an officer of AboCom Systems, Inc. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Ken Yang Signature Printed Title Project Manager

External Photos

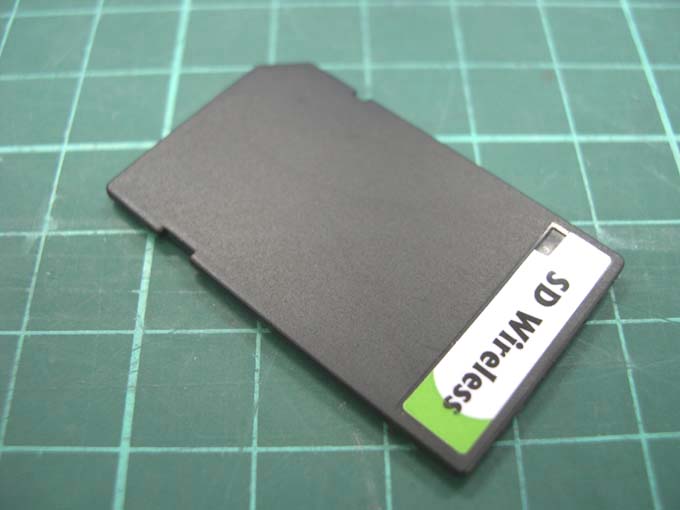

Photo 1: External photo of EUT SDW11b Photo 2: External photo of EUT SDW11b

ID Label/Location Info

45.0mm 20.0mm FCC ID Location

Internal Photos

Photo 1: Internal photo of EUT SDW11b Photo 2: Internal photo of EUT SDW11b

RF Exposure Info

FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-060072 Model No. : SDW11b Issued Date : Jan. 20, 2006 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Marx Yan Project Engineer Reviewed By Kevin Chen FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 SD WLAN Card -Model: SDW11b FCC ID: MQ4-SDW11B Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is near by the human body, the EUT was defined as a Portable Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited distance from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 5 of 5 3. RF Exposure calculations From §FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a portable device operates at 2412MHz and its maximum output power is 20mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (20 * 1)/4*π*(0.1) 2 = (mW/cm 2 ) 4. Test results Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 0.80 15.21 0.00243 1.0 6 (middle) 2437 0.80 19.50 0.00312 1.0 11 (highest) 2462 0.80 14.09 0.00225 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

Test Report

FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 1 of 33 EMC TEST REPORT Report No. : EME-060072 Model No. : SDW11b Issued Date : Jan. 20, 2006 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 33 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Marx Yan Project Engineer Reviewed By Kevin Chen FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 2 of 33 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT........................................................................................4 1.2 Additional information about the EUT...................................................................4 1.3 Antenna description ................................................................................................5 1.4 Peripherals equipment ............................................................................................5 2. Test specifications .........................................................................................................6 2.1 Test standard ...........................................................................................................6 2.2 Operation mode ......................................................................................................6 2.3 Test equipment........................................................................................................7 3. Minimum 6dB Bandwidth test ......................................................................................8 3.1 Operating environment ...........................................................................................8 3.2 Test setup & procedure ...........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results .......................................8 4. Maximum Output Power test ......................................................................................12 4.1 Operating environment .........................................................................................12 4.2 Test setup & procedure .........................................................................................12 4.3 Measured data of Maximum Output Power test results .......................................12 5. Radiated Emission test ................................................................................................13 5.1 Operating environment .........................................................................................13 5.2 Test setup & procedure .........................................................................................13 5.3 Emission limits .....................................................................................................14 5.4 Radiated spurious emission test data ....................................................................15 5.4.1 Measurement results: frequencies equal to or less than 1 GHz .........................15 5.4.2 Measurement results: frequency above 1GHz...................................................16 6. Power Spectrum Density test ......................................................................................19 6.1 Operating environment .........................................................................................19 6.2 Test setup & procedure .........................................................................................19 6.3 Measured data of Power Spectrum Density test results .......................................19 7. Emission on the band edge §FCC 15.247(C) ..............................................................23 7.1 Band-edge (Conducted method) ...........................................................................24 7.2 Band-edge (Radiated method) ..............................................................................26 8. Power Line Conducted Emission test §FCC 15.207 ...................................................30 8.1 Operating environment .........................................................................................30 8.2 Test setup & procedure .........................................................................................30 8.3 Emission limit.......................................................................................................31 8.4 Uncertainty of Conducted Emission.....................................................................31 8.5 Power Line Conducted Emission test data ...........................................................32 FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 3 of 33 Summary of Tests SD WLAN Card -Model: SDW11b FCC ID: MQ4-SDW11B Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : MQ4-SDW11B Report No.: EME-060072 Page 4 of 33 1. General information 1.1 Identification of the EUT Applicant : AboCom Systems, Inc. Product : SD WLAN Card Model No. : SDW11b FCC ID. : MQ4-SDW11B Frequency Range : 2412MHz ~ 2462MHz Channel Number : 11 channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modu…

Text truncated - open the document above for the full version.

Test Setup Photos

Photo 1: Conducted Emission Test Set-up SDW11b Photo 2: Conducted Emission Test Set-up SDW11b Photo 1: Radiated Emission Test Set-up SDW11b Photo 2: Radiated Emission Test Set-up SDW11b

Contact Information

Applicant

Harry Huang(Manager)
[email protected]886-3-758-0777Fax: 886-3-758-0099

Test Firm

Intertek Testing Services Taiwan Ltd.Alpha Liu
[email protected]886-3-519-1411Fax: 886-3-519-1410

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz19.50 mW
Confidentiality
Long Term
Grant Notes
Power Listed Is Conducted. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
