MQ4A08SAndroid TV Dongle

FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

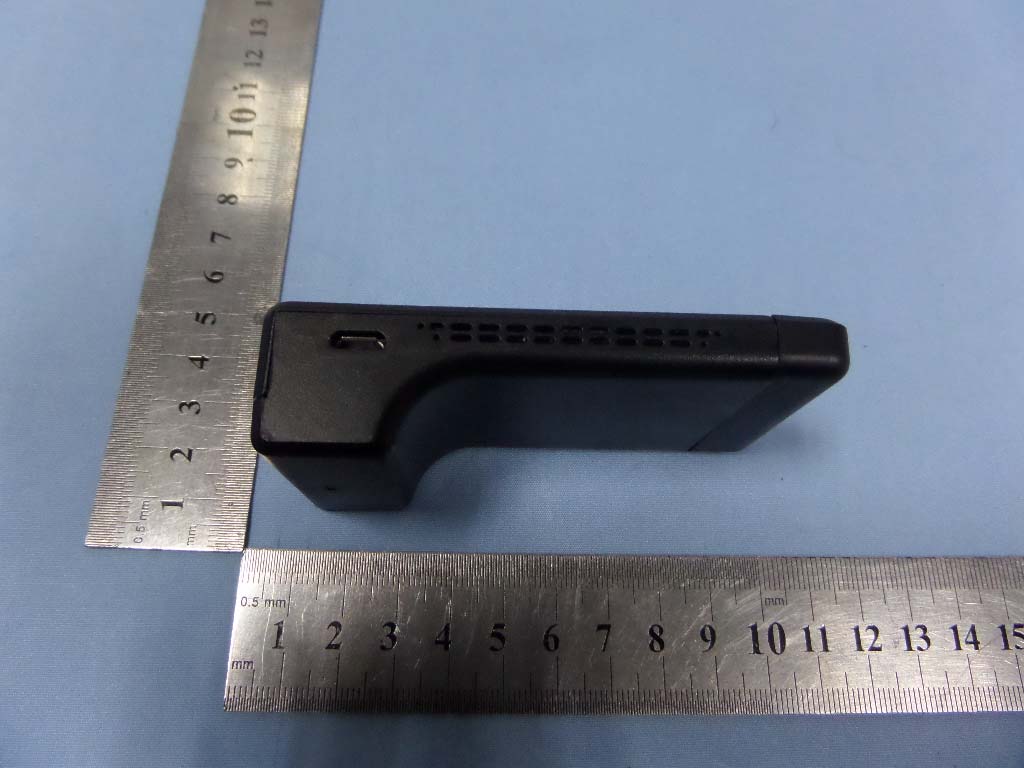

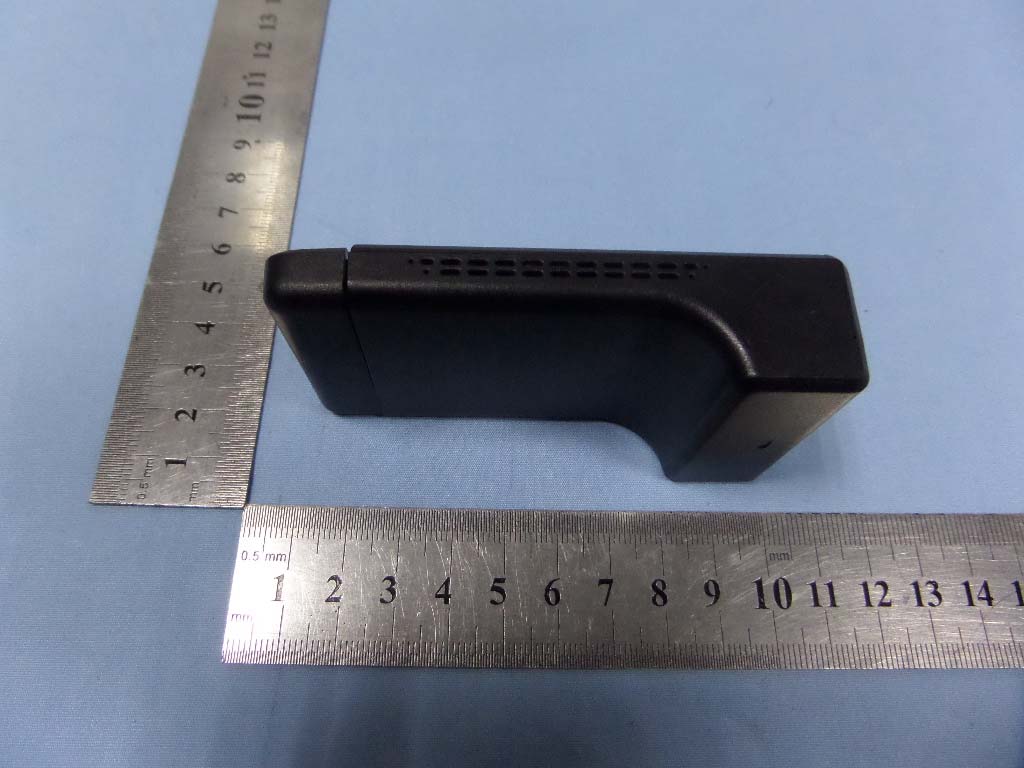

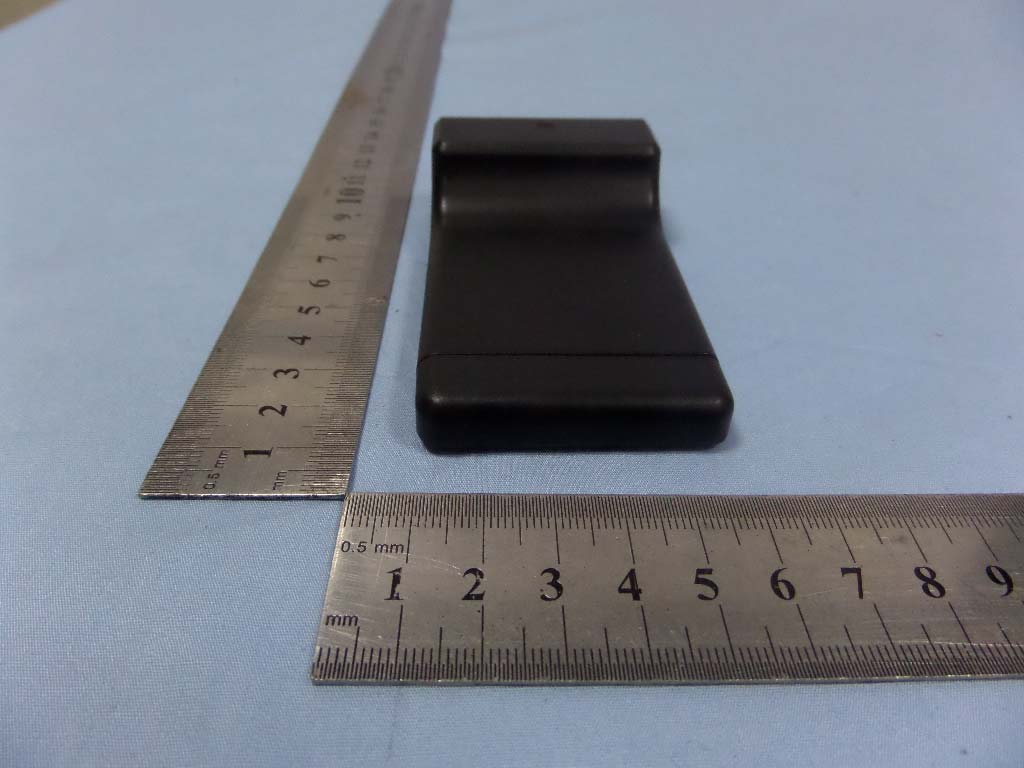

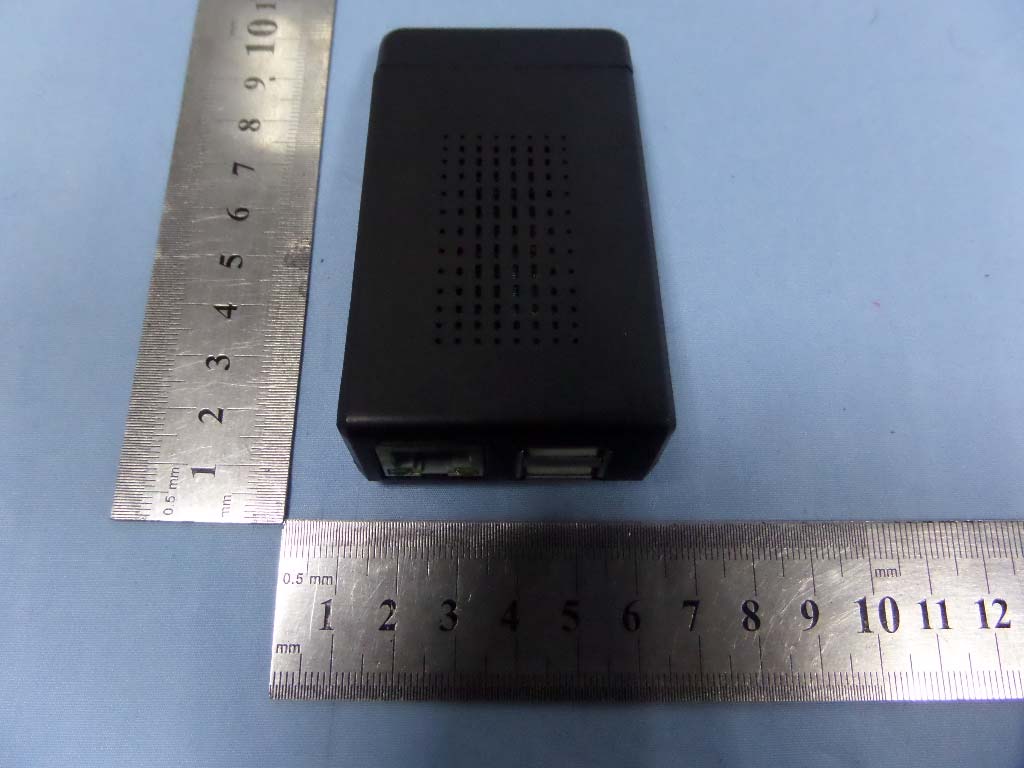

Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EUT View 3 EUT View 4 Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EUT View 5 EUT View 6 Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EUT View 7

Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: MQ4A08S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: MQ4A08S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Wi-Fi Antenna Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 Solder Board-Component View 3 Solder Board-Component View 4 Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 Solder Board-Component View 5 Solder Board-Component View 6

RF Exposure Requirements Product Description: Android TV Dongle Model No.: A08S FCC ID: MQ4A08S According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Wi-Fi (802.11b/g/n) Tx frequency range: 2412~2472MHz Device category: Portable Device Maximum Conducted Output Power: 7.76dBm (5.970mW) Maximum Antenna Gain: 2dBi Maximum EIRP Output Power: 9.462mW (9.76dBm) Minimum Distance: 5mm Limit: 10mW Source-based time-averaged EIRP output power is 9.462mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 PAGE 1 OF 77 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Abocom Systems Inc No.77, Yu-Yih Rd, Chu-Nan, Miao-Lih Count 35059, Taiwan R.O.C FCC ID: MQ4A08S FCC Rule(s): FCC Part 15C Product Description: Android TV Dongle Tested Model: A08S Report No.: STR14048157I-1 Tested Date: 2014-04-10 to 2014-05-14 Issued Date: 2014-05-14 Tested By: Lebron Wang/ Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 PAGE 2 OF 77 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 17 6.1 STANDARD APPLICABLE ....................................................................................................................................... 17 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 6.3 TEST PROCEDURE ................................................................................................................................................. 17 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 7. RF OUTPUT POWER ............................................................................................................................................ 25 7.1 STANDARD APPLICABLE ....................................................................................................................................... 25 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 25 7.3 TEST PROCEDURE ................................................................................................................................................. 25 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 25 7.5 SUMMARY OF TEST RESULTS/PLOTS ...........................................................................................................…

Text truncated - open the document above for the full version.

Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Abocom Systems Inc Model: A08S REPORT NO.: STR14048157I-1 FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
