1 Mike Kuo From: S. S. Liou [[email protected]] Sent: November242003Monday 8:15 PM To: Mike Kuo Subject: Re: Abocom FCC ID:MQ4ARM804, AN03T3370 revised confidential letter.pd... Exhibit-E-User_Man ual-(NEW).pd... revised output power test.pdf revised output power test plot... Hi Mike, Ans. #1: Please refer to revised confidential letter. Ans. #2: Please refer to revised user manual. Ans. #3: Please refer to output power test result and test plot. Best regards, ================================ S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "ETC/Iris (E-mail)" <[email protected]>; "Liou, S. S. (E-mail)" <[email protected]> Sent: Wednesday, November 19, 2003 6:40 AM Subject: Abocom FCC ID:MQ4ARM804, AN03T3370 > Question #1: User manual is listed as confidential document in the request > for confidentiality letter. User manual can not be granted as confidential > document. Please remove this item from the letter and provide revised > request for confidentiality letter. > > Question #2: User manual does not contain proper language to address RF > exposure compliance. Please provide revised user manual to address this > requirement. > > Question #3: In the channel power measurement, the summation is limited to > 6MHz which is less the 6dB bandwidth. Please redo the measurement and > provide revised test report and test plots. > > > > Best Regards > > Mike Kuo > Compliance Certification Services > 561F Monterey Road > Morgan Hill CA 95037 > Tel: (408)463-0885 x: 105 > Fax: (408)463-0888 > http://www.ccsemc.com >

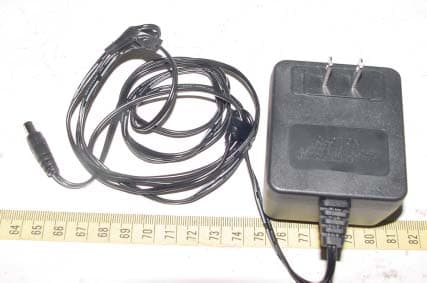

ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor

Put on the back SIZE 4 6 CM

ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor ETC Report No. : ET92R-09-079-03 FCC ID.: MQ4ARM804 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

ARM804 Operation Principle 1. CPU, U6, 88W8500 have a 32-bit RISC processor integrated, operation frequency is 132MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, AM29LV800BT-70EC, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000 which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to +20 dBm output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. 10/100 Ethernet Switch, U10, 88E6060 support automatic MDI/MDIX crossover for 100BASE-TX and 10 BASE-T ports. Port 5 has dedicated, always on, MAC Mode (Forward) and PHY Mode (Reverse) RMII/MII/SNI interface for management and firewall applications. Each port works at 10Mbps or 100Mbp, full-duplex or half-duplex mode (forced or auto-negotiated). Flexible LED support for Link, Speed, Duplex Mode, Collision, and TX/RX Activities. 5. Power part: there are several regulators are used on the board. U18, AP34063 is used to transfer DC12V to DC3V3; U1, U8 and U12 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V8. The core of CPU is operate at 1.5V. 6. LED part: LED Color Controlled byDescription Amber (Test) FW On - Error condition. Off - Normal operation Blinking - This LED blinks during start up/ Upgrade F/W Power/Test (Double color LED) Green (Power) F/W (TI CPU use H/W) On – System booting complete and then turn it on Amber (10) HW On - Link at 10Mbps Blinking – receiving/ transmitting data LAN (Double color LED) Green (100) HW On - Link at 100Mbps Blinking – receiving/ transmitting data Amber (10) HW On - Link at 10Mbps Blinking – receiving/ transmitting data Internet (Double color LED) Green (100) HW On - Link at 100Mbps Blinking – receiving/ transmitting data WLAN Green FW On - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Blinking - Data is transmitted or received via the Wireless access point. This includes "network traffic" as well as user data. 7. Switch button, SW1, it is used to reset the 88W8500. 8. 9.

ETC Report No. : ET92R-09-079-03 Sheet 25 of 32Sheets FCC ID.: MQ4ARM804 Rev. No 2.0 8 OUTPUT POWER MEASUREMENT 8.1 Standard Applicable For direct sequence system, according to 15.247(b), the maximum peak output power of the transmitter shall not exceed 1 Watt. If transmitting antennas of directional gain greater than 6 dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 8.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT as shown in figure 5 without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz and VBW to 1 MHz. 4. Use channel power function and record the level displayed. 5. Repeat above procedures until all frequencies measured were complete. Figure 5: Output power and measurement configuration. EUT Spectrum Analyzer Attenuator 8.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due RF Test Receiver Rohde & Schwarz ESBI 05/31/2004 Plotter Hewlett-Packard 7440A N/A Attenuator Weinschel Engineering AS3667 N/A ETC Report No. : ET92R-09-079-03 Sheet 26 of 32Sheets FCC ID.: MQ4ARM804 Rev. No 2.0 8.4 Measurement Data Test Date : Oct. 06, 2003 Temperature : 25 Humidity: 60 % a) Channel 01 : Output Peak Power is 14.9 dBm or 30.00mW b) Channel 06 : Output Peak Power is 15.0 dBm or 31.62mW c) Channel 11 : Output Peak Power is 14.1 dBm or 25.70mW Note : 1. Please see appendix 3 for Plotted Data 2. The expanded uncertainty of the output power tests is 2dB.

ETC Report No. : ET92R-09-079-03 Sheet 13 of 29Sheets FCC ID.: MQ4ARM804 Rev. No 2.0 ETC Report No. : ET92R-09-079-03 Sheet 14 of 29Sheets FCC ID.: MQ4ARM804 Rev. No 2.0 ETC Report No. : ET92R-09-079-03 Sheet 15 of 29Sheets FCC ID.: MQ4ARM804 Rev. No 2.0

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : MULTI-FUNCTION WIRELESS AP & ROUTER FCC ID. : MQ4ARM804 MODEL : ARM804 for APPLICANT: AboCom Systems, Inc. ADDRESS:1F, No. 21, R&D Road II Science Based Industrial Park Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail:[email protected] Report Number : ET92R-09-079-03 ETC Report No. : ET92R-09-079-03FCC ID.: MQ4ARM804 Rev No 1 0 TEST REPORT CERTIFICATION Applicant: AboCom Systems, Inc. 1F, No. 21, R&D Road II Science Based Industrial Park Manufacturer: AboCom Systems, Inc. 350 No.77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsuan,Taiwan, R.O.C. Description of EUT: a) Type of EUT: MULTI-FUNCTION WIRELESS AP & ROUTER b) Trade Name:AboCom c) Model No.: ARM804 d) Power Supply: Adapter(Model:MW48-1200800)I/P: 120Vac/60Hz, 22W ; O/P: 12Vdc, 800mA Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :Oct.16, 2003 Test Engineer : ( Kevin Lee ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-09-079-03FCC ID.: MQ4ARM804 Rev No 1 0 Table of ContentsPage 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description........................................................................................................................ 1 1.2 Characteristics of Device................................................................................................................ 1 1.3 Test Methodology.......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................... 1 2 PROVISIONS APPLICABLE....................................................................................................... 2 2.1 Definition........................................................................................................................................ 2 2.2 Requirement for Compliance........................................................................................................... 3 2.3 Restricted Bands of Operation........................................................................................................ 5 2.4 Labeling Requirement..................................................................................................................... 5 2.5 User Information............................................................................................................................ 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification..................................................................................................................................... 7 3.2 Devices for Tested System............................................................................................................. 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard....................................................................................................................... 8 4.2 Measurement Procedure................................................................................................................. 8 4.3 Measuring Instrument................................................................................................................... 10 4.4 Radiated Emission Data................................................................................................................ 11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Radiated Eimssion of Restricted bands......................................................................................14 4.4.3 Other Emission........................................................................................................................15 4.5 Field Strength Calculation............................................................................................................. 15 4.6 Photos of Radiation Measuring Setup............................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 17 5.1 Standard Applicable..................................................................................................................... 17 5.2 Measurement Procedure............................................................................................................... 17 5.3 Conducted Emission Data............................................................................................................. 18 5.4 Result Data Calculation................................................................................................................. 19 5.5 Conducted Measurement Equipment............................................................................................. 20 5.6 Photos of Conduction Measuring Setup................................................................................…
