MQ4ARM904Multi-Function Wireless Router

i 54Mbps 802.11g Cable/DSL Wireless Router Wireless Access Point Broadband Internet Access 4-Port Switching Hub User's Guide FCC ID: MQ4ARM904 ii Table of Contents CHAPTER 1 INTRODUCTION ................................................................................ 1 Wireless Router Features ................................................................................................. 1 Package Contents .............................................................................................................. 3 Physical Details .................................................................................................................. 4 CHAPTER 2 INSTALLATION ................................................................................. 6 Requirements ..................................................................................................................... 6 Procedure ........................................................................................................................... 6 CHAPTER 3 SETUP ................................................................................................... 8 Overview ............................................................................................................................ 8 Configuration Program .................................................................................................... 9 Setup Wizard ...................................................................................................................11 LAN Screen ......................................................................................................................14 Wireless Screen................................................................................................................16 Password Screen .............................................................................................................. 19 CHAPTER 4 PC CONFIGURATION..................................................................... 20 Overview .......................................................................................................................... 20 Windows Clients .............................................................................................................. 20 Macintosh Clients ............................................................................................................ 33 Linux Clients.................................................................................................................... 33 Other Unix Systems......................................................................................................... 33 Wireless Station Configuration ...................................................................................... 34 CHAPTER 5 OPERATION AND STATUS............................................................ 35 Operation ......................................................................................................................... 35 Status Screen.................................................................................................................... 35 Connection Status - PPPoE ............................................................................................ 37 Connection Status - PPTP .............................................................................................. 39 Connection Status - Telstra Big Pond............................................................................ 40 Connection Details - SingTel RAS ................................................................................. 41 Connection Details - Fixed/Dynamic IP Address ......................................................... 43 CHAPTER 6 ADVANCED FEATURES................................................................. 45 Overview .......................................................................................................................... 45 Advanced Menu Screen .................................................................................................. 45 Advanced Internet Screen .............................................................................................. 46 Access Control .................................................................................................................50 Remote Management ...................................................................................................... 56 Virtual Servers.................................................................................................................57 Dynamic DNS (Domain Name Server) .......................................................................... 60 Upgrade Firmware .......................................................................................................... 62 CHAPTER 7 ADVANCED CONFIGURATION ................................................... 63 Overview .......................................................................................................................... 63 PC Database.....................................................................................................................64 Options ............................................................................................................................. 68 Security............................................................................................................................. 70 iii Logs................................................................................................................................... 72 MAC Address .................................................................................................................. 74 Routing ............................................................................................................................. 75 APPENDIX A TROUBLESHOOTING ................................................................. 79 Overv…

Text truncated - open the document above for the full version.

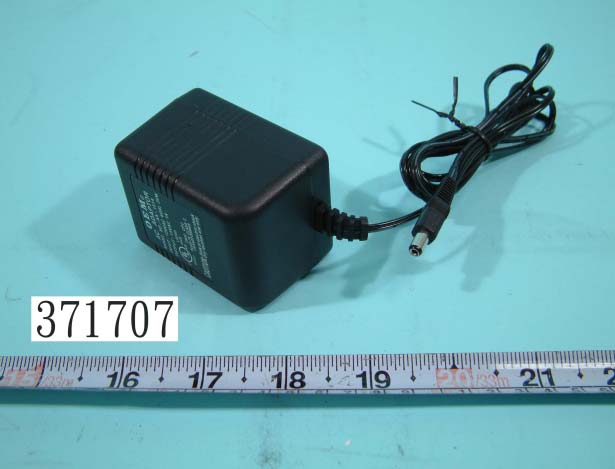

FCC ID: MQ4ARM904 Number 1 FRONT SIDE OF EUT FCC ID: MQ4ARM904 Number 2 REAR SIDE OF EUT FCC ID: MQ4ARM904 Number 3 CLOSER LOOK OF REAR INTERFACE PORT FCC ID: MQ4ARM904 Number 4 FRONT SIDE OF ADAPTOR FCC ID: MQ4ARM904 Number 5 REAR SIDE OF ADAPTOR FCC ID: MQ4ARM904 Number 6 FRONT SIDE OF ADAPTOR

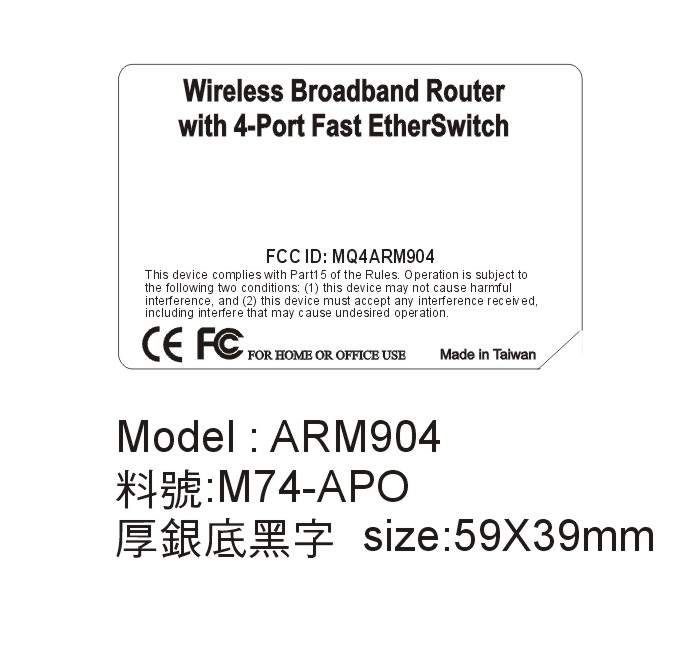

FCC ID: MQ4ARM904 Label Location

FCC ID: MQ4ARM904 Number 1 MECHANICAL CONSTRUCTION FCC ID: MQ4ARM904 Number 2 MECHANICAL CONSTRUCTION 1 FCC ID: MQ4ARM904 Number 3 MECHANICAL CONSTRUCTION FCC ID: MQ4ARM904 Number 4 FRONT SIDE OF MAIN BOARD FCC ID: MQ4ARM904 Number 5 MECHANICAL CONSTRUCTION FCC ID: MQ4ARM904 Number 6 CLOSER LOOK OF IC FCC ID: MQ4ARM904 Number 7 MECHANICAL CONSTRUCTION 2 FCC ID: MQ4ARM904 Number 8 REAR SIDE OF MAIN BOARD FCC ID: MQ4ARM904 Number 9 CLOSER LOOK OF IC FCC ID: MQ4ARM904 Number 10 MECHANICAL CONSTRUCTION OF MINI PCI CARD FCC ID: MQ4ARM904 Number 11 MECHANICAL CONSTRUCTION OF MINI PCI CARD FCC ID: MQ4ARM904 Number 12 FRONT SIDE OF MINI PCI CARD FCC ID: MQ4ARM904 Number 13 REAR SIDE OF MINI PCI CARD FCC ID: MQ4ARM904 Number 14 MECHANICAL CONSTRUCTION OF ADAPTOR FCC ID: MQ4ARM904 Number 15 MECHANICAL CONSTRUCTION OF ADAPTOR

Description of Operation ARM904 is a Wireless Router with 11 channels. This device provides four kinds of 802.11b transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. When running under 802.11g mode, it supports the following speed and carrier: 6/9 Mbps (BPSK), 12/18 Mbps (QPSK), 24/36 Mbps (QAM-16), 48/54 Mbps (QAM-64) The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This Wireless Router is an IEEE 802.11b/g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the Wireless Router transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b/g network.

FCC TEST REPORT Report No. : F371707 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : MULTI-FUNCTION WIRELESS ROUTER Model No. : ARM904 FCC ID : MQ4ARM904 Filing Type : Certification Applicant : AboCom Systems Inc. 1F, No. 21, R & D Road II Science Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Connection Diagram of Test System ..............................................................................................................................................6 3. Operation of Equipment under Test ..............................................................................................................7 4. General Information of Test............................................................................................................................8 4.1. Test Voltage ....................................................................................................................................................................................8 4.2. Standard for Methods of Measurement...........................................................................................................................................8 4.3. Test in Compliance with ..................................................................................................................................................................8 4.4. Frequency Range Investigated .......................................................................................................................................................8 4.5. Test Distance ..................................................................................................................................................................................8 5. Report of Measurements and Examinations ................................................................................................9 5.1. List of Measurements and Examinations ........................................................................................................................................9 5.2. 6dB Bandwidth ..............................................................................................................................................................................10 5.3. Peak Output Power .......................................................................................................................................................................11 5.4. Power Spectral Density .................................................................................................................................................................12 5.5. Test of Conducted Emission .........................................................................................................................................................13 5.6. Test of Radiated Emission ............................................................................................................................................................20 5.7. Band Edges Measurement............................................................................................................................................................40 5.8. Antenna Requirements .................................................................................................................................................................41 5.9. RF Exposure .............................................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 1 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 1.1. 6dB Bandwidth Mode 1 ~ Mode 3 Plot1(Channel 1) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 2 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot2(Channel 6) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 3 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot3(Channel 11) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 4 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Mode 4 ~ Mode 6 Plot1(Channel 1) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 5 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot2(Channel 6) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 6 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot3(Channel 11) Comments6dB Emission bandwidth>500kHz FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 7 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 1.2. Peak Output Power Mode 1 ~ Mode 3 Plot1(Channel 1): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 8 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot2(Channel 6): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 9 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot3(Channel 11): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 10 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Mode 4 ~ Mode 6 Plot1(Channel 1): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 11 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot2(Channel 6): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 12 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot3(Channel 11): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 13 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 1.3. Band Edges Measurement Mode 1 ~ Mode 3 Plot1 (Channel 1) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 14 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot2 (Channel 11) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 15 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Mode 4 ~ Mode 6 Plot1 (Channel 1) FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 16 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Plot2 (Channel 11) Comments All emissions in any 100kHz bandwidth outside the band edge are attenuated more then 20dB from the carrier. FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 17 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 1.4. Test of Radiated Emission Mode 1 ~ Mode 3 (Channel 1): FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 18 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 19 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 20 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 21 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Channel 6: FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 22 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 23 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 24 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 25 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 26 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Channel 11: FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 27 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 28 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 29 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 FCC TEST REPORT Report No. : F371707 SPORTON International Inc. FCC ID. : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 30 of 43 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 Mode 4 ~ Mode 6 (Channel 1): FCC TEST…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: F371707 SPORTON International Inc. FCC ID : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 1.1. Photographs of Conducted Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: F371707 SPORTON International Inc. FCC ID : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 SIDE VIEW FCC TEST REPORT Report No.: F371707 SPORTON International Inc. FCC ID : MQ4ARM904 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Oct. 13, 2003 1.2. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
