MQ4BSH203Bluetooth Stereo Headset

1—Check the package contents O F F 2—Charge the battery 3—Turn on the power 4—Pair with headset or audio dongle Unpack the Bluetooth Headset and check that the following items are included: The battery lasts eight hours and is re- charged using the power adapter or the USB cable. To recharge: Plug the USB cable into the DC jack on the Bluetooth Headset and connect the other end to your PC. or Plug the power adapter into the DC jack on the Bluetooth Headset and connect the other end to an electrical outlet. The Bluetooth Headset can be used with a Bluetooth A/V Transmitter or Bluetooth Audio Dongle. On fi rst use, the devices must be paired. To pair the devices. 1. Connect your transmitter to an audio device. 2. Turn on the power on your Bluetooth Headset. 3. Turn on the power on the transmitter. Recharging takes 90 minutes. OFF O F F Bluetooth A/V Transmitter or Bluetooth Audio Dongleor Bluetooth Audio Dongleor USB CableAudio Cable Quick GuidePower Adapter Bluetooth Headset To turn on the power, press and hold the power button until the power LED lights blue. To turn off the power, press and hold the power button until the power LED turns off. Blue LED power is on Blue fl ashing LED connected to device Red LED battery is charging, turns off when charged Red fl ashing LED battery is low, recharge before LED turns off Charging LED Battery low LED Power button Mute on/off DC jack Volume +/- Power/link LED Forward/Forward/ backward 5—Wait for devices to connect 90 seconds 7—Troubleshooting 8—Specifi cations The devices connect (pair) after 90 seconds. Serial number & Firmware version: StandardsBluetooth specifi cation V1.2 compliant. Bluetooth A2DP profi le (AV Profi le) Bluetooth AVRCP profi le Headset and Hand free Power save mode (power sleep mode). Frequency Band2402 ~ 2480 MHz Tx Power0.25 ~ 2.5mW (Bluetooth Power Class II) Rx Sensitivity< -80dBm (BER 0.1%) Distance> 10m (open space) Audio Streaming FormatSBC 48.000 kHz Audio Frequency Range20Hz ~ 22 kHz Audio S/N> 85dB Audio THD< -83dB Audio Output Power> 20mWrms Power supplySupply by integrated rechargeable battery cell. Music plays : > 5hrs. Physical Specifi cation:Dimension: 180x140x60(max), 98x72x75(min) Weight: 62 gm Environmental Range:Operating temperature:-10 ~ +50 degrees centigrade Humidity: Relative humidity 0 ~ 95% 6—Using with your mobile phone The Bluetooth Headset can be used with a Bluetooth-enabled mobile phone. To pair with your phone 1. Enable Bluetooth on your phone (refer to the phone’s user manual). 2. Turn on the headset. 3. In the phone’s Bluetooth menu, search for devices. 4. Select Stereo Headset. 5. Enter the passcode “0000”. Answering calls To answer a call, push the power button. To end a call, push the power button for three seconds. If the Bluetooth Headset does not work, try the following: - Ensure connecting devices are charged - Turn off all devices and then turn them on in the order shown in this guide - Ensure devices are within the 10-meter range ? Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Page 1 CONSTRUCTION PHOTOS OF EUT Chip Antenna Page 2 Page 3 PIFA Antenna Page 4

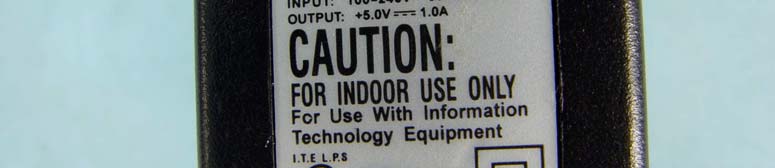

940518L08-M2FCC-I01 (2560x1920x16M jpeg)

Bluetooth Stereo Headset Model name : BSH203 FCC ID : MQ4BSH203

Page 5 Chip Antenna Page 6 Page 7 Page 8 Page 9 PIFA Antenna Page 10

FCC ID: MQ4BSH203 Report No.: RF940518L08 Operational Description The transmitter of the EUT (Bluetooth Stereo Headset) is powered by 5Vdc from AC Adapter or internal batteries. The antennas are Chip and PIFA antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. For more detailed instruction, please take a look at the user’s manual.

FCC ID: MQ4BSH203 Report No: SA940518L081 RF EXPOSURE REPORT REPORT NO.: SA940518L08 MODEL NO.: BSH203 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : AboCom Systems, Inc. ADDRESS : 1F, No.21, Yanfa 2nd Rd., SBIP, Hsinchu City 300, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: MQ4BSH203 Report No: SA940518L082 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: MQ4BSH203 Report No: SA940518L083 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: MQ4BSH203 Report No: SA940518L084 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power-0.790.834 EIRP Power0.211.050 *Note: The antenna is PIFA antenna with 1.00dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.050mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

FCC ID: MQ4BSH203 Report No.: RF940518L081Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940518L08 MODEL NO.: BSH203 RECEIVED: May 18, 2005 TESTED: May 30 ~ Jun. 02, 2005 ISSUED: Jun. 06, 2005 APPLICANT: AboCom Systems, Inc. ADDRESS: 1F, No. 21, Yanfa 2 nd Rd., SBIP, Hsinchu City 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 79 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: MQ4BSH203 Report No.: RF940518L082Report Format Version 2.0.2 TABLE OF CONTENTS 1CERTIFICATION ....................................................................................................... 4 2SUMMARY OF TEST RESULTS ............................................................................... 5 2.1MEASUREMENT UNCERTAINTY............................................................................. 5 3GENERAL INFORMATION........................................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .......................................................................... 6 3.2DESCRIPTION OF TEST MODES ............................................................................ 7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................... 11 3.4DESCRIPTION OF SUPPORT UNITS .................................................................... 11 4TEST PROCEDURES AND RESULTS ................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT .......................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................12 4.1.2TEST INSTRUMENTS.............................................................................................12 4.1.3TEST PROCEDURES .............................................................................................13 4.1.4DEVIATION FROM TEST STANDARD ...................................................................13 4.1.5TEST SETUP...........................................................................................................14 4.1.6EUT OPERATING CONDITIONS ............................................................................14 4.1.7TEST RESULTS ......................................................................................................15 4.2NUMBER OF HOPPING FREQUENCY USED ....................................................... 27 4.2.1LIMIT OF HOPPING FREQUENCY USED .............................................................27 4.2.2TEST INSTRUMENTS.............................................................................................27 4.2.3TEST PROCEDURES .............................................................................................28 4.2.4DEVIATION FROM TEST STANDARD ...................................................................28 4.2.5TEST SETUP...........................................................................................................29 4.2.6TEST RESULTS ......................................................................................................29 4.3DWELL TIME ON EACH CHANNEL ....................................................................... 31 4.3.1LIMIT OF DWELL TIME USED................................................................................31 4.3.2TEST INSTRUMENTS.............................................................................................31 4.3.3TEST PROCEDURES .............................................................................................32 4.3.4DEVIATION FROM TEST STANDARD ...................................................................32 4.3.5TEST SETUP...........................................................................................................32 4.3.6TEST RESULTS ......................................................................................................33 4.4CHANNEL BANDWIDTH ......................................................................................... 37 4.4.1LIMITS OF CHANNEL BANDWIDTH ......................................................................37 4.4.2TEST INSTRUMENTS.............................................................................................37 4.4.3TEST PROCEDURE................................................................................................38 4.4.4DEVIATION FROM TEST STANDARD ...................................................................38 4.4.5TEST SETUP...........................................................................................................38 4.4.6EUT OPERATING CONDITION ..............................................................................38 4.4.7TEST RESULTS ......................................................................................................39 4.5HOPPING CHANNEL SEPARATION ...................................................................... 42 FCC ID: MQ4BSH203 Report No.: RF940518L083Report Format Version 2.0.2 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION ......................................................42 4.5.2TEST INSTRUMENTS.............................................................................................42 4.5.3TEST PROCEDURES ............…

Text truncated - open the document above for the full version.

FCC ID: MQ4BSH203 Report No.: RF940518L0873Report Format Version 2.0.2 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode 3 FCC ID: MQ4BSH203 Report No.: RF940518L0874Report Format Version 2.0.2 Test Mode 4 FCC ID: MQ4BSH203 Report No.: RF940518L0875Report Format Version 2.0.2 RADIATED EMISSION TEST Test Mode 1 FCC ID: MQ4BSH203 Report No.: RF940518L0876Report Format Version 2.0.2 Test Mode 2 FCC ID: MQ4BSH203 Report No.: RF940518L0877Report Format Version 2.0.2 Test Mode 3 FCC ID: MQ4BSH203 Report No.: RF940518L0878Report Format Version 2.0.2 Test Mode 4
