MQ4FE2500A

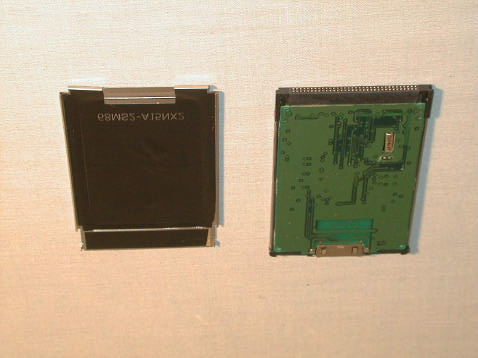

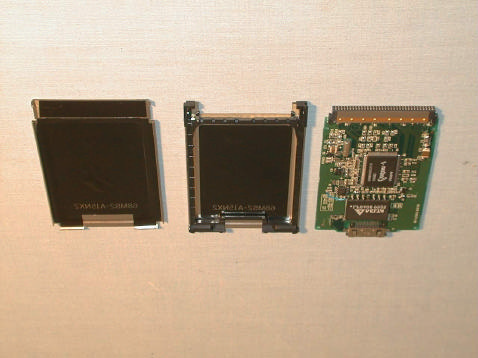

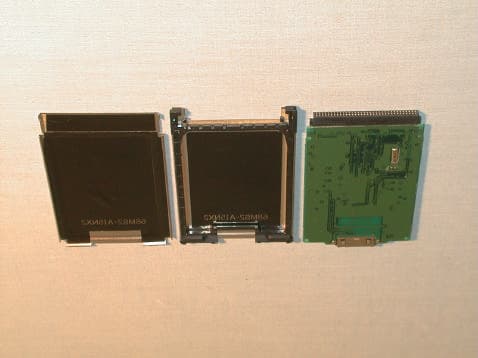

QuieTek Corporation Page: 1 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo (6) EUT Photo QuieTek Corporation Page: 4 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo

QuieTek Corporation Page: 1 of 16 Report No.: 99CH011FI Accredited Lab. of DNV, TUV,Nemko EMC Test Laboratory Rev.1 Test Report For Applicant : AboCom Systems, Inc. Equipment Type : 10/100 Cardbus PC Card Model : FE2500 FCC ID : MQ4FE2500A Report No. : 99CH011FI QuieTek Corporation Page: 2 of 16 Report No.: 99CH011FI Accredited Lab. of DNV, TUV,Nemko EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : 10/100 Cardbus PC Card Model : FE2500 FCC ID. : MQ4FE2500A Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : DC 3.3V Classification : Class B Test Result : Complied Test Date : December 13, 1999 Report No. : 99CH011FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Kim Hung Test Engineer: Jimmy Huang Approved: Gene Chang QuieTek Corporation Page: 3 of 16 Report No.: 99CH011FI Accredited Lab. of DNV, TUV,Nemko EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................8 1.4 EUT Exercise Software.......................................................................................................................................9 1.5 Test performed....................................................................................................................................................9 1.6 Test Facility......................................................................................................................................................10 2. CONDUCTED EMISSION.............................................................................................................................11 2.1 Test Equipment List...........................................................................................................................................11 2.2 Test Setup.........................................................................................................................................................11 2.3 Limits...............................................................................................................................................................11 2.4 Test Procedure...................................................................................................................................................12 2.5 Test Results.......................................................................................................................................................12 3. RADIATED EMISSION.................................................................................................................................13 3.1 Test Equipment.................................................................................................................................................13 3.2 Test Setup.........................................................................................................................................................13 3.3 Limits...............................................................................................................................................................14 3.4 Test Procedure...................................................................................................................................................14 3.5 Test Results.......................................................................................................................................................14 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................15 5. ATTACHMENT..............................................................................................................................................16 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 16 Report No.: 99CH011FI Accredited Lab. of DNV, TUV,Nemko EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : 10/100 Cardbus PC Card Model : FE2500 FCC ID : MQ4FE2500A Operation Voltage : DC 3.3V Remark : 1. The EUT is a 10/100 Cardbus PC Card in 10/100Mbps transmission speed. Both the transmission speed were tested respectively. 2. QuieTek had verified both construction and function in typical operation, then shown in this test report. QuieTek Corporation Page: 5 of 16 Report No.: 99CH011FI Accredited Lab. of DNV, TUV,Nemko EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: 1.2.1 Notebook PC Model Number :2640-70A Serial Number :97-6492R Manufa…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 9 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 1 : Summary of Test Results The test results in the emission were performed according to the requirements of measurement standard and process. QuieTek Corporation is assumed full responsibility for the accuracy and completeness of these measurements. The test data of the emission are listed as the attached data. All the tests were carried out with the EUT in normal operation, which was defined as: Mode 1: 10Mbps Mode 2: 100Mbps The EUT passed all the tests. The uncertainty is calculated in accordance with NAMAS NIS 81, The total uncertainty for this test is as follows: ÿÿ Emission Test • Uncertainty in the Conducted Emission Test: < ± 2.0 dB • Uncertainty in the field strength measured: < ± 4.0 dB QuieTek Corporation Page: 2 of 9 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 13, 1999 EUT : 10/100 Cardbus PC Card Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.155 0.00 0.10 46.59 46.69 65.75 0.258 0.03 0.10 36.75 36.88 61.51 0.990 0.10 0.10 27.65 27.85 56.00 *2.865 0.17 0.15 37.40 37.71 56.00 2.865 0.17 0.15 37.21 37.52 56.00 9.264 0.27 0.20 38.15 38.62 60.00 19.707 0.35 0.45 39.37 40.17 60.00 Average: 0.155 0.00 0.10 41.30 41.40 55.73 0.258 0.03 0.10 33.90 34.03 51.50 0.990 0.10 0.10 24.00 24.20 46.00 2.865 0.17 0.15 31.20 31.51 46.00 9.260 0.27 0.20 32.30 32.77 50.00 19.707 0.35 0.45 37.80 38.60 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 3 of 9 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 13, 1999 EUT : 10/100 Cardbus PC Card Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.161 0.00 0.10 44.08 44.18 65.41 0.209 0.02 0.10 43.35 43.47 63.23 0.313 0.04 0.10 35.00 35.14 59.90 *3.807 0.18 0.16 39.17 39.51 56.00 9.329 0.27 0.20 36.55 37.02 60.00 20.260 0.36 0.46 40.61 41.42 60.00 Average: 0.161 0.00 0.10 43.90 44.00 55.41 0.209 0.02 0.10 34.00 34.12 53.24 0.313 0.04 0.10 25.60 25.74 49.89 3.807 0.18 0.16 31.30 31.64 46.00 9.329 0.27 0.20 29.40 29.87 50.00 20.260 0.36 0.46 37.90 38.71 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 4 of 9 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 13, 1999 EUT : 10/100 Cardbus PC Card Test Mode : Mode 2 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.157 0.00 0.10 47.54 47.64 65.62 0.209 0.02 0.10 42.54 42.66 63.26 0.455 0.06 0.10 33.85 34.01 56.78 0.638 0.08 0.10 35.70 35.88 56.00 0.912 0.10 0.10 35.64 35.84 56.00 *2.869 0.17 0.15 40.54 40.85 56.00 Average: 0.157 0.00 0.10 40.30 40.40 55.62 0.209 0.02 0.10 32.90 33.02 53.24 0.455 0.06 0.10 32.90 33.06 46.78 0.638 0.08 0.10 34.90 35.08 46.00 0.912 0.10 0.10 34.70 34.90 46.00 2.869 0.17 0.15 27.10 27.41 46.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 5 of 9 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 13, 1999 EUT : 10/100 Cardbus PC Card Test Mode : Mode 2 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== *0.158 0.00 0.10 47.54 47.64 65.56 0.212 0.02 0.10 42.51 42.63 63.14 0.457 0.06 0.10 33.91 34.07 56.74 0.640 0.08 0.10 35.21 35.39 56.00 0.913 0.10 0.10 35.88 36.08 56.00 7.508 0.25 0.19 41.06 41.49 60.00 Average: 0.158 0.00 0.10 38.30 38.40 55.57 0.212 0.02 0.10 30.80 30.92 53.13 0.457 0.06 0.10 32.90 33.06 46.75 0.640 0.08 0.10 34.90 35.08 46.00 0.913 0.10 0.10 35.00 35.20 46.00 7.508 0.25 0.19 34.80 35.23 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 6 of 9 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 R ADIATED E MISSION D ATA Date of Test : December 13, 1999 EUT : 10/100 Cardbus PC Card Test Mode : Mode 1 Test Site : No.2 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Horizontal MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== 120.010 2.02 12.02 0.00 2.61 16.65 13.35 30.00 399 203 160.000 2.40 10.32 0.00 3.05 15.77 14.23 30.00 399 168 220.003 2.98 9.38 0.00 2.39 14.76 15.24 30.00 399 41 240.003 3.17 11.32 0.00 6.11 20.60 16.40 37.00 399 123 263.717 3.40 14.08 0.00 3.07 20.55 16.45 37.00 399 18 296.195 3.71 13.15 0.00 3.20 20.06 16.94 37.00 399 131 320.000 3.86 13.59 0.00 1.52 18.97 18.03 37.00 399 173 *400.003 4.28 15.85 0.00 5.43 25.56 11.44 37.00 336 88 480.003 4.69 17.00 0.00 3.24 24.93 12.07 37.00 336 117 526.985 4.93 17.56 0.00 1.85 24.34 12.66 37.00 198 19 Remarks: 1.All Readings below 1GHz are Quasi-Peak, above are average value. 2.“ * ”, means this data is the worst emission level. 3.Emission Level = Reading Level + Antenna Factor + Cable loss QuieTek Corporation Page: 7 of 9 FCC Report No.: 99CH011FI …

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) QuieTek Corporation Page: 3 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) QuieTek Corporation Page: 4 of 4 FCC Report No.: 99CH011FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2)
