MQ4FE2KVX10/100M Fast Ethernet CardBus PC Card

CardBus 10/100 Fast Ethernet PC Card User Manual CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of modems and other electronic equipment. FCC Part 68 Registration The high speed PC card FAX/MODEM is registered with the FCC as compliant with the rules of Part 68, and use of this modem is subject to the following restrictions: 1. The Federal Communication Commission FCC has established rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin phones. 2. If this device is malfunctioning, it may also be causing harm to he telephone network; this device should be disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service. 3. The telephone company may make changes in it’s facilities, equipment, operation and procedures; if such changes affect the compatibility or use of this device, the telephone company is required to give adequate notice of the with the FCC. 4. If the telephone company requests information on what equipment is connected to their lines, inform them of: a. The telephone number which this unit is connected to b. The ringer equivalence number. c. The USOC jack required. d. The FCC Registration number. Items (b) and (d) are indicated on the label. The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the REN’s of all the devices on any one line should not exceed 5.0. If too many devices are attached, they may not ring properly. FCC Part 15 Registration This modem complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) this device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult an experienced radio/TV technician for help. CTR 21 pan-European Certification This equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems, you should contact your equipment supplier in the first instance. This device is designed to work with the notified networks in all EC member states. Nevertheless, some of the network services in invidual countries might not be supported, but they will not affect the normal data and fax applications. For example, the metering charge service in Germany. Besides you may encounter difficulty of using PULSE dialing function in some of the countries, such as Nordic countries. This kind of network compatibility is dependent on the physical and software settings of this device. If the users are desired to use this device on those networks, they should contact the vendor or supplier first. Table of Contents CTR 21 PAN -E UROPEAN C ERTIFICATION ...............3 T ABLE OF C ONTENTS .............................................1 ABOUT THIS MANUAL.......................................1 System Requirements.........................................1 O PERATING E NVIRONMENTS .................................2 INTRODUCTION TO CARDBUS........................3 HARDWARE INSTALLATION...........................5 Inserting the CardBus Dual-Speed PC Card....5 Removing the CardBus Dual-Speed PC Card...5 Connecting to the Network................................6 LED Indicators..................................................7 SOFTWARE INSTALLATION............................8 Windows 95 Installation....................................8 D ETERMINING THE V ERSION OF W INDOWS 95......9 Native Windows 95..........................................10 OSR2 Windows 95 and Later..........................12 Windows 98/ME Installation...........................13 Windows 2000 Installation..............................16 Windows NT 4.0 Installation...........................19 Windows NT 3.5x Installation.........................20 DOS Mode Installation....................................21 M ENU I NSTALLATION ...........................................21 Novell Client Installation................................24 QUESTIONS & ANSWERS................................27 SPECIFICATIONS...............................................30 ABOUT THIS MANUAL This manual will explain how to install and use your 10/100Mbps dual speeds Fast Ethe…

Text truncated - open the document above for the full version.

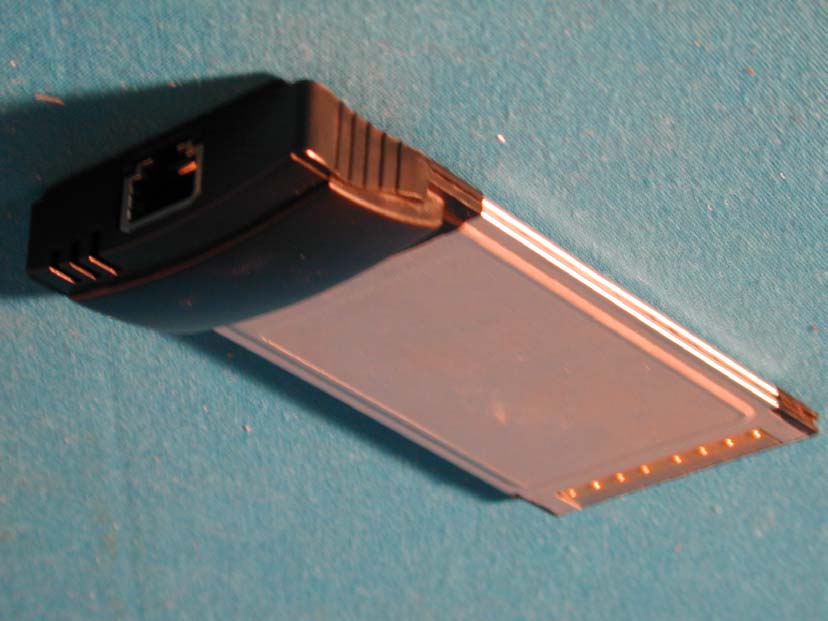

Report No.: 017H032FI Page : 1 of 1 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

AboCom FCC ID.: MQ4FE2KVX 1F, No. 21, R&D Road II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886 3 578-9090 Fax: 886 3 578-9520 FCC ID Label Sample 10/100M Fast Ethernet CardBus PC Card Model No.: FE2000VX, FL-FE2500MX, LCS- 8539TX, TE100-PCBUSR, DFE-680TXD, PN672TX, DRU-E100, DSB-650TX F F C C C C I I D D : : M M Q Q 4 4 F F E E 2 2 K K V V X X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

AboCom FCC ID.: MQ4FE2KVX 1F, No. 21, R&D Road II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886 3 578-9090 Fax: 886 3 578-9520 FCC ID The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 017H032FI Page : 1 of 3 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo Report No.: 017H032FI Page : 2 of 3 Version : 1.0 (2) EUT Photo Report No.: 017H032FI Page : 3 of 3 Version : 1.0 (3) EUT Photo

Report No. 017H032FI Page : 1 of 21 Version:1.0 Test Report Product Name : 10/100M Fast Ethernet CardBus PC Card Model No. : FE2000VX, FL-FE2500MX, LCS-8539TX, TE100-PCBUSR, DFE-680TXD, PN672TX FCC ID.: MQ4FE2KVX Applicant : AboCom Systems, Inc. Address : 1F, No. 21, R & D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : July 11, 2001 Date of Test : July 25, 2001 Report No. : 017H032FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 017H032FI Page : 3 of 21 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description ..........................................................................................................................................4 1.2. Tested System Details..................................................................................................................................5 1.3. Configuration of tested System ....................................................................................................................5 1.4. EUT Exercise Software................................................................................................................................7 1.5. Test Facility..................................................................................................................................................7 2. Conducted Emission....................................................................................................................8 2.1. Test Equipment List .....................................................................................................................................8 2.2. Test Setup .....................................................................................................................................................8 2.3. Limits ...........................................................................................................................................................9 2.4. Test Procedure..............................................................................................................................................9 2.5. Test Result....................................................................................................................................................9 3. Radiated Emission .....................................................................................................................10 3.1. Test Equipment ..........................................................................................................................................10 3.2. Test Setup ...................................................................................................................................................10 3.3. Limits .........................................................................................................................................................11 3.4. Test Procedure............................................................................................................................................11 3.5. Test Result..................................................................................................................................................11 4. EMI Reduction Method During Compliance Testing ............................................................12 5. Summary of Test Datas .............................................................................................................13 5.1. Test Data of Conducted Emission ..............................................................................................................14 5.2. Test Data of Radiated Emission .................................................................................................................18 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Reference : Laboratory of License Report No. 017H032FI Page : 4 of 21 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : 10/100M Fast Ethernet CardBus PC Card Trade Name : AboCom FCC ID. : MQ4FE2KVX Model No. : FE2000VX, FL-FE2500MX, LCS-8539TX, TE100-PCBUSR, DFE-680TXD, PN672TX Transfer Speed 10Mbps/100Mbps Note: 1. This EUT is a 10/100M Fast Ethernet CardBus PC Card. 1. Regards to the of the different construction EUT. The model name were shown in the table following: Model Number Company FE2000VX AboCom Systems, Inc. FL-FE2500MX ABC COMPUTER HANDELS GMBH LCS-8539TX LONGSHINE THCHNOLOGIE EUROPE GMBH TE100-PCBUSR TRENDWare International DFE-680TXD D-Link Corporation PN672TX Hawking Technology 2. QuieTek has verified all construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: Conducted Test Mode 1: 10Mbps Mode 2: 100Mbps Radiated Test Mode 1: 10Mbps Mode 2: 100Mbps Report No. 017H032FI Page : 5 of 21 Version:1.0 1.2. Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: Product Manufacturer Model No. Serial No. FCC ID (1) Notebook IBM Think Pad 570 27L8835 DoC (2) Monitor HITACHI CM752ET-311 T8E004439 DoC (3) Printer HP C2642A MY75L1D2XN B94C2642X (4) USB Mouse Logitech M-UE55 LTC93813273 DoC (5) Speaker JS J-009 97-C-019799-T DoC (6) Mouse IBM M-SAU-IBM6 23-022675 JNZ211220 (7) USB Video Camera Mustek Vcam 3X N/A DoC (8) Joystick Logitech 863132-0000 AE83700069 DZLBATMAN (9) Earphone BSD N/A N/A DoC (10) Microphone AIWA CD-8000 N/A DoC (11) Walkman TOBISHI TB-21984 N/A DoC (12) Modem ACEEX 1414 980033034 IFAXDM…

Text truncated - open the document above for the full version.

Report No.: 017H032FI Page : 1 of 4 Version:1.0 Attachment 1 : EUT Test Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) Report No.: 017H032FI Page : 2 of 4 Version:1.0 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) Report No.: 017H032FI Page : 3 of 4 Version:1.0 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) Report No.: 017H032FI Page : 4 of 4 Version:1.0 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2)
