MQ4HF1000BPhoneline & Ethernet PC LAN Network Card

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 July 16, 2000 QTK2000-F025 731 Confirmation Number: EA98202 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Certification of Class B Computing Peripheral Phoneline Network & Ethernet PC LAN Card / FCC ID: MQ4HF1000B Gentlemen: Enclosed, please find Abocom Systems Inc.’s application for equipment authorization dated July 16, 2000. The subject device is in compliance with Part 15, Subpart B of the FCC Rules. The subject device is a 1M Phoneline Network and 10/100M Ethernet PC Local Area Network Card for insertion into host computer’s PC Card slot. This card is provided with interface adaptor with RJ-11 and RJ-45 connectors for connection to the telephone network and home LAN network. The card is HomePNA, Ethernet 10-Base-T and 100Base-TX compatible with IEEE802.3 and 802.3u standards that support 1, 10 and 100Mbps data rate in full duplex mode. This EUT was network system tested with representative transmission and reception speed set at 1, 10 and 100 Mbps. Tests were performed in ANSI C63.4-1992 to show compliance with CISPR-22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Group Manager Safety & Compliance Consulting

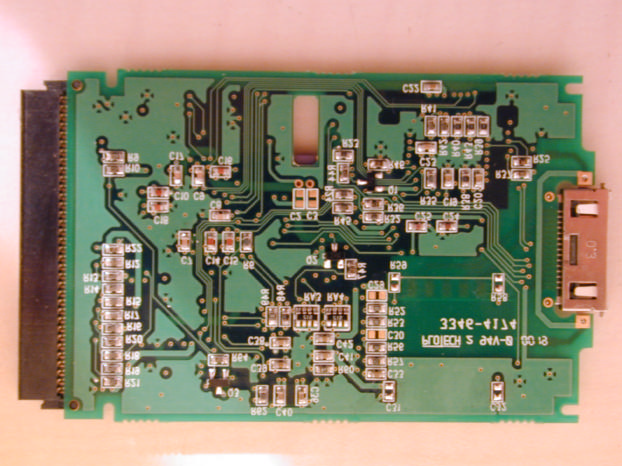

QuieTek Corporation Page: 1 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo QuieTek Corporation Page: 4 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (6) EUT Photo QuieTek Corporation Page: 5 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo QuieTek Corporation Page: 6 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (8) EUT Photo (9) EUT Photo QuieTek Corporation Page: 7 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (10) EUT Photo QuieTek Corporation Page: 8 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (11) EUT Photo QuieTek Corporation Page: 9 of 9 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (12) EUT Photo

QuieTek Corporation Page: 1 of 17 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : AboCom Systems, Inc. Equipment Type : 10/100M Fast Ethernet 1M PhoneLine Home Network PC Card Model : HF1000B FCC ID : MQ4HF1000B Report No. : 005H074FI QuieTek Corporation Page: 2 of 17 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : 10/100M Fast Ethernet 1M PhoneLine Home Network PC Card Model : HF1000B FCC ID. : MQ4HF1000B Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : DC 5V Classification : Class B Test Result : Complied Test Date : May 23, 2000 Report No. : 005H074FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Shelly Fan Test Engineer: Calien Kang Approved: Kevin Wang QuieTek Corporation Page: 3 of 17 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.............................................................................................................4 1.1 EUT Description................................................................................................................................4 1.2 Tested System Details.........................................................................................................................5 1.3 EUT Configuration.............................................................................................................................5 1.4 EUT Exercise Software.....................................................................................................................10 1.5 Test performed.................................................................................................................................10 1.6 Test Facility....................................................................................................................................11 2. CONDUCTED EMISSION..............................................................................................................12 2.1 Test Equipment List..........................................................................................................................12 2.2 Test Setup.......................................................................................................................................12 2.3 Limits............................................................................................................................................12 2.4 Test Procedure.................................................................................................................................13 2.5 Test Results.....................................................................................................................................13 3. RADIATED EMISSION..................................................................................................................14 3.1 Test Equipment................................................................................................................................14 3.2 Test Setup.......................................................................................................................................14 3.3 Limits............................................................................................................................................15 3.4 Test Procedure.................................................................................................................................15 3.5 Test Results.....................................................................................................................................15 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING...................................................16 5. ATTACHMENT.............................................................................................................................17 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 17 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science- Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : 10/100M Fast Ethernet 1M PhoneLine Home Network PC Card Model : HF1000B FCC ID : MQ4HF1000B Operation Voltage : DC 5V MAU : Non-Shielded, 0.15m Remark : 1. The EUT is an 10/100M Fast Ethernet 1M PhoneLine Home Network PC Card. 2. The EUT have one PCMCIA port, one LAN port and two HomePNA ports. 3. QuieTek had verified the construction and function in typical operation, then shown in this test report. QuieTek Corporation Page: 5 of 17 FCC Report No.: 005H074FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: 1.2.1 Notebook Model Number : Think Pad 570 Manufacturer : IBM Serial Number : 27L8835 FCC ID : DoC Ethernet PC Card (EUT) : AboCom, HF1000B MAU: Non…
