MQ4LA100BEthernet PC LAN Card

Letter01.TIF Letter02.TIF

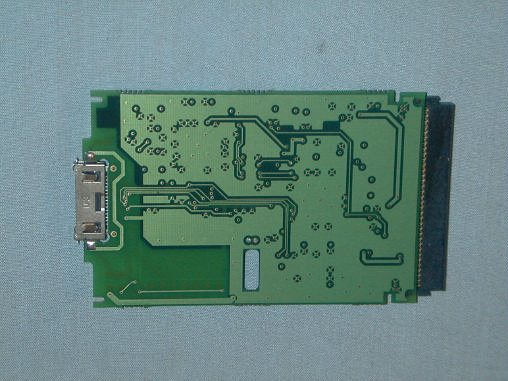

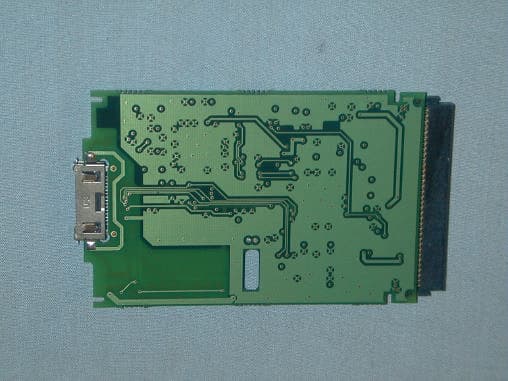

QuieTek Corporation Page: 1 of 3 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detail Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 3 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 3 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo

LABEL.TIF

QuieTek Corporation Page: 1 of 16 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : AboCom Systems, Inc. Equipment Type : 10/100 Fast Ethernet PC Card Model : LA100 Rev.B1, corega FEther PCC-TXF, LA100-PCM-T V2 FCC ID : MQ4LA100B Report No. : 002H029FI QuieTek Corporation Page: 2 of 16 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : 10/100 Fast Ethernet PC Card Model : LA100 Rev.B1, corega FEther PCC-TXF, LA100-PCM-T V2 FCC ID. : MQ4LA100B Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : DC 5V Classification : Class B Test Result : Complied Test Date : February 21, 2000 Report No. : 002H029FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Erin Lan Test Engineer: Sean Chang Approved: Gene Chang QuieTek Corporation Page: 3 of 16 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................7 1.4 EUT Exercise Software.......................................................................................................................................9 1.5 Test performed....................................................................................................................................................9 1.6 Test Facility......................................................................................................................................................10 2. CONDUCTED EMISSION.............................................................................................................................11 2.1 Test Equipment List...........................................................................................................................................11 2.2 Test Setup.........................................................................................................................................................11 2.3 Limits...............................................................................................................................................................11 2.4 Test Procedure...................................................................................................................................................12 2.5 Test Results.......................................................................................................................................................12 3. RADIATED EMISSION.................................................................................................................................13 3.1 Test Equipment.................................................................................................................................................13 3.2 Test Setup.........................................................................................................................................................13 3.3 Limits...............................................................................................................................................................14 3.4 Test Procedure...................................................................................................................................................14 3.5 Test Results.......................................................................................................................................................14 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................15 5. ATTACHMENT..............................................................................................................................................16 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 16 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : 10/100 Fast Ethernet PC Card Model : LA100 Rev.B1, corega FEther PCC-TXF, LA100-PCM-T V2 FCC ID : MQ4LA100B Operation Voltage : DC 5V Remark : 1. The EUT is a 10/100 Fast Ethernet PC Card, the EUT for each model is identical. The different of model name are for different company shown as below, 1) corega Fether PCC-TXF for corega K.K.(JAPAN) 2) LA100-PCM-T V2 for Allied Telesis K.K.(JAPAN) 2. QuieTek had verified both construction and function in typi…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 1 : Summary of Test Results The test results in the emission were performed according to the requirements of measurement standard and process. QuieTek Corporation is assumed full responsibility for the accuracy and completeness of these measurements. The test data of the emission are listed as the attached data. All the tests were carried out with the EUT in normal operation, which was defined as: Mode 1 : 100Mbps Mode 2 : 10Mbps The EUT passed all the tests. The uncertainty is calculated in accordance with NAMAS NIS 81, The total uncertainty for this test is as follows: ÿ Emission Test • Uncertainty in the Conducted Emission Test: < ± 2.0 dB • Uncertainty in the field strength measured: < ± 4.0 dB QuieTek Corporation Page: 2 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : February 29, 2000 EUT : Fast Ethernet PC Card Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== * 0.177 0.01 0.10 50.20 50.31 64.64 0.295 0.04 0.10 37.97 38.11 60.38 0.413 0.05 0.10 33.70 33.85 57.60 0.530 0.07 0.10 32.87 33.04 56.00 0.710 0.08 0.10 29.83 30.01 56.00 4.780 0.20 0.17 30.88 31.24 56.00 Average: 0.176 0.01 0.10 42.10 42.21 54.67 0.295 0.04 0.10 28.10 28.24 50.38 0.412 0.05 0.10 30.80 30.95 47.61 0.530 0.07 0.10 31.50 31.67 46.00 0.710 0.08 0.10 28.50 28.68 46.00 4.780 0.20 0.17 27.00 27.36 46.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 3 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : February 29, 2000 EUT : Fast Ethernet PC Card Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== * 0.177 0.01 0.10 48.80 48.91 64.64 0.236 0.02 0.10 40.23 40.35 62.23 0.296 0.04 0.10 35.29 35.43 60.36 0.533 0.07 0.10 30.56 30.73 56.00 1.475 0.12 0.12 32.12 32.36 56.00 4.897 0.20 0.17 34.35 34.72 56.00 Average: 0.176 0.01 0.10 41.90 42.01 54.67 0.236 0.02 0.10 33.60 33.72 52.24 0.296 0.04 0.10 27.90 28.04 50.35 0.532 0.07 0.10 29.90 30.07 46.00 1.475 0.12 0.12 31.60 31.84 46.00 4.897 0.20 0.17 27.40 27.77 46.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 4 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : February 29, 2000 EUT : Fast Ethernet PC Card Test Mode : Mode 2 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== * 0.175 0.01 0.10 51.00 51.11 64.71 0.236 0.02 0.10 41.94 42.06 62.24 0.353 0.05 0.10 37.73 37.88 58.89 0.529 0.07 0.10 32.75 32.92 56.00 2.002 0.14 0.13 31.67 31.94 56.00 20.002 0.35 0.45 44.19 45.00 60.00 Average: 0.175 0.01 0.10 42.90 43.01 54.72 0.236 0.02 0.10 35.90 36.02 52.24 0.353 0.05 0.10 30.40 30.55 48.89 0.529 0.07 0.10 31.20 31.37 46.00 2.001 0.14 0.13 29.60 29.87 46.00 20.001 0.35 0.45 33.50 34.31 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 5 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : February 29, 2000 EUT : Fast Ethernet PC Card Test Mode : Mode 2 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.175 0.01 0.10 48.91 49.02 64.73 0.235 0.02 0.10 40.65 40.77 62.29 0.526 0.07 0.10 26.81 26.98 56.00 2.591 0.16 0.14 32.68 32.98 56.00 3.771 0.18 0.16 33.33 33.67 56.00 * 20.002 0.35 0.45 43.87 44.68 60.00 Average: 0.175 0.01 0.10 41.80 41.91 54.72 0.235 0.02 0.10 33.90 34.02 52.27 0.526 0.07 0.10 25.80 25.97 46.00 2.591 0.16 0.14 31.30 31.60 46.00 3.771 0.18 0.16 28.30 28.64 46.00 20.001 0.35 0.45 33.10 33.91 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 6 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : February 29, 2000 EUT Fast Ethernet PC Card Test Mode : Mode 1 Test Site No.2 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Horizontal MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== 75.000 1.58 6.83 0.00 6.59 15.00 15.00 30.00 401 46 125.000 2.07 11.49 0.00 7.35 20.91 9.09 30.00 401 85 150.000 2.31 10.43 0.00 6.37 19.11 10.89 30.00 401 104 200.000 2.78 9.30 0.00 13.66 25.74 4.26 30.00 401 97 *225.000 3.03 9.83 0.00 13.52 26.38 3.62 30.00 401 94 250.000 3.27 12.61 0.00 12.48 28.36 8.64 37.00 401 93 Remarks: 1.All Readings below 1GHz are Quasi-Peak, above are average value. 2.“ * ”, means this data is the worst emission level. 3.Emission Level = Reading Level + Antenna Factor + Cable loss QuieTek Corporation Page: 7 of 9 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : February 29, 2000 EUT Fast Ethernet PC Card Test Mode : Mode 1 Test Site No.2 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 4 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 4 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) QuieTek Corporation Page: 3 of 4 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) QuieTek Corporation Page: 4 of 4 FCC Report No.: 002H029FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2)
