MQ4MR1KDigital Media Adapter

-- 1 Copyright This publication, including all photographs, illustrations and software, is protected under interna- tional copyright laws, with all rights reserved. Neither this manual, nor any of the material con- tained herein, may be reproduced without written consent of the author. Copyright 2005 Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark recognition Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and a shielded AC power cable must be employed with this equip- ment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment. 2 -- Declaration of conformity This device complies with part 15 of the FCC rules. Operation is subject to the following condi- tions: •This device may not cause harmful interference, and •This device must accept any interference received, including interference that may cause undesired operation. About this manual This manual provides information for setting up and configuring the DMA. This manual is intended for home users. Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. CAUTION: 1) To comply with FCC RF exposure compliance requirements, a separation distance of at least 2…

Text truncated - open the document above for the full version.

Exploring the DMA Menus -- 27 Use the up/down arrow buttons to select items in the menu. Use the left/right arrow buttons to move to the next menu. T HE ALBUM MENU Select album in the list by pressing ENTER. Photo Press the up/down arrow buttons to select the Photo sub-menus. Album Press ENTER and the up/down arrow buttons to select albums. Playlist Press ENTER and the up/down but- tons to select playlists. All photos Press ENTER and the up/down arrow buttons to select photos. 28 -- Exploring the DMA Menus THE PLAYLIST MENU Select playlist in the list by pressing ENTER. THE ALL PHOTOS MENU Select in the list by pressing ENTER. Exploring the DMA Menus -- 29 The SERVER Menu Use the left/right arrow buttons on the remote control to select SERVER. The SERVER Menu opens. Use the up/down arrow buttons to select items in the menu. Use the left/right arrow buttons to move to the next menu. Server Press the up/down arrow buttons to select the Server sub-menus. Shared folders Press ENTER button and the up/down arrow buttons to select the shared data. 30 -- Exploring the DMA Menus THE SHARED FOLDERS MENU Select shared folders in the list by pressing ENTER. The USB Menu Use the left/right arrow buttons on the remote control to select USB. The USB Menu opens. Exploring the DMA Menus -- 31 Use the up/down arrow buttons to select items in the menu. Use the left/right arrow buttons to move to the next menu. The OPTION Menu Use the left/right arrow buttons on the remote control to select OPTION. The OPTION Menu opens. Use the up/down arrow buttons to select items in the menu. Use the left/right arrow buttons to move to the next menu. ED Question: 2. Please provide us an instruction of how to set up for Wireless LAN settings and Wired LAN settings. USB Press the up/down arrow buttons to select the USB sub-menus. USB disk Press ENTER and up/down arrow but- tons to select the data from the USB disk. OPTION Press the up/down arrow buttons to select the OPTION sub-menus. 32 -- Exploring the DMA Menus Wired LAN settings Press ENTER to select as following: Get IP Address: Press ENTER and the up/down arrow buttons to select YES or NO. Wireless LAN set- tings Press ENTER to select as following: Use of Wireless LAN: Press ENTER and the up/down arrow buttons to select YES or NO. Mode: Press ENTER and the up/down arrow buttons to select Through access point or Ad hoc. Wireless LAN type: Press ENTER and the up/down arrow buttons to select 802.11g/b. SSID: Press ENTER to input the new name (a keyboard pops up on your screen). Encryption type: Press ENTER and the left/right arrow buttons to select None or WEP. IP address settings : Press ENTER and select Get IP Address by pressing ENTER and the up/down arrow but- tons to select YES or NO. TV settings Press ENTER and the up/down arrow buttons to select as following: TV type: Press ENTER and the up/ down arrow buttons to select Standard Definition TV or High Definition TV. Screen size : Press ENTER and the up/ down buttons to select 4:3 or 16:9. Language setting Press ENTER and the left/right arrow buttons to select Japanese or English. Exploring the DMA Menus -- 33 THE WIRED LAN SETTINGS MENU THE GET IP ADDRESS Select YES, or NO to change the setting. Reset the settings Press ENTER and the left/right arrow buttons to select RESET or CAN- CEL. Software update Press ENTER and the up/down arrow buttons to select Update through Internet or Update through USB. 34 -- Exploring the DMA Menus THE WIRELESS LAN SETTINGS MENU THE USE OF WIRELESS LAN Select YES, or NO to change the setting. THE MODE Select Through access point or Ad hoc to change the setting. Exploring the DMA Menus -- 35 T HE WIRELESS LAN TYPE Select 802.11g/b to change the setting. THE SSID MENU Select SSID to input a new name. 36 -- Exploring the DMA Menus T HE ENCRYPTION TYPE MENU Select None or WEP to change the setting. THE IP ADDRESS SETTINGS Select IP address settings > Get IP address > YES or NO to change the IP address settings. Exploring the DMA Menus -- 37 THE TV SETTINGS MENU THE TV TYPE Select Standard Definition TV or High Definition TV to change TV type. THE SCREEN SIZE Select 4:3 or 16:9 to change screen size. 38 -- Exploring the DMA Menus THE LANGUAGE SETTINGS MENU Select Japanese or English to change language. THE RESET THE SETTINGS MENU Select RESET to change the setting. Exploring the DMA Menus -- 39 THE SOFTWARE SETTING MENU Select Update through Internet or Update through USB to update software. 40 -- Exploring the DMA Menus OPERATION This section covers the following topics: •“Power on” on page 41 •“Language Settings” on page 41 •“TV Settings” on page 42 •“Start DiXiM Media” on page 42 •“View data source and change settings” on page 43 Power on Power on the DMA, the main menu shows up on your TV. Select Options on the screen and select Wired LAN settings to confirm the DMA obtain a IP from the router. If the IP is not obtained, check the cable connection or reboot the DMA. Language Settings Select OPTION icon from the main menu, and click Language setting. Select Japanese or English and click OK to finish setting. 42 -- Operation TV Settings Select OPTION icon from the main menu, and click TV settings. Select 4:3 or 16:9, click OK to finish setting. Start DiXiM Media 1. Click Start→Programs→DigiOn→DiXiM Media Server Tool to start the program. Operation -- 43 2. Add folders that you would like to share from the PC. 3. Get the shared folders activate so the shared folders can be viewed on the screen. 4. Give a name to the shared folders. 5. Add new support files to support your photos, music, or videos, if required. View data source and change settings VIDEO 1. Click Video icon from the main menu. 2. Select Album, Genre, Playlist, or All Videos to view video albums, genre, video playlists, or all videos. Note: Video playlist setting - Select a video file, then press the MENU button. The tool bar menu opens, select register as playlist to save your selection in the playlist. 44 -- Operation MUS…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 22, 2005 RE: FCC ID: MQ4MR1K_ATCB002527 Attention: Jason Chen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. FCC 1. Please note that the internal photos show copper tape on several sections. There is no indication in the report if this is an engineering modification for compliance reason or if this is a manufacturer installed modification. Please explain. Please provide a statement from the manufacturer that this copper tape will be on all devices manufactured. 2. Please note that your report references ANSI C63.4 2001. Please note that this is an incorrect reference as the FCC requires the use of ANSI C63.4 2003. Please confirm that all testing meets the requirements of ANSI C63.4 and please correct all references in the FCC report to reflect ANSI C63.4 2003. 3. Please explain why the fundamental emissions is being compared to the restricted band limits on pages 8 through 13 of the report 2 and pages 1 through 6 of report 3. 4. Please note that your MPE calculations are incorrect. Please note that with a 15.09dBm conducted power and a 2 dBi gain antenna the S at 20cm would be 0.01mw/cm6^2, not 0.005mw/cm^2. Please recalculate and provide a corrected MPE report. 5. Please note that page 25 of manual 2 indicates that the device can operate on non-US frequencies (i.e. operation between 2.412-2.497GHz.). Please provide evidence that the user of this device as sold in the US cannot select a non-US frequency (i.e. please show compliance to 15.15(b). Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Statement Federal Communications Commission To whom it may concern, We, AboCom Systems, Inc., have done some modifications during testing the product of FCC ID: MQ4MR1K and we hereby declare that this modification will be implemented in the final product. Signature: ____________________________ Name: Jason Chen Title: MIP RD Applicant: AboCom Systems, Inc. Address: 1F, No. 21, Yanfa 2 nd Rd., SBIP, HsinChu City 300, Taiwan, R. O. C. Tel: +886-3-578-9090 Fax: +886-3-578-9520

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 1 of 9 FCC Test Report: FI05031802-A Appendix A. Photographs of EUT 05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 2 of 9 FCC Test Report: FI05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 3 of 9 FCC Test Report: FI05031802-A 05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 4 of 9 FCC Test Report: FI05031802-A 05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 5 of 9 FCC Test Report: FI05031802-A 05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 6 of 9 FCC Test Report: FI05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 7 of 9 FCC Test Report: FI05031802-A 05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 8 of 9 FCC Test Report: FI05031802-A 05031802-A 05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 18, 2005 9 of 9 FCC Test Report: FI05031802-A 05031802-A 05031802-A

60.3mm 40.2mm AboCom Digital Media Adapter FCC ID: MQ4MR1K Rating: 5V DC, 2.4A Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Made in Taiwan This device complies with part 15 FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that cause undesired operations. Model: MR1000

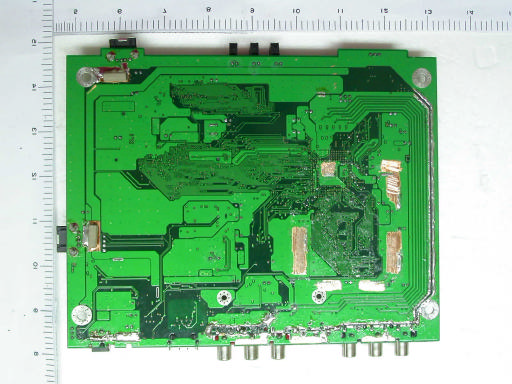

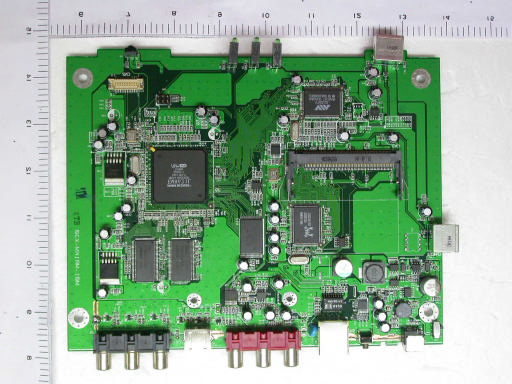

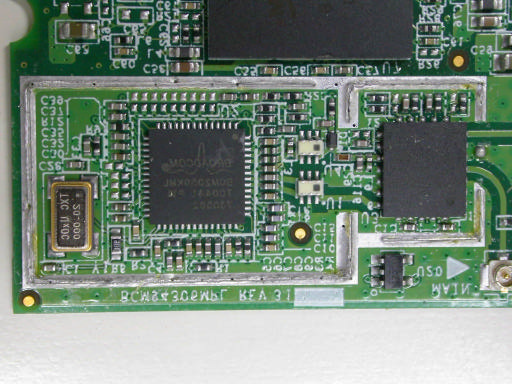

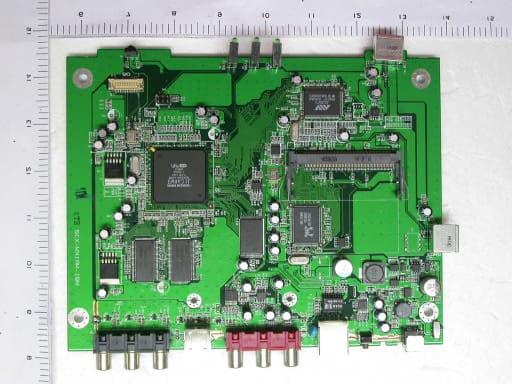

Internal Photos

1.1. Test Result of RF Exposure Evaluation . Product: Digital Media Adapter . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Apr. 21, 2005 Temperature: 25 Humidity: 69 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 15.08 0.0100 06 2437 15.09 0.0100 11 2462 14.94 0.0100 Modulation Standard: IEEE 802.11g Test Date: Apr. 21, 2005 Temperature: 25 Humidity: 69 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.75 0.0090 06 2437 14.48 0.0090 11 2462 14.69 0.0090 The MPE is calculated as 0.0100 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 1 of 66 FCC Test Report: FI05031802-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory accreditation 1332 † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant AboCom Systems, Inc. Address 1F, No.21, R&D Rd ll, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Equipment Digital Media Adapter Model No. MR1000 FCC ID MQ4MR1K Trade Name AboCom Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 2 of 66 FCC Test Report: FI05031802-A CONTENTS CERTIFICATE OF COMPLIANCE.......................................................................................................4 1. Report of Measurements and Examinations.............................................................................5 1.1. List of Measurements and Examinations............................................................................5 2. Test Configuration of Equipment under Test............................................................................6 2.1. Feature of Equipment under Test.......................................................................................6 2.2. RF Module Specifications..................................................................................................7 2.3. Test Mode and Test Software.............................................................................................7 2.4. Description of Test System................................................................................................7 2.5. Connection Diagram of Test System..................................................................................8 2.6. General Information of Test...............................................................................................9 2.7. History of this test report...................................................................................................9 3. Antenna Requirements...........................................................................................................10 3.1. Standard Applicable........................................................................................................10 3.2. Antenna Construction and Directional Gain......................................................................10 4. Test of Conducted Emission....................................................................................................11 4.1. Test Limit........................................................................................................................11 4.2. Test Procedures..............................................................................................................11 4.3. Typical Test Setup..........................................................................................................12 4.4. Measurement equipment.................................................................................................12 4.5. Test Result and Data.......................................................................................................13 5. Test of Radiated Emission......................................................................................................26 5.1. Test Limit.......................................................................................................................26 5.2. Test Procedures.............................................................................................................27 5.3. Typical Test Setup...........................................................................................................28 5.4. Measurement equipment.................................................................................................28 5.5. Test Result and Data.......................................................................................................29 6dB Bandwidth Measurement Data.................................................................................................46 5.6. Test Limit........................................................................................................................46 5.7. Test Procedures..............................................................................................................46 5.8. Test Setup Layout...........................................................................................................46 5.9. Measurement equipment.................................................................................................46 5.10. Test Result and Data.......................................................................................................46 6. Maximum Peak Output Power.................................................................................................50 6.1. Test Limit........................................................................................................................50 6.2. Test Procedures..............................................................................................................50 6.3. Test Setup Layout...........................................................................................................50 6.4. List of Measuring Equipment Used...................................................................................50 6.5. Test Result and Data.......................................................................................................50 7. Band Edges Measurement..................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06 , 2005 26 of 66 FCC Test Report: FI05031802-A 5. Test of Radiated Emission 5.1. Test Limit Radiated emissions from 30 MHz to 25 GHz were measured according to the methods defines in ANSI C63.4-2003. The EUT was placed, 0.8 meter above the ground plane, as shown in section 5.6.3. The interface cables and equipment positions were varied within limits of reasonable applications to determine the positions producing maximum radiated emissions For unintentional device, according to § 15.109(a), except for Class A digital devices, the field strength of radiated emissions from unintentional radiators at a distance of 3 meters shall not exceed the following values: Frequency (MHz) Distance Meters Radiated (μ V / M) Radiated (dB μ V/ M) 30-88 3 100 40.0 88-216 3 150 43.5 216-960 3 200 46.0 Above 960 3 500 54.0 For unintentional device, according to CISPR PUB.22, for Class B digital devices, the general requirement of field strength of radiated emissions from intentional radiators at a distance of 10 meters shall not exceed the above table. Frequency (MHz) Distance Meters Radiated (dB μ V/ M) 30-230 10 30 230-1000 10 37 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 27 of 66 FCC Test Report: FI05031802-A 5.2. Test Procedures 1. The EUT was placed on a rotatable table top 0.8 meter above ground. 2. The EUT was set 3 meters from the interference receiving antenna which was mounted on the top of a variable height antenna tower. 3. The table was rotated 360 degrees to determine the position of the highest radiation. 4. The antenna is a broadband antenna and its height is varied between one meter and four meters above ground to find the maximum value of the field strength both horizontal polarization and vertical polarization of the antenna are set to make the measurement. 5. For each suspected emission the EUT was arranged to its worst case and then tune the antenna tower (from 1 M to 4 M) and turn table (from 0 degree to 360 degrees) to find the maximum reading. 6. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function and specified bandwidth with Maximum Hold Mode. 7. If the emission level of the EUT in peak mode was 3 dB lower than the limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method and reported. 8. For testing above 1GHz, the emission level of the EUT in peak mode was 20dB lower than average limit (that means the emission level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 28 of 66 FCC Test Report: FI05031802-A 5.3. Typical Test Setup 5.4. Measurement equipment Instrument/Ancillary Type Manufacturer Valid Date EMI Receiver 8546A HP 2006/04/13 Spectrum Analyzer FSP40 R&S 2005/12/28 Horn Antenna 3115 EMCO 2006/02/21 Horn Antenna 3116 EMCO 2006/02/21 Bilog Antenna CBL6112B Schaffner 2006/04/12 Amplifier 8447D Agilent 2005/06/30 Amplifier 8449B Agilent 2005/12/27 Turn Table 0.8M Equipment under Test Ground Plane Receiver * Test distance Antenna Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 29 of 66 FCC Test Report: FI05031802-A 5.5. Test Result and Data Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 30 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 31 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 32 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 33 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 34 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 35 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 36 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 37 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 38 of 66 FCC Test Report: FI05031802-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 39 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 40 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 41 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 42 of 66 FCC Test Report: FI05031802-A . Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 43 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 44 of 66 FCC Test Report: FI05031802-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 45 of 66 FCC Test Report: FI05031802-A 5.5.1. Test Photographs Front View Rear View

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May.. 06, 2005 46 of 66 FCC Test Report: FI05031802-A 6dB Bandwidth Measurement Data 5.6. Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 5.7. Test Procedures 1. The transmitter output was connected to the spectrum analyzer. 2. …
