MQ4NBG6503P11ac 300Mbps+433Mbps Dualband router

LAN Use standard LAN cables (RJ45 connectors) to connect your PCs to this port. If required, any port can be connected to other hub. Any LAN port will automatically function as an “Uplink” port when necessary. WAN Connect the ADSL or Cable Modem here with RJ45 cable. If your modem came with a cable, use the supplied cabled, otherwise, use a standard LAN cable. Power DC 12V/1A. Connect the supplied power adapter here. WPS Press WPS button to connect with other WPS complied devices via secured WLAN connection. Reset Keep on pressing the Reset button more than 5 seconds, the unit will be reset to factory default. Power button Pressing down the button to power the device up and press it up to power down. WiFi button Pressing down the button to enable Wi-Fi connection and press it up to disable Wi-Fi connection. NBG6503F/NBG6503P Wireless Router Quick Install Guide 1 Hardware button Overview Hardware Connection 2 Notes: Before you start hardware connection, you are advised to find an appropriate location to place the device. Usually, the best place is at the center of your wireless network, with line of sight to all wireless stations. Also, higher antenna position usually results in better performance. Step1. Connect to your local area network: connect the Ethernet cable to LAN port of the device, and the other end to a PC, hub, switch, router or other Wireless Access Point. Step2. Power on the device: connect the included AC power adapter to the power port of this wireless router and other end the wall outlet. Step3. Check the LEDs: the power LED should be always on when system is ready. Software Configuration 3 Notes: The operation mode is totally controlled by hardware slide switch not software. Before you start to setup the device, you are advised to change the switch the operation mode you need. Then the device will reboot automatically into the mode you have selected. When Gateway mode is selected, the device will enter gateway mode. And the wireless connection will be set up from a point-to-point local LAN into a point-to-multipoint WAN. Login 2. Start your computer and make sure the connection by an Ethernet cable between your computer and the Wireless Router. 3. Start your WEB Browser. 4. In the Address box, enter the IP address: 192.168.1.1 5. Login User Name admin and Password 1234 Gateway Mode Access Point Mode When acting as Access Point (AP), this device connects all the stations to a wireless network. All stations can have the Internet access if only the Access Point has the Internet connection. FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 6 Chapter 3: Router Configuration Login 1. Start your computer. Connect an Ethernet cable between your computer and the Wireless Router. 2. Make sure your wired station is set to the same subnet as the Wireless Router, i.e. 10.10.10.254 3. Start your WEB browser. In the Address box, enter the following: http://10.10.10.254 4. Please enter the username “admin” and password “admin” for login. The configuration menu is divided into four folders: Internet Settings, Wireless Settings, Firewall, and Administration. Click on the desired setup item to expand the folder in the main navigation page. The setup pages covered in this utility are described below. 7 Common Connection Types Cable Modems Type Details ISP Data required Dynamic IP Address Your IP Address is allocated automatically, when you connect to you ISP. Usually, none. However, some ISP's may require you to use a particular Hostname, Domain name, or MAC (physical) address. Static (Fixed) IP Address Your ISP allocates a permanent IP Address to you. IP Address allocated to you. Some ISP's may also require you to use a particular Hostname, Domain name, or MAC (physical) address. DSL Modems Type Details ISP Data …

Text truncated - open the document above for the full version.

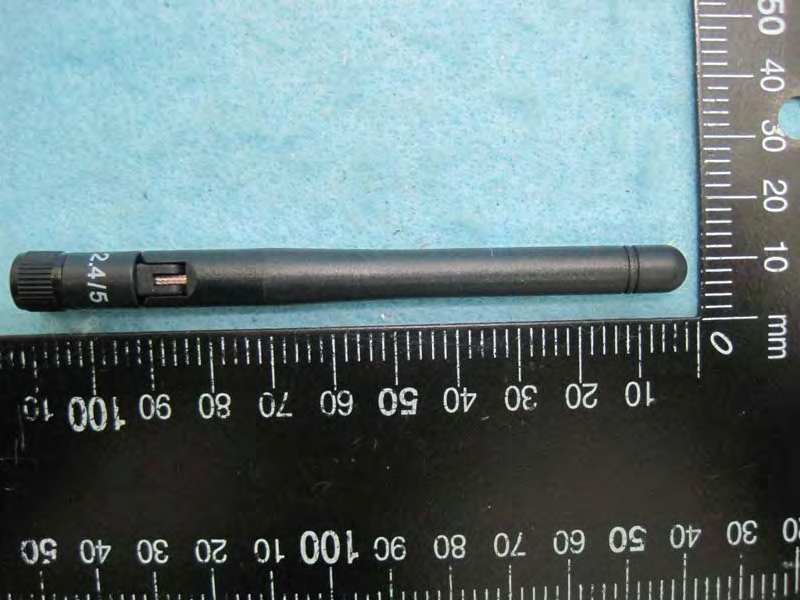

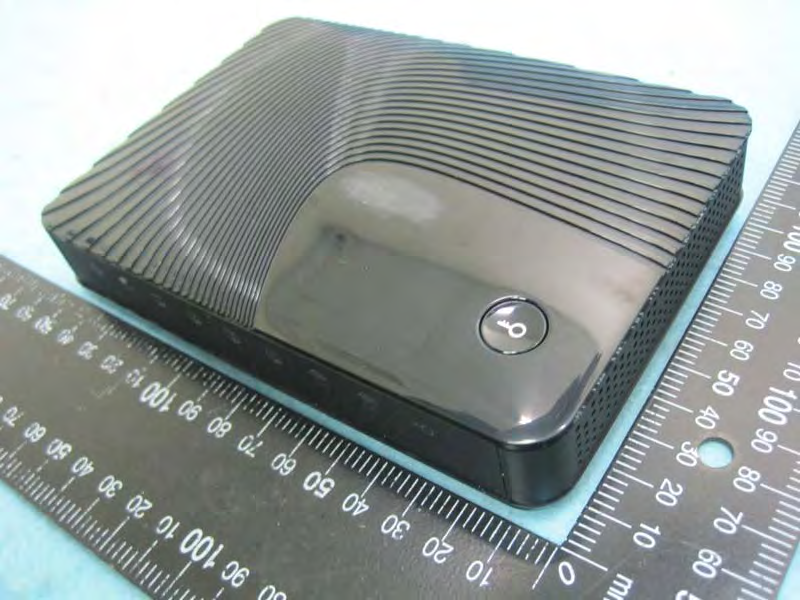

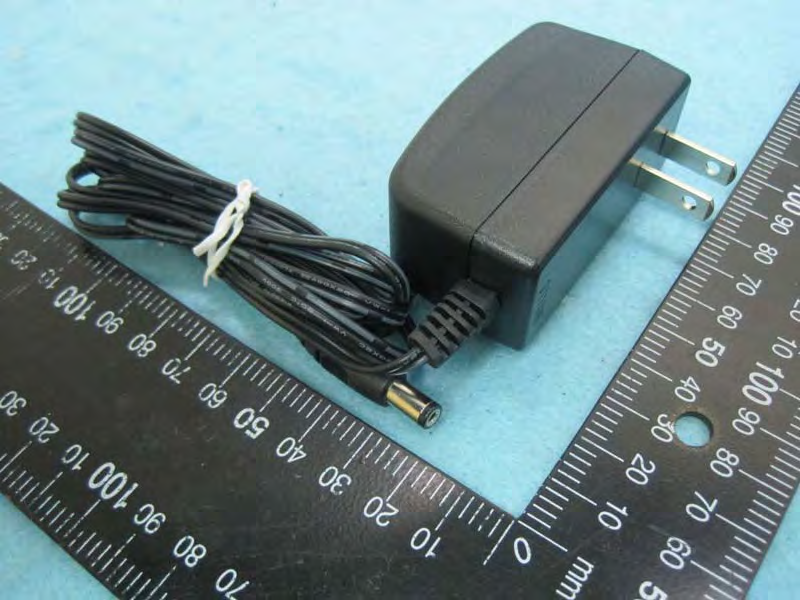

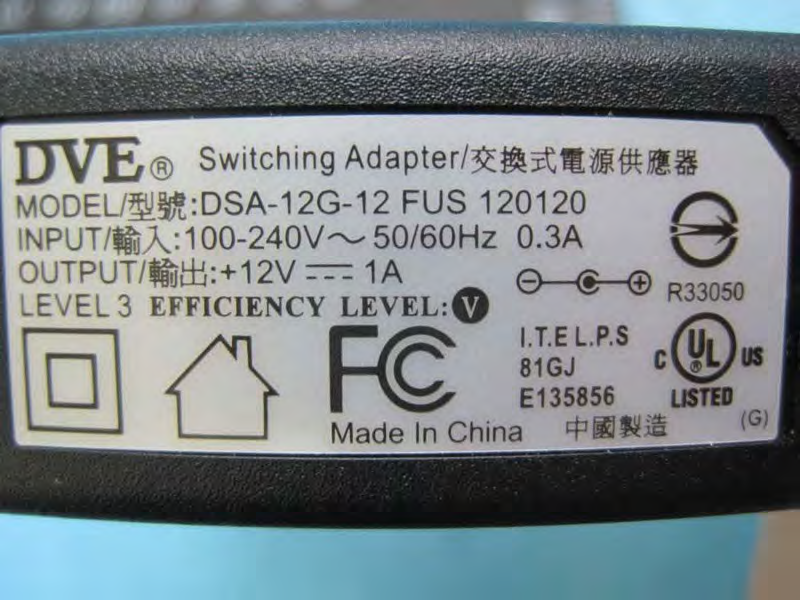

Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Adapter Brand: DVE Model: DSA-12G-12 FUS 120120 Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Ant.1 (2.4G & 5G) Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Ant.2 (2.4G) Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255

Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255 Report No.:331410-01 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2013 FAX : 886-2-2696-2255

Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with RSS-102 Issue 4 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n HT40 : 16.96dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 16.9600 49.6592 0.015666 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n HT40: 22.66dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 22.6600 184.5015 0.058204 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n HT20: 25.96 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 25.9629 394.7199 0.124520 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.058204 / 1 + 0.124520 / 1 = 0.182724, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : C1 of C3 Appendix C. Co-location Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 25.6°C Humidity 56% Test Engineer Andre Zhuo Configurations 2.4G + 5G Normal Link Horizontal Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Abocom Systems, Inc Applicant Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. FCC ID MQ4NBG6503P Manufacturer’s company Abocom Systems, Inc Manufacturer Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. Product Name 11ac 300Mbps+433Mbps Dualband router Brand Name AboCom Model No. NBG6503F/NBG6503P Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jan. 30, 2013 Final Test Date May 11, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR331410-01AA Report Format Version: 01 Page No. : i of ii FCC ID: MQ4NBG6503P Issued Date : May 22, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE.......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT........................................................................................................................... 2 3. GENERAL INFORMATION................................................................................................................................... 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories.........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies...............................................................................................................................................................7 3.5. Table for Test Modes............................................................................................................................................................................8 3.6. Table for Testing Locations.................................................................................................................................................................10 3.7. Table for Multiple List..........................................................................................................................................................................10 3.8. Table for Supporting Units..................................................................................................................................................................10 3.9. Table for Parameters of Test Software Setting.....................................................................................................................................11 3.10. EUT Operation during Test..................................................................................................................................................................12 3.11. Test Configurations............................................................................................................................................................................13 4. TEST RESULT.................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement..........................................................................................................................15 4.2. Maximum Conducted Output Power Measurement.........................................................................................................................19 4.3. Power Spectral Density Measurement...............................................................................................................................................22 4.4. 6dB Spectrum Bandwidth Measurement...........................................................................................................................................31 4.5. Radiated Emissions Measurement.....................................................................................................................................................39 4.6. Emissions Measurement....................................................................................................................................................................66 4.7. Antenna Requirements......................................................................................................................................................................91 5. LIST OF MEASURING EQUIPMENTS.................................................................................................................... 92 6. TEST LOCATION.............................................................................................................................................. 94 APPENDIX A. TEST PHOTOS .…

Text truncated - open the document above for the full version.

Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR331410-01 FCC ID: MQ4NBG6503P Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW
