MQ4UHF1KBUSB 1M HomePNA & 10/100M Fast Ethernet Adapter

Doc. No.: 092001-01 USB 1M Home PNA & 10/100 FAST ETHERNET User Manual 1 - REGULATORY STATEMENTS Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interface, and 2. This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ! Changes or modifications not expressly approved by party responsible for compliance could void the user the user authority to operate the equipment. 2 - FCC Part 68 Registration This device complies with FCC Part 68 rules, and the use of this device is subject to the following restrictions: The FCC has established rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin phones. If this device is malfunctioning, it may also be causing harm to the telephone network; this device should be disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service. The telephone company may make changes in it's facilities, equipment, operation and procedures; if such changes affect the compatibility or use of this device, the telephone company is required to give adequate notice of the situation with the FCC. If the telephone company requests information on what equipment is connected to their lines, inform them of: a. The telephone number to which this unit is connected. b. The Ringer Equivalence Number (REN). c. The USOC jack required. d. The FCC Registration number. Items (b) and (d) are indicated on the label. The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the REN's of all the devices on any one line should not exceed 5.0. If too many devices are attached, they may not ring properly. 3 - Table of Contents Introductions...................................................... 1 Features.......................................................... 2 About Home Phone Networking Technology2 Specifications................................................. 3 Parts Names and Functions............................ 4 Hardware Installation......................................... 6 Precaution...................................................... 6 Getting Hooked Up........................................ 7 Installing Ethernet Cabling............................ 8 Installing Telephone Cabling......................... 8 Software Installation.......................................... 9 Installation for Windows 98.......................... 9 Installation for Windows 2000.................... 11 Installation for Windows ME...................... 14 Network Connection.................................... 16 Client Setup................................................. 19 Using File and Printer Sharing..................... 21 1 - INTRODUCTIONS The USB 1M HomePNA & 10/100 Fast Ethernet brings the latest technology of instant connectivity to multiple PCs over a home's existing telephone lines. You can network any notebook computer by connecting it to any standard phone line. No switches, hubs, or even any additional cables is needed - the network runs on standard home-grade telephone wires just like the ones you use everyday. This USB device is equipped with two standard RJ-11 telephone ports and a 10/100 dual-speed Fast Ethernet port. You can connect to any 1Mbps home phone network or any 10BaseT/100BaseTX network without swapping devices or running multiple adapters at once. The adapter connects to your Windows 98 computer via USB (Universal Serial Bus), you can enjoy the advantage of true plug-and-play connections through a single interface. You can share Internet access via a dial-up, cable modem or DSL connection, as well as files, printers, and CD-ROM drives at 1Mbps without interrupting regular telephone service. The home phone networking runs on regular telephone cables, so there’s no extra hardware to buy. Just plug it into any standard wall jack and you’re networked! The USB 1M HomePNA & 10/100 Fast Ethernet complies the HomePNA specification which lets your phone line carry computer data as well as regular telephone voice service. Every standard 2 - telephone jack in the home is capable of hosting a PC - you can connect up to 25 computers, thus transforming the home's telephone wiring into an easily expandable network. Features • Connects to a network using your existing telephone Line -- No additional hubs or network cables needed • Works with any PC with a USB port • Supports Microsoft Windows 98/2000/ME • 1Mbps transfer rate over telephone lines • Dual-speed RJ-45 port automatically detects Ethernet or Fast Ethernet cabling speed • External USB network adapter with 2 RJ-11 modular telephone ports and 1 RJ-45 auto- sensing 10BaseT/100BaseTX port • US…

Text truncated - open the document above for the full version.

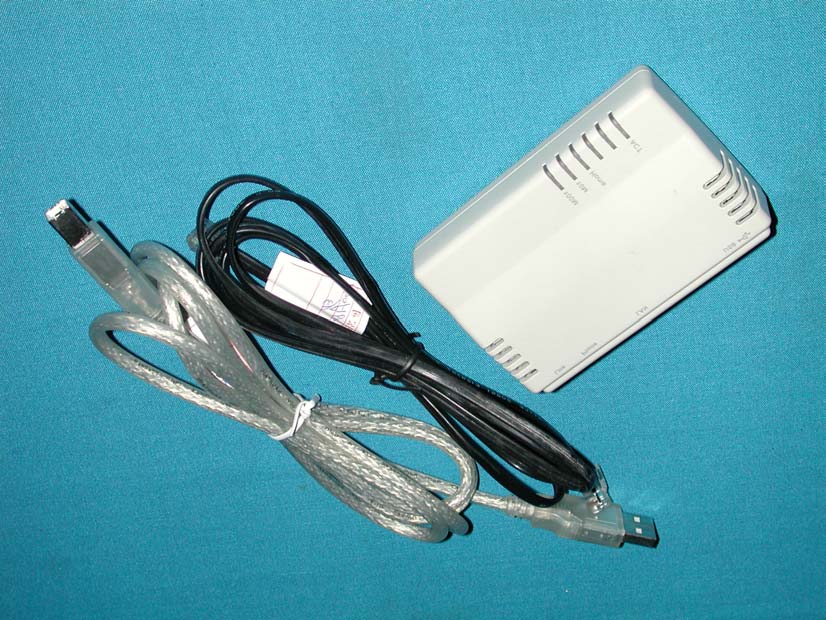

Report No.: 019H041FI Page : 1 of 1 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

AboCom FCC ID.: MQ4UHF1KB 1F, No. 21, R&D Road II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886 3 578-9090 Fax: 886 3 578-9520 FCC ID Label Sample USB 1M HomePNA and 10/100M Fast Ethernet Adapter Model No.: UHF1000B F F C C C C I I D D : : M M Q Q 4 4 U U H H F F 1 1 K K B B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

AboCom FCC ID.: MQ4UHF1KB 1F, No. 21, R&D Road II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886 3 578-9090 Fax: 886 3 578-9520 FCC ID The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 019H041FI Page : 1 of 3 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo Report No.: 019H041FI Page : 2 of 3 Version : 1.0 (2) EUT Photo Report No.: 019H041FI Page : 3 of 3 Version : 1.0 (3) EUT Photo

Report No. 019H041FI Page : 1 of 24 Version:1.0 Test Report Product Name : USB 1M HomePNA and 10/100M Fast Ethernet Adapter Model No. : UHF1000B FCC ID.: MQ4UHF1KB Applicant : AboCom Systems, Inc. Address : 1F, No. 21, R & D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : Sep.13, 2001 Date of Test : Sep.28, 2001 Report No. : 019H041FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 019H041FI Page : 3 of 24 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description ..........................................................................................................................................4 1.2. Tested System Details..................................................................................................................................5 1.3. Configuration of tested System ....................................................................................................................5 1.4. EUT Exercise Software................................................................................................................................8 1.5. Test Facility..................................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment List .....................................................................................................................................9 2.2. Test Setup .....................................................................................................................................................9 2.3. Limits .........................................................................................................................................................10 2.4. Test Procedure............................................................................................................................................10 2.5. Test Result..................................................................................................................................................10 3. Radiated Emission ..................................................................................................................... 11 3.1. Test Equipment ..........................................................................................................................................11 3.2. Test Setup ...................................................................................................................................................11 3.3. Limits .........................................................................................................................................................12 3.4. Test Procedure............................................................................................................................................12 3.5. Test Result..................................................................................................................................................12 4. EMI Reduction Method During Compliance Testing ............................................................13 5. Summary of Test Datas .............................................................................................................14 5.1. Test Data of Conducted Emission ..............................................................................................................15 5.2. Test Data of Radiated Emission .................................................................................................................21 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Reference : Laboratory of License Report No. 019H041FI Page : 4 of 24 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : USB 1M HomePNA and 10/100M Fast Ethernet Adapter Trade Name : AboCom FCC ID. : MQ4UHF1KB Model No. : UHF1000B Transfer Speed : 1Mbps (HomePNA) Transfer Speed : 10Mbps/100Mbps USB Cable : Shielded, 1.5m RJ11 Cable : Non-shielded, 1.8m Note: 1. This EUT is an USB 1M HomePNA and 10/100M Fast Ethernet Adapter. 2. QuieTek has verified the construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: Conducted Test Mode 1: 10Mbps Mode 2: 100Mbps Mode 3: 1Mbps Radiated Test Mode 1: 10Mbps Mode 2: 100Mbps Mode 3: 1Mbps Report No. 019H041FI Page : 5 of 24 Version:1.0 1.2. Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: Product Manufacturer Model No. Serial No. FCC ID (1) PC ASUS P2L97 92M4Y00777 DoC (2) Monitor VIEWSONIC VCDTS21490-1P ERO1502850 DoC (3) Keyboard ACER 6311-TW4C 916590704C91F24437 DoC (4) Mouse Logitech M-M34 LZA824741192 DZL211029 (5) USB Mouse Logitech M-UE55 LTC93813275 DoC (6) Printer HP C2642A MY75N1D2Y1 B94C2642X (7) Modem ACEEX 1414 980033041 IFAXDM1414 (8) Modem ACEEX 1414 980033034 IFAXDM1414 (9) Telephone KINGTEL KT-916 435829 DoC (10) HomePNA and Fast Ethernet Adapter AboCom UHL1000D N/A MQ4UHL1KD (11) PC IBM 6563-86V 96H6471 DoC (12) Monitor NEC 15R128 AWI16600 DoC (13) Keyboard IBM KB-9930 0073463 DoC (14) Mouse Logitech M-S34 LZA82474119 DZL211029 (15) PC ASUS P2L97 92M1Y03979 DoC (16) Monitor HITACHI CM752ET-311 T8E004443 IFAXDM1414 (17) Keyboard MITSUMI KFKEA4SA KFKEA4SA94Q20474 CMYKFK7835 (18) Mouse Logitech M-S34 LZA82760…

Text truncated - open the document above for the full version.

Report No.: 019H041FI Page : 1 of 6 Version:1.0 Attachment 1 : EUT Test Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) Report No.: 019H041FI Page : 2 of 6 Version:1.0 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) Report No.: 019H041FI Page : 3 of 6 Version:1.0 Front View of Conducted Test (Mode 3) Back View of Conducted Test (Mode 3) Report No.: 019H041FI Page : 4 of 6 Version:1.0 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) Report No.: 019H041FI Page : 5 of 6 Version:1.0 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2) Report No.: 019H041FI Page : 6 of 6 Version:1.0 Front View of Radiated Test (Mode 3) Back View of Radiated Test (Mode 3)
