MQ4UHL1KAUSB Home PNA Adaptor

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 December 22, 1999 QTK99-F043 731 Confirmation Number: EA96353 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Certification of Class B Computing Peripheral FCC ID: MQ4UHL1KA / USB Home Phone Network Adapter, Model UHF1000 Gentlemen: Enclosed please find Abocom Systems Inc.’s application for equipment authorization dated December 22, 1999. The subject device is in compliance with Part 15, Subpart B of the FCC Rules. This device is a USB Home Phone Network Adapter (Home PNA) that can connect multiple PCs through their USB ports to form an in-home local phone network. This device contains Home PNA type LANF7309 and USB to Ethernet controller type AN986 d with 25 MHz and 48 MHz crystal oscillators. This device is plug and play compatible with Home PNA specification 1.1 that supports up to 1 Mbps data transfer speed. Also, this device is provided with both USB and RJ11 connector for connection and communications between host PCs. This EUT was network system tested with 1 Mbps transmission speed while Home Link PCI Card Model HPN100 (Verification Class B) was installed into host PC. Tests were performed in ANSI C63.4-1992 to show compliance with CISPR-22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Manager Safety & Compliance Consulting

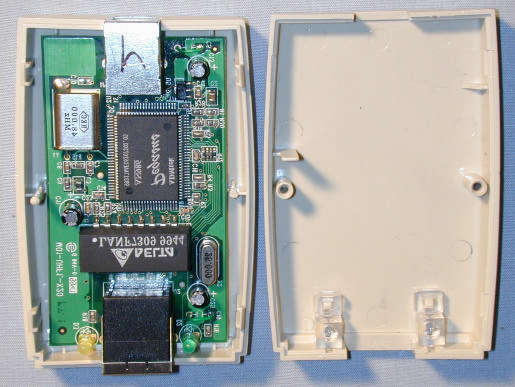

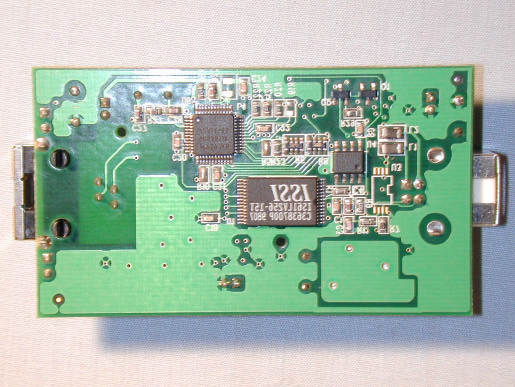

QuieTek Corporation Page: 1 of 3 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detail Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 3 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 3 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo

LABEL.tif

QuieTek Corporation Page: 1 of 16 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : AboCom Systems, Inc. Equipment Type : USB 1M Home PNA Adapter Model : UHL1000 FCC ID : MQ4UHL1KA Report No. : 99CH003FI QuieTek Corporation Page: 2 of 16 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : USB 1M Home PNA Adapter Model : UHL1000 FCC ID. : MQ4UHL1KA Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : DC 5V Classification : Class B Test Result : Complied Test Date : December 9, 1999 Report No. : 99CH003FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Erin Lan Test Engineer: Peter Wu Approved: Gene Chang QuieTek Corporation Page: 3 of 16 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................8 1.4 EUT Exercise Software.......................................................................................................................................9 1.5 Test performed....................................................................................................................................................9 1.6 Test Facility......................................................................................................................................................10 2. CONDUCTED EMISSION.............................................................................................................................11 2.1 Test Equipment List...........................................................................................................................................11 2.2 Test Setup.........................................................................................................................................................11 2.3 Limits...............................................................................................................................................................11 2.4 Test Procedure...................................................................................................................................................12 2.5 Test Results.......................................................................................................................................................12 3. RADIATED EMISSION.................................................................................................................................13 3.1 Test Equipment.................................................................................................................................................13 3.2 Test Setup.........................................................................................................................................................13 3.3 Limits...............................................................................................................................................................14 3.4 Test Procedure...................................................................................................................................................14 3.5 Test Results.......................................................................................................................................................14 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................15 5. ATTACHMENT..............................................................................................................................................16 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 16 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : AboCom Systems, Inc. Address : 1F, No.21, R&D Road II, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : USB 1M Home PNA Adapter Model : UHL1000 FCC ID : MQ4UHL1KA Operation Voltage : DC 5V Telephone Cable : Non-shielded, 1.8m Data Cable (USB) : Shielded, 0.5m Remark : 1. The EUT is a USB 1M Home PNA Adapter . 2.QuieTek had verified the construction and function in typical operation, then shown in this test report. QuieTek Corporation Page: 5 of 16 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 5 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 1 : Summary of Test Results The test results in the emission were performed according to the requirements of measurement standard and process. QuieTek Corporation is assumed full responsibility for the accuracy and completeness of these measurements. The test data of the emission are listed as the attached data. All the tests were carried out with the EUT in normal operation, which was defined as: Mode 1 : USB 1M Home PNA Adapter The EUT passed all the tests. The uncertainty is calculated in accordance with NAMAS NIS 81, The total uncertainty for this test is as follows: ÿ Emission Test • Uncertainty in the Conducted Emission Test: < ± 2.0 dB • Uncertainty in the field strength measured: < ± 4.0 dB QuieTek Corporation Page: 2 of 5 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 09, 1999 EUT : Home PNA Adapter Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== * 0.175 0.01 0.10 59.49 59.60 64.71 0.240 0.02 0.10 38.40 38.52 62.10 0.352 0.04 0.10 44.15 44.29 58.93 0.531 0.07 0.10 36.82 36.99 56.00 0.913 0.10 0.10 38.35 38.55 56.00 7.960 0.25 0.19 36.00 36.44 60.00 Average: 0.175 0.01 0.10 50.80 50.91 54.72 0.240 0.02 0.10 23.40 23.52 52.10 0.352 0.04 0.10 38.90 39.04 48.92 0.531 0.07 0.10 29.70 29.87 46.00 0.913 0.10 0.10 38.00 38.20 46.00 7.960 0.25 0.19 25.26 25.70 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 3 of 5 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 09, 1999 EUT : Home PNA Adapter Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== * 0.175 0.01 0.10 54.43 54.54 64.72 0.282 0.03 0.10 36.75 36.88 60.75 0.349 0.04 0.10 41.37 41.51 58.98 0.914 0.10 0.10 38.39 38.59 56.00 9.025 0.27 0.20 35.05 35.51 60.00 16.453 0.33 0.38 34.74 35.45 60.00 Average: 0.175 0.01 0.10 49.90 50.01 54.72 0.282 0.03 0.10 24.70 24.83 50.76 0.349 0.04 0.10 35.20 35.34 48.99 0.914 0.10 0.10 38.00 38.20 46.00 9.025 0.27 0.20 25.50 25.96 50.00 16.453 0.33 0.38 33.10 33.81 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 4 of 5 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : December 09, 1999 EUT Home PNA Adapter Test Mode : Mode 1 Test Site No.2 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Horizontal MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== * 222.000 3.00 9.73 0.00 12.19 24.92 5.08 30.00 401 101 234.000 3.11 10.71 0.00 10.35 24.17 12.83 37.00 401 192 240.000 3.17 11.32 0.00 8.83 23.32 13.68 37.00 401 203 264.000 3.40 14.08 0.00 4.93 22.41 14.59 37.00 401 44 307.994 3.79 13.43 0.00 4.23 21.45 15.55 37.00 401 26 323.029 3.87 13.62 0.00 4.20 21.69 15.31 37.00 401 82 Remarks: 1.All Readings below 1GHz are Quasi-Peak, above are average value. 2.“ * ”, means this data is the worst emission level. 3.Emission Level = Reading Level + Antenna Factor + Cable loss QuieTek Corporation Page: 5 of 5 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : December 09, 1999 EUT Home PNA Adapter Test Mode : Mode 1 Test Site No.2 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Vertical MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== 60.000 1.44 6.00 0.00 8.48 15.92 14.08 30.00 210 11 144.000 2.24 10.86 0.00 10.53 23.63 6.37 30.00 104 30 * 222.000 3.00 9.42 0.00 11.96 24.38 5.62 30.00 104 40 234.008 3.11 10.51 0.00 9.16 22.78 14.22 37.00 104 38 252.000 3.29 12.79 0.00 7.98 24.06 12.94 37.00 104 22 322.500 3.87 14.26 0.00 4.66 22.79 14.21 37.00 104 178 Remarks: 1.All Readings below 1GHz are Quasi-Peak, above are average value. 2.“ * ”, means this data is the worst emission level. 3.Emission Level = Reading Level + Antenna Factor + Cable loss

QuieTek Corporation Page: 1 of 2 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 2 FCC Report No.: 99CH003FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1)
