802.11b+g Access Point User’s Guide - FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. All trademarks and brand names are the property of their respective proprietors. Specifications are subject to change without prior notification. - Table of Content Introduction ............................................................................................................................ 1 FEATURES............................................................................................................................. 1 APPLICATION......................................................................................................................... 2 PARTS NAMES AND FUNCTIONS............................................................................................ 3 FACTORY DEFAULT SETTINGS............................................................................................... 5 Wireless AP....................................................................................................................... 5 Hardware Connection ............................................................................................................6 Check the LEDs:............................................................................................................... 6 About the Operation Modes .................................................................................................. 7 ACCESS POINT MODE............................................................................................................ 7 BRIDGE MODE...................................................................................................................... 8 CLIENT MODE (INFRASTRUCTURE) ....................................................................................... 9 CLIENT MODE (AD-HOC) .................................................................................................... 10 Configuration ........................................................................................................................ 12 LOGIN.................................................................................................................................. 12 STATUS................................................................................................................................13 System ............................................................................................................................. 13 System Log ......................................................................................................................14 Statistics.......................................................................................................................... 15 WIRELESS............................................................................................................................ 16 Basic Settings..................................................................................................................16 Advanced Settings ........................................................................................................... 17 Security ........................................................................................................................... 21 Access Control ................................................................................................................ 23 Site Survey ...................................................................................................................... 24 WDS Setting ....................................................................................................................25 TCP/IP ................................................................................................................................ 27 Basic ............................................................................................................................... 27 OTHER................................................................................................................................. 29 Upgrade F…

Text truncated - open the document above for the full version.

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. Attention: Application Examiner Re: Request for confidentiality Applicant: AboCom Systems, Inc FCC ID: MQ4WAP253 To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by AboCom Systems, Inc to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • Schematics • Detailed Block diagrams Rationale for request for confidentiality: AboCom System, Inc. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, Project Manager AboCom System, Inc

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. "I, an officer of AboCom Systems, Inc do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Ken Yang Signature Printed Title Project Manager

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 16, 2005 RE: FCC ID: MQ4WAP253_ATCB002422 Attention: Jerry Liu I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the device appears to be sufficiently large to accommodate the 2-condition statement as required by part 15.19. Please provide a label showing the location of this statement on the device. 2. Please note that page 16 of the manual (page 21 of the pdf document) indicates a country selectable parameter. Please note that this is not allowed for devices used in the US. No device used in the US can have any user accessible control which would cause the device to operate on non-US frequencies. Please explain how this feature is disabled for US products and how this device is made so that no non-US frequency can be selected. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

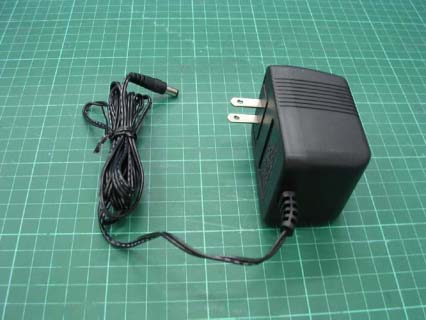

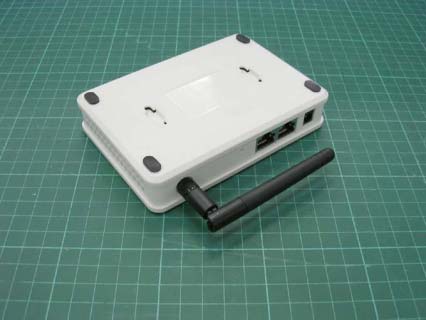

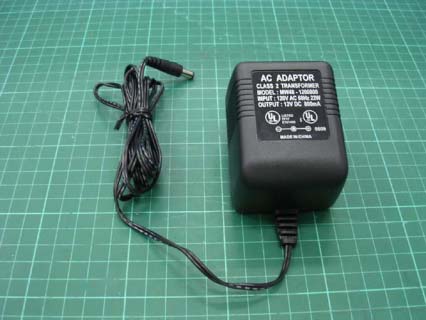

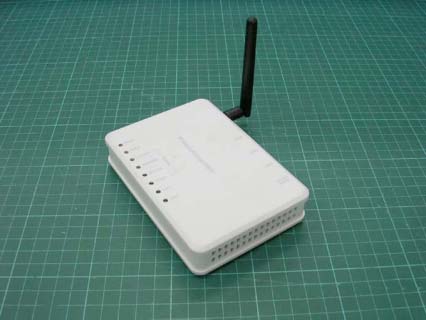

Photo 1: External photo of EUT WAP252 Photo 2: External photo of EUT WAP252 Photo 3: External photo of Antenna WAP252 Photo 4: External photo of Adapter Photo 5: External photo of Adapter Photo 6: External photo of Adapter

Photo 1: Internal photo of EUT WAP252 Photo 2: Internal photo of EUT WAP252 Photo 3: Internal photo of EUT WAP252 Photo 4: Internal photo of EUT WAP252 Photo 5: Internal photo of EUT WAP252

FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-050365 Model No. : WAP252, WAP 253 Issued Date : May 6, 2005 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Jerry Liu FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Wireless Router-Model: WAP252 FCC ID: MQ4WAP253 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 5 of 5 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b(DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.58 110.92 0.03497 1.0 6 2437 1.58 119.12 0.03756 1.0 11 2462 1.58 125.31 0.03951 1.0 Test Mode: 802.11g(OFDM Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.58 193.64 0.06106 1.0 6 2437 1.58 169.04 0.05330 1.0 11 2462 1.58 193.64 0.06106 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 1 of 47 EMC TEST REPORT Report No. : EME-050365 Model No. : WAP252, WAP 253 Issued Date : May 6, 2005 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 47 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jackey Chiu Project Engineer Reviewed By Jerry Liu FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 2 of 47 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT........................................................................................4 1.2 Additional information about the EUT...................................................................4 1.3 Antenna description ................................................................................................5 1.4 Peripheral equipments ............................................................................................5 2. Test specifications .........................................................................................................6 2.1 Test standard ...........................................................................................................6 2.2 Operation mode ......................................................................................................6 2.3 Test equipment........................................................................................................7 3. Minimum 6dB Bandwidth test ......................................................................................8 3.1 Operating environment ...........................................................................................8 3.2 Test setup & procedure ...........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results .......................................8 4. Maximum Output Power test ......................................................................................15 4.1 Operating environment .........................................................................................15 4.2 Test setup & procedure .........................................................................................15 4.3 Measured data of Maximum Output Power test results .......................................15 5. Radiated Emission test ................................................................................................16 5.1 Operating environment .........................................................................................16 5.2 Test setup & procedure .........................................................................................16 5.3 Emission limits .....................................................................................................17 5.4 Radiated spurious emission test data ....................................................................18 5.4.1 Measurement results: frequencies equal to or less than 1 GHz .........................18 5.4.2 Measurement results: frequency above 1GHz...................................................20 6. Power Spectrum Density test ......................................................................................24 6.1 Operating environment .........................................................................................24 6.2 Test setup & procedure .........................................................................................24 6.3 Measured data of Power Spectrum Density test results .......................................24 7. Emission on the band edge §FCC 15.247(C) ..............................................................31 7.1 Band-edge (Conducted method) ...........................................................................32 7.2 Band-edge (Radiated method) ..............................................................................36 8. Power Line Conducted Emission test §FCC 15.207 ...................................................44 8.1 Operating environment .........................................................................................44 8.2 Test setup & procedure .........................................................................................44 8.3 Emission limit.......................................................................................................45 8.4 Uncertainty of Conducted Emission.....................................................................45 8.5 Power Line Conducted Emission test data ...........................................................46 FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 3 of 47 Summary of Tests Wireless Router-Model: WAP252 FCC ID: MQ4WAP253 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : MQ4WAP253 Report No.: EME-050365 Page 4 of 47 1. General information 1.1 Identification of the EUT Applicant : AboCom Systems, Inc. Product : Wireless Router Model No. : WAP252 FCC ID. : MQ4WAP253 Frequency Range : 2412MHz ~ 2462MHz Channel Number : 11 channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up WAP252 WAP252

Photo 1: Conducted Emission Test Set-up Photo 2: Conducted Emission Test Set-up WAP252 WAP252
