802.11 b/g Access Point User’s Guide - FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. All trademarks and brand names are the property of their respective proprietors. Specifications are subject to change without prior notification. - Table of Content TUIntroductionUT............................................................................................................................ 1 TUFEATURESUT............................................................................................................................. 1 TUAPPLICATIONUT......................................................................................................................... 2 TUPARTS NAMES AND FUNCTIONSUT............................................................................................ 3 TUFACTORY DEFAULT SETTINGSUT............................................................................................... 5 TUWireless APUT....................................................................................................................... 5 TUHardware ConnectionUT............................................................................................................ 6 TUCheck the LEDs:UT............................................................................................................... 7 TUAbout the Operation ModesUT.................................................................................................. 8 TUACCESS POINT MODEUT............................................................................................................ 8 TUWDS REPEATER MODEUT......................................................................................................... 8 TUCLIENT MODE (INFRASTRUCTURE)UT....................................................................................... 9 TUCLIENT MODE (AD-HOC)UT...................................................................................................... 9 TUWDS BRIDGE MODEUT............................................................................................................. 9 TUConfigurationUT........................................................................................................................ 10 TULOGINUT.................................................................................................................................. 10 TUSTATUSUT................................................................................................................................11 TUSystemUT............................................................................................................................. 11 TUStatisticsUT.......................................................................................................................... 12 TUWIRELESSUT............................................................................................................................ 13 TUBasic SettingsUT.................................................................................................................. 13 TUAdvanced SettingsUT........................................................................................................... 14 TUSecurityUT........................................................................................................................... 18 TUAccess ControlUT................................................................................................................ 20 TUTCP/IPUT................................................................................................................................22 TUBasicUT...............................................................................................................................22 TUOTHERUT................................................................................................................................. 24 TUUpgrade FirmwareUT......................................................................................................... 24 TUSave/Reload SettingsUT...................................…
Text truncated - open the document above for the full version.

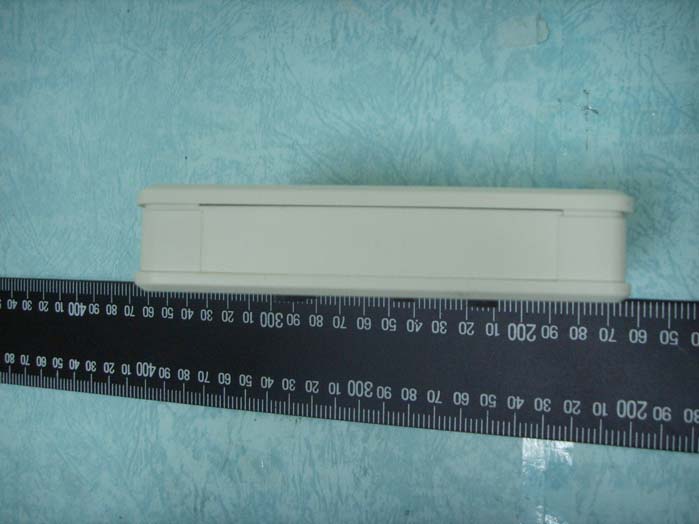

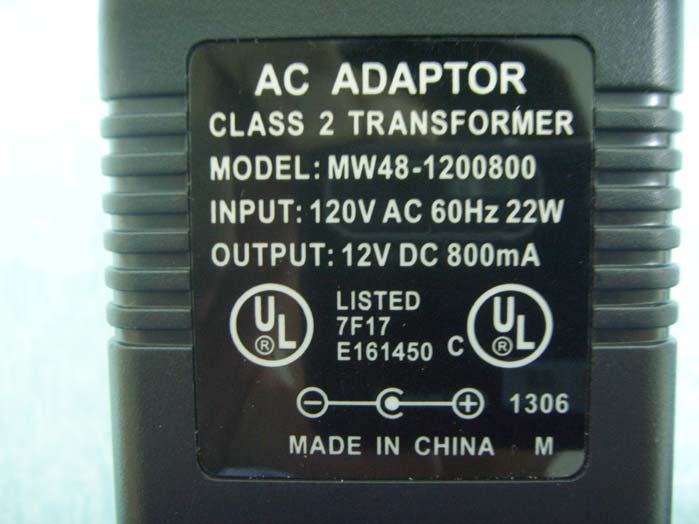

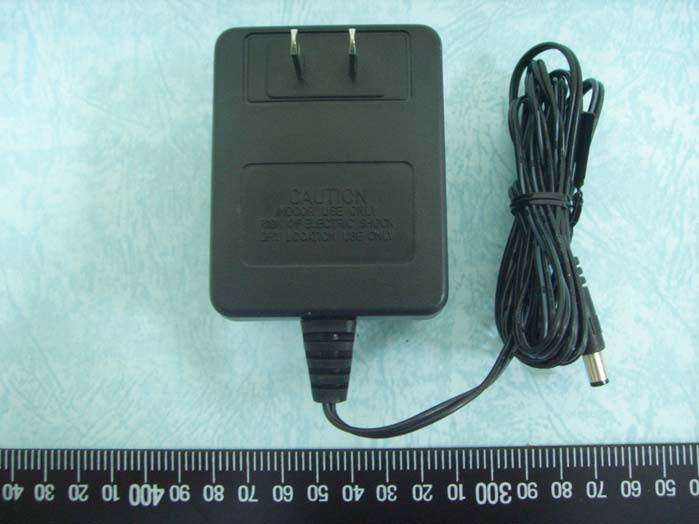

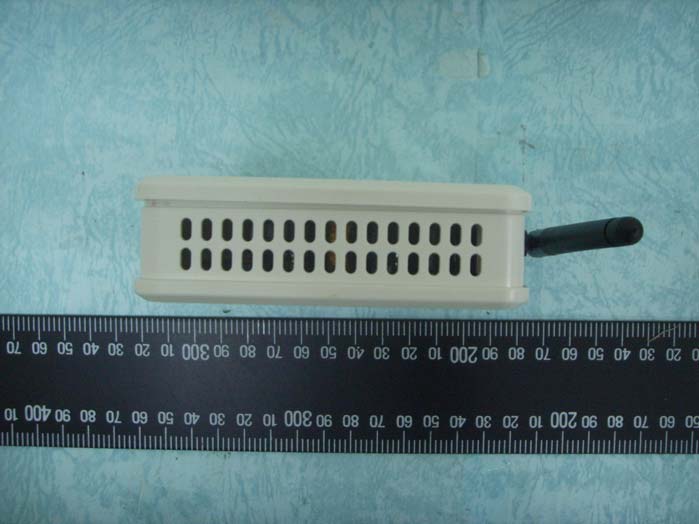

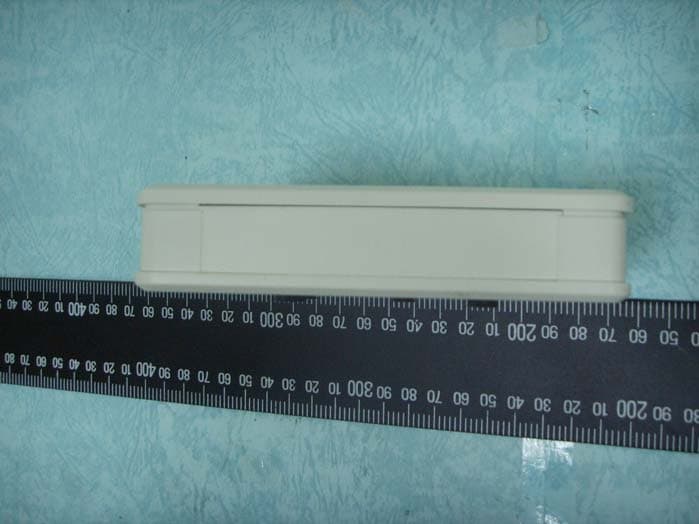

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255
SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2006 FAX : 886-2-2696-2255
Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : C1 ofC 3 Appendix C. Maximum Permissible Exposure Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : C2 ofC 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP××30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : C3 ofC 3 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 17.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.8800 61.3762 0.019362 1 Complies
SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company AboCom Systems, Inc. Applicant Address No. 77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan, R.O.C. FCC ID MQ4WAP257 Manufacturer’s company AboCom Systems, Inc. Manufacturer Address No. 77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan, R.O.C. Product Name Wireless 802.11b/g High Power PoE Access Point Brand Name AboCom Model Name WAP257 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Jun. 22, 2006 Final Test Date Jul. 17, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR662216 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: MQ4WAP257 Issued Date : Jul. 24, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................16 4.3. Power Spectral Density Measurement ..............................................................................................................................................18 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................23 4.5. Radiated Emissions Measurement ....................................................................................................................................................28 4.6. Band Edge Emissions Measurement .................................................................................................................................................48 4.7. Antenna Requirements .....................................................................................................................................................................55 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 56 6. SPORTON COMPANY PROFILE ........................................................................................................................ 58 6.1. Test Location.....................................................................................................................................................................................58 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A15 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B9 APPENDIX C. MAXIMU…
Text truncated - open the document above for the full version.
Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B1 of B9 Appendix B. Test Photos Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B2 of B9 1. Photographs of Conducted Emissions Test Configuration Test mode:Adapter FRONT VIEW REAR VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B3 of B9 SIDE VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B4 of B9 Test mode:POE FRONT VIEW REAR VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B5 of B9 SIDE VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B6 of B9 2. Photographs of Radiated Emissions Test Configuration Below 30MHz FRONT VIEW REAR VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B7 of B9 Test Configuration: 30MHz~1GHz Test mode: Adapter FRONT VIEW REAR VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B8 of B9 Test mode: POE FRONT VIEW REAR VIEW Report No.: FR662216 FCC ID: MQ4WAP257 Page No. : B9 of B9 Test Configuration: above 1GHz FRONT VIEW REAR VIEW
