Abocom 802.11b/g/n Compact Wireless Router model name : WAP5502 User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter 2 Table of Content Chapter 1: Introduction 1 Features 1 Hardware Connection 1 LED Indicators 2 Chapter 2: About the Operation Modes 3 AP Mode 3 GW Mode 3 Client Mode (Infrastructure) 4 Chapter 3: Configuration 5 Login 5 Common Connection Types 6 Configuration via Web 7 Operation Mode 7 Status 23 System Data 23 TCP/IP 24 Other 25 Chapter 4: PC Configuration 28 Overview 28 Windows Clients 28 TCP/IP Settings - Overview 28 Checking TCP/IP Settings - Windows 2000 29 Checking TCP/IP Settings - Windows XP 30 Internet Access 32 Macintosh Clients 33 Linux Clients 33 Other Unix Systems 33 Wireless Station Configuration 34 Appendix A Troubleshooting 35 Overview 35 General Problems 35 Internet Access 35 Wireless Access 36 Appendix B About Wireless LANs 37 BSS 37 Channels 37 WEP 37 Wireless LAN Configuration 37 Regulatory Approvals 38 CHAPTER 1: INTRODUCTION.............................................................................. 2 Features......................................................................................................................................... 2 Physical Details........................................................................................................................... 3 CHAPTER 2: OPERATION MODES...................................................................... 6 Router Mode................................................................................................................................6 Access Point Mode..................................................................................................................... 7 Client Mode.................................................................................................................................. 7 CHAPTER 3: INSTALLATION................................................................................ 9 Hardware Connection............................................................................................................... 9 Login............................................................................................................................................. 11 2 CHAPTER 4: WEB CONFIGURATION............................................................... 17 Setup Wizard............................................................................................................................. 17 Wireless....................................................................................................................................... 21 TCP/IP Settings........................................................................................................................ 35 Firewall........................................................................................................................................ 41 QoS................................................................................................................................................ 47 Route Setup...............................................................................................................................48 Management.............................................................................................................................. 49 Log out......................................................................................................................................... 57 CHAPTER 5: PC CONFIGURATION................................................................... 58 Overview..................................................................................................................................... 58 Windows Clients.................................…

Text truncated - open the document above for the full version.

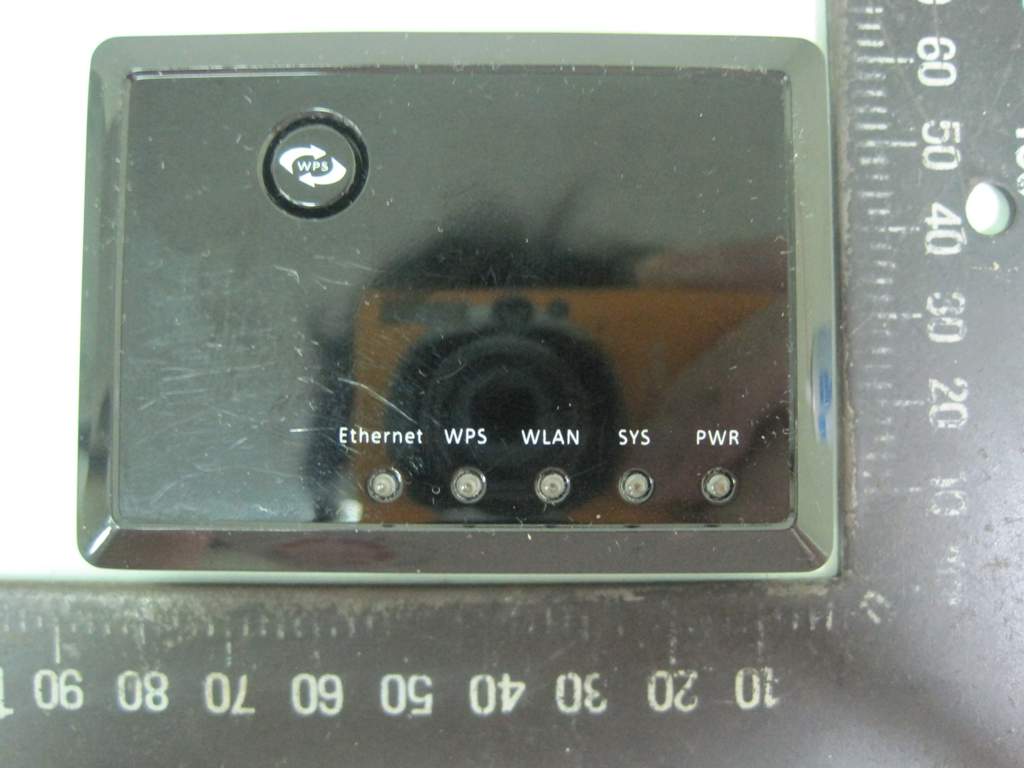

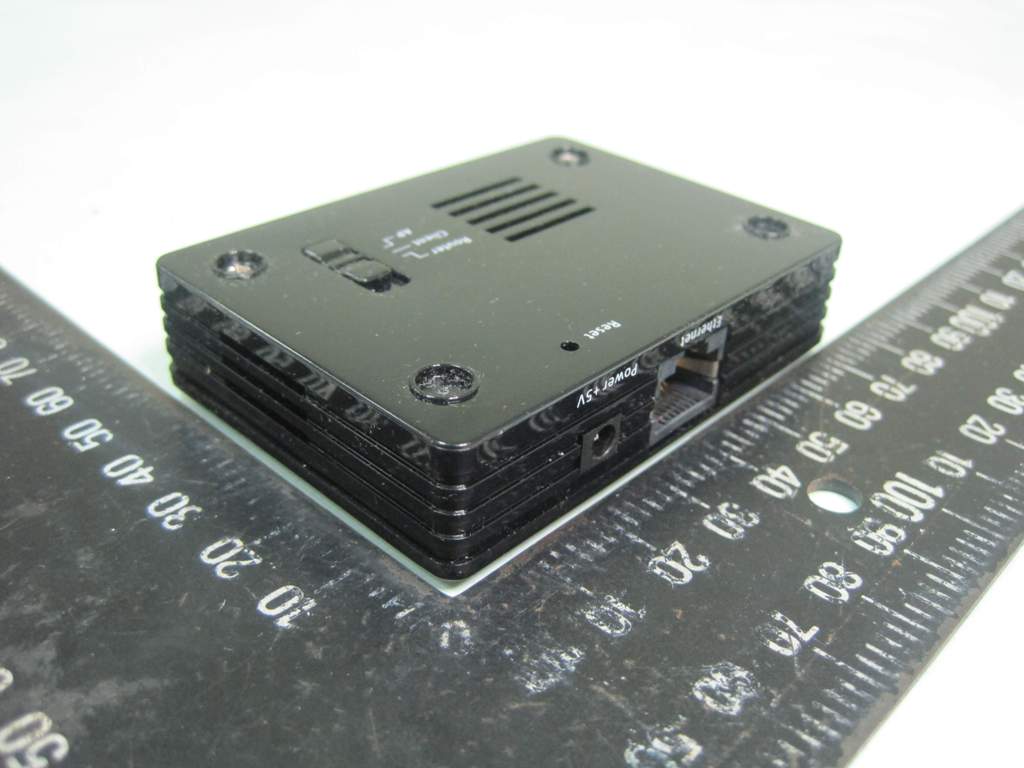

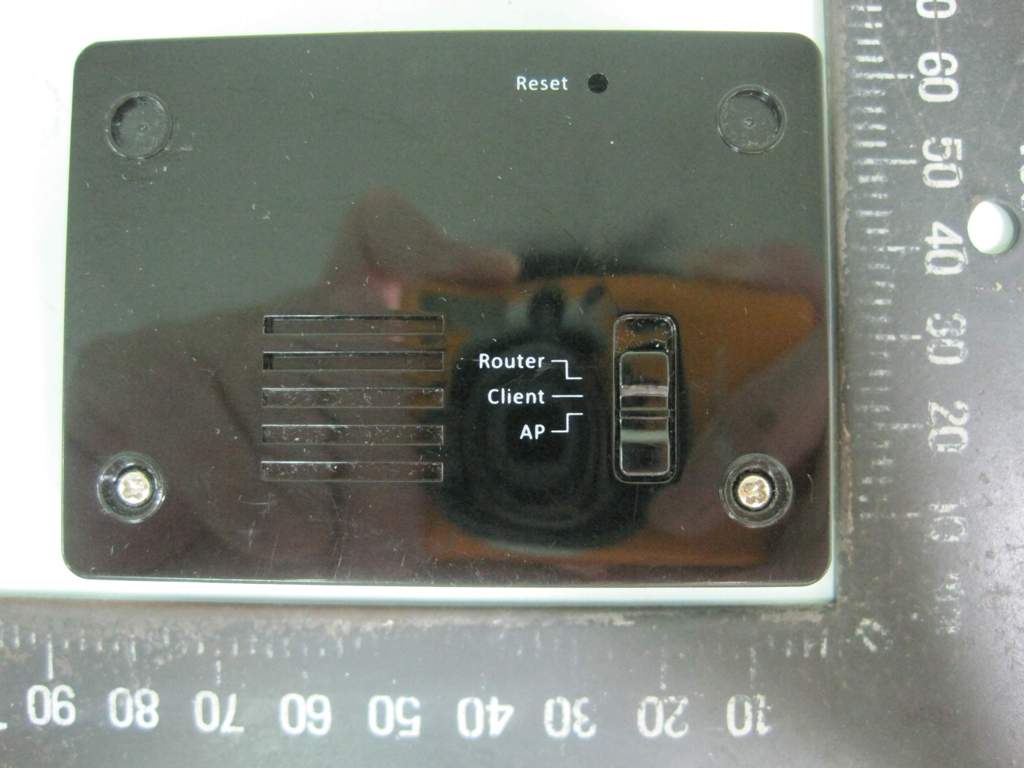

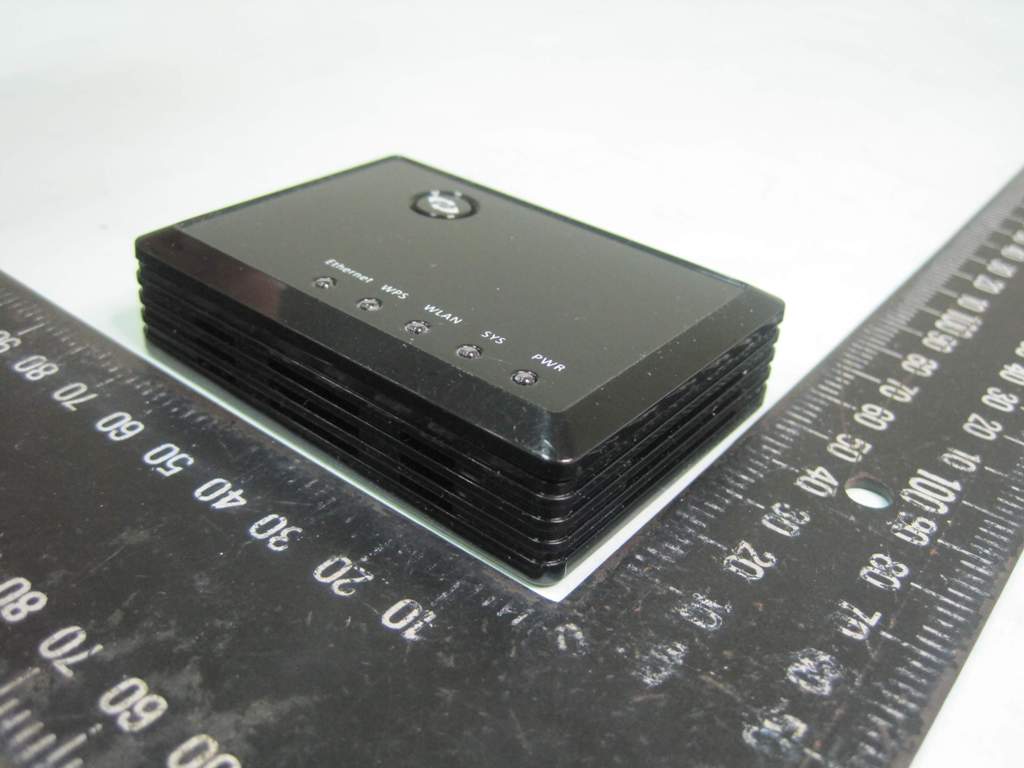

SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255

Label size: 20*45mm

SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2010 FAX : 886-2-2696-2255

Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS8 20MHz Ant. A + Ant. B: 24.06 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.81 3.0269 24.0560 254.4486 0.153303 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Abocom Systems, Inc Applicant Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. FCC ID MQ4WAP5502 Manufacturer’s company Abocom Systems, Inc Manufacturer Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. Product Name 802.11b/g/n Compact Wireless Router Brand Name Abocom Model Name WAP5502 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Apr. 14, 2010 Final Test Date Jun. 25, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR042110 Report Format Version: 01 Page No. : iof ii FCC ID: MQ4WAP5502 Issued Date : Jun. 25, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................24 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................30 4.5. Radiated Emissions Measurement ....................................................................................................................................................36 4.6. Band Edge Emissions Measurement .................................................................................................................................................54 4.7. Antenna Requirements .....................................................................................................................................................................63 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 64 6. TEST LOCATION.............................................................................................................................................. 66 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 67 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A10 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE...................................................…

Text truncated - open the document above for the full version.

Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 4 of 5 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR042110 FCC ID: MQ4WAP5502 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
