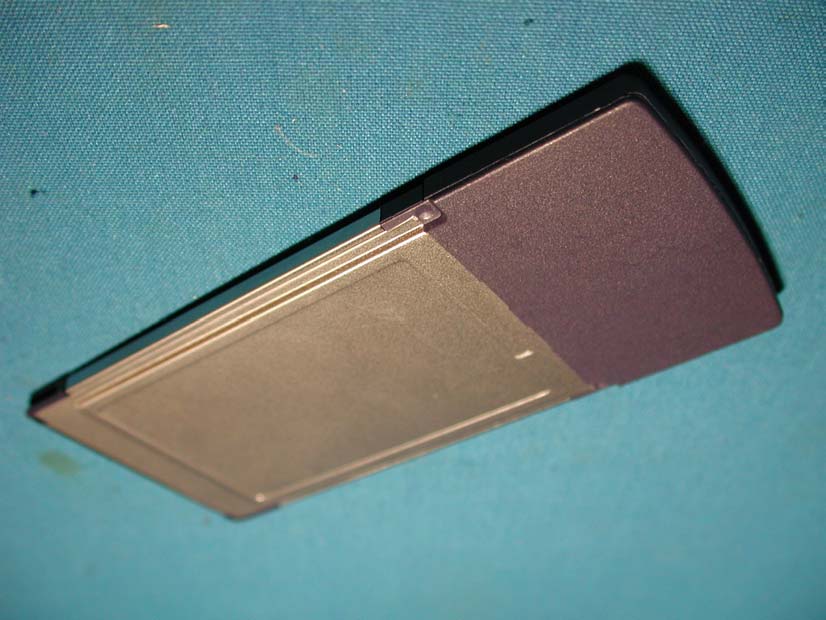

MQ4WB1K5WLAN PCMCIA Card

M73-APO01-xxx 802.11b Wireless 16bit PC Card User Manual REGULATORY STATEMENTS FCC Certification This model 802.11b Wireless PC Card (WB1500) must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ◗ Reorient or relocate the receiving antenna. ◗ Increase the distance between the equipment and receiver. ◗ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Warring: Changes or modifications not expressly approved by party responsible for compliance could void the user the user authority to operate the equipment. CAUTION: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. U.S Service Center: D-LINK CORPORATION 53 DISCOVERY DRIVE, IRVINE CA 92618, USA TEL: 714-788-0805 Table of Contents INTRODUCTION ...........................................1 WIRELESS BASICS............................................1 802.11B WIRELESS 16BIT PC CARD.................1 FEATURES.........................................................2 WIRELESS NETWORK OPTIONS.........................3 The Peer-to-Peer Network ...................3 The Access Point Network...................4 LED INDICATORS.............................................5 Link: Orange (On/Blink) .....................5 Act: Green (ON/OFF) ..........................5 HARDWARE INSTALLATION ....................6 SOFTWARE INSTALLATION .....................7 INSTALLATION FOR WINDOWS 95 (OSR2) .......7 INSTALLATION FOR WINDOWS 98...................11 INSTALLATION FOR WINDOWS ME.................15 INSTALLATION FOR WINDOWS 2000...............18 I NSTALLATION FOR WINDOWS XP..................22 NETWORK CONNECTION ........................26 CONFIGURING THE NETWORK PROTOCOLS FOR WINDOWS 95 (OSR2)/98/ME/2000 ...............26 CONFIGURING THE NETWORK PROTOCOLS FOR WINDOWS XP.................................................29 CONFIGURATION UTILITY .....................32 NETWORK STATUS ICON & ICON MENU.........32 The Status Icon ..................................32 Icon Menu ..........................................33 STATUS...........................................................34 CONFIGURATION............................................35 ENCRYPTION..................................................38 SITE SURVEY..................................................40 ABOUT............................................................41 CONFIGURATION FOR WINDOWS XP ..............42 SPECIFICATIONS .........................................48 - 1 - Introduction Wireless Basics Compliant with IEEE 802.11b, the 802.11b Wireless 16bit PC Card provides an ideal solution for users to enjoy the instant connectivity via a wireless local area network (LAN). A wireless LAN is like a regular LAN, except that you can share information anywhere without looking for a place to plug in, and augment networks without installing or moving wires. Based on radio frequency (RF) technology, a wireless LAN transmits and receives data over the air, along with the guarantee to ensure privacy and noninterference by the use of separate radio frequency. 802.11b Wireless 16bit PC Card The 802.11b Wireless 16bit PC Card lets you take full advantage of your PC’s mobility with access to real-time information and online services anytime and anywhere. Plus, with the network installation’s simplicity and flexibility, - 2 - you can eliminate the needs to pull cable through walls and ceilings and allow the network to go where wires cannot go. Exploring WWW and augmenting networks can never be done more easily. Features y Compliant with IEEE 802.11b standard for 2.4GHz Wireless LAN y Compliant with PCMCIA Type II y Supports PC Card hot swap and true Plug & Play y Works with all existing network infrastructure y Compatible with specific wireless products and services y Capable of up to 128-Bit WEP Encryption Protocol y Freedom to roam while staying connected y 11 Mbps High-Speed Transfer Rate y Rich diagnostic LED indicators with Integrated Antenna y Compatible with Window 95(OSR2)/98/ 2000/ME/XP y Lower power consumption y Easy to install and configure - 3 - Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. Or you can use one computer as an Internet Server to connect to a wired global network and share files and information with other PCs via a wireless LAN. - 4 - The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With wireless…

Text truncated - open the document above for the full version.

Wb1500 Block Diagram 44MHz crystal oscillator U16 BPF MDR642E U2 Rx/Tx SWAS179-92 U4 PA HFA3984 U24 BPF MDR642E U3 MMCX Buffer UPG2745TB U7 VCO ENFVHIK2S81 U9 REG 2.8V AME8801CEEV U14 VCO ENFVHIK2S80 U17 PLL RF/IF Converter & Synthesizer HFA3685 U6 2412~2484MHz PLL F0=748.5MHz PCMCIASocket P1 Flash SST39VF010-90 U13 SRAM 128K16-55 U11 VCCS Rx I Rx Q Tx ITx Q REG 3.0V AME8801BEEV U12 SAW U8 F0=374MHz External memory Freq range:2038~2110MHz Power Supply Power Supply Base-band Controller Ft Fr Ft Fr Ft Synthesizer Synthesizer Synthesizer Transmitter frequency(Ft)& Receiver frequency(Fr)=2412MHz-2484MHz Reference frequency 3.3V Referencefrequency Referencefrequency 3.3V 5.0V 3.3V PC REG 3.3V RT9163 U51 VCCS VCCS VCCS Transmitter & Receiver Quadrature modem & Synthesizer HFA3783 U15 BPF MDR642E U18 ANT SW AS179-92 U5 LPF LFL212G45 U19 Medium Control Access & Base-band Processor ISL3873 U10

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 17, 2002 RE: AboCom Systems, Inc. FCC ID: MQ4WB1K5 After a review of the submitted information, I have a few comments on the above referenced Application. These comments are all made upon the assumption that the EUT's full conducted output power is 12.56 mW and the antenna gain is 1.0 dBi. 1) The RF exposure calculations are still not correct. We are not sure where the error is occurring. However for the maximum power reading of 10.99 dBm + 1.0 dBi (assuming this is correct) = 11.99 dBm EIRP. This calculates out to 1.12 cm. Please provide a corrected RF exposure exhibit. 2) Please confirm the VBW settings used during radiated emissions testing. 3) Please show compliance at the 2.39 GHz (bandedge measurement) with the 54 dBuV/m limit. 4) Please provide an explanation of how the device has been changed and modified (in order to reduce the power) since the first test report provided. Also, please provide an attestation by the manufacturer that the changes will be incorporated into all production models. 5) Since this device may be considered as a PC Peripheral, then the label should also include the labeling information applicable to the device for a DoC approval. Please provide updated labeling. 6) Since this device may be considered as a PC Peripheral, then an compliance information sheet should be included in the manual on the same page as the FCC statements (page 2 of the users manual). This information should contain the following information regarding DoC compliance: COMPLIANCE INFORMATION (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement shall be supplied with the product at the time of marketing or importation, containing the following information: (1) Identification of the product, i.e. name and model number. (2) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Sir, Our response as following: 1. We will response soon. 2. 30MHz~1GHz: RBW=100KHz, VBW=1MHz Above 1GHz: RBW=1MHz, VBW=1MHz 3. In the FCC Part 15 15.247(4)(c) In any 100KHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, ..... The 2400MHz between 2390MHz have 10MHz band ,but 15.247(4)(c) just conform 100KHz bandwidth outside the frequency, please kindly give us more information about 2.39GHz must compliance the 54dBmV/m with 2400~2483.5 operating band. 4. We will response soon. 5. We will response soon. 6. I don't understand this problem a little, do you mean we shoule add "47CFR 2.1077" to page 2 of the user's manual? May I have the demo? Thanks a lot. Ellie([email protected]) -----Original Message----- From: Timothy R. Johnson [mailto:[email protected] ] Sent: Thursday, October 17, 2002 12:36 PM To: [email protected] Subject: Review of AboCom Systems Inc., FCC ID: MQ4WB1K5 Revised for recent uploads Ellie, Attached are comments regarding review of this application. Please provide information as soon as possible. Thank You, Timothy R. Johnson, NARTE Certified EMC Engineer (No. EMC-002205-NE) Examining Engineer American TCB, Inc. 6731 Whittier Ave. McLean, VA 22101 email: [email protected] alternate email: [email protected] direct number: 404-414-8071 corporate phone: 703-847-4700 corporate fax: 703-847-6888 To: "Timothy R. Johnson" <[email protected]> Subject: RE: Review of AboCom Systems Inc., FCC ID: MQ4WB1K5 Revised for recent uploads Page 1 of 1In 10/29/2002Printed for "Timothy R. Johnson" <[email protected]>

Dear Sir, Our response as following: 1. Please see the test report on the page 16. 4. Please see the attachment.(Confirmation Letter) 5. Please see the attachment.(LableLocation) Thanks a lot. Ellie([email protected]) -----Original Message----- From: Timothy R. Johnson [mailto:[email protected] ] Sent: Thursday, October 17, 2002 12:36 PM To: [email protected] Subject: Review of AboCom Systems Inc., FCC ID: MQ4WB1K5 Revised for recent uploads Ellie, Attached are comments regarding review of this application. Please provide information as soon as possible. Thank You, Timothy R. Johnson, NARTE Certified EMC Engineer (No. EMC-002205-NE) Examining Engineer American TCB, Inc. 6731 Whittier Ave. McLean, VA 22101 email: [email protected] alternate email: [email protected] direct number: 404-414-8071 corporate phone: 703-847-4700 corporate fax: 703-847-6888 (WB1500)Confirmatin Letter.pdf (WB1500)LabelLoc -2002-10-24update.pdf (WB1500)TestRpt-2002-10-24update.pdf To: "Timothy R. Johnson" <[email protected]> Subject: RE: Review of AboCom Systems Inc., FCC ID: MQ4WB1K5 Revised for recent uploads Page 1 of 1In 10/29/2002Printed for "Timothy R. Johnson" <[email protected]>
























AboCom FCC ID.: MQ4WB1K5 1F, No. 21, R&D Road II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886 3 578-9090 Fax: 886 3 578-9520 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. WLAN PC Card Model No.: WB1500 F F C C C C I I D D : : M M Q Q 4 4 W W B B 1 1 K K 5 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan WLAN PC Card AboCom Model No.: WB1500 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan











































































     !"!##$%&'() *+!(, *+ + -* , . (% %. /
 /


01"%"2345
  $ / .//
*    6 .
7
 %
 %"08,

.
'.
$%4 8*&
&
(/

Report No. 022H059FI Page: 14 of 47 Version:1.0 4. RF Exposure Evaluation According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz 4.1. Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 4.2. EUT Operation condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Report No. 022H059FI Page: 15 of 47 Version:1.0 4.3. Test Result of RF Exposure Evaluation Product : WLAN PC Card Test Item : RF Exposure Evaluation Data Test Site : No.1 OATS Test Mode : Normal Operation 4.3.1 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1dBi or 1.26 in linear scale. 4.3.2 Output Power Into Antenna & RF Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Power to Antenna (mW) Minimum Allowable Distance ® From Skin(cm) 1 (1Mbps) 2413.10 11.67 1.08 1 (11Mbps) 2413.20 12.56 1.12 6 (1Mbps) 2437.90 10.72 1.04 6 (11Mbps) 2438.20 10.91 1.05 11 (1Mbps) 2463.00 8.75 0.94 11 (11Mbps) 2463.20 8.77 0.94 The distance r (4 th column) calculated from the Friis transmission formula is far shorter than 20 cm separation requirement. So, RF exposure limit warning or SAR test are not required.

Report No. 022H059FI Page: 1 of 47 Version:1.0 Test Report Product Name : WLAN PC Card Model No. : WB1500 FCC ID.: MQ4WB1K5 Applicant : AboCom Systems, Inc. Address : 1F, No. 21, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : Feb. 22, 2002 Date of Test : Mar. 14, 2002 Report No. : 022H059FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 022H059FI Page: 3 of 47 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................5 1.3. Tested System Details....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment List.......................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................12 3.1. Test Equipment............................................................................................................................12 3.2. Test Setup ....................................................................................................................................12 3.3. Test Condition .............................................................................................................................12 3.4. Minimum Standard......................................................................................................................12 3.5. Test Result of Peak Power Output...............................................................................................13 4. RF Exposure Evaluation ...........................................................................................................14 4.1. Friis Formula ...............................................................................................................................14 4.2. EUT Operation condition ............................................................................................................14 4.3. Test Result of RF Exposure Evaluation.......................................................................................15 5. Radiated Emission .....................................................................................................................16 5.1. Test Equipment............................................................................................................................16 5.2. Test Setup ....................................................................................................................................16 5.3. Test Condition .............................................................................................................................17 5.4. Limits ..........................................................................................................................................17 5.5. Test Procedure .............................................................................................................................18 5.6. Test Result of Radiated Emission................................................................................................19 6. Band Edge ..................................................................................................................................31 6.1. Test Equipment............................................................................................................................31 6.2. Test Setup ....................................................................................................................................31 6.3. Test Condition .............................................................................................................................32 6.4. Standard Reqirement ...................................................................................................................32 6.5. Test Result of Band Edge ............................................................................................................33 7. Occupied Bandwidth .................................................................................................................37 7.1. Te…

Text truncated - open the document above for the full version.
