MQ4WB2550802.11b Wireless LAN CardBus PC Card

Doc. No.: 022103-02 802.11b Wireless LAN CardBus PC Card User Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the distance between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. CAUTION: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Regulatory statement (R&TTE / WLAN IEEE 802.11b) European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. CE Declaration of Conformity For the following equipment: 802.11b Wireless LAN CardBus PC Card Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: z EN 300 328-2 V1.2.1 (2001) z EN 301 489-1 V.1.3.1 (2001-09) / EN 301 489-17 V.1.1.1 (2000-09) z EN 50371: 2002 z EN 60950: 2000 Table of Contents INTRODUCTION...................................................................................... 1 FEATURES................................................................................................. 1 WIRELESS NETWORK OPTIONS................................................................. 2 The Peer-to-Peer Network............................................................ 2 The Access Point Network ........................................................... 3 LED INDICATORS..................................................................................... 3 Link: Green (On/Off) ................................................................... 3 Act: Orange (Blink)...................................................................... 3 INSTALLATION ....................................................................................... 4 INSTALL THE DEVICE................................................................................ 4 INSTALL THE DRIVER................................................................................ 4 In Windows 98 ............................................................................. 4 In Windows ME ........................................................................... 7 In Windows 2000 ......................................................................... 9 In Windows XP .......................................................................... 11 Verify ......................................................................................... 13 INSTALL THE UTILITY............................................................................. 14 NETWORK CONNECTION .................................................................. 16 IN WINDOWS 98/ME............................................................................... 16 I N WINDOWS 2000/XP............................................................................ 19 CONFIGURATION................................................................................. 22 ACCESSING THE CONFIGURATION UTILITY............................................. 22 Config Tab ................................................................................. 24 Advanced Config Tab ................................................................ 27 Status Tab................................................................................... 30 Statistics Tab .............................................................................. 31 About Tab .................................................................................. 32 Exit Tab...................................................................................... 33 UNINSTALLATION ............................................................................... 34 UNINSTALL THE UTILITY........................................................................ 34 UNINSTALL THE DRIVER......................................................................... 36 SPECIFICATIONS.................................................................................. 37 - 1 - INTRODUCTION The 802.11b Wireless 32bit CardBus PC Card is a high-speed 11 Megabits per second (Mbps) Ethernet wireless network adapter that plugs into any CardBus enabled PC. Once connected with other networked PC’s, it allows you to share hard disk drives, DVD drives, CD drives, printers, a…

Text truncated - open the document above for the full version.

1. Block diagram 2. Theory of operation 3. Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

WB2550 802.11b Wireless LAN CardBus PC Card Antenna Gain: 1 to 2 dBi (Max) 1. Rotate Plane : X-Y plane 0 45 90 135 180 225 270 315 0 0 -10 -10 -20 -20 -30 -30 -40 2. Rotate Plane : Y-Z plane X Z Y WB2550 802.11b Wireless LAN CardBus PC Card 0 45 90 135 180 225 270 315 0 0 -10 -10 -20 -20 -30 -30 -40 3. Rotate Plane : X-Z plane 0 45 90 135 180 225 270 315 0 0 -10 -10 -20 -20 -30 -30 -40

From: [email protected] Sent: Tuesday, November 25, 2003 7:15 PM To: Steve Cheng Cc: [email protected]; Mike Kuo; [email protected]; [email protected] Subject: ??: RE: AboCom TCB submission.. (CCS Assessment#: AN03T3425) Hi, Steve, Please find our replies below, based on the comment you'd released days before. Q1, We have check the ID shown on the label, report, even the Form731 at the server but seems no non-compliance among each other. Should you have any other comment, please let us know... Q2, The issue on the user manual is fixed by removing the "selectable", the final user manual is attached. For the issue on the P.27, the pop-up window shown is one of the function of the configuration utility and available while using the Ad hoc mode. Such utility is bundled with the product and will only be provided to the user with the approximate version to ensure the access will be complied with the limitation on the channel selection. Q3, No... This is confirmed with the AboCom and they said such function is an option and only be available with the appropriate channel. Q4, The offset have been taken in account and all our modification have been included into the report attached this time, please have it reviewed. Q5, The factor including the following item: antenna factor, cable loss and amplifier gain. FYI.. Since this job have a deadline on 11/26, would you please issue us the grant if none of any other issue should be found.. Thanks very much.. Thank you!! Should you have any question, please don't hesitate to ask me. Best regards, Eric Wong Compliance Certification Services Inc. (Formerly C&C Laboratory Co., Ltd.) Tel.: +886-3-3240332 Ext.49 Add.: No.81-1, Lane 210, Ba-de 2nd Rd., Luchu Hsiang, Taoyuan Hsien 338, Taiwan, R.O.C. Email: [email protected] URL: http://www.ccsemc.com.tw -------------------------------------------------------------------------------- Steve Cheng <[email protected]> 2003/11/21 07:16 AM &#25910;&#20214;&#20154;&#65306; "'[email protected]'" <[email protected]> &#21103;&#26412;&#25220;&#36865;&#65306; Mike Kuo <[email protected]>, [email protected], [email protected], [email protected] &#20027;&#26088;&#65306; RE: AboCom TCB submission.. (CCS Assessment#: AN03T3425) RT for project: AN03T3425 AboCom WQ4WB2550<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /> Subject: Question #1: ID shown on the sample label does not matching the filling FCC ID please correct. Question #2: Users manual P37 indicated that this device is capable of operating on channel 1 to 14 and p27 shown channel is selectable from a popup window, does it including the channel 14 which is for Japan regulatory domain? Question #3: Is there any means for US user to change their regulatory domain to other country or it is factory fixed to US channel only for US model and is not selectable by end user? Question #4: Test report p18, Please clarify if proper antenna, cable, amplifier and filter factor have been considered in the test plots. Test plot does not show any offset value. Question #5: It is not clear that what were included in the correction factor for radiated spurious emission measurement and how it was calculated. Please clarify. Best Regards Steve Cheng / TCB Technical Reviewer Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 Tel:(408) 463-0885 x: 119 Fax:(408) 463-0888 [email protected] http:\\www.ccsemc.com -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, November 19, 2003 11:00 PM To: [email protected]; [email protected] Cc: [email protected]; [email protected]; [email protected]; [email protected] Subject: AboCom TCB submission.. (CCS Assessment#: AN03T3425) Hi, Mike and Steve, We have submitted a TCB submission last Friday about the AboCom WB-2550 WLAN PC Card, with the assessment# AN03T3425. Would you please kindly have us reviewed in a priority manner since our client quotes that the deadline of the grant is Nov 24, as shown on the following email... Thank you and sorry if it's bothering you all.. Thanks again.. Should you have any question, please don't hesitate to ask me. Best regards, Eric Wong Compliance Certification Services Inc. (Formerly C&C Laboratory Co., Ltd.) Tel.: +886-3-3240332 Ext.49 Add.: No.81-1, Lane 210, Ba-de 2nd Rd., Luchu Hsiang, Taoyuan Hsien 338, Taiwan, R.O.C. Email: [email protected] URL: http://www.ccsemc.com.tw -------------------------------------------------------------------------------- ----- &#36681;&#21576;&#32773; eric/ccsemc &#26044; 2003/11/20 02:44 PM ----- mandy 2003/11/20 02:37 PM &#25910;&#20214;&#20154;&#65306; eric/ccsemc@ccsemc &#21103;&#26412;&#25220;&#36865;&#65306; rita_hsiao/ccsemc@ccsemc, skang/ccsemc@ccsemc &#20027;&#26088;&#65306; &#22238;&#20449;&#65306; &#21451;&#26106;TCB..&#36899;&#32080; Dear Eric. Abocom 's project WB-2550 is urgent. The Abocom need to get TCB and CAB certificate before Nov 24. They need to provide certificate to their customer. Please push it. Thanks a lot! Regards, Mandy

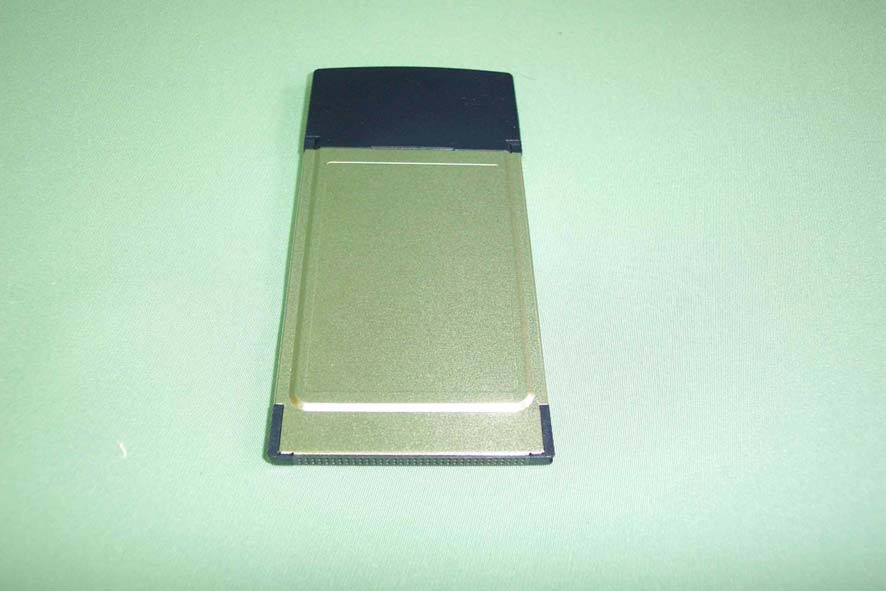

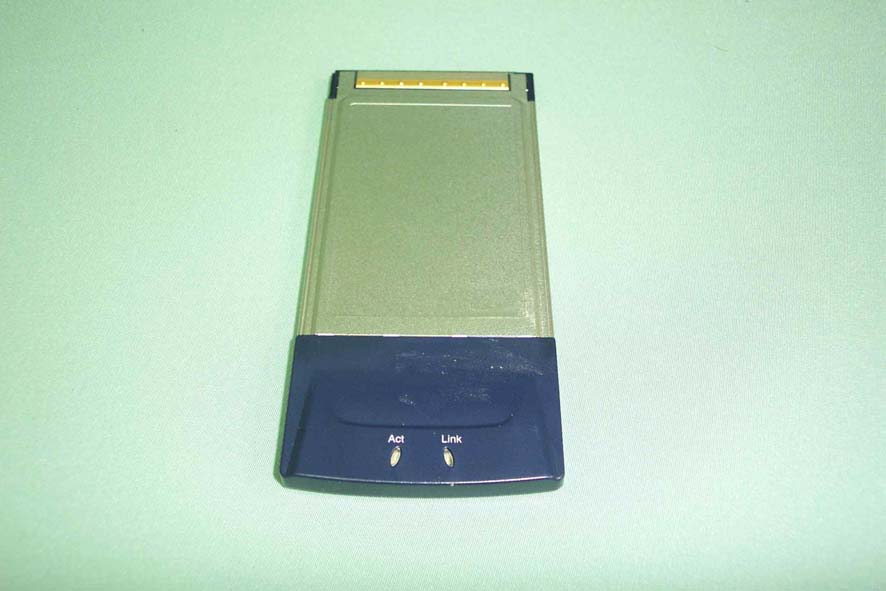

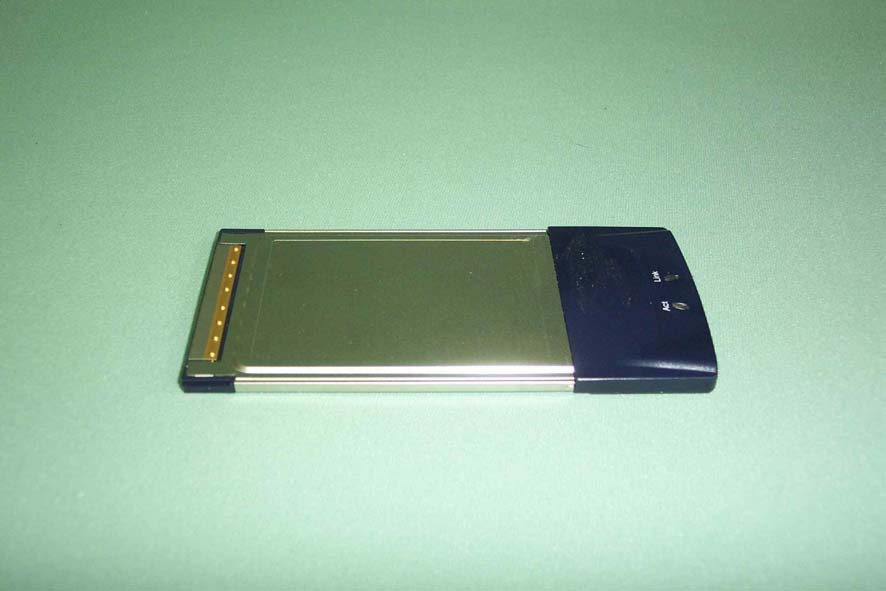

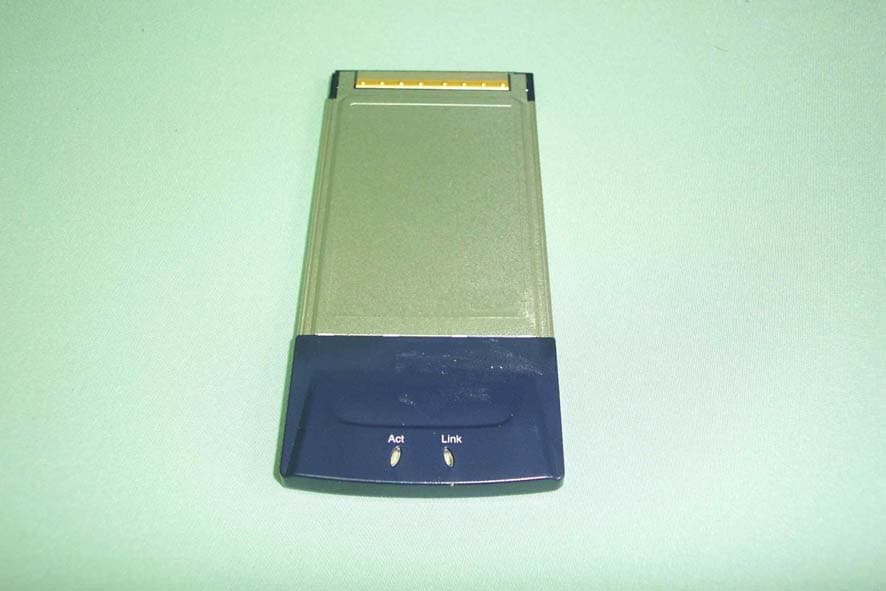

Compliance Certification Services Inc. Report No: B31104206 Page 1 of 4 EXTERNAL PHOTOGRPHS OF EUT EUT --- 1 EUT --- 2 Compliance Certification Services Inc. Report No: B31104206 Page 2 EUT --- 3 EUT --- 4

Label Location

Compliance Certification Services Inc. Report No: B31104206 Page 3 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B31104206 Page 4 Internal of EUT --- 3

Compliance Certification Services Inc. Report No: B31104206-SAR-FCC FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 23 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C For AboCom Systems, Inc. 802.11b Wireless LAN CardBus PC Card Model: WB2550 Trade Name: AboCom Prepared for AboCom Systems, Inc. 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B31104206-SAR-FCC FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 2 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: November 12, 2003 AboCom System Inc. 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Applicant: Taiwan , R.O.C. Brand/Model: AboCom / WB2550 FCC ID: MQ4WB2550 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 15.28 dBm Max. SAR (1g): 0.222 mW/g Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Jonson Lee / Director Miro Chueh / Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B31104206-SAR-FCC FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2. SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................12 6. EXPOSURE LIMIT ..................................................................................................................13 7. MEASUREMENT RESULTS..................................................................................................14 7.1. SYSTEM PERFORMANCE CHECK..............................................................................14 7.2. TEST LIQUID CONFIRMATION...................................................................................15 7.3. EUT TUNE-UP PROCEDURES......................................................................................16 7.4. SAR MEASUREMENTS RESULTS...............................................................................17 8. EUT PHOTOS ...........................................................................................................................20 9. EQUIPMENT LIST & CALIBRATION STATUS................................................................21 10. REFERENCES ..........................................................................................................................22 11. ATTACHMENTS......................................................................................................................23 Compliance Certification Services Inc. Report No: B31104206-SAR-FCC FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 4 1. EUT DESCRIPTION AboCom System Inc. 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Applicant: Taiwan , R.O.C. Brand/Model: AboCom /WB2550 FCC ID: MQ4WB2550 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 15.28 dBm Max. SAR (1g): 0.222 mW/g Application Type: Certification FCC Rule Part(s): 15 Subpart c Antennas: Main: Manufactured by AboCom, Mono pole (Mount on PCB) type. Aux: Manufactured by AboCom, Mono pole (Mount on PCB) type. Host Type Laptop PC Brand Name IBM P/N 2662-FMT S/N FX-DY796 Compliance Certification Services Inc. Report No: B31104206-SAR-FCC FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an unco…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31104206-RP FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 44 FCC 47 CFR PART 15 SUBPART C TEST REPORT For AboCom Systems, Inc. 802.11b Wireless LAN CardBus PC Card Model: WB2550 Trade Name: AboCom Prepared for AboCom Systems, Inc. 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B31104206-RP FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES................................................................................................................................. 8 5.2 EQUIPMENT................................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING........................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SUPPORT EQUIPMENT............................................................................................................... 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 6DB BANDWIDTH...................................................................................................................... 11 7.2 PEAK POWER............................................................................................................................. 14 7.3 BAND EDGES MEASUREMENT ......................................................................................... 17 7.4 PEAK POWER SPECTRAL DENSITY............................................................................................. 22 7.5 RADIO FREQUENCY EXPOSURE................................................................................................. 25 7.6 SPURIOUS EMISSIONS.......................................................................................................... 26 7.7 POWERLINE CONDUCTED EMISSIONS........................................................................................ 39 Compliance Certification Services Inc. Report No: B31104206-RP FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: AboCom Systems, Inc. 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Equipment Under Test: 802.11b Wireless LAN CardBus PC Card Trade Name: AboCom Model: WB2550 Model Difference N/A Report Number: B31104206-RP Date of Test: November 6 ~ 12, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B31104206-RP FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 4 2. EUT DESCRIPTION Product 802.11b Wireless LAN CardBus PC Card Trade Name AboCom Model Number WB2550 Model Discrepancy N/A Power Supply Powered by the Notebook PC’s PCMCIA slot Frequency Range 2412 ~ 2462 MHz Transmit Power 15.23 dBm Modulation Technique DSSS (CCK; DQPSK; DBPSK) Antenna Gain 2 dBi (Max) Antenna Designation Two Patch Antennas Note: This submittal(s) (test report) is intended for FCC ID: MQ4WB2550 filing to comply with Section 15.247 of the FCC Part 15, Subpart C Rules. The composite system (digital device) is compliance with Subpart B (if any) is authorized under a DoC procedure. Compliance Certific…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31104206-RP FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 43 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B31104206-RP FCC ID: MQ4WB2550 Date of Issue: November 13, 2003 Page 44 Conducted Emission Set Up Photos
