MQ4WB2K5802.11b Wireless CardBus PC Card

Doc. No.: 022103-02 WB2500 802.11b Wireless CardBus PC Card User Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Z Reorient or relocate the receiving antenna. Z Increase the distance between the equipment and receiver. Z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. CAUTION: 1) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. 2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Table of Contents INTRODUCTION...................................................................................... 1 FEATURES................................................................................................. 1 WIRELESS NETWORK OPTIONS................................................................. 2 The Peer-to-Peer Network............................................................ 2 The Access Point Network........................................................... 3 LED INDICATORS..................................................................................... 3 Link: Green (On/Off)................................................................... 3 Act: Orange (Blink)...................................................................... 3 INSTALLATION....................................................................................... 4 INSTALL THE DEVICE................................................................................ 4 INSTALL THE DRIVER................................................................................ 4 In Windows 98............................................................................. 4 In Windows ME........................................................................... 7 In Windows 2000......................................................................... 9 In Windows XP.......................................................................... 11 Verify......................................................................................... 13 INSTALL THE UTILITY............................................................................. 14 NETWORK CONNECTION.................................................................. 16 IN WINDOWS 98/ME............................................................................... 16 I N WINDOWS 2000/XP............................................................................ 19 CONFIGURATION................................................................................. 22 ACCESSING THE CONFIGURATION UTILITY............................................. 22 Config Tab................................................................................. 23 Advanced Config Tab................................................................ 26 Status Tab................................................................................... 28 Statistics Tab.............................................................................. 29 About Tab.................................................................................. 30 Exit Tab...................................................................................... 31 UNINSTALLATION............................................................................... 32 UNINSTALL THE UTILITY........................................................................ 32 UNINSTALL THE DRIVER......................................................................... 34 SPECIFICATIONS.................................................................................. 35 - 1 - INTRODUCTION The 802.11b Wireless 32bit CardBus PC Card is a high-speed 11 Megabits per second (Mbps) Ethernet wireless network adapter that plugs into any CardBus enabled PC. Once connected with other networked PC’s, it allows you to share hard disk drives, DVD drives, CD drives, printers, and the likes. It also provides shared access to a modem for Internet access. Based on radio frequency (RF) technology, a wireless LAN transmits and receives data over the air, along with the guarantee to provide privacy and noninterference by the use of separate radio frequency. The 802.11b Wireless 32bit CardBus PC Card allows you to take full advantage of your PC’s mobility with access to real-time information and online services anytime and anywhere. Plus, with the network installation simplicity and flexibility, you can eliminate the need to pull cable through walls and ceilings and allow the network to go where wires cannot go. Exploring WWW and augmenting networks can never be done more easily. Features ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Complies with IEEE 802.11b standard for 2.4GHz Wireless LAN Complies with PC Card standard Supports PC Card h…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 802.11b Wireless CardBus PC Card MODEL NO: WB2500 TRADE NAME: AboCom IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920124H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： Manufacturer USA Local Representative Company name: AboCom Systems, Inc. To Be Determined. Address: 300 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C Contact Person: Virginia Lin Title: PM/ R&D LAN Dept Tel/Fax: Tel: 886-3-5789090 Fax: 886-3-5789520

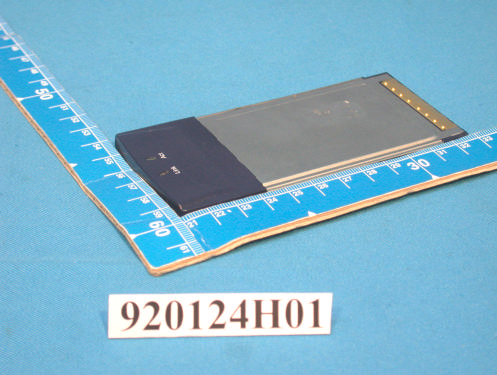

Page 1 CONSTRUCTION PHOTOS OF EUT

WB2500 Label <Location> <Format> Label Bottom Case

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: MQ4WB2K5 ADT No.920124H01 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Patch Antenna. There is no antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: MQ4WB2K5 Report No.: SA920124H011Issued: Feb. 24 th 2003 SAR TEST REPORT REPORT NO.: SA920124H01 MODEL NO.: WB2500 RECEIVED: Feb. 19, 2003 TESTED: Feb. 20, 2003 APPLICANT: AboCom Systems, Inc. ADDRESS: 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Tawain R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: MQ4WB2K5 Report No.: SA920124H012Issued: Feb. 24 th 2003 Table of Contents 1.CERTIFICATION.........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1GENERAL DESCRIPTION OF EUT.............................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS.................................................4 2.3GENERAL INOFRMATION OF THE SAR SYSTEM.......................................................5 2.4GENERAL DESCRIPTION OF THE PROBE SCAN RULE.............................................6 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.........................................6 4.DESCRIPTION OF SUPPORT UNITS..........................................................................6 5.TEST RESULTS..........................................................................................................6 5.1TEST PROCEDURES.................................................................................................6 5.2MEASURED SAR RESULT..........................................................................................6 5.3SAR LIMITS................................................................................................................6 5.4EUT CONDUCTED POWER VARIATION.....................................................................6 5.5TISSUE......................................................................................................................6 5.6TEST EQUIPMENT FOR TISSUE PROPERTY.............................................................6 6.SYSTEM VALIDATION................................................................................................6 7.MEASUREMENT UNCERTAINTIES.............................................................................6 8.INFORMATION ON THE TESTING LABORATORIES....................................................6 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: MQ4WB2K5 Report No.: SA920124H013Issued: Feb. 24 th 2003 1. CERTIFICATION PRODUCT : 802.11b Wireless CardBus PC Card MODEL NO. : WB2500 BRAND NAME : AboCom APPLICANT : AboCom Systems, Inc. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 20 th Feb. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: MQ4WB2K5 Report No.: SA920124H014Issued: Feb. 24 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 802.11b Wireless CardBus PC Card MODEL NO. WB2500 POWER SUPPLY 3.3VDC powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 43.85mW ANTENNA TYPE Patch Antenna PEAK SAR 0.612W/kg DATA CABLE NA I/O PORTS PCMCIA ASSOCIATED DEVICES NA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. FCC ID: MQ4WB2K5 Report No.: SA920124H015Issued: Feb. 24 th 2003 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY3 (software 3.1d) consists of high precision robtics system, probe alignment sensor, phantom, robot controller, controlled PC and near-field probe. The robot includes six axis that can move to the precision position of the DASY3 software defined. The DASY3 software can define the area which is detected by the probe. The robot is connected to controlled box. Controlled PC is connected to the controlled robot box. The DAE includes amplifier, signal multiplexing, AD converter, offset measurement, surface detection. It is connected to the Electro-optical coupler (ECO). The ECO performs the conversion form the optical into digital electric signal of the DAE and transfers data to the PC. ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static charges. PEEK enclosure material (resistant to organic solvents, e.g., glycolether). Calibration Basic Broad Band Calibration in air: 10-2500 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 CF-Calibration for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe ax…

Text truncated - open the document above for the full version.

FCC ID: MQ4WB2K5 Report No.: RF920124H011Issued: Mar. 03, 2003 ADT No.: 920124H01 FCC TEST REPORT REPORT NO.: RF920124H01 MODEL NO.: WB2500 RECEIVED: Jan. 24, 2003 TESTED: Jan. 28 to Feb. 19, 2003 APPLICANT: AboCom Systems, Inc. ADDRESS: 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MQ4WB2K5 Report No.: RF920124H012Issued: Mar. 03, 2003 ADT No.: 920124H01 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1TEST INSTRUMENTS.............................................................................................9 4.1.2TEST PROCEDURES...........................................................................................10 4.1.3DEVIATION FROM TEST STANDARD...............................................................10 4.1.4TEST SETUP..........................................................................................................11 4.1.5EUT OPERATING CONDITIONS........................................................................11 4.1.6TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4DEVIATION FROM TEST STANDARD...............................................................20 4.2.5TEST SETUP..........................................................................................................21 4.2.6EUT OPERATING CONDITIONS........................................................................21 4.2.7TEST RESULTS......................................................................................................22 4.36dB BANDWIDTH MEASUREMENT..................................................................26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................26 4.3.2TEST INSTRUMENTS...........................................................................................26 4.3.3TEST PROCEDURE..............................................................................................27 4.3.4DEVIATION FROM TEST STANDARD...............................................................27 4.3.5TEST SETUP..........................................................................................................27 4.3.6EUT OPERATING CONDITIONS........................................................................27 4.3.7TEST RESULTS......................................................................................................28 4.4MAXIMUM PEAK OUTPUT POWER..................................................................32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............32 4.4.2TEST INSTRUMENTS...........................................................................................32 4.4.3TEST PROCEDURES...........................................................................................33 FCC ID: MQ4WB2K5 Report No.: RF920124H013Issued: Mar. 03, 2003 ADT No.: 920124H01 4.4.4DEVIATION FROM TEST STANDARD...............................................................33 4.4.5TEST SETUP..........................................................................................................33 4.4.6EUT OPERATING CONDITIONS........................................................................33 4.4.7TEST RESULTS......................................................................................................34 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................35 4.5.2TEST INSTRUMENTS...........................................................................................35 4.5.3TEST PROCEDURE..............................................................................................36 4.5.4DEVIATION FROM TEST STANDARD...............................................................36 4.5.5TEST SETUP..........................................................................................................36 4.5.6EUT OPERATING CONDITIONS........................................................................36 4.5.7TEST RESULTS...................................................................…

Text truncated - open the document above for the full version.

FCC ID: MQ4WB2K5 Report No.: RF920124H0146Issued: Mar. 03, 2003 ADT No.: 920124H01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MQ4WB2K5 Report No.: RF920124H0147Issued: Mar. 03, 2003 ADT No.: 920124H01 RADIATED EMISSION TEST
