MQ4WCM5202Mini PCI Module

802.11g MIMO Wireless LAN Mini PCI Card OEM Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. CAUTION 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Agency in the United States of America: Company Name: Xterasys Corporation Tel: 909-590-0600 Fax: 909-590-0388 Address: 4711 CHINO AVE. CHINO, CA91710 USA Table of Contents INTRODUCTION...................................................................................................1 WIRELESS NETWORK OPTIONS...............................................................................1 The Peer-to-Peer Network.........................................................................1 The Access Point Network........................................................................2 INSTALLATION....................................................................................................3 INSTALL THE DEVICE..............................................................................................3 INSTALL THE DRIVER & UTILITY............................................................................3 Verify Device Installation..........................................................................6 CONFIGURATION................................................................................................7 ACCESSING THE CONFIGURATION UTILITY..............................................................7 PROFILE TAB..........................................................................................................8 LINK STATUS........................................................................................................13 SITE SURVEY........................................................................................................13 STATISTICS...........................................................................................................15 ADVANCED..........................................................................................................15 ABOUT.................................................................................................................16 UNINSTALLATION.............................................................................................18 - 1 - INTRODUCTION The 802.11g Wireless LAN PCI Card is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. - 2 - You can also use one computer as an Internet Server to connect to a wired global network and share files and information with other computers via a wireless LAN. The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With Wireless LAN Cards, you can connect wireless LAN to a wired global network via an Access Point. - 3 - INSTALLATION Install the device 1. Make sure the computer is turned off. Remove the expansion slot cover from the computer. 2. Carefully slide the MIMO Wireless LAN Mini PCI Card into the mini PCI slot. Push evenly and slowly and ensure it is properly seated. 3. After the device has been connected to your computer, turn on your computer. Windows will detect the new hardware and then automatically copy all of the files needed for networking. Note for Windows 98 users…

Text truncated - open the document above for the full version.

FCC ID: MQ4WCM5202 Date: May 29, 2006 Modular Approval Request Letter Dear Sir, There’s an802.11 g MIMO Wireless LAN Mini PCI card that would like to have your authorization as a modular approval. The specific product as below, 802.11 g MIMO Wireless LAN Mini PCI card, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company : AboCom System, Inc. Model Name : 802.11 g MIMO Wireless LAN Mini PCI card Model Number : WCM5202 FCC ID : MQ4WCM5202 Requirement of Public Notice DA00-1407 Reference to WCM5202 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip RT2661. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the WCM5202. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The WCM5202 meets the FCC antenna requirements. It has a unique connector. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The WCM5202 was tested in a stand-alone configuration via a PCMCIA extender. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of WCM5202 is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The WCM5202 is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The WCM5202 comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Jerry Liu Supervisor Intertek Testing Service Taiwan Ltd.

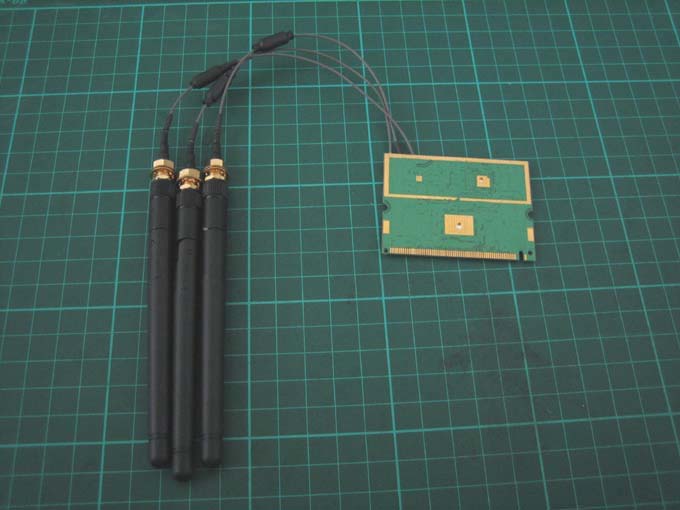

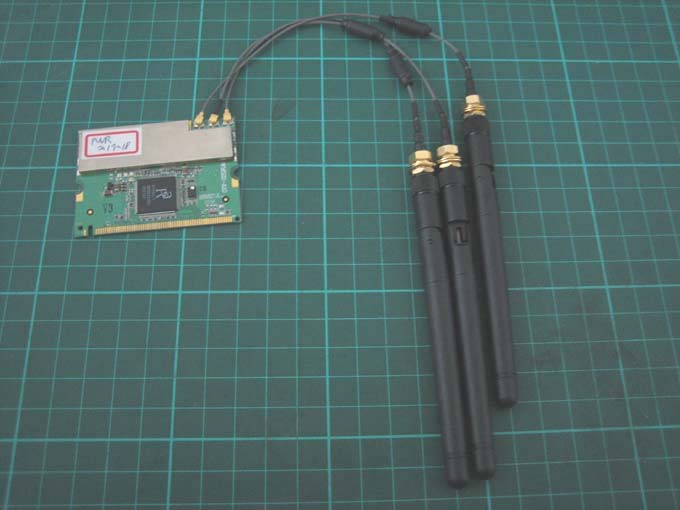

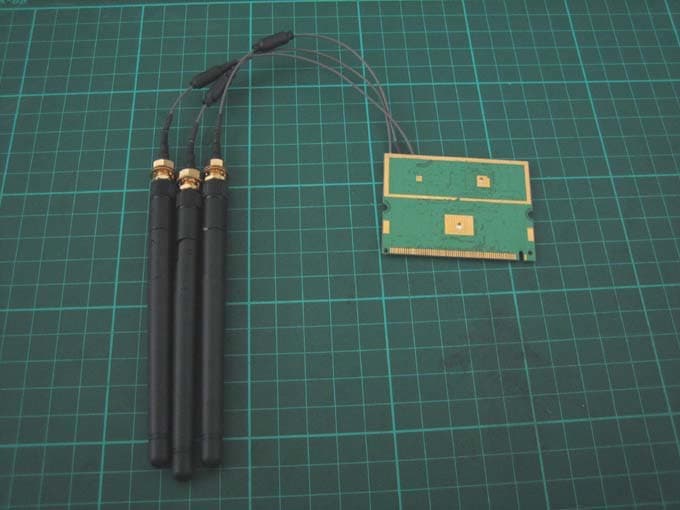

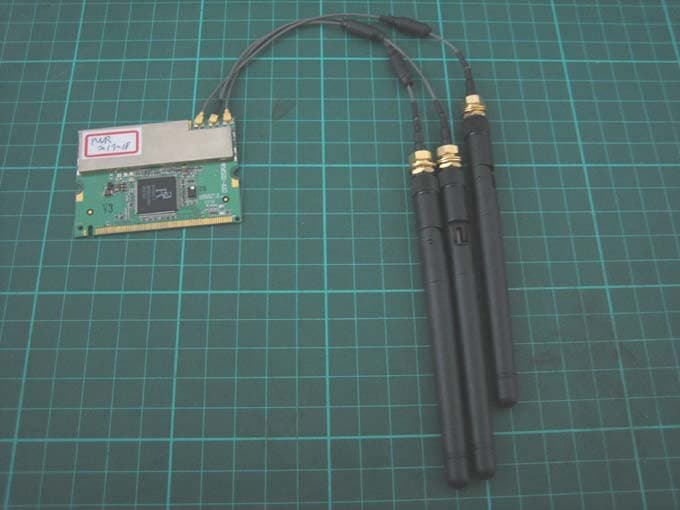

Photo 1: External photo of EUT WCM5202 Photo 2: External photo of EUT WCM5202 Photo 3: External photo of EUT WCM5202

FCC ID Label Location 33mm 15mm

Photo 1: Internal photo of EUT WCM5202 Photo 2: Internal photo of EUT WCM5202

FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-060572 Model No. : WCM5202 Issued Date : May 29, 2006 Applicant : AboCom System, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 43 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 2 of 5 FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Product Name-Model: WCM5202 FCC ID: MQ4WCM5202 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The EUT operates in the 2.4GHz ISM band. The EUT (antenna included) is compliant with modular approval and the normal operation distance (after installing in other device, such as router or access point), 20cm from the human body; therefore, the EUT is defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 5 of 5 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b(DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 63.53 0.0200323 1.0 6 (middle) 2437 1.58 74.99 0.0236445 1.0 11 (highest) 2462 1.58 76.03 0.0239734 1.0 Test Mode: 802.11g(OFDM Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 282.49 0.0890697 1.0 6 (middle) 2437 1.58 297.17 0.0936980 1.0 11 (highest) 2462 1.58 293.09 0.0924124 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 1 of 46 EMC TEST REPORT Report No. : EME-060572 Model No. : WCM5202 Issued Date : May 26, 2006 Applicant : AboCom System, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 46 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 2 of 46 Table of Contents Summary of Tests ..............................................................................................................4 1. General information ......................................................................................................5 1.1 Identification of the EUT ........................................................................................5 1.2 Additional information about the EUT....................................................................5 1.3 Antenna description.................................................................................................6 1.4 Peripherals equipment .............................................................................................6 2. Test specifications .........................................................................................................7 2.1 Test standard............................................................................................................7 2.2 Operation mode .......................................................................................................7 2.3 Test equipment ........................................................................................................7 3. Minimum 6dB Bandwidth test ......................................................................................8 3.1 Operating environment............................................................................................8 3.2 Test setup & procedure ............................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results ........................................8 4. Maximum Output Power test ......................................................................................15 4.1 Operating environment..........................................................................................15 4.2 Test setup & procedure ..........................................................................................15 4.3 Measured data of Maximum Output Power test results ........................................15 5. Radiated Emission test ................................................................................................16 5.1 Operating environment..........................................................................................16 5.2 Test setup & procedure ..........................................................................................16 5.3 Emission limits ......................................................................................................17 5.4 Radiated spurious emission test data.....................................................................18 5.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................18 5.4.2 Measurement results: frequency above 1GHz ...................................................19 6. Power Spectrum Density test ......................................................................................25 6.1 Operating environment..........................................................................................25 6.2 Test setup & procedure ..........................................................................................25 6.3 Measured data of Power Spectrum Density test results ........................................25 7. Emission on the band edge..........................................................................................32 7.1 Operating environment..........................................................................................32 7.2 Test setup & procedure ..........................................................................................32 7.3 Test Result .............................................................................................................33 FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 3 of 46 7.3.1 Conducted Method .............................................................................................33 7.3.2 Radiated Method ................................................................................................41 8. Power Line Conducted Emission test §FCC 15.207 ...................................................43 8.1 Operating environment..........................................................................................43 8.2 Test setup & procedure ..........................................................................................43 8.3 Emission limit .......................................................................................................44 8.4 Uncertainty of Conducted Emission .....................................................................44 8.5 Power Line Conducted Emission test data ............................................................45 FCC ID. : MQ4WCM5202 Report No.: EME-060572 Page 4 of 46 Summary of Tests 802.11 g MIMO Wireless LAN Mini PCI card -Model: WCM5202 FCC ID: MQ4WCM5202 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Pass Maximum Output Power test 15.247(b) Pass Radiated Spurious Emission test 15.205, 15.209 Pass Power Spectrum Densit…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up WCP5102 Photo 2: Conducted Emission Test Set-up WCP5102 Photo 3: Conducted Emission Test Set-up WCP5102

Photo 1: Radiated Emission Test Set-up WCM5202 Photo 2: Radiated Emission Test Set-up WCM5202
