MQ4WCM6002802.11a/b/g Wireless MiniPCI Card

802.11a/b/g Wireless LAN Mini PCI Card Quick Install Caution This Quick Installation is meant to help you install the product quickly and easily. For detailed instructions on installation, configuration, and further setup options please consult the User Manual. STEP 11 STEP 22 Software Installation Hardware Installation The main screen of the CD- ROM opens. Select Install Driver &Utility to start the installation. When the License Agreement screen appears, click Yes to accept and continue. Click Finish to complete the software installation. Exit all Windows programs. Insert the CD-ROM into the CD-ROM drive of your computer. If the CD-ROM is not launched automatically, go to your CD-ROM drive (e.g. drive D) and double-click on Setup.exe STEP 33 Installation Verification Make sure the computer is turned off. Remove the expansion slot cover from the computer. Carefully slide the Wireless mini PCI Card into the mini PCI slot. Push evenly and slowly and ensure it is properly seated. After the device has been installed to your computer, turn on your computer. Windows will detect the new hardware and then automatically copy all the files needed for networking. STEP 44 Using the Utility All settings are categorized into SIX tabs, including Profile Tab, Link Status TabSite Survey Tab, Statistics Tab, Advanced Tab and About Tab Profile Tab Click Continue Anyway to continue the software installation. To verify that the device has been properly installed in your computer and is enabled, go to Start Settings Control Panel System (Hardware) Device Manager Expand the Network adapter item, if the Wireless :AN Crad - A/B/G is listed, it means that your device is properly installed and enabled Profiles can bookkeeping your favourite wireless settings among your home, office and other public hotspot. You may save multiple profiles, and activate the correct one at your preference. Site Survey Tab The Site Survey screen displays a list of infrastructure and ad-hoc networks available for connection. Statistics Tab The Statistics screen displays the statistics on your current network settings. Advanced Tab AboutTab Link Status Tab The Link Status screen displays the Link Quality, Signal Strength and some other current linking information. The About screen dispalys the basic version information about the Configure Version, Driver Version, EEPROM Version, Firmware Version. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, theOEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following:“Contains TX FCC ID: MQ4WCM6002”. Manual Information That Must be Included The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, theantenna used for this transmitter must be installed…

Text truncated - open the document above for the full version.

Page No. : 6 Module Approval Request Letter Subject: Module Approval Date: 2006/7/7 FCC ID: MQ4WCM6002 Dear Reviewer, We, Sporton International Inc., are authorized by AboCom Systems Inc. to have their state-of-the-art 802.11a/b/g Wireless MiniPCI Card approved under limited module approval authorization. The application of this module is specified to Mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip IPC2120. 3. The requirement of power supply regulation: The part number of the power regulator is NF/REF3012AIDBZT. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Signature : Name : Wayne Hsu Job Title : Supervisor

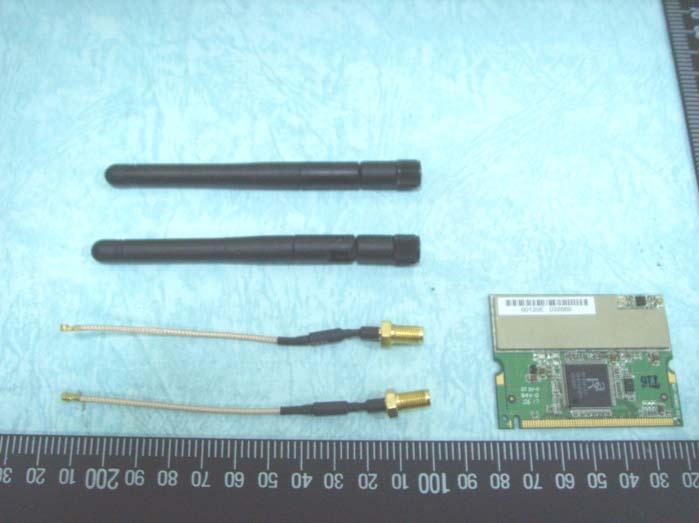

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 7, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 7, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 7, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 7, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 7, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 7, 2006 FAX : 886-2-2696-2255

Report No.: FR62212-AB FCC ID: MQ4WCM6002 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR62212-AB FCC ID: MQ4WCM6002 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR62212-AB FCC ID: MQ4WCM6002 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g : 18.80dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 18.8000 75.8578 0.023930 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a : 17.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.5 1.4125 11.9500 15.6675 0.004405 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-d FCC RADIO TEST REPORT Applicant’s company AboCom Systems, Inc Applicant Address No. 77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan, R.O.C. FCC ID MQ4WCM6002 Manufacturer’s company AboCom Systems, Inc Manufacturer Address No. 77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan, R.O.C. Product Name 802.11a/b/g Wireless MiniPCI Card Brand Name AboCom Model Name WCM6002 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Receive Date May. 21, 2006 Final Test Date Jul. 7, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR662212-AB Report Format Version: RF-15.247-2006-2-17-c Page No. : i of ii FCC ID: MQ4WCM6002 Issued Date : Jul. 7, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................13 4.3. Power Spectral Density Measurement ..............................................................................................................................................15 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................29 4.6. Band Edge Emissions Measurement .................................................................................................................................................55 4.7. Antenna Requirements .....................................................................................................................................................................65 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 66 6. SPORTON COMPANY PROFILE ........................................................................................................................ 68 6.1. Test Location.....................................................................................................................................................................................68 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS.......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 1 of 8 Appendix B. Test Photos Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 2 of 8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 3 of 8 SIDE VIEW Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 4 of 8 2. Photographs of Radiated Emissions Test Configuration Below 30MHz FRONT VIEW REAR VIEW Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 5 of 8 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 6 of 8 SIDE VIEW Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 7 of 8 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR662212 FCC ID: MQ4WCM6002 Page No. : 8 of 8 SIDE VIEW
