MQ4WCU5102High-Gain 802.11b/g Wireless USB Adapter

High-Gain 802.11b/g Wireless USB Adapter with Rotatable Connector Design WCU5102 User’s Manual FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. „ To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. „ This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter „ Testing was performed on laptop computers with antennas at 0.75mm (Stand) or 0.75mm (Lie) spacing. The maximum SAR value is: 0.562W/kg. The device must not be collocated with any other antennas or transmitters. U.S. Service Centre: Company name: Xterasys Corporation Address:4711 CHINO AVE. CHINO,CA91710 USA Contact person: Mr. Larry TEL: 909-590-0600 FAX: 909-590-0388 Table of Contents INTRODUCTION ...................................................................................................1 FEATURES..............................................................................................................1 LED INDICATORS...................................................................................................2 SOFTWARE INSTALLATION .............................................................................3 INSTALL THE DRIVER & UTILITY............................................................................3 HARDWARE INSTALLATION............................................................................8 Verification................................................................................................9 NETWORK CONNECTION ...............................................................................10 IN WINDOWS 98SE/ME........................................................................................10 IN WINDOWS 2000/XP .........................................................................................14 IP ADDRESS.........................................................................................................16 Configuration Utility .............................................................................................17 STATION MODE....................................................................................................18 Profile ......................................................................................................18 Link Status...............................................................................................24 Site Survey...............................................................................................25 Statistics...................................................................................................26 Advanced .................................................................................................27 QoS ..........................................................................................................29 About.......................................................................................................31 UTILITY MENU LIST .........................................................................................32 SOFT AP MODE....................................................................................................33 Config......................................................................................................33 Access Control.........................................................................................35 MAC Table ..............................................................................................36 Event Log ................................................................................................37 Statistics...................................................................................................38 About.......................................................................................................39 UNINSTALLATION.............................................................................................40 - 1 - INTRODUCTION The High-Gain 802.11b/g Wireless USB Adapter with Rotatable Connector Design is designed for a USB type A port of a laptop or desktop computer for creating a wireless workstation . It is USB 2.0 compliant, which connects to any available USB port on a notebook or desktop computer. The High-Gain 802.11b/g Wireless USB Adapter with Rotatable Connector Design complies with IEEE 802.11g standard that offers a data rate up to 54Mbps in a wireless LAN environment. It is backward compliant with IEEE …

Text truncated - open the document above for the full version.

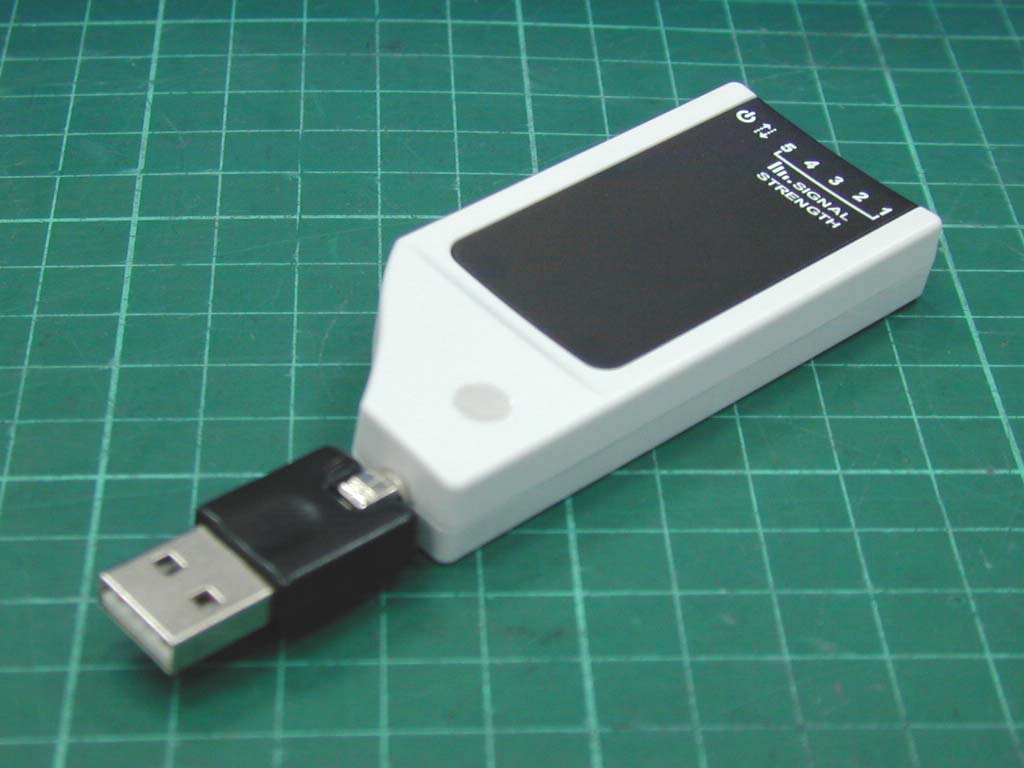

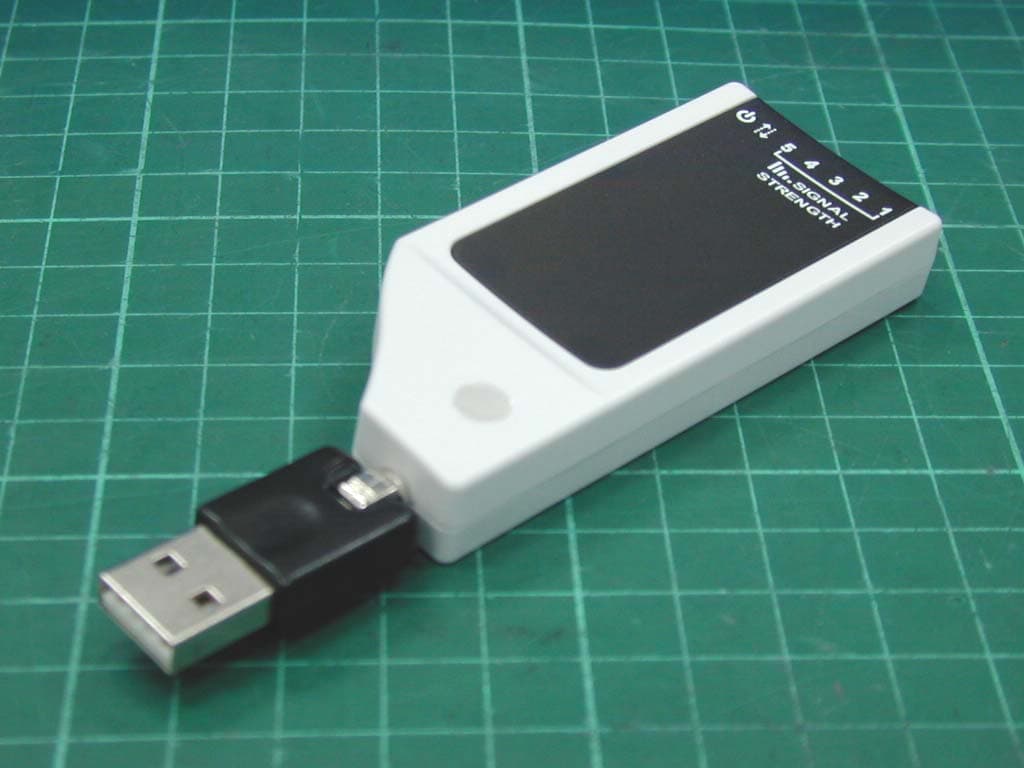

Photo 1: External photo of EUT WCU5102 Photo 2: External photo of EUT WCU5102 Photo 3: External photo of EUT WCU5102 Photo 4: External photo of EUT WCU5102 Photo 5: External photo of EUT WCU5102

FCC ID Location 25 mm 35 mm

Photo 1: Internal photo of EUT WCU5102 Photo 2: Internal photo of EUT WCU5102 Photo 3: Internal photo of EUT WCU5102 Photo 4: Internal photo of EUT WCU5102 Photo 5: Internal photo of EUT WCU5102 Photo 6: Internal photo of EUT Antenna WCU5102 Photo 7: Internal photo of EUT Antenna WCU5102

FCC ID. : MQ4WCU5102 Report No.: EME-061079 Page 1 of 78 Specific Absorption Rate (SAR) Test Report for AboCom Systems, Inc. on the High-Gain 802.11b/g Wireless USB Adapter with Rotatable Connector Design Model Number: WCU5102 Test Report: EME-061079 Issue date: Sep. 6, 2006 Total No of Pages Contained in this Report: 77 Accredited for testing to FCC Part 15 Tested by: Kevin Chen Reviewed by: Jerry Liu Review Date: Sep. 6, 2006 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. Te s t i ng L a b or a t or y 0597 FCC ID. : MQ4WCU5102 Report No.: EME-061079 Page 2 of 78 Table of Contents 1.0 General information .................................................................................................... 3 1.1 Client Information....................................................................................................... 3 1.2 Equipment under test (EUT) ....................................................................................... 4 1.3 Test plan reference ...................................................................................................... 4 1.4 Test configuration ....................................................................................................... 5 1.4.1 Support equipment & EUT antenna position ....................................................... 5 1.4.2 Test Condition ...................................................................................................... 6 1.5 Modifications required for compliance....................................................................... 6 2.0 SAR Evaluation........................................................................................................... 7 2.1 SAR Limits .................................................................................................................7 2.2 Configuration Photographs ......................................................................................... 8 2.3 SAR measurement system ........................................................................................ 15 2.4 SAR measurement system validation ....................................................................... 16 2.4.1 System Validation result ..................................................................................... 17 2.4.2 System Performance Check result...................................................................... 19 2.5 Test Result................................................................................................................. 21 3.0 Test Equipment ......................................................................................................... 23 3.1 Equipment List .......................................................................................................... 23 3.2 Tissue Simulating Liquid .......................................................................................... 24 3.2.1 Body Tissue Simulating Liquid for evaluation test ............................................ 24 3.2.2 Head Tissue Simulating Liquid for System performance Check test................. 24 3.2.3 Body Liquid results ............................................................................................ 25 3.2.4 Head Liquid results ............................................................................................ 26 3.3 E-Field Probe and 2450 Balanced Dipole Antenna Calibration ............................... 27 4.0 Measurement Uncertainty ......................................................................................... 28 5.0 WARNING LABEL INFORMATION - USA ......................................................... 30 6.0 REFERENCES.......................................................................................................... 31 7.0 Document Revision Record ...................................................................................... 32 APPENDIX A - SAR Evaluation Data ........................................................................... 33 APPENDIX B - Photographs .......................................................................................... 53 APPENDIX C - E-Field Probe and 2450MHz Balanced Dipole Antenna Calibration Data 56 FCC ID. : MQ4WCU5102 Report No.: EME-061079 Page 3 of 78 1.0 General information The device was tested at the Intertek Testing Services facility in Hsinchu, Taiwan. The maximum output power declared by the Hawking Technologies, Inc.. EUT model # WCU5102 was evaluated accordance with the requirements for compliance testing defined in FCC OET Bulletin 65, Supplement C (Edition 01-01) and meet the SAR requirement, the phantom employed was the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±20.6%, the dosimeter assessment system INDEXSAR SARA2 was used. In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Position (worst case) SAR 1g , W/kg 2mm thick box phantom wall 802.11b middle channel EUT stand perpendicular 0mm to phantom 0.562 W/kg In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65, Supplement C (Edition 01-01) for body configurations. 1.1 Client Information The WCU5102 has been tested at the request of: Applicant: AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan FCC ID. : MQ4WCU5102 Report No.: EME-061079 Page 4 of 78 1.2 Equipment under test (EUT) Product Des…

Text truncated - open the document above for the full version.

FCC ID. : MQ4WCU5102 Report No.: EME-061078 Page 1 of 43 EMC TEST REPORT Report No. : EME-061078 Model No. : WCU5102 Issued Date : Sep. 6, 2006 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 43 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Project Engineer Reviewed By Jerry Liu Kevin Chen FCC ID. : MQ4WCU5102 Report No.: EME-061078 Page 2 of 43 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT........................................................................................4 1.2 Additional information about the EUT...................................................................4 1.3 Antenna description ................................................................................................4 1.4 Peripherals equipment ............................................................................................5 2. Test specifications .........................................................................................................6 2.1 Test standard ...........................................................................................................6 2.2 Operation mode ......................................................................................................6 2.3 Test equipment........................................................................................................7 3. Minimum 6dB Bandwidth test ......................................................................................8 3.1 Operating environment ...........................................................................................8 3.2 Test setup & procedure ...........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results .......................................8 4. Maximum Output Power test ......................................................................................15 4.1 Operating environment .........................................................................................15 4.2 Test setup & procedure .........................................................................................15 4.3 Measured data of Maximum Output Power test results .......................................15 5. Radiated Emission test ................................................................................................16 5.1 Operating environment .........................................................................................16 5.2 Test setup & procedure .........................................................................................16 5.3 Emission limits .....................................................................................................18 5.4 Radiated spurious emission test data ....................................................................19 5.4.1 Measurement results: frequencies equal to or less than 1 GHz .........................19 5.4.2 Measurement results: frequency above 1GHz...................................................21 6. Power Spectrum Density test ......................................................................................27 6.1 Operating environment .........................................................................................27 6.2 Test setup & procedure .........................................................................................27 6.3 Measured data of Power Spectrum Density test results .......................................27 7. Emission on the band edge..........................................................................................34 7.1 Operating environment .........................................................................................34 7.2 Test setup & procedure .........................................................................................34 7.3 Test Result ............................................................................................................39 8. Power Line Conducted Emission test §FCC 15.207 ...................................................40 8.1 Operating environment .........................................................................................40 8.2 Test setup & procedure .........................................................................................40 8.3 Emission limit.......................................................................................................41 8.4 Uncertainty of Conducted Emission.....................................................................41 8.5 Power Line Conducted Emission test data ...........................................................42 FCC ID. : MQ4WCU5102 Report No.: EME-061078 Page 3 of 43 Summary of Tests High-Gain 802.11b/g Wireless USB Adapter with Rotatable Connector Design -Model: WCU5102 FCC ID: MQ4WCU5102 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Pass Maximum Output Power test 15.247(b) Pass Radiated Spurious Emission test 15.205, 15.209 Pass Power Spectrum Density test 15.247(e) Pass Emission on the Band Edge test 15.247(d) Pass AC Power Line Conducted Emission test 15.207 Pass FCC ID. : MQ4WCU5102 Report No.: EME-061078 Page 4 of 43 1. General information 1.1 Identification of the EUT Applicant : AboCom Systems, Inc. Product : High-Gain 802…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up WCU5102M Photo 2: Conducted Emission Test Set-up WCU5102M

Photo 1: Radiated Emission Test Set-up WCU5102 Photo 2: Radiated Emission Test Set-up WCU5102
